9
DRIVING
149
On sharp acceleration, the gear-
box will not change up unless the
driver acts on the gear lever or
the steering mounted paddles.
Never select neutral N
while the
vehicle is moving.
Only engage reverse gear R
when the vehicle is immobilised
with the brake pedal pressed.
Manual gear changing
This selective gear change mode en-
ables you to overtake, for example, while
still remaining in automatic mode.
)
Operate the +
or -
steering mounted
control paddle.
The gearbox engages the gear requested
if the engine speed permits. AUTO
is
still displayed in the instrument panel.
After a few moments without any action
on the controls, the gearbox resumes
automatic control of the gears.
At very low speed, if reverse
gear is requested, this will only
be taken into account when the
vehicle is immobilised. The Foot
on brake
warning lamp may
fl ash in the instrument panel to
prompt you to brake.
Stopping the vehicle
Before switching off the engine, you
can choose to:
- move to position N
to engage neutral,
- leave the gear engaged; in this
case, it will not be possible to move
the vehicle.
In both cases, you must apply the park-
ing brake to immobilise the vehicle.
When immobilising the vehicle,
with the engine running, you
must place the gear lever in
neutral N
.
Before carrying out any work in
the engine compartment, check
that the gear lever is in neutral N
and that the parking brake is
applied.
Operating fault
With the ignition on, the fl ashing of
AUTO
, accompanied by an audible sig-
nal and a message in the multifunction
screen, indicates a malfunction of the
gearbox.
Have it checked by a CITROËN dealer
or a qualifi ed workshop.
You must press the brake pedal
when starting the engine.
Whatever the circumstances,
you must manually apply the
parking brake when parking,
unless the parking brake is pro-
grammed in automatic mode.
Manual mode
)
When the vehicle has moved off, se-
lect position M
to change to manual
mode.
AUTO
disappears and the
gears engaged appear in suc-
cession in the instrument panel
screen.
The gear change requests are only car-
ried out if the engine speed permits.
It is not necessary to release the accel-
erator during gear changes.
When braking or slowing down, the
gearbox changes down automatically
to allow the vehicle to accelerate in the
correct gear.
Page 152 of 316
9
DRIVING
150
AUTOMATIC GEARBOX
Six speed automatic gearbox which of-
fers a choice between the comfort of
fully automatic operation, enhanced by
sport and snow programmes, or manual
gear changing.
Four driving modes are offered:
- automatic
operation for electronic
management of the gears by the
gearbox,
- sport
programme for a more dynamic
style of driving,
- snow
programme to improve driving
when traction is poor,
- manual
operation for sequential
changing of the gears by the driver.
Gear selection gate
1.
Gear lever.
2.
Button "S"
(sport)
.
3.
Button " 7
" (snow)
.
P.
Park.
- Immobilisation of the vehicle, parking
brake on or off.
- Starting the engine.
R.
Reverse.
- Reversing manoeuvres, vehicle sta-
tionary, engine at idle.
N.
Neutral.
- Immobilisation of the vehicle, parking
brake on.
- Starting the engine.
D.
Automatic operation.
M
+/-.
Manual operation with sequential
changing of the six gears.
)
Press forwards to change up through
the gears.
or
)
Press rearwards to change down
through the gears.
Gear lever
When you move the lever in the gate
to select a position, the corresponding
indicator is displayed in the instrument
panel.
P.
Park
R.
Reverse
N.
Neutral
D.
Drive (Automatic driving)
S.
Sport
programme
7
. Snow
programme
1 to 6.
Gear engaged during manual
operation
-.
Invalid value during manual operation
Displays in the instrument panel
Page 153 of 316
9
DRIVING
151

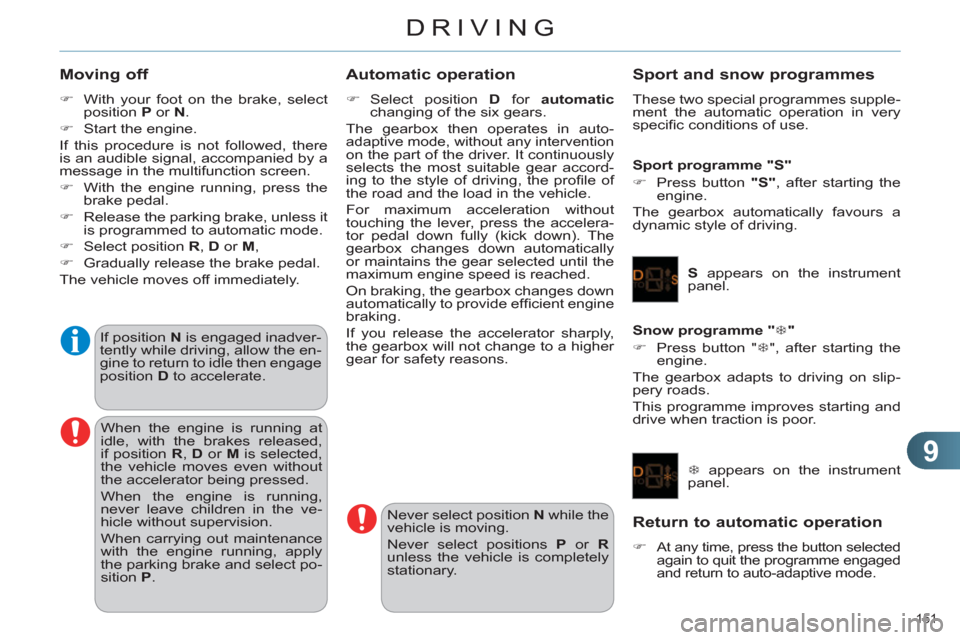

Moving off
)
With your foot on the brake, select
position P
or N
.
)
Start the engine.
If this procedure is not followed, there
is an audible signal, accompanied by a
message in the multifunction screen.
)
With the engine running, press the
brake pedal.
)
Release the parking brake, unless it
is programmed to automatic mode.
)
Select position R
, D
or M
,
)
Gradually release the brake pedal.
The vehicle moves off immediately.
If position N
is engaged inadver-
tently while driving, allow the en-
gine to return to idle then engage
position D
to accelerate.
When the engine is running at
idle, with the brakes released,
if position R
, D
or M
is selected,
the vehicle moves even without
the accelerator being pressed.
When the engine is running,
never leave children in the ve-
hicle without supervision.
When carrying out maintenance
with the engine running, apply
the parking brake and select po-
sition P
.
Automatic operation
)
Select position D
for automatic
changing of the six gears.
The gearbox then operates in auto-
adaptive mode, without any intervention on the part of the driver. It continuously
selects the most suitable gear accord-
ing to the style of driving, the profi le of
the road and the load in the vehicle.
For maximum acceleration without
touching the lever, press the accelera-
tor pedal down fully (kick down). The
gearbox changes down automatically
or maintains the gear selected until the
maximum engine speed is reached.
On braking, the gearbox changes down
automatically to provide effi cient engine
braking.
If you release the accelerator sharply,
the gearbox will not change to a higher
gear for safety reasons.
Never select position N
while the
vehicle is moving.
Never select positions P
or R
unless the vehicle is completely
stationary.
Sport and snow programmes
These two special programmes supple-
ment the automatic operation in very
specifi c conditions of use.
Sport programme "S"
)
Press button "S"
, after starting the
engine.
The gearbox automatically favours a
dynamic style of driving.
S
appears on the instrument
panel.
Snow programme " 7
"
)
Press button " 7
", after starting the
engine.
The gearbox adapts to driving on slip-
pery roads.
This programme improves starting and
drive when traction is poor.
7
appears on the instrument
panel.
Return to automatic operation
)
At any time, press the button selected
again to quit the programme engaged
and return to auto-adaptive mode.
Page 154 of 316
9
DRIVING
152
Manual operation
)
Select position M
for sequential
changing of the six gears.
)
Push the lever towards the +
sign to
change up a gear.
)
Pull the lever towards the -
sign to
change down a gear.
It is only possible to change from one
gear to another if the vehicle speed
and engine speed permit; otherwise,
the gearbox will operate temporarily in
automatic mode.
D
disappears and the gears
engaged appear in succes-
sion in the instrument panel.
If the engine speed is too low
or too high, the gear selected
fl ashes for a few seconds, then the ac-
tual gear engaged is displayed.
It is possible to change from position D
(automatic) to position M
(manual) at
any time.
When the vehicle is stationary or moving
very slowly, the gearbox selects gear M1
automatically.
The sport and snow programmes do
not operate in manual mode.
Invalid value during manual
operation
This symbol is displayed if a
gear is not engaged correctly
(selector between two posi-
tions).
Stopping the vehicle
Before switching off the engine, you
can engage position P
or N
to place the
gearbox in neutral.
In both cases, apply the parking brake
to immobilise the vehicle, unless it is
programmed to automatic mode.
If the lever is not in position P
,
when the driver's door is opened
or approximately 45 seconds af-
ter the ignition is switched off,
there is an audible signal and a
message appears.
)
Return the lever to position P
;
the audible signal stops and
the message disappears.
You risk damaging the gearbox:
- if you press the accelerator
and brake pedals at the same
time,
- if you force the lever from po-
sition P
to another position
when the battery is fl at. When the ignition is on, the
lighting of this warning lamp,
accompanied by an audible
signal and a message in the multifunction
screen, indicates a gearbox malfunction.
In this case, the gearbox switches to
back-up mode and is locked in 3rd gear.
You may feel a substantial knock when
changing from P
to R
and from N
to R
.
This will not cause any damage to the
gearbox.
Do not exceed 60 mph (100 km/h), local
speed restrictions permitting.
Have it checked by a CITROËN dealer
or a qualifi ed workshop.
This warning lamp may also come on if
a door is opened.
Operating fault
To reduce fuel consumption
when stationary for long periods
with the engine running (traffi c
jam...), position the gear lever at
N
and apply the parking brake,
unless it is programmed in auto-
matic mode.
Page 155 of 316
9
DRIVING
153
HILL START ASSIST
System which keeps your vehicle im-
mobilised temporarily (approximately
2 seconds) when starting on a gradi-
ent, the time it takes to move your foot
from the brake pedal to the accelerator
pedal.
This function is only active when:
- the vehicle is completely stationary,
with your foot on the brake pedal,
- when certain conditions of gradient
are met,
- with the driver’s door closed.
The hill start assist function cannot be
deactivated.
On an ascending slope, with the ve-
hicle stationary, the vehicle is held
for a brief moment when you release
the brake pedal:
- provided you are in fi rst gear or neu-
tral with a manual gearbox,
- provided you are in position A
or M
with the electronic gearbox system,
- provided you are in position D
or M
with an automatic gearbox.
Operation
Do not leave the vehicle while it
is being held in the hill start assist
phase.
If you need to leave the vehicle
while the engine is running, apply
the parking brake manually then
ensure that the parking brake
warning lamp is on (not fl ashing)
in the instrument panel.
On a descending slope, with the vehicle
stationary and reverse gear engaged,
the vehicle is held for a brief moment
when you release the brake pedal.
Operating fault
If a malfunction of the system occurs,
these warning lamps come on. Contact
a CITROËN dealer or a qualifi ed work-
shop to have the system checked.
Page 156 of 316
9
DRIVING
154
STOP & START
The Stop & Start system puts the en-
gine temporarily on standby - STOP
mode - during stops in the traffi c (red
lights, traffi c jams, or other...). The en-
gine restarts automatically - START
mode - as soon as you want to move
off. The restart takes place instantly,
quickly and silently.
Perfect for urban use, the Stop & Start
system reduces fuel consumption and
exhaust emissions as well as the noise
level when stationary.
Operation
Going into engine STOP mode
The "ECO"
warning lamp comes
on in the instrument panel and the
engine goes into standby:
- with a manual gearbox
, at speeds
below 12 mph (20 km/h), when you
put the gear lever into neutral and
release the clutch pedal, If your vehicle is fi tted with
the system, a time counter
calculates the sum of the pe-
riods in STOP mode during a
journey. It resets itself to zero every time
the ignition is switched on with the key.
- with the 6-speed electronic gear-
box system
, at a speed below
5 mph (8 km/h), when you press the
brake pedal or put the gear lever
into position N
. With the automatic gearbox
system, for your comfort dur-
ing parking maoeuvres, STOP
mode is not available for a few
seconds after coming out of re-
verse gear.
STOP mode does not affect the
functionality of the vehicle, such
as braking, power steering, for
example.
Special cases: STOP mode
unavailable
STOP mode is not invoked when:
- the driver's door is open,
- the driver's seat belt is not fastened,
- the vehicle has not exceeded 6 mph
(10 km/h) since the last engine start
using the key,
- the electric parking brake is applied
or being applied,
- the engine is needed to maintain a
comfortable temperature in the pas-
senger compartment,
- demisting is active,
- some special conditions (battery
charge, engine temperature, brak-
ing assistance, ambient tempera-
ture...) where the engine is needed
to assure control of a system.
In this case, the "ECO"
warning
lamp fl ashes for a few seconds,
then goes off. Never refuel with the engine in
STOP mode; you must switch off
the ignition with the key.
This operation is perfectly normal.
Page 157 of 316
9
DRIVING
155
Deactivation
Going into engine START mode
At any time, press the "ECO OFF"
switch
to deactivate the system.
This is confi rmed by the switch warn-
ing lamp coming on accompanied by a
message on the screen.
Special cases: START invoked
automatically
If the system has been deacti-
vated in STOP mode, the engine
restarts immediately. The "ECO"
warning lamp goes
off and the engine starts:
- with a manual gearbox
, when you
depress the clutch pedal,
- with the 6-speed electronic gearbox
system
:
●
gear lever in position A
or M
, when
you release the brake pedal,
●
or gear lever in position N
and the
brake pedal released, when you
move the gear lever to position A
or M
,
●
or when you engage reverse gear.
START is invoked automatically when:
- you open the driver's door,
- you unfasten the driver's seat belt,
-
the speed of the vehicle exceeds
15 mph (25 km/h) with a manual
gearbox or 7 mph (11 km/h) with the
6-speed electronic gearbox system,
- the electric parking brake is being
applied,
- some special conditions (battery
charge, engine temperature, brak-
ing assistance, ambient tempera-
ture...) where the engine is needed
to assure control of a system.
In this case the "ECO"
warning
lamp fl ashes for few seconds,
then goes off.
With a manual gearbox in STOP
mode, if a gear is engaged with-
out fully depressing the clutch
pedal, a warning lamp comes
on or a message is displayed
asking you to depress the clutch
pedal to restart the engine.
Reactivation
Press the "ECO OFF"
switch again.
The system is active again; this is con-
fi rmed by the switch warning lamp go-
ing off and a message in the instrument
panel.
The system is reactivated auto-
matically at every new start using
the key.
This operation is perfectly normal.
Page 158 of 316
9
DRIVING
156
Maintenance
In the event of a malfunction with the
system, the "ECO OFF"
switch warning
lamp fl ashes, then comes on continu-
ously.
have it checked by a CITROËN dealer
or a qualifi ed workshop.
In the event of a fault in STOP mode,
the vehicle may stall. It is then neces-
sary to switch off the ignition and start
the engine again using the key.
Operating fault
Before working under the bon-
net, deactivate the Stop & Start
system to avoid any risk of injury
resulting from automatic operation
of START mode.
This system requires a specifi c battery
with a special specifi cation and tech-
nology (reference numbers available
from a CITROËN dealer or a qualifi ed
workshop).
Fitting a battery not listed by
CITROËN introduces the risk of mal-
function of the system.
The Stop & Start system makes
use of advanced technology. All
work on this type of battery must
be done only by a CITROËN
dealer or a qualifi ed workshop.
Page 159 of 316
9
DRIVING
157
BLIND SPOT SENSORS
This driving assistance system warns
the driver of the presence of another
vehicle in the blind spot angle of their
vehicle (areas masked from the driver's
fi eld of vision), as soon as this presents
a potential danger.
Operation
)
On switching on the ignition, or en-
gine running, press this button to
activate the function; the warning
lamp comes on.
This system is designed to im-
prove safety when driving and is
in no circumstances a substitute
for the use of the interior rear
view mirror and door mirrors. It
is the driver's responsibility to
constantly check the traffi c, to
asses the distances and relative
speeds of other vehicles and
to predict their movements be-
fore deciding whether to change
lane.
The blind spot sensor system
can never replace the vigilance
and responsibility of the driver.
Sensors fi tted in the front and rear bum-
pers monitor the blind spots. A warning lamp appears in the door
mirror on the side in question:
- immediately, when being overtaken,
- after a delay of about one second,
when overtaking a vehicle slowly.
Page 160 of 316
9
DRIVING
158
No alert will be given in the following
situations:
- in the presence of stationary objects
(parked vehicles, barriers, street
lamps, road signs...),
- with vehicles moving in the opposite
direction,
- driving on a sinuous road or a sharp
corner, The alert is given by a warning lamp
which comes on in the door mirror on
the side in question as soon as a ve-
hicle - car, lorry, cycle - is detected and
the following conditions are fulfi lled:
- all the vehicles must be moving in
the same direction,
- the speed of your vehicle is between
7 and 75 mph (12 and 140 km/h),
- the difference in speed between
your vehicle and the other vehicles
must be less than 6 mph (10 km/h),
- the traffi c must be fl owing normally,
- in the case of an overtaking ma-
noeuvre, if this is prolonged and the
vehicle being overtaken remains in
the blind spot,
- you are driving on a straight or slightly
curved road,
- your vehicle is not pulling a trailer, a
caravan...
- when overtaking (or being over-
taken by) a very long vehicle (lorry,
coach...) which is at the same time
detected at the rear in the blind spot
angle and present in the driver's for-
ward fi eld of vision,
- in very heavy traffi c: vehicles detect-
ed in front and behind are confused
with a lorry or a stationary object,
- when overtaking quickly.
