Citroen C4 RHD 2011 2.G Owner's Manual

299

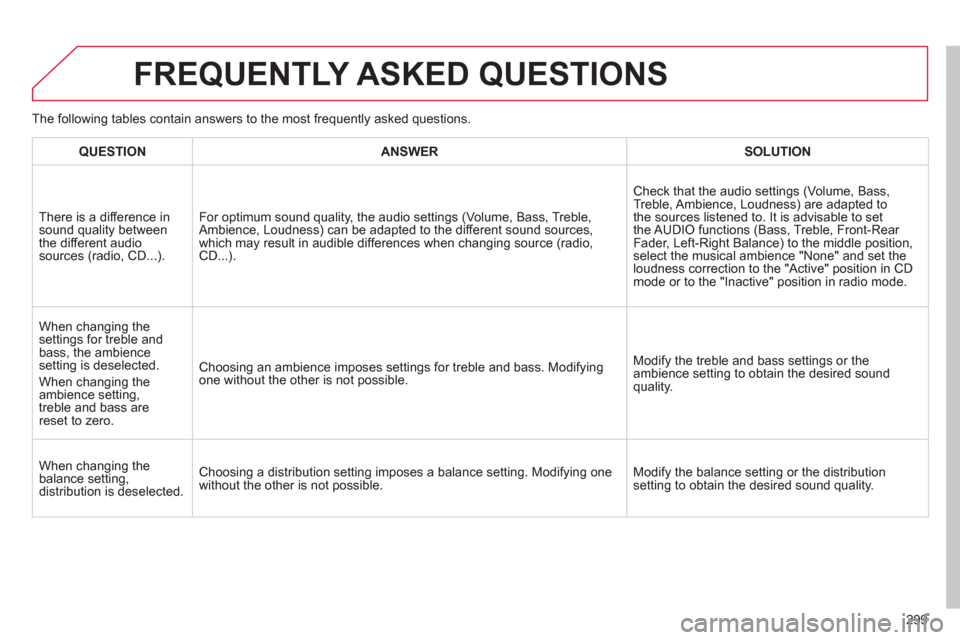

FREQUENTLY ASKED QUESTIONS
QUESTIONANSWERSOLUTION
There is a difference in
sound quality between
the different audiosources (radio, CD...).
For optimum sound qualit
y, the audio settings (Volume, Bass, Treble,
Ambience, Loudness) can be adapted to the different sound sources,
which may result in audible differences when changing source (radio, CD...).
Check that the audio settings (Volume, Bass,
Treble, Ambience, Loudness) are adapted to
the sources listened to. It is advisable to set
the AUDIO functions (Bass, Treble, Front-Rear Fader, Left-Right Balance) to the middle position, select the musical ambience "None" and set theloudness correction to the "Active" position in CD
mode or to the "Inactive" position in radio mode.
When chan
ging the
settings for treble and
bass, the ambience
sett
ing is deselected.
When changing the
ambience setting,
tr
eble and bass are reset to zero.
Choosing an ambience imposes settings for treble and bass. Modifying
one without the other is not possible.Modi
fy the treble and bass settings or the ambience setting to obtain the desired sound
quality.
When chan
ging the
balance setting, distribution is deselected. Choosin
g a distribution setting imposes a balance setting. Modifying one
without the other is not possible.Modify the balance setting or the distribution
setting to obtain the desired sound quality. The
following tables contain answers to the most frequently asked questions.

300

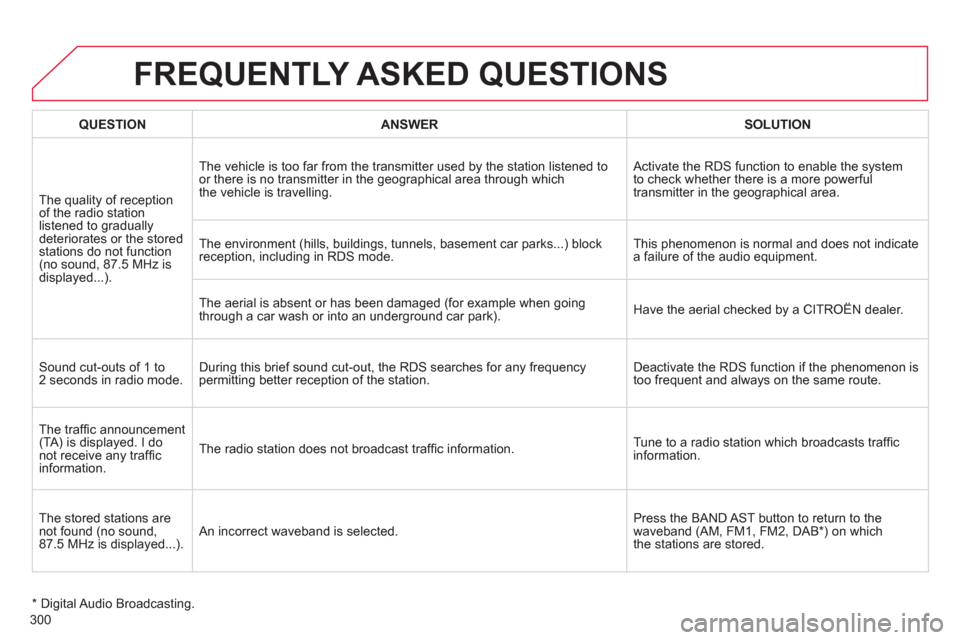

FREQUENTLY ASKED QUESTIONS
QUESTIONANSWERSOLUTION
The quality of reception of the radio stationlistened to graduallydeteriorates or the storedstations do not function (no sound, 87.5 MHz is
displayed...).The vehicle is too
far from the transmitter used by the station listened to
or there is no transmitter in the geographical area through whichthe vehicle is travelling. Activate the RD
S function to enable the system
to check whether there is a more powerful
transmitter in the geographical area.
The environment
(hills, buildings, tunnels, basement car parks...) block
reception, including in RDS mode. This phenomenon is normal and does not indicatea failure of the audio equipment.
The aerial is absent or has been dama
ged (for example when goingthrough a car wash or into an underground car park). Have the aerial checked by a CITROËN dealer.
Sound cut-outs of 1 to2 seconds in radio mode. During this brief sound cut-out, the RDS searches for any frequency
permitting better reception of the station. Deactivate the RDS function if the phenomenon is
too frequent and always on the same route.
Th
e traffi c announcement (TA) is displayed. I do not receive any traffi cinformation.Th
e radio station does not broadcast traffi c information. Tune to a radio station which broadcasts traffi c
information.
The stored stations arenot found (no sound,87.5 MHz is displayed...). An incorrect waveband is selected.Press the BAND AST button to return to the
waveband (AM, FM1, FM2, DAB * ) on whichthe stations are stored.
* Digital Audio Broadcasting.

301

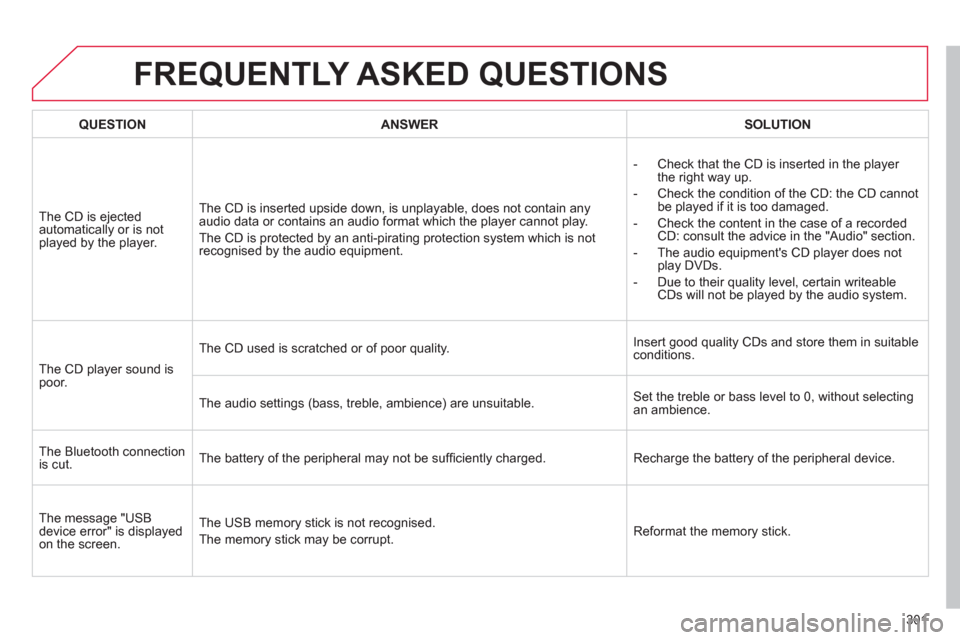

FREQUENTLY ASKED QUESTIONS
QUESTIONANSWERSOLUTION
The CD is ejected
automatically or is notplayed by the player. The
CD is inserted upside down, is unplayable, does not contain any audio data or contains an audio format which the player cannot play.
The
CD is protected by an anti-pirating protection system which is not
recognised by the audio equipment.- Check that the CD is inserted in the pla
yer
the right way up.
-
Check the condition of the CD: the CD cannot
be played if it is too damaged.
-
Check the content in the case of a recordedCD: consult the advice in the "Audio" section.
- The audio equipment's
CD player does not
play DVDs.
- Due to their qualit
y level, certain writeableCDs will not be played by the audio system.
The
CD player sound ispoor. The CD used is scratched or of poor qualit
y.Insert good quality CDs and store them in suitable conditions.
The audio settin
gs (bass, treble, ambience) are unsuitable. Set the treble or bass level to 0, without selectingan ambience.
The Bluetooth connectionis cut. The battery of the peripheral may not be suffi ciently charged. Recharge the battery of the peripheral device.
The messa
ge "USB
device error" is displayed
on the screen.The USB memor
y stick is not recognised.
The memory stick may be corrupt.Reformat the memory stick.

302

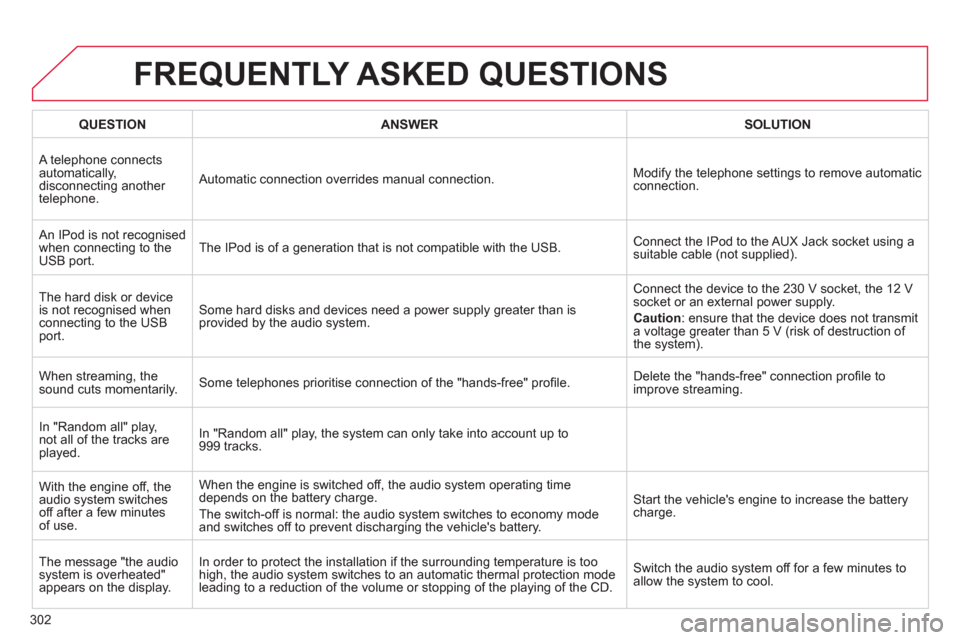

FREQUENTLY ASKED QUESTIONS
QUESTIONANSWERSOLUTION
A telephone connects
automatically,
disconnecting another
telephone. A
utomatic connection overrides manual connection. Modify the telephone settings to remove automatic connection.

An IPod is not recognised
when connecting to theUSB port.The IPod is of a generation that is not compatible with the USB. Connect the IPod to the AUX Jack socket using a
suitable cable (not supplied).
Th
e hard disk or deviceis not recognised when connecting to the USB port. Some hard disks and devices need a power suppl
y greater than is
provided by the audio system.
Connect the device to the 230 V socket, the 12 V
socket or an external power supply.
Caution
: ensure that the device does not transmit a voltage greater than 5 V (risk of destruction of
the system).
When streaming, the
sound cuts momentarily. Some telephones prioritise connection of the "hands-free" profi le. Delete the "hands-free" connection profi le toimprove streaming.
In "Random all" pla
y, not all of the tracks areplayed.
In "Random all" play, the system can only take into account up to999 tracks.
With the en
gine off, the
audio system switchesoff after a few minutes of use.When the en
gine is switched off, the audio system operating timedepends on the battery charge.
The switch-o
ff is normal: the audio system switches to economy modeand switches off to prevent discharging the vehicle's battery.
Start the vehicle's engine to increase the batterycharge.
The message "the audio
system is overheated"appears on the display.In order to protect the installation i
f the surrounding temperature is too high, the audio system switches to an automatic thermal protection mode
leading to a reduction of the volume or stopping of the playing of the CD.Switch the audio s
ystem off for a few minutes toallow the system to cool.

303
VISUAL SEARCH
EXTERIOR


Remote control ........................... 78-82


- opening/closing

- anti-theft protection

- starting

- battery


Wiper controls......................... 101-103
Changing a wiper blade ................. 200
Door mirrors ................................ 75-76
Blind spot sensors .................. 157-159

Boot ........................................... 83, 88
Temporary puncture repair kit .....178-182
Changing a wheel ................... 183-186


- tools

- removing/refi tting


Changing bulbs....................... 191-192


- rear lamps

- 3 rd brake lamp

- number plate lamp


Parking sensors ...................... 167-168
Parking space sensors ........... 165-166
Towbar ........................................... 203
Towing .................................... 201-202

Accessories ............................ 205-206
Panoramic sunroof .......................... 91

Braking assistance ........................ 128
Trajectory control .................... 129-130
Tyre under-infl ation detection ........ 127
Tyre pressures ....................... 182, 214
Lighting controls ......................... 94-97
Headlamp adjustment...................... 98
Welcome lighting ..................... 98, 106
Directional lighting systems ...... 99-100
Changing bulbs....................... 187-190


- front lamps

- front foglamps

- side repeaters


Doors ......................................... 83, 87


- opening/closing

- emergency control
Child lock ....................................... 125
Electric windows ......................... 89-90
Alarm .......................................... 85-86

Fuel tank ..................................... 92-93

304

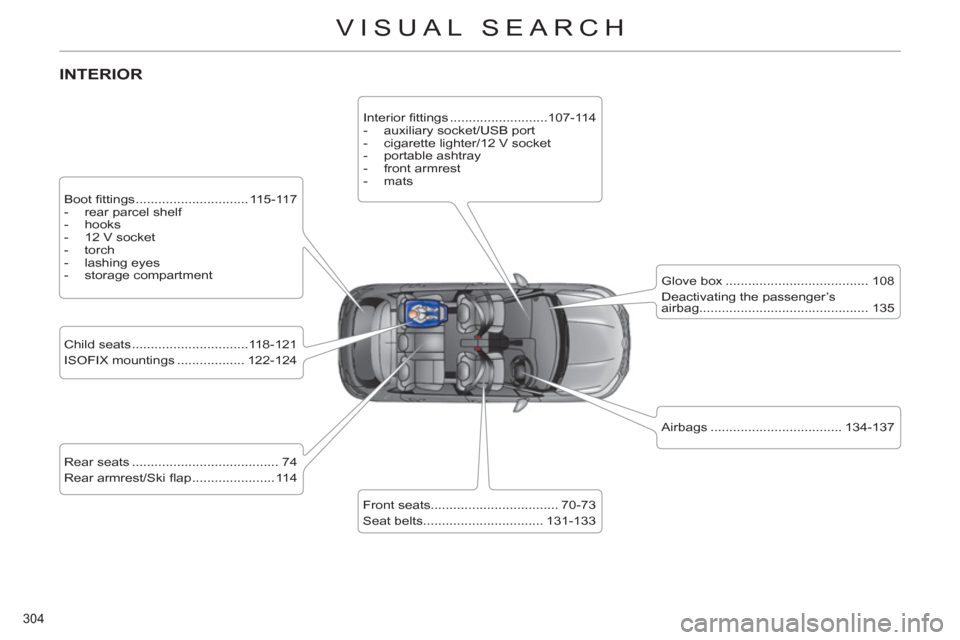

VISUAL SEARCH
INTERIOR


Boot fi ttings .............................. 115-117


- rear parcel shelf

- hooks

- 12 V socket

- torch

- lashing eyes

- storage compartment


Rear seats ....................................... 74
Rear armrest/Ski fl ap ...................... 114
Child seats ...............................118-121
ISOFIX mountings .................. 122-124

Front seats.................................. 70-73
Seat belts................................ 131-133
Airbags ................................... 134-137
Interior fi ttings ..........................107-114


- auxiliary socket/USB port

- cigarette lighter/12 V socket

- portable ashtray

- front armrest

- mats


Glove box ...................................... 108
Deactivating the passenger’s
airbag............................................. 135

305
INSTRUMENTS AND CONTROLS


Instrument panels ............ 27-31, 56-57
Warning lamps ............................ 32-42
Indicators .................................... 43-45
Manual test ...................................... 46
Setting buttons............................ 47-49


- trip distance recorder

- lighting dimmer/black panel

- customisation of dials and screens

Lighting controls ......................... 94-97
Adjusting headlamps ....................... 98

Stop & Start ............................ 154-156

Door mirrors ................................ 75-76
Electric windows ......................... 89-90
Dashboard fuses .................... 193-195

Opening the bonnet ....................... 170

Adjusting the steering wheel............ 77
Horn ............................................... 126
Audio system .......................... 269-302
Setting the date/time...................... 294
eMyWay satellite
navigation system ................... 217-268
Setting the date/time...................... 259

Manual gearbox ...................... 145-146
6-speed electronic
gearbox system ...................... 147-149
Automatic gearbox.................. 150-152
Parking brake ................. 138-144, 145
Wiper controls......................... 101-103
Trip computer ............................. 58-61
Rear view mirror .............................. 77
Emergency or assistance call ...130, 215
Seat belt and front passenger airbag
warning display screen ........... 131-132
Courtesy lamps.............................. 104

Interior mood lighting ..................... 105


Hazard warning lamps ................... 126
Central locking/unlocking
from inside .................................. 83-84
Black panel ...................................... 48
Multifunction screens .................. 50-55

Ventilation ................................... 62-63
Manual air conditioning......... 64-65, 69
Digital air conditioning .......... 66-68, 69

Demisting/Defrosting
the rear screen ................................ 69
Memorising speeds ....................... 160
Speed limiter........................... 161-162
Cruise control ......................... 163-164

306
VISUAL SEARCH
TECHNICAL DATA - MAINTENANCE


Running out of Diesel fuel ............. 171

Checking levels ...................... 174-175


- oil

- brake fl uid

- coolant

- power steering fl uid

- screenwash/headlamp wash fl uid

- additive (Diesel with particle
emissions fi lter)


Changing bulbs....................... 187-192


- front

- rear

Petrol engines......................... 207-210
Diesel engines .........................211-212
Dimensions .................................... 213
Identifi cation markings ................... 214

Bonnet ........................................... 170
Petrol underbonnet ........................ 172
Diesel underbonnet ....................... 173
Checking components ............ 176-177


- battery

- air fi lter/passenger compartment
fi lter

- oil fi lter

- particle emissions fi lter (Diesel)

- brake pads/discs


Battery .................................... 197-199
Energy economy mode.................. 199

Engine compartment fuses .... 193, 196

307
ALPHABETICAL INDEX
A ABS and EBFD systems ............128
Accessories ................................205
Accessories
socket, 12 V ..... 109, 110, 112, 116
Adjusting headlamps ....................98
Adjusting head restraints ..............72
Adjusting seat belt height ............131
Adjusting the steering wheel ........77
Air conditioning (digital) ..........63, 66
Air conditioning (manual) .......63, 64
Air fi lter .......................................176
Air vents .......................................62
Alarm ............................................85
Anti-lock braking system
(ABS) ........................................128
Anti-pinch .....................................89
Anti-theft steering lock ..................80
Ashtray, portable ........................108
Assistance call ...................130, 216
Audible warning ..........................126
Audio streaming
(Bluetooth) ........................256, 282
Audio system ..................50, 52, 269
Automatic gearbox .............150, 177
Automatic illumination
of headlamps ........................94, 97
Automatic operation of hazard
warning lamps ..........................126
Automatic rain sensitive
windscreen wipers ............101, 102
Auxiliary sockets ........109, 278, 281
B Battery ................................176, 197
Battery, remote control ...........81, 82
Battery recharge .........................198
Bench seat, rear ...........................74
Black panel ...................................48B Blind spot sensors ......................157
Bluetooth (hands-free) .......240, 283
Bluetooth (telephone) .........240, 283
Bonnet ........................................170
Bonnet stay ................................170
Boot ..............................................88
Boot lamp ........................... 106, 117
Brake discs .................................177
Brake lamps ...............................191
Brake pads .................................177
Brakes ........................................177
Braking assistance system .........128
C Capacity, fuel tank ........................92
CD ..............................................276
CD MP3 ..............................253, 277
Central locking .......................79, 83
Centre console ........................... 110
Changing a bulb ..................187-192
Changing a fuse ..................193-196
Changing a wheel ...............183-186
Changing a wiper blade .....103, 200
Changing the date ..............259, 294
Changing the remote
control battery ............................81
Changing the time ........47, 259, 294
CHECK ...................................30, 46
Checking levels ..................174, 175
Checking the engine oil level .......43
Checking tyre pressures
(using the kit) ............................182
Checks ................................170-177
Child lock ....................................125
Children ........................ 90, 118-125,
133, 135, 139
Child seats ......................... 118-124
Cigarette lighter ..........................109
Clock ............................47, 259, 294C Closing the boot .....................79, 88
Closing the doors ...................79, 87
Cold climate screen ....................200
Colour and map
screen ..................55, 56, 221, 260
Connectors,
audio ................109, 257, 279, 281
Control stalk, wipers ............101-103
Coolant level ..............................174
Courtesy lamps ..........................104
Courtesy mirror ..........................108
Cruise control .....................160, 163
Cup holder .................................. 110
Curtain airbags ...................136, 137
Customisation ..............................49
D Dashboard fusebox ....................194
Date (display) .....................259, 294
Daytime running
lamps ..........................96, 187, 189
Deactivating
the passenger airbag ...............135
Deadlocking .................................79
Defrosting .....................................69
Diesel additive level ...................175
Diesel engine ....... 93, 171, 173, 211
Dimensions ................................213
Dipped beam ................94, 187, 189
Dipstick .................................43, 174
Directional lighting ................99, 100
Direction
indicators ....97, 126, 187, 188, 191
Door mirrors ...................75, 76, 157
Doors ............................................87
Doors emergency control .............84
Door pockets ..............................107
Dynamic emergency
braking .............................138, 141

308
ALPHABETICAL INDEX
E EBA (Emergency braking
assistance) ...............................128
Economy mode ..........................199
Electric parking brake .........138-141
Electric seats ................................71
Electric window controls ...............89
Electronic brake force distribution
(EBFD) .....................................128
Electronic engine
immobiliser ...........................80, 82
Electronic gearbox
system ......................147, 154, 177
Emergency boot release ..............88
Emergency braking system ........128
Emergency call ...................130, 216
Emergency warning lamps .........126
eMyWay .....................................217
Energy economy mode ..............199
Engine compartment ..........172, 173
Engine compartment
fusebox .....................................195
Engine oil level
indicator ........................43, 46, 174
Engines .............................. 207, 211
Environment .....63, 69, 82, 152, 175
ESP/ASR ....................................129
F Filling with fuel ........................92, 93
Fittings, boot ............................... 115
Fitting speakers ..........................204
Flashing
indicators ............97, 126, 188, 190
Front airbags ......................134, 137
Front armrest .......................111, 112
Front foglamps .....95, 100, 187, 190
Front head restraints ....................72
Front parking sensors ................168F Front seats ..............................70-73
Front wash-wipe .........................102
Fuel ..............................................93
Fuel fi ller fl ap ..........................92, 93
Fuel gauge ...................................92
Fuel tank ................................92, 93
Fuses .........................................193
G G.P.S. ..................................223-235
Gear effi ciency indicator .............146
Gear lever, automatic gearbox ...150
Gear lever, electronic gearbox
system ......................................147
Gear lever, manual gearbox .......145
Glove box ...................................108
Grab handles ..............................107
Guidance .............................223-235
H Halogen headlamps ...................187
Hands-free telephone .........240, 283
Hazard warning lamps ...............126
Headlamp adjustment ..................98
Headlamps, directional .........99, 187
Headlamp wash .........................102
Heated seats ................................72
Heating ...................................64, 66
Height and reach adjustment,
steering wheel ............................77
Hill start assist ............................153
Hooks ......................................... 116
I Indicator/warning lamps ..........32-42
Indicators, direction ....126, 188, 191
Infl ating accessories
(using the kit) ............................182
Inputs for
audio system ............108, 257, 281
Installing speakers .....................204I Instrument panel lighting ..............48
Instrument
panels ................. 27-30, 46, 49, 56
Instrument panel
screen .......................... 27-30, 146
Intelligent Traction Control .........129
Interior fi ttings .....................107, 108
Interior mood lighting ..................105
ISOFIX child seats ..............122-124
ISOFIX mountings ......................122
J Jack ............................................183
K Keeping children
safe ..... 90, 118-125, 133, 135, 139
Key in ignition warning .................80
Key with remote control ...........78-82
L Labels, identifi cation ...................214
Lamps, warning and
indicator ..........................32, 39, 42
Lateral airbags ...................136, 137
Level, brake fl uid ........................174
Level, power steering fl uid .........174
Levels and checks ...............172-177
Lighting, guide-me home ........96, 97
Lighting, interior ..................104, 105
Lighting bulbs
(replacement) ....................187-192
Lighting dimmer .................27-30, 48
Lighting stalk ..........................94, 97
Load reduction mode .................199
Locating your vehicle ...................80
Locking from the inside ................83
Locking the boot ...........................88
Long objects, transporting .......... 114
Luggage retaining strap ............. 115
