Page 5 of 316
CONTENTS
3
Direction indicators 126Hazard warning lamps 126Horn 126Tyre under-infl ation detection 127Braking assistance systems 128Trajectory control systems 129Emergency or assistance call 130Front seat belts 131Airbags 134
8 - SAFETY 126 Î137
Electric parking brake 138Manual parking brake 145Manual gearbox 145Gear effi ciency indicator 1466-speed electronic gearbox system 147Automatic gearbox 150Hill start assist 153Stop & Start 154
Blind spot sensors 157Speed limiter 161Cruise control 163Parking space sensors 165Parking sensors 167
9 - DRIVING 138 Î168
Bonnet 170Running out of fuel (Diesel) 171Petrol engines 172Diesel engines 173Checking levels 174Checks 176
10 - CHECKS 169 Î 177
Temporary puncture repair kit 178Changing a wheel 183Changing a bulb 187Changing a fuse 193Battery 197Energy economy mode 199Changing a wiper blade 200Very cold climate screen 200Towing the vehicle 201Towing a trailer 203Audio pre-equipment 204Accessories 205
11 - PRACTICAL
INFORMATION 178 Î 206
Petrol engines 207Petrol weights 209Diesel engines 211Diesel weights 212Dimensions 213Identifi cation markings 214
12 - TECHNICAL DATA 207 Î214
Emergency or assistance 215eMyWay 217Audio system 269
AUDIO and TELEMATICS 215 Î302
ALPHABETICAL
INDEX 307 Î 310
VISUAL
SEARCH 303 Î 306
Page 6 of 316
4
EXTERIOR
Parking sensors
This system measures the size of a
free parking space between two ve-
hicles or obstacles.
165
Stop & Start system
This system puts the engine tempora-
rily into standby during stops in the traf-
fi c (traffi c lights, traffi c jams, etc...). The
engine restarts automatically as soon
as you want to move off. The Stop &
Start system allows reductions of fuel
consumption and exhaust emissions,
as well as noise levels when stationary.
154
Welcome lighting
This additional exterior and interior ligh-
ting, controlled remotely, makes your
approach to the vehicle easier when the
light is poor.
98, 106
Directional lighting
This lighting automatically provides
additional visibility when cornering.
99
Cornering lighting
At low speed, this lighting provides
additional visibility when cornering,
at junctions, and when parking...
making use of the corresponding
front foglamp.
100
Page 20 of 316
18
MONITORING
Side switch panel
Multifunction steering wheel
Cruise control/speed limiter
controls
161, 163
Optional functions controls
1.
Black panel (black screen).
48
2.
Dashboard lighting dimmer.
48
or
Control of the central colour screen
associated with the satellite naviga-
tion system.
56
3.
Courtesy lamp on/off.
104
or
Parking space sensors.
165
Audio system controls
220, 271
Bluetooth system or telephone
controls
220, 271
Illumination of the warning lamp indi-
cates the state of the system.
A.
Deactivating the ESP/ASR system.
129
B.
Deactivating the parking sensors.
167
C.
Deactivating the Stop & Start system.
154
D.
Activating the blind spot sensors.
157
E.
Switching on the electric child lock.
125
F.
Deactivating the volumetric alarm
monitoring.
85
Page 21 of 316
19
FAMILIARISATION

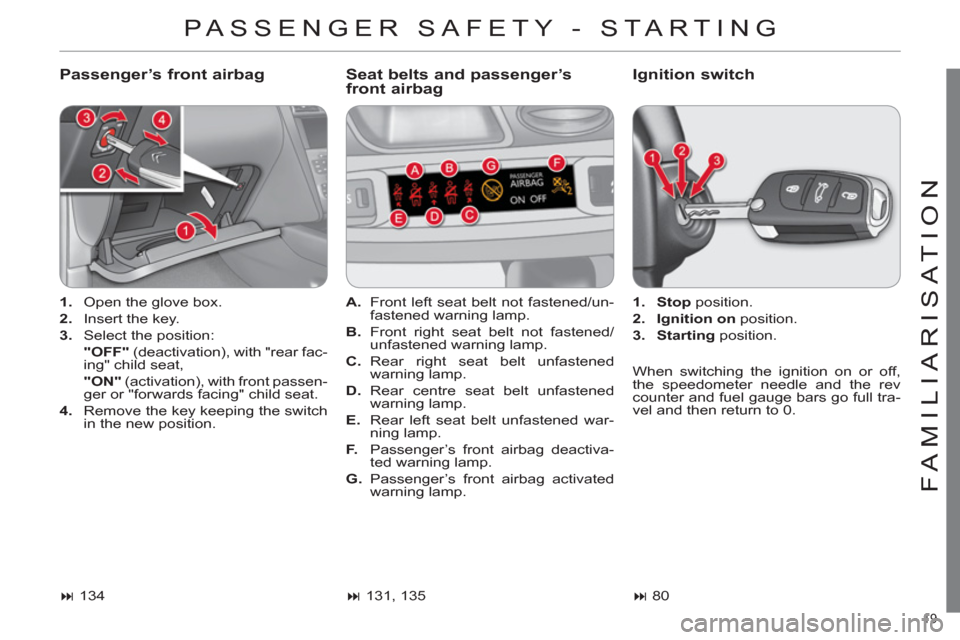

PASSENGER SAFETY - STARTING
Passenger’s front airbag
Seat belts and passenger’s
front airbagIgnition switch
1.
Open the glove box.
2.
Insert the key.
3.
Select the position:
"OFF"
(deactivation), with "rear fac-
ing" child seat,
"ON"
(activation), with front passen-
ger or "forwards facing" child seat.
4.
Remove the key keeping the switch
in the new position.
134
A.
Front left seat belt not fastened/un-
fastened warning lamp.
B.
Front right seat belt not fastened/
unfastened warning lamp.
C.
Rear right seat belt unfastened
warning lamp.
D.
Rear centre seat belt unfastened
warning lamp.
E.
Rear left seat belt unfastened war-
ning lamp.
F.
Passenger’s front airbag deactiva-
ted warning lamp.
G.
Passenger’s front airbag activated
warning lamp.
131, 135
1.
Stop
position.
2.
Ignition on
position.
3.
Starting
position.
80
When switching the ignition on or off,
the speedometer needle and the rev
counter and fuel gauge bars go full tra-
vel and then return to 0.
Page 25 of 316
23
FAMILIARISATION
DRIVING SAFELY
Stop & Start
Engine going into STOP mode
Engine going into START mode
Deactivation/Reactivation
In certain circumstances the STOP
mode may not be available; the "ECO"
warning lamp fl ashes for a few seconds
then goes off.
- with a manual gearbox;
at speeds
below 12 mph (20 km/h), when you
put the gear lever into neutral, and
you release the clutch pedal,
- with the 6-speed electronic gear-
box system;
at speeds below
5 mph (8 km/h), when you press the
brake pedal or you put the gear le-
ver in position N
.
154
- with a manual gearbox;
when you
depress the clutch pedal,
- with the 6-speed electronic gear-
box system;
●
with the gear lever in position A
or M
, when you release the brake
pedal,
●
or gear lever in position N
and
brake pedal released, when you
change to position A
or M
,
●
or engage reverse.
In certain circumstances, START mode
may engage automatically; the "ECO"
warning lamp fl ashes then goes off.
155
You can deactivate the system at any
time by pressing the "ECO OFF"
button;
the button’s warning lamp comes on.
155
The "ECO"
warning lamp goes
off and the engine restarts: The "ECO"
warning lamp comes
on in the instrument panel and the
engine is put into standby:
The system is reactivated auto-
matically every time you start the
engine with the key.
Before refuelling or doing any-
thing under the bonnet, you
must switch off the ignition with
the key.
Page 34 of 316
1
MONITORING
32
Warning and indicator lamps
Visual indicators which inform the driver of the occurrence of a malfunction (warning
lamp) or of the operation of a system (operation or deactivation indicator lamp).
When the ignition is switched on
Certain warning lamps come on for a few seconds when the ignition is switched on.
When the engine is started, these warning lamps should go off.
If they remain on, before moving off, refer to the information on the warning lamp
in question.
Associated warnings
The illumination, fi xed or fl ashing, of certain warning lamps may be accompanied
by an audible signal and a message in the multifunction screen or in the central
colour screen associated with the satellite navigation system.
Warning lamps
When the engine is running or the vehicle is being driven, the illumination of one of the follow-
ing warning lamps indicates a malfunction which requires action on the part of the driver.
The warning comes on in the instrument panel or appears in the central colour screen
associated with the satellite navigation system.
If your vehicle has a screen,
a warning lamp coming on is
always accompanied by the dis-
play of an additional message,
to assist you in identifying the
problem.
If you encounter any problems,
do not hesitate to contact a
CITROËN dealer or a qualifi ed
workshop.
Warning lamp
is on
Cause
Action/Observations
STOP
fi xed, alone
or associated
with another
warning lamp,
accompanied by
an audible signal
and a message in
the screen. Illumination of this warning
lamp is associated with
a serious braking system,
power steering, engine
lubrication or cooling system
malfunction or a punctured
tyre. Stop as soon as it is safe to do so as
there is a risk that the engine will cut out
while driving.
Park, switch off the ignition and contact a
CITROËN dealer or a qualifi ed workshop.
Maximum
coolant
temperature
fi xed red. The temperature of the
cooling system is too high. Stop as soon as it is safe to do so.
Wait until the engine has cooled down
before topping up the level, if necessary.
If the problem persists, contact a
CITROËN dealer or qualifi ed workshop.
Page 35 of 316
1
MONITORING
33
Engine oil
pressure
fi xed. There is a fault with the
engine lubrication system. You must stop as soon it is safe to do so.
Park, switch off the ignition and contact a
CITROËN dealer or a qualifi ed workshop.
Warning lamp
is on
Cause
Action/Observations
Battery charge
fi xed. The battery charging circuit
has a fault (dirty or loose
terminals, slack or cut
alternator belt, ...). The warning lamp should go off when the
engine is started.
If it does not go off, contact a CITROËN
dealer or a qualifi ed workshop.
Braking
fi xed, associated
with the STOP
warning lamp. The braking system fl uid level
has dropped signifi cantly. You must stop as soon as it is safe to do so.
Top up with brake fl uid recommended by
CITROËN.
If the problem persists, have the system
checked by a CITROËN dealer or a
qualifi ed workshop.
+
fi xed, associated
with the electric
parking brake
malfunction
warning lamp,
if the parking
brake is released. The braking system has a
fault. You must stop as soon as it is safe to do so.
Park, switch off the ignition and contact a
CITROËN dealer or a qualifi ed workshop.
+
fi xed, associated
with the STOP
and ABS warning
lamps. The electronic brake force
distribution (EBFD) system
has a fault. You must stop as soon as it is safe to do so.
Have it checked by a CITROËN dealer or
a qualifi ed workshop.
Page 39 of 316
1
MONITORING
37
Warning lamp
is on
Cause
Action/Observations
Airbags
temporarily. This lamp comes on for a few
seconds when you turn on the
ignition, then goes off. This lamp should go off when the engine
is started.
If it does not go off, contact a CITROËN
dealer or a qualifi ed workshop.
fi xed. One of the airbag or seat belt
pretensioner systems has a
fault. Have it checked by a CITROËN dealer or
a qualifi ed workshop.
Foot on the
clutch **
fi xed. In the STOP mode of Stop
& Start, changing to START
mode is refused because the
clutch pedal is not fully down. You must declutch fully to allow the
change to engine START mode.
**
Only on the two-tone instrument panel without audio system.
Power steering
fi xed. The power steering has a
fault. Drive carefully at reduced speed.
Have it checked by a CITROËN dealer or
a qualifi ed workshop.
Under-infl ated
tyre
fi xed. The pressure in one or more
wheels is too low. Check the pressure of the tyres as soon
as possible.
This check should preferably be carried
out when the tyres are cold.
Directional
headlamps
fl ashing. The directional headlamps
system has a fault. Have it checked by a CITROËN dealer or
a qualifi ed workshop.
Page 43 of 316
1
41
Passenger's
airbag system
fi xed in the
seat belt and
passenger's front
airbag warning
lamps display. The control switch, located
in the glove box, has been
placed in the "ON"
position.
The passenger's front airbag
is activated.
In this case, do not install a
"rear facing" child seat. Move the control switch to the "OFF"
position to deactivate the passenger's
front airbag.
In this case, you can install a "rear
facing" child seat.
Warning lamp
is on
Cause
Action/Observations
Stop & Start
fi xed. The Stop & Start system has
put the engine in STOP mode
at a vehicle stop (traffi c lights,
traffi c jam, or other...). The warning lamp goes off and the
engine restarts automatically in START
mode, as soon as you want to move off.
fl ashes for a few
seconds, then
goes off. STOP mode is temporarily
unavailable.
or
START mode is invoked
automatically. Refer to "Driving - § Stop & Start" for
special cases with STOP mode and
START mode.
Parking space
sensors
fi xed. The parking space sensors
function is selected. To start measurement, operate the direction
indicator on the side of the space to be
measured, and do not exceed 12 mph
(20 km/h). A message is displayed once the
measurement has been completed.
Automatic
wiping
fi xed. The wiper control is pushed
downwards.
Automatic front wiping is activated.
Lighting
rheostat
fi xed. The lighting rheostat is
making an adjustment. You can adjust the level of illumination of
the instruments between 1 and 16.
Page 60 of 316
2
MULTIFUNCTION SCREENS
58

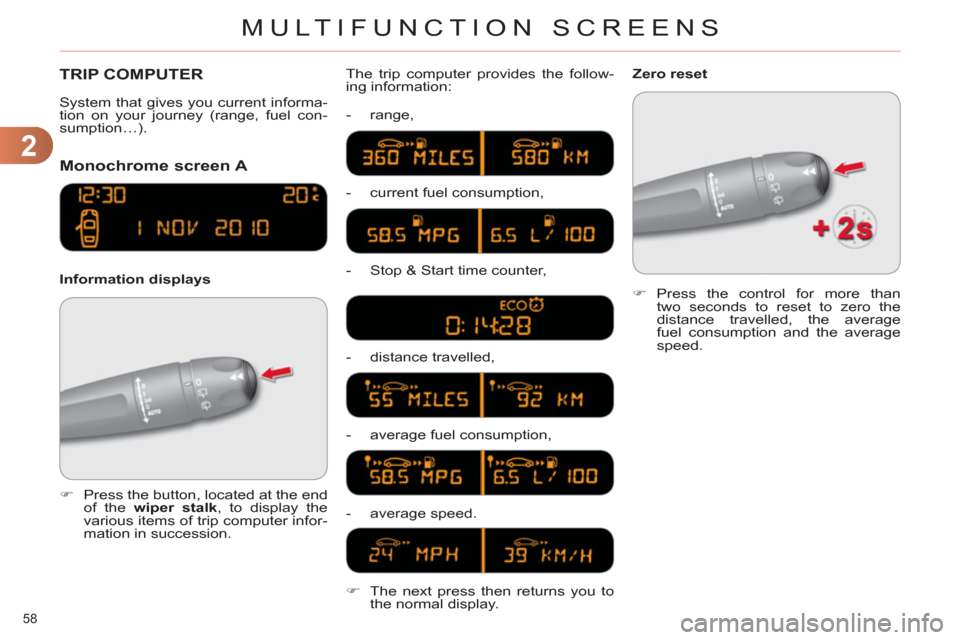

TRIP COMPUTER
Monochrome screen A
Information displays The trip computer provides the follow-
ing information:
- range,
- current fuel consumption,
- Stop & Start time counter,
- distance travelled,
- average fuel consumption,
- average speed.
)
Press the button, located at the end
of the wiper stalk
, to display the
various items of trip computer infor-
mation in succession.
System that gives you current informa-
tion on your journey (range, fuel con-
sumption…).
)
Press the control for more than
two seconds to reset to zero the
distance travelled, the average
fuel consumption and the average
speed.
Zero reset
)
The next press then returns you to
the normal display.
