DRIVING SAFELY

Electric parking brake


Manual application/release
Automatic application/release

Before leaving the ve-
hicle, check that the
brake warning lamp in
the instrument panel
and the P
warning lamp in the control
lever A
are on fi xed (not fl ashing)
.
Manual application
of the parking
brake is possible by pulling
the control
lever A
.
With the ignition on, manual release
of
the parking brake is possible by press-
ing the brake pedal
and pulling then
releasing
the control lever A
. Press the accelerator pedal and let the
clutch pedal up (manual gearbox), the
parking brake is released automatically
and progressively as you move off.
With the vehicle at rest, on switching off
the engine the parking brake is applied
automatically.



138

With the engine running, on
opening the driver’s door there
is an audible warning; apply the
parking brake manually.
Do not leave a child alone inside
the vehicle with the ignition on;
they might release the parking
brake. If you are towing a trailer or
caravan or if the slope might
vary (transport on a ferry, lorry,
towing...) make a maximum
manual application with a long
pull on the control lever A
to im-
mobilise the vehicle. If this warning lamp is on in the
instrument panel, the automa-
tic application/release
is de-
activated
; apply and release
the parking brake manually.

23
FAMILIARISATION
DRIVING SAFELY

Stop & Start


Engine going into STOP mode
Engine going into START mode
Deactivation/Reactivation
In certain circumstances the STOP
mode may not be available; the "ECO"

warning lamp fl ashes for a few seconds
then goes off.

- with a manual gearbox;
at speeds
below 12 mph (20 km/h), when you
put the gear lever into neutral, and
you release the clutch pedal,

- with the 6-speed electronic gear-
box system;
at speeds below
5 mph (8 km/h), when you press the
brake pedal or you put the gear le-
ver in position N
.



154


- with a manual gearbox;
when you
depress the clutch pedal,

- with the 6-speed electronic gear-
box system;



●
with the gear lever in position A

or M
, when you release the brake
pedal,

●
or gear lever in position N
and
brake pedal released, when you
change to position A
or M
,

●
or engage reverse.

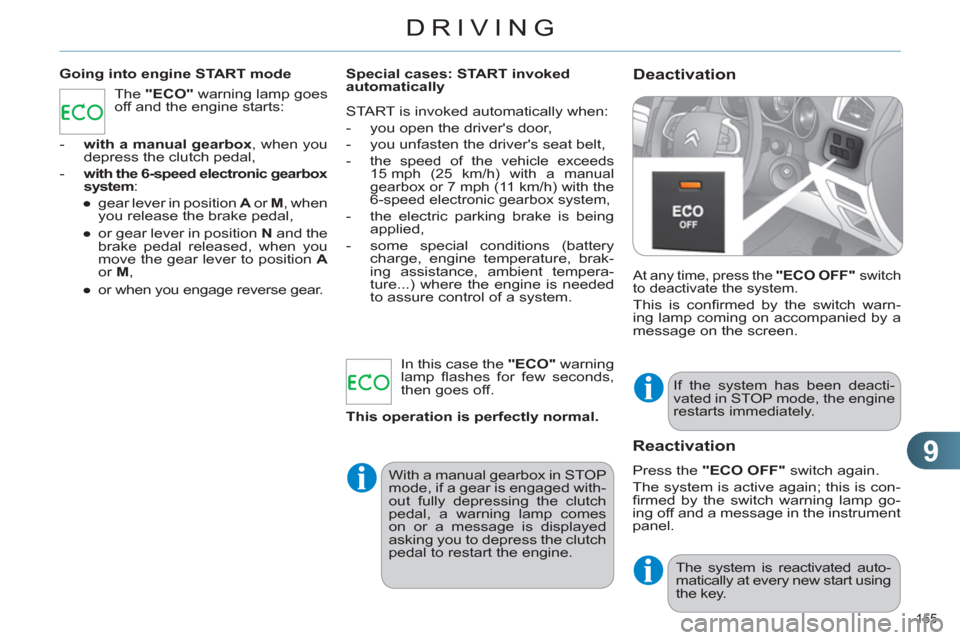

In certain circumstances, START mode
may engage automatically; the "ECO"

warning lamp fl ashes then goes off.



155
You can deactivate the system at any
time by pressing the "ECO OFF"
button;
the button’s warning lamp comes on.



155

The "ECO"
warning lamp goes
off and the engine restarts: The "ECO"
warning lamp comes
on in the instrument panel and the
engine is put into standby:
The system is reactivated auto-
matically every time you start the
engine with the key.

Before refuelling or doing any-
thing under the bonnet, you
must switch off the ignition with
the key.

1
MONITORING
35





Service


temporarily,
accompanied by
a message. A minor malfunction has
occurred for which there is
no specifi c warning lamp. Identify the malfunction by reading the
message displayed in the screen, such
as, for example:


- the opening of the doors, boot or
bonnet,

- the engine oil level,

- the remote control battery,

- the tyre pressures,

- saturation of the particle emission fi lter on
Diesel vehicles (see "Checks - § Checks/
Particle emissions fi lter").

For any other malfunctions, contact a
CITROËN dealer or a qualifi ed workshop.

fi xed,
accompanied by
a message and
an audible signal. A major malfunction has
occurred for which there is no
specifi c warning lamp. Identify the malfunction by reading the
message displayed in the screen and
contact a CITROËN dealer or a qualifi ed
workshop.

Warning lamp



is on



Cause



Action/Observations








Foot on the
brake pedal


fi xed. The brake pedal is not
pressed. With the 6-speed electronic gearbox
system, press the brake pedal to start the
engine (lever in position N
).
If you wish to release the parking brake
without pressing the brake pedal, this
warning lamp will remain on.

fl ashing. With the 6-speed electronic
gearbox system, if you hold
the vehicle on an incline using
the accelerator for too long,
the clutch overheats. Use the brake pedal and/or the electric
parking brake.

1
MONITORING
37


Warning lamp



is on



Cause



Action/Observations




Airbags


temporarily. This lamp comes on for a few
seconds when you turn on the
ignition, then goes off. This lamp should go off when the engine
is started.
If it does not go off, contact a CITROËN
dealer or a qualifi ed workshop.

fi xed. One of the airbag or seat belt
pretensioner systems has a
fault. Have it checked by a CITROËN dealer or
a qualifi ed workshop.

Foot on the
clutch **


fi xed. In the STOP mode of Stop
& Start, changing to START
mode is refused because the
clutch pedal is not fully down. You must declutch fully to allow the
change to engine START mode.

**
Only on the two-tone instrument panel without audio system.
Power steering
fi xed. The power steering has a
fault. Drive carefully at reduced speed.
Have it checked by a CITROËN dealer or
a qualifi ed workshop.


Under-infl ated
tyre


fi xed. The pressure in one or more
wheels is too low. Check the pressure of the tyres as soon
as possible.
This check should preferably be carried
out when the tyres are cold.


Directional
headlamps


fl ashing. The directional headlamps
system has a fault. Have it checked by a CITROËN dealer or
a qualifi ed workshop.

9
DRIVING
140

Automatic release

The electric parking brake releases au-
tomatically and progressively
when
you press the accelerator:


)
Manual gearbox:
press down fully
on the clutch pedal, engage fi rst
gear or reverse, press on the accel-
erator pedal and move off.

)

6-speed electronic gearbox system
:
select position A
, M
or R
then press on
the accelerator pedal.

)

Automatic gearbox:
select position D
,
M
or R
then press on the accelerator
pedal.

Full release of the parking brake is
connsfi rmed by:


- extinction of braking warning
lamp and of the P
warning
lamp in the control lever A
,

- display of the message
"Handbrake off".

When stationary, with the engine
running, do not press the ac-
celerator pedal unnecessarily,
as you may release the parking
brake.



Immobilising the vehicle,
engine running
With the engine running and the vehicle
stationary, in order to immobilise the
vehicle it is essential to manually
ap-
ply the parking brake by pulling
control
lever A
.
The application of the parking brake is
confi rmed by:


-
illumination of the braking
warning lamp and the P
warn-
ing lamp in the control lever A
,



- display of the message
"Handbrake on".

Before leaving the vehicle, check
that parking brake warning lamp
on the instrument panel is on
fi xed, not fl ashing.

Particular situations


In certain situations (e.g. starting the
engine), the parking brake can auto-
matically alter its force. This is normal
operation.
To advance your vehicle a few centime-
tres without starting the engine, but with
the ignition on, press on the brake pedal
and release the parking brake by pull-
ing
then releasing
the control lever A
.
The full release of the parking brake is
confi rmed by the warning lamps in the
control lever A
and in the instrument
panel going off and display of the mes-
sage "Handbrake off".
If the parking brake malfunctions while
applied
or if the battery runs fl at, an
emergency release is always possible.

When the driver’s door is opened, a
loud beep is heard and a message is
displayed if the parking brake has not
been applied, unless the selector lever
is in position P
(Park) in the case of an
automatic gearbox.

9
DRIVING
145
MANUAL PARKING BRAKE

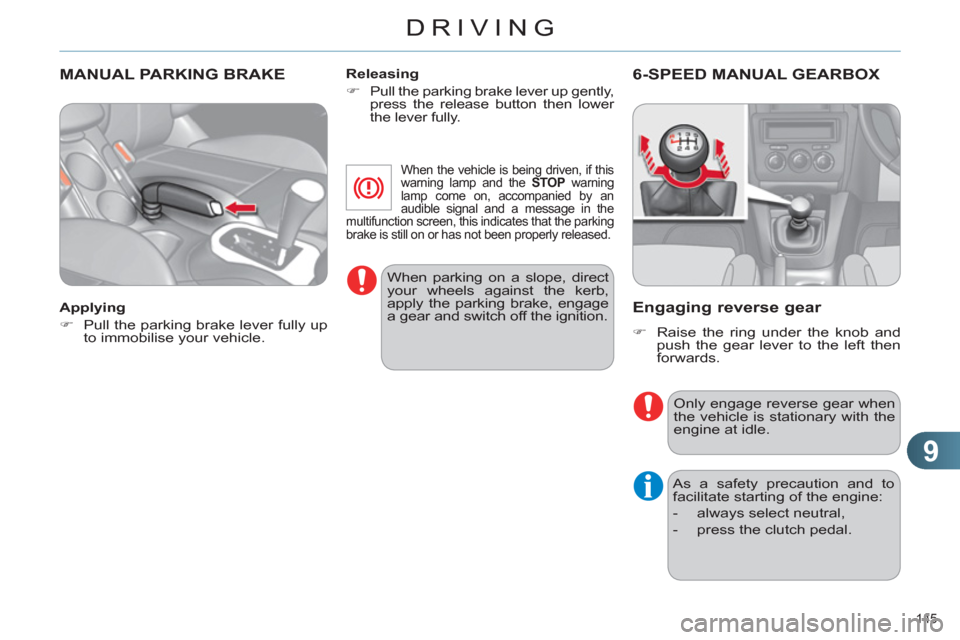

Applying


)
Pull the parking brake lever fully up
to immobilise your vehicle.

Releasing


)

Pull the parking brake lever up gently,
press the release button then lower
the lever fully.

When the vehicle is being driven, if this
warning lamp and the STOP
warning
lamp come on, accompanied by an
audible signal and a message in the
multifunction screen, this indicates that the parking
brake is still on or has not been properly released.
When parking on a slope, direct
your wheels against the kerb,
apply the parking brake, engage
a gear and switch off the ignition.

6-SPEED MANUAL GEARBOX
Engaging reverse gear



)
Raise the ring under the knob and
push the gear lever to the left then
forwards.
Only engage reverse gear when
the vehicle is stationary with the
engine at idle.
As a safety precaution and to
facilitate starting of the engine:


- always select neutral,

- press the clutch pedal.

9
DRIVING
154
STOP & START

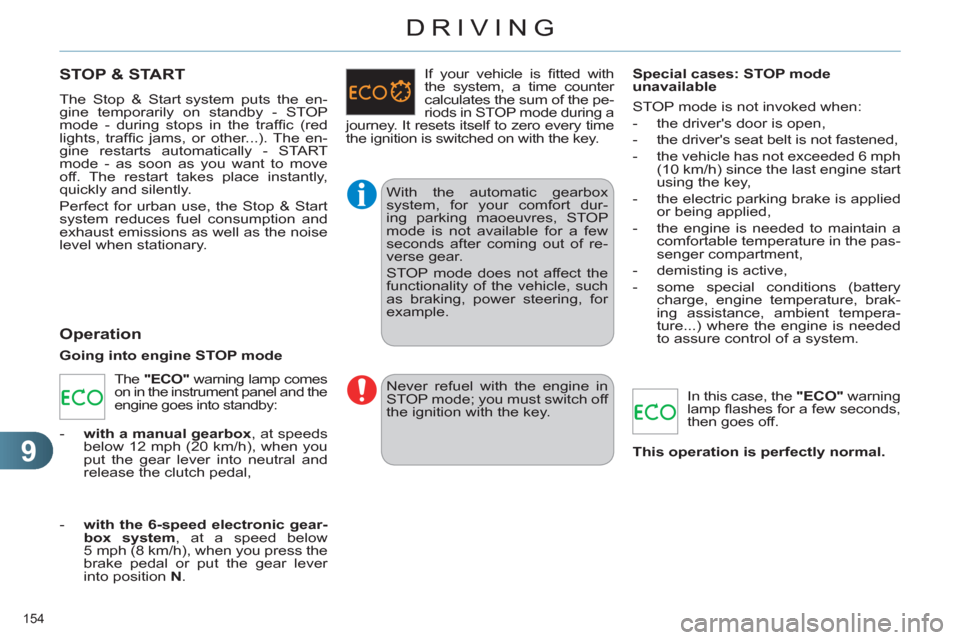

The Stop & Start system puts the en-
gine temporarily on standby - STOP
mode - during stops in the traffi c (red
lights, traffi c jams, or other...). The en-
gine restarts automatically - START
mode - as soon as you want to move
off. The restart takes place instantly,
quickly and silently.
Perfect for urban use, the Stop & Start
system reduces fuel consumption and
exhaust emissions as well as the noise
level when stationary.

Operation


Going into engine STOP mode
The "ECO"
warning lamp comes
on in the instrument panel and the
engine goes into standby:


- with a manual gearbox
, at speeds
below 12 mph (20 km/h), when you
put the gear lever into neutral and
release the clutch pedal, If your vehicle is fi tted with
the system, a time counter
calculates the sum of the pe-
riods in STOP mode during a
journey. It resets itself to zero every time
the ignition is switched on with the key.

- with the 6-speed electronic gear-
box system
, at a speed below
5 mph (8 km/h), when you press the
brake pedal or put the gear lever
into position N
. With the automatic gearbox
system, for your comfort dur-
ing parking maoeuvres, STOP
mode is not available for a few
seconds after coming out of re-
verse gear.
STOP mode does not affect the
functionality of the vehicle, such
as braking, power steering, for
example.
Special cases: STOP mode
unavailable
STOP mode is not invoked when:


- the driver's door is open,

- the driver's seat belt is not fastened,

- the vehicle has not exceeded 6 mph
(10 km/h) since the last engine start
using the key,

- the electric parking brake is applied
or being applied,

- the engine is needed to maintain a
comfortable temperature in the pas-
senger compartment,

- demisting is active,

- some special conditions (battery
charge, engine temperature, brak-
ing assistance, ambient tempera-
ture...) where the engine is needed
to assure control of a system.
In this case, the "ECO"
warning
lamp fl ashes for a few seconds,
then goes off. Never refuel with the engine in
STOP mode; you must switch off
the ignition with the key.

This operation is perfectly normal.

9
DRIVING
155

Deactivation

Going into engine START mode

At any time, press the "ECO OFF"
switch
to deactivate the system.
This is confi rmed by the switch warn-
ing lamp coming on accompanied by a
message on the screen.
Special cases: START invoked
automatically
If the system has been deacti-
vated in STOP mode, the engine
restarts immediately. The "ECO"
warning lamp goes
off and the engine starts:


- with a manual gearbox
, when you
depress the clutch pedal,

- with the 6-speed electronic gearbox
system
:


●
gear lever in position A
or M
, when
you release the brake pedal,

●
or gear lever in position N
and the
brake pedal released, when you
move the gear lever to position A

or M
,

●
or when you engage reverse gear.

START is invoked automatically when:


- you open the driver's door,

- you unfasten the driver's seat belt,

-
the speed of the vehicle exceeds
15 mph (25 km/h) with a manual
gearbox or 7 mph (11 km/h) with the
6-speed electronic gearbox system,

- the electric parking brake is being
applied,

- some special conditions (battery
charge, engine temperature, brak-
ing assistance, ambient tempera-
ture...) where the engine is needed
to assure control of a system.
In this case the "ECO"
warning
lamp fl ashes for few seconds,
then goes off.
With a manual gearbox in STOP
mode, if a gear is engaged with-
out fully depressing the clutch
pedal, a warning lamp comes
on or a message is displayed
asking you to depress the clutch
pedal to restart the engine.

Reactivation

Press the "ECO OFF"
switch again.
The system is active again; this is con-
fi rmed by the switch warning lamp go-
ing off and a message in the instrument
panel.
The system is reactivated auto-
matically at every new start using
the key.
This operation is perfectly normal.

9
DRIVING
163
The cruise control system cannot,
in any circumstances, replace
the need to respect speed limits,
nor can it replace the need for
vigilance and responsibility on the
part of the driver.
You are advised to keep your
feet near the pedals at all times.
CRUISE CONTROL

System which automatically maintains
the speed of the vehicle at the value
programmed by the driver, without any
action on the accelerator pedal.
The functions of this system are grouped
together on the steering mounted con-
trols.


1.
Cruise control mode selection dial.

2.
Speed programming, value decrease
button.

3.
Speed programming, value increase
button.

4.
Cruise control off, resume button.

5.
Stored speeds display button.
(see "Storing speeds")


Steering mounted controls

The programmed information is grouped
together in the instrument panel screen.

6.
Cruise control off, resume indication.

7.
Cruise control mode selection indi-
cation.

8.
Programmed speed value.

9.
Selecting a stored speed.
(see "Storing speeds")
Displays in the instrument panel

Operation

The cruise control is switched on

manually: it requires a minimum ve-
hicle speed of 25 mph (40 km/h) and
engagement of:


- fourth gear on the manual gearbox,

- second gear on the electronic gear-
box system or automatic gearbox, in
sequential driving mode,

-
position A
on the electronic gearbox
system or D
on the automatic gearbox.

The cruise control is switched off
man-
ually or by pressing the brake or clutch
pedal or on triggering of the ESP system
for safety reasons.
It is possible to exceed the programmed
speed temporarily by pressing the ac-
celerator pedal.
To return to the programmed speed,
simply release the accelerator pedal.
Switching off the ignition cancels any
programmed speed value.
