9
FAMILIARISATION
INSTRUMENTS AND CONTROLS
1.
Controls for audio and telematic
system.
2.
Controls for Bluetooth system or
telephone.
3.
Steering lock and ignition.
4.
Wiper/screenwash/trip computer
control stalk.
5.
Instrument panel.
6.
Driver’s airbag.
Horn.
7.
Cruise control/speed limiter
switches.
8.
Controls for optional functions.
9.
Door mirror controls.
Electric window controls.
10.
Oddments storage.
11 .
Manual headlamp height
adjustment
Lower side switch panel.
12.
Fuel fi ller fl ap opening button.
Upper side switch panel.
13.
Side adjustable air vent.
14.
Front side window demisting vent.
Page 13 of 316
11
FAMILIARISATION
A.
Rear view mirror.
B.
Emergency call/Warning lamps
display for front passenger’s airbag
and seat belt/Assistance call.
C.
Courtesy lamp/Map reading lamps/
Interior mood lighting.
D.
Microphone for audio and telematic
system.
E.
Panoramic sunroof blind control.
1.
Central adjustable air vents.
2.
Monochrome screen and small
storage box with fl ap or colour and
mapping screen.
3.
Audio or eMyWay satellite
navigation system.
4.
Central switch panel.
5.
Heating/air conditioning controls.
6.
USB port/auxiliary Jack socket and
cigarette lighter/12 V accessory
socket.
7.
Gear lever, manual or automatic
gearbox.
8.
Manual parking brake.
9.
Portable ashtray.
10.
Large open storage or front
armrest.
Page 20 of 316
18
MONITORING
Side switch panel
Multifunction steering wheel
Cruise control/speed limiter
controls
161, 163
Optional functions controls
1.
Black panel (black screen).
48
2.
Dashboard lighting dimmer.
48
or
Control of the central colour screen
associated with the satellite naviga-
tion system.
56
3.
Courtesy lamp on/off.
104
or
Parking space sensors.
165
Audio system controls
220, 271
Bluetooth system or telephone
controls
220, 271
Illumination of the warning lamp indi-
cates the state of the system.
A.
Deactivating the ESP/ASR system.
129
B.
Deactivating the parking sensors.
167
C.
Deactivating the Stop & Start system.
154
D.
Activating the blind spot sensors.
157
E.
Switching on the electric child lock.
125
F.
Deactivating the volumetric alarm
monitoring.
85
Page 54 of 316
2
MULTIFUNCTION SCREENS
52
MONOCHROME SCREEN C
Displays in the screen
This displays the following information:
- time,
- date,
- ambient temperature (this fl ashes if
there is a risk of ice),
- openings check (if a doors or the
boot is open),
- parking sensor information,
- current audio source,
- telephone or Bluetooth system in-
formation,
- trip computer (refer to the end of the
section).
Warning messages (e.g.: "Emission
control system faulty") or information
messages (e.g.: "Automatic switching
on of the headlamps activated") may ap-
pear temporarily. These can be cleared
by pressing the "ESC"
button. From the control panel of your audio
system, you can press:
)
button A
to chooses between the
display of audio information in full
screen or the shared display of audio
and trip computer information,
)
the "MENU"
button for access to
the main menu
,
)
the "
" or "
" buttons to scroll
through the items on the screen,
)
the "
" or "
" buttons to change a
setting value,
)
the "OK"
button to confi rm,
or
)
the "ESC"
button to abandon the
operation in progress.
Controls
)
Press the "MENU"
button for ac-
cess to the main menu
:
- "Multimedia",
- "Telephone",
- "Trip computer",
- "Bluetooth connection",
- "Personalisation-confi guration",
)
Press the "
" or "
" button to select
the menu required, then confi rm by
pressing the "OK"
button.
Main menu
"Multimedia" menu
With the audio system switched on,
this menu allows you to activate or de-
activate the functions associated with
use of the radio (RDS, DAB/FM auto
tracking, RadioText (TXT) display) or to
choose the media play mode (Normal,
Random, Random all, Repeat).
For more information on the "Multimedia" application, refer to the "Audio and
Telematics" section.
Page 55 of 316

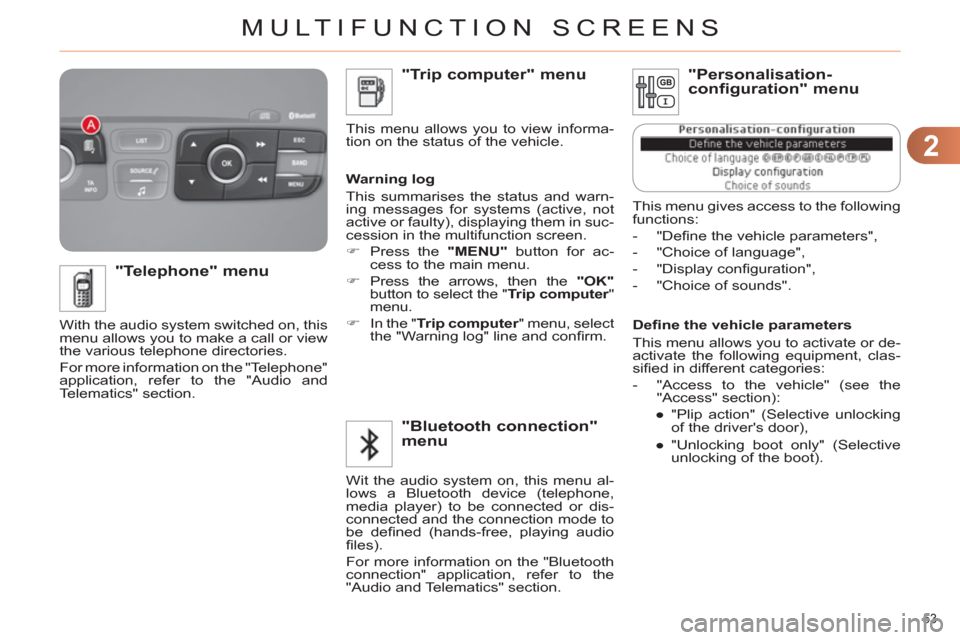

2
MULTIFUNCTION SCREENS
53
Defi ne the vehicle parameters
This menu allows you to activate or de-
activate the following equipment, clas-
sifi ed in different categories:
- "Access to the vehicle" (see the
"Access" section):
●
"Plip action" (Selective unlocking
of the driver's door),
●
"Unlocking boot only" (Selective
unlocking of the boot).
"Telephone" menu
With the audio system switched on, this
menu allows you to make a call or view
the various telephone directories.
For more information on the "Telephone"
application, refer to the "Audio and
Telematics" section. This menu allows you to view informa-
tion on the status of the vehicle.
Warning log
This summarises the status and warn-
ing messages for systems (active, not
active or faulty), displaying them in suc-
cession in the multifunction screen.
)
Press the "MENU"
button for ac-
cess to the main menu.
)
Press the arrows, then the "OK"
button to select the " Trip computer
"
menu.
)
In the " Trip computer
" menu, select
the "Warning log" line and confi rm.
"Bluetooth connection" menu
"Tri
p computer" menu
Wit the audio system on, this menu al-
lows a Bluetooth device (telephone,
media player) to be connected or dis-
connected and the connection mode to
be defi ned (hands-free, playing audio
fi les).
For more information on the "Bluetooth
connection" application, refer to the
"Audio and Telematics" section.
"Personalisation-configuration" menu
This menu gives access to the following
functions:
- "Defi ne the vehicle parameters",
- "Choice of language",
- "Display confi guration",
- "Choice of sounds".
Page 57 of 316
2
MULTIFUNCTION SCREENS
55
COLOUR SCREEN AND MAP
From the navigation system control
panel, to select one of the applications:
)
press the dedicated "RADIO"
,
"MUSIC"
, "NAV"
, "TRAFFIC"
,
"PHONE"
or "SETUP"
button for
access to the corresponding menu,
)
turn the wheel A
to select a func-
tion, an item in a list,
)
press button B
to confi rm the selec-
tion,
or
)
press the "ESC"
button to abandon
the current operation and return to
the previous display.
For more information on these applica-
tions, refer to the "Audio and Telematics"
section.
Controls "SETUP" menu
)
Press the "SETUP"
button for ac-
cess to its menu. You can choose
from the following functions:
- "Display confi guration",
- "Voice synthesis".
Display confi guration
This menu is used to set the bright-
ness of the screen, the screen colour
scheme and the date and time.
Voice synthesis
This menu is used to adjust the volume
for guidance messages and to select
the type of voice (male or female).
For safety reasons, confi gura-
tion of the multifunction screen
by the driver must only be done
when stationary.
Displays in the screen
It displays the following information au-
tomatically and directly:
- time,
- date,
- altitude,
- ambient temperature (the value dis-
played fl ashes if there is a risk of ice),
- parking sensor information,
- audio functions,
- directory and telephone information,
-
satellite navigation system information.
Page 113 of 316
6
FITTINGS
111

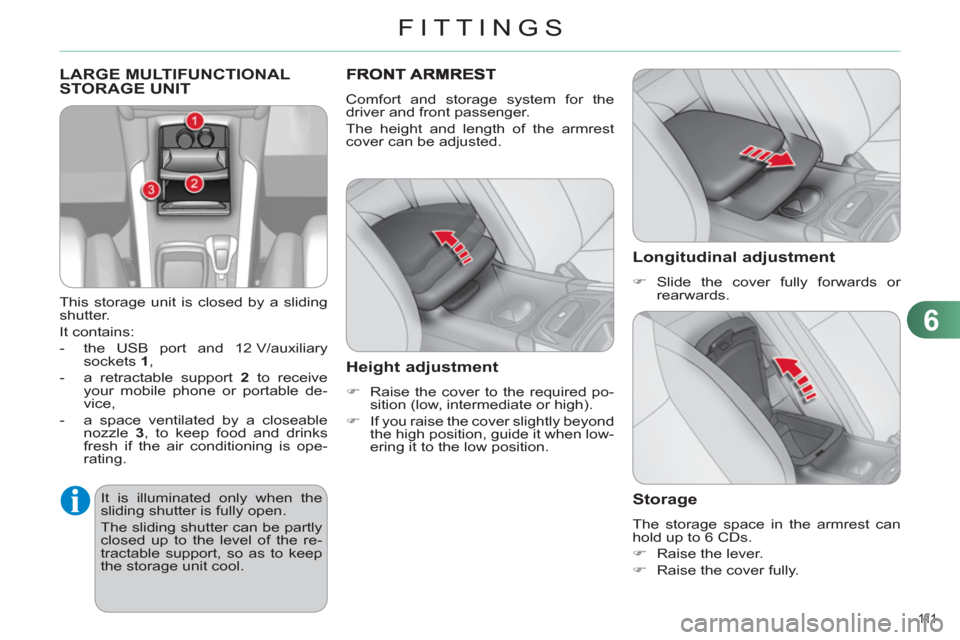

LARGE MULTIFUNCTIONAL STORAGE UNIT
This storage unit is closed by a sliding
shutter.
It contains:
- the USB port and 12 V/auxiliary
sockets 1
,
- a retractable support 2
to receive
your mobile phone or portable de-
vice,
- a space ventilated by a closeable
nozzle 3
, to keep food and drinks
fresh if the air conditioning is ope-
rating.
Comfort and storage system for the
driver and front passenger.
The height and length of the armrest
cover can be adjusted.
Height adjustment
)
Raise the cover to the required po-
sition (low, intermediate or high).
)
If you raise the cover slightly beyond
the high position, guide it when low-
ering it to the low position.
Longitudinal adjustment
)
Slide the cover fully forwards or
rearwards.
Storage
The storage space in the armrest can
hold up to 6 CDs.
)
Raise the lever.
)
Raise the cover fully.
It is illuminated only when the
sliding shutter is fully open.
The sliding shutter can be partly
closed up to the level of the re-
tractable support, so as to keep
the storage unit cool.
Page 140 of 316
9
DRIVING
138
ELECTRIC PARKING BRAKE
The electric parking brake combines
2 operating modes:
- Automatic Application/Release
Application is automatic when the
engine stops, release is automatic
on use of the accelerator (activated
by default),
- Manual Application/Release
The parking brake can be applied/
released manually by pulling control
lever A
.
If this warning lamp comes on
in the instrument panel, the au-
tomatic mode is deactivated.
Programming the mode
Depending on the country of sale of the ve-
hicle, the automatic application when the
engine is switched off and the automatic
release when you press the accelerator
can be deactivated.
It is recommended that you do
not apply the parking brake in
very cold conditions (ice) and
during towing (breakdown, cara-
van...). Deactivate the automatic
functions and release the parking
brake manually.
Manual application
With the vehicle stationary, to apply the
parking brake whether the engine is
running or off, pull
control lever A
.
The application of the parking brake is
confi rmed by:
- lighting of the braking warn-
ing lamp and of the P
warning
lamp in the control lever A
,
- display of the message
"Handbrake on".
Before leaving the vehicle, check
that parking brake warning lamp
in the instrument panel is on
fi xed, not fl ashing.
When the driver’s door is opened with
the engine running, a loud beep is heard
and a message is displayed if the park-
ing brake has not been applied, unless
the gear lever is in position P
(Park) in
the case of an automatic gearbox.
Activation/deactivation is per-
formed using the vehicle confi gu-
ration menu, refer to the section
on parameter settings for the
systems of your vehicle.
The parking brake is then applied and
released manually. When the driver's
door is opened, there is an audible signal
and a message is displayed if the brake
is not applied.
Do not place any object (packet
of cigarettes, telephone...) be-
tween the gear lever and the
electric parking brake control
lever.
Page 201 of 316
11
PRACTICAL INFORMATION
199
Do not disconnect the terminals
while the engine is running.
Do not charge the batteries without
disconnecting the terminals fi rst.
Do not push the vehicle to start the
engine if it is fi tted with the 6-speed
electronic gearbox system.
Before disconnecting the battery
Wait 2 minutes after switching off
the ignition before disconnecting
the battery.
Close the windows and the doors
before disconnecting the battery.
Following reconnection of
the battery
Following reconnection of the
battery, switch on the ignition
and wait 1 minute before start-
ing to permit initialisation of the
electronic systems. However, if
problems are encountered fol-
lowing this operation, contact a
CITROËN dealer or a qualifi ed
workshop.
Referring to the corresponding
section, you must yourself reini-
tialise:
- the remote control key,
- the panoramic sunroof blind,
- the GPS satellite navigation
system.
LOAD REDUCTION MODE
System which manages the use of cer-
tain functions according to the level of
charge remaining in the battery.
When the vehicle is being driven, the
load reduction function temporarily deac-
tivates certain functions, such as the air
conditioning, the heated rear screen...
The deactivated functions are reactivated
automatically as soon as conditions
permit.
ENERGY ECONOMY MODE
System which manages the period of
use of certain functions to conserve a
suffi cient level of charge in the battery.
After the engine has stopped, you can
still use functions such as the audio
equipment, windscreen wipers, dipped
beam headlamps, courtesy lamps, etc.
for a maximum combined period of
thirty minutes.
Switching to economy mode
Once this period has elapsed, a message
appears in the screen indicating that the ve-
hicle has switched to economy mode and
the active functions are put on standby.
If the telephone is being used at
the same time on the navigation
system, it will be interrupted af-
ter 10 minutes.
A fl at battery prevents the engine
from starting (refer to the corre-
sponding paragraph).
Exiting economy mode
These functions are reactivated auto-
matically the next time the vehicle is
driven.
)
In order to resume the use of these
functions immediately, start the engine
and let it run for a few minutes.
The time available to you will then be
double the period for which the engine
is left running. However, this period will
always be between fi ve and thirty minutes.
This period may be greatly re-
duced if the battery is not fully
charged.
Page 219 of 316
217
The system is protected in such a way that it will onlyoperate in your vehicle. If it is to be installed in another vehicle, contact a CITROËN dealer for confi guration of py
the system.

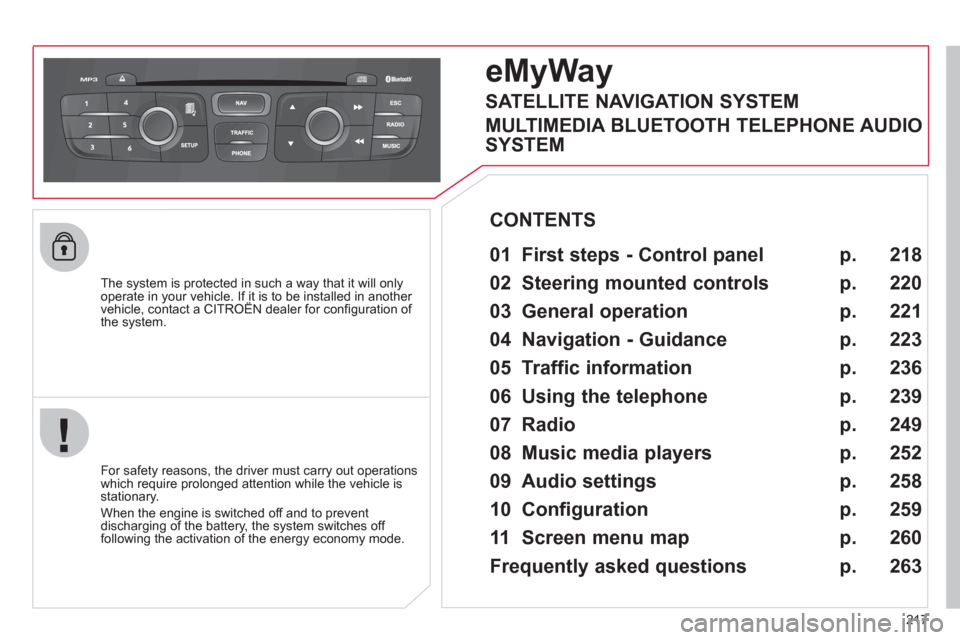

eMyWay
01 First steps - Control panel
For safety reasons, the driver must carry out operations
which require prolonged attention while the vehicle is stationary.
When the en
gine is switched off and to prevent
discharging of the battery, the system switches off following the activation of the energy economy mode.
CONTENTS
02 Steering mounted controls
03 General operation
04 Navigation - Guidance
05 Traffic information
06 Using the telephone
07 Radio
08 Music media players
09 Audio settings
10 Configuration
11 Screen menu map
Frequently asked questions p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
218
220
221
223
236
239
249
252
258
259
260
263
SATELLITE NAVIGATION SYSTEM
MULTIMEDIA BLUETOOTH TELEPHONE AUDIO
SYSTEM
