259
1
2
3

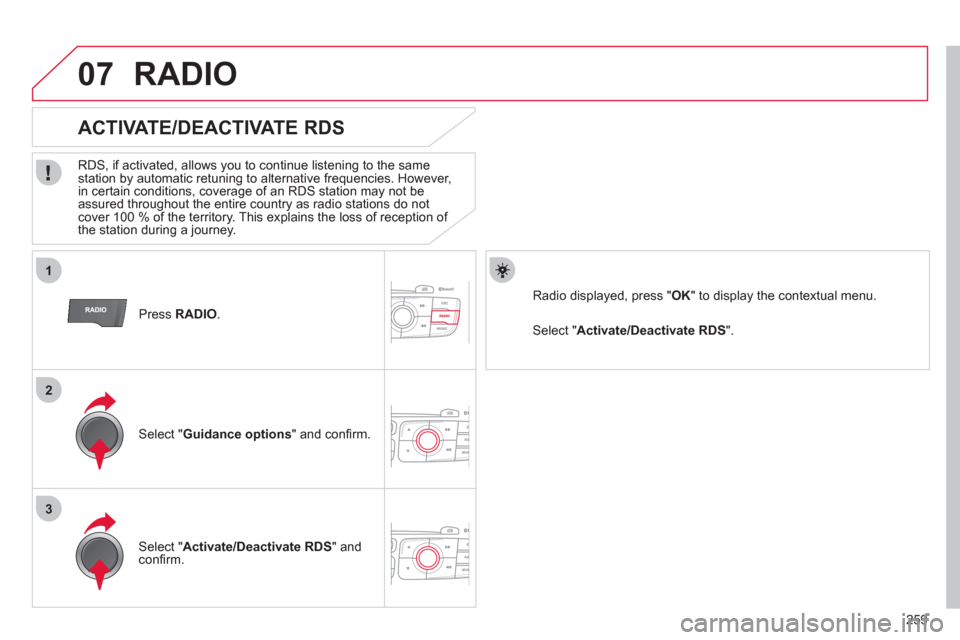

07

Press RADIO
.







ACTIVATE/DEACTIVATE RDS


RDS, if activated, allows you to continue listening to the same
station by automatic retuning to alternative frequencies. However,
in certain conditions, coverage of an RDS station may not be
assured throughout the entire country as radio stations do not
cover 100 % of the territory. This explains the loss of reception of
the station during a journey.

Select " Guidance options
" and confi rm.

Select " Activate/Deactivate RDS
" and
confi rm.
RADIO

Select " Activate/Deactivate RDS
".
Radio displayed, press " OK
" to display the contextual menu.

260

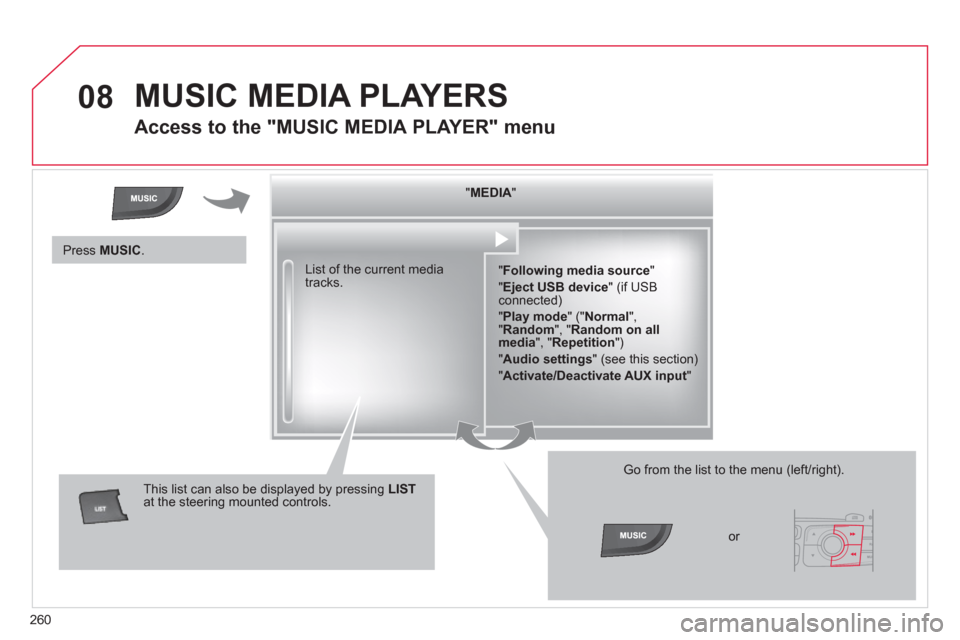

08 MUSIC MEDIA PLAYERS







Access to the "MUSIC MEDIA PLAYER" menu


" MEDIA
"

" Following media source
"
" Eject USB device
" (if USB
connected)
" Play mode
" (" Normal
",
" Random
", " Random on all
media
", " Repetition
")
" Audio settings
" (see this section)
" Activate/Deactivate AUX input
" List of the current media
tracks.

This list can also be displayed by pressing LIST

at the steering mounted controls.
Go from the list to the menu (left/right).
or

Press MUSIC
.

261

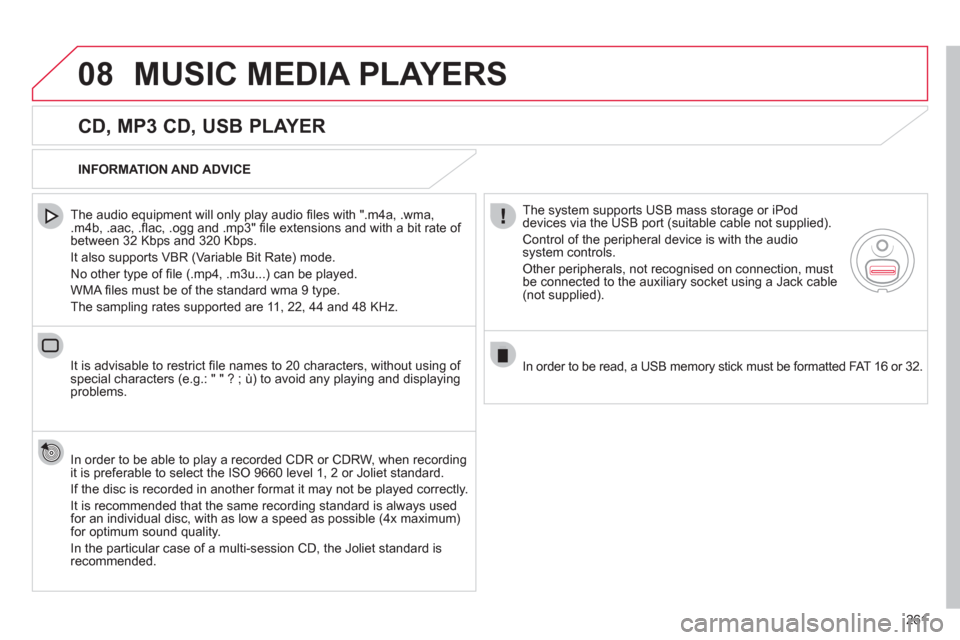

08MUSIC MEDIA PLAYERS

CD, MP3 CD, USB PLAYER


The audio equipment will only play audio fi les with ".m4a, .wma,
.m4b, .aac, .fl ac, .ogg and .mp3" fi le extensions and with a bit rate of
between 32 Kbps and 320 Kbps.
It also supports VBR (Variable Bit Rate) mode.
No other type of fi le (.mp4, .m3u...) can be played.
WMA fi les must be of the standard wma 9 type.
The sampling rates supported are 11, 22, 44 and 48 KHz.

It is advisable to restrict fi le names to 20 characters, without using of
special characters (e.g.: " " ? ; ù) to avoid any playing and displaying
problems.

In order to be able to play a recorded CDR or CDRW, when recording
it is preferable to select the ISO 9660 level 1, 2 or Joliet standard.
If the disc is recorded in another format it may not be played correctly.
It is recommended that the same recording standard is always used
for an individual disc, with as low a speed as possible (4x maximum)
for optimum sound quality.
In the particular case of a multi-session CD, the Joliet standard is
recommended.
INFORMATION AND ADVICE

The system supports USB mass storage or iPod
devices via the USB port (suitable cable not supplied).
Control of the peripheral device is with the audio
system controls.
Other peripherals, not recognised on connection, must
be connected to the auxiliary socket using a Jack cable
(not supplied).

In order to be read, a USB memory stick must be formatted FAT 16 or 32.

262
08
1
2
3
MUSIC MEDIA PLAYERS

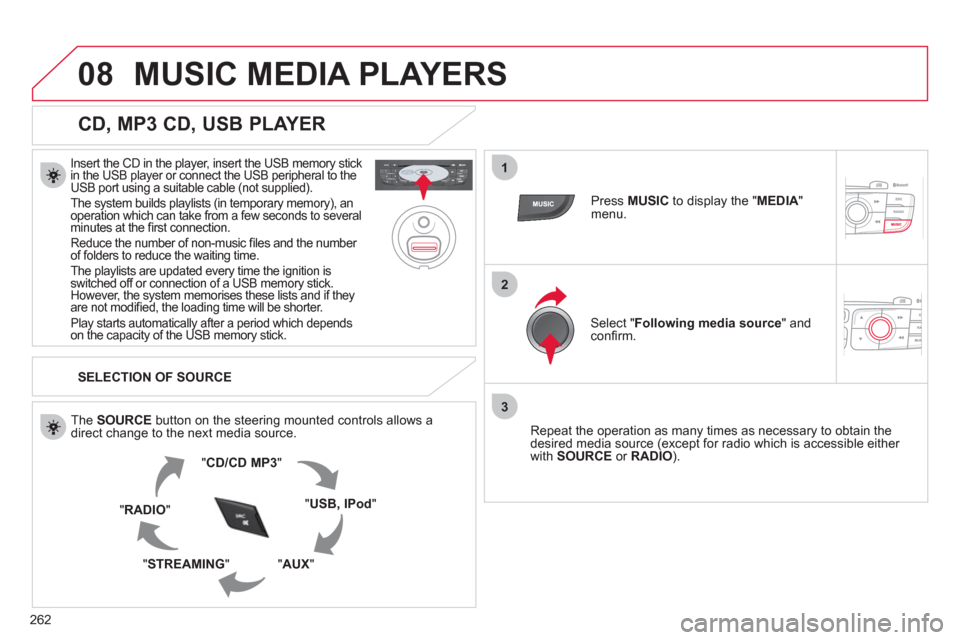

CD, MP3 CD, USB PLAYER


Insert the CD in the player, insert the USB memory stick
in the USB player or connect the USB peripheral to the
USB port using a suitable cable (not supplied).
The system builds playlists (in temporary memory), an
operation which can take from a few seconds to several
minutes at the fi rst connection.
Reduce the number of non-music fi les and the number
of folders to reduce the waiting time.
The playlists are updated every time the ignition is
switched off or connection of a USB memory stick.
However, the system memorises these lists and if they
are not modifi ed, the loading time will be shorter.
Play starts automatically after a period which depends
on the capacity of the USB memory stick.




SELECTION OF SOURCE
The SOURCE
button on the steering mounted controls allows a
direct change to the next media source.
" CD/CD MP3
"
" USB, IPod
"
" AUX
"
" STREAMING
" " RADIO
"
Press MUSIC
to display the " MEDIA
"
menu.

Select " Following media source
" and
confi rm.

Repeat the operation as many times as necessary to obtain the
desired media source (except for radio which is accessible either
with SOURCE
or RADIO
).

265
08
12
3
MUSIC MEDIA PLAYERS












USING THE AUXILIARY INPUT (AUX)
Cable not supplied

Connect the portable device (MP3 player…) to the auxiliary JACK
socket using an audio cable.
Press MUSIC
to display the " MEDIA
"
menu.

Select " Activate/Deactivate AUX input
"
and confi rm.
First adjust the volume of your portable
device (to a high level). Then adjust the
volume of your audio system.

Display and management of the controls are via the portable device.

267
10
1
2
3a
3b
1
2
3
4
CONFIGURATION


Press SETUP
to display the
" Confi guration
" menu.

Select " Adjust luminosity
" and confi rm
to adjust the screen brightness.
Press " OK
" to save the changes.
The settings for day and night are
independent.

Select " Choose colour
" and confi rm to
select the screen colour harmony and
the map presentation mode:


- day mode,

- night mode,

- automatic day/night mode,
according to whether the
headlamps are on.
























SETTING THE DATE AND TIME


Select " Set date and time
" and
confi rm.

Select the setting to adjust.
Confi rm by pressing OK
, then adjust
the setting and confi rm again to save
the modifi cation.
Select " Display confi guration
" and
confi rm.
Press SETUP
to display the
" Confi guration
" menu.

Select " Display confi guration
" and
confi rm.

Adjust the settings one by one.
Then select " OK
" on the screen and
confi rm to save the settings.



DISPLAY CONFIGURATION


Select " Synchronize the minutes with GPS
" so that setting the
minutes is done automatically by satellite reception.

268

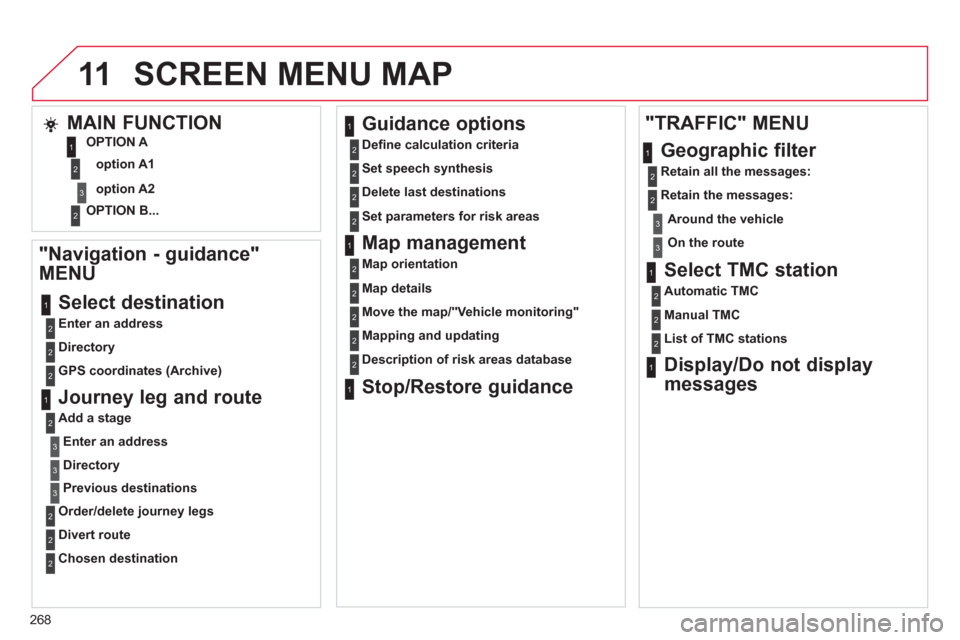

11

"Navigation - guidance"
MENU

Enter an address

Select destination


Directory

GPS coordinates (Archive)



Journey leg and route


Add a stage

Enter an address


Directory


Previous destinations



Order/delete journey legs

Divert route

Chosen destination



Guidance options


Defi ne calculation criteria

Set speech synthesis

Delete last destinations


Map management


Map orientation

Select TMC station


Automatic TMC

Manual TMC

List of TMC stations



Display/Do not display
messages

SCREEN MENU MAP










MAIN FUNCTION


option A1


option A2


OPTION A

OPTION B...


Map details

Move the map/"Vehicle monitoring"

Mapping and updating

Description of risk areas database



Stop/Restore guidance
"TRAFFIC" MENU
Geographic filter


Retain all the messages:

Retain the messages:

Around the vehicle


On the route





Set parameters for risk areas

1
3
3
2
3
1
1
1
2
2
2
1
2
3
2
2
2
2
1
2
2
2
2
2
2
2
2
2
2
2
1
1
2
2
3
3
1
2

269

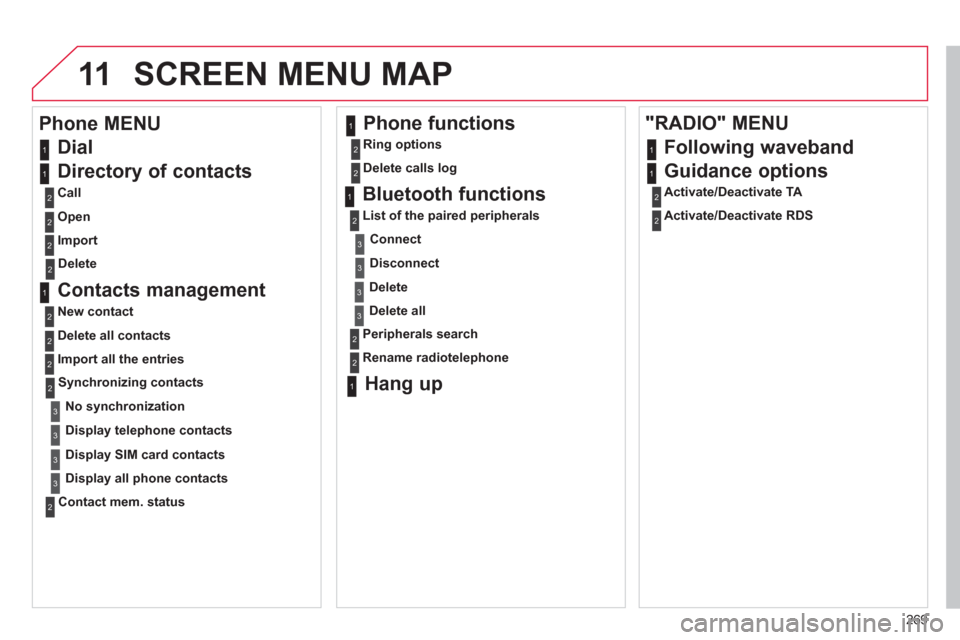

11SCREEN MENU MAP
Following waveband

Guidance options


Activate/Deactivate TA

Activate/Deactivate RDS


Dial

Directory of contacts

Bluetooth functions


List of the paired peripherals
Call

Open

Import


Phone MENU


Connect


Disconnect



"RADIO" MENU


Delete



Contacts management


New contact

Delete all contacts

Import all the entries

Synchronizing contacts

No synchronization


Display telephone contacts


Display SIM card contacts


Display all phone contacts



Contact mem. status



Phone functions


Ring options

Delete calls log


Delete


Delete all




Hang up


Peripherals search


Rename radiotelephone

1
2
2
1
2
2
2
1
1
2
3
3
1
2
2
2
2
1
2
3
3
3
3
2
2
2
1
3
3
1
2
2

270

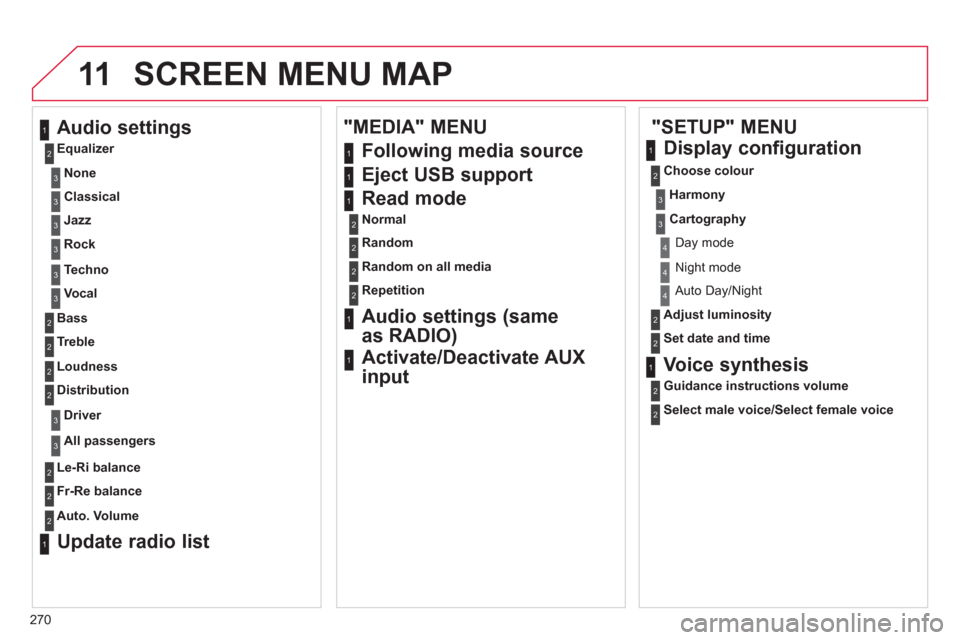

11SCREEN MENU MAP

"SETUP" MENU

Audio settings


Equalizer
Following media source

Eject USB support

Read mode


Normal

Random

Random on all media

Repetition



Audio settings (same
as RADIO)

Activate/Deactivate AUX
input


None


Classical


Jazz


Rock


Techno


Vocal



Bass

Treble

Loudness

Distribution

Driver


All passengers



Le-Ri balance

Fr-Re balance

Auto. Volume



Update radio list
"MEDIA" MENU
Display configuration


Choose colour

Harmony


Cartography

Day mode
Night mode
Auto Day/Night

Adjust luminosity

Set date and time



Voice synthesis


Guidance instructions volume


Select male voice/Select female voice

1
1
12
1
2
3
3
1
1
1
3
2
2
2
4
3
3
3
3
3
2
2
2
2
2
3
3
2
2
2
1
2
2
1
4
4
2
2

271

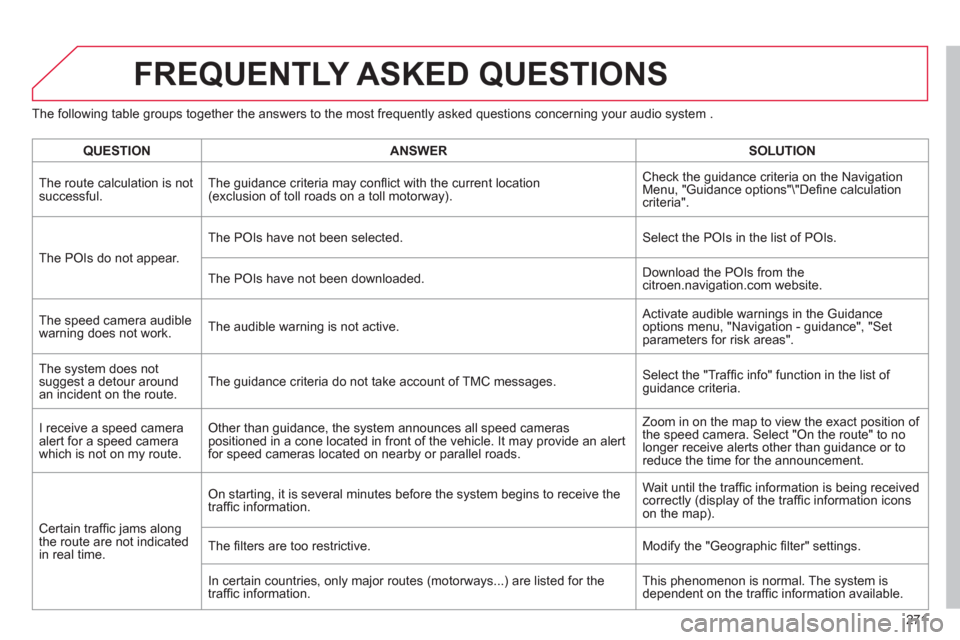

FREQUENTLY ASKED QUESTIONS


The following table groups together the answers to the most frequently asked questions concerning your audio system .



QUESTION



ANSWER



SOLUTION


The route calculation is not
successful. The guidance criteria may confl ict with the current location
(exclusion of toll roads on a toll motorway). Check the guidance criteria on the Navigation
Menu, "Guidance options"\"Defi ne calculation
criteria".
The POIs do not appear. The POIs have not been selected. Select the POIs in the list of POIs.
The POIs have not been downloaded. Download the POIs from the
citroen.navigation.com website.
The speed camera audible
warning does not work. The audible warning is not active. Activate audible warnings in the Guidance
options menu, "Navigation - guidance", "Set
parameters for risk areas".
The system does not
suggest a detour around
an incident on the route. The guidance criteria do not take account of TMC messages. Select the "Traffi c info" function in the list of
guidance criteria.
I receive a speed camera
alert for a speed camera
which is not on my route. Other than guidance, the system announces all speed cameras
positioned in a cone located in front of the vehicle. It may provide an alert
for speed cameras located on nearby or parallel roads. Zoom in on the map to view the exact position of
the speed camera. Select "On the route" to no
longer receive alerts other than guidance or to
reduce the time for the announcement.
Certain traffi c jams along
the route are not indicated
in real time. On starting, it is several minutes before the system begins to receive the
traffi c information. Wait until the traffi c information is being received
correctly (display of the traffi c information icons
on the map).
The fi lters are too restrictive. Modify the "Geographic fi lter" settings.
In certain countries, only major routes (motorways...) are listed for the
traffi c information. This phenomenon is normal. The system is
dependent on the traffi c information available.
