display Citroen C4 RHD 2012 2.G Manual PDF

233
1
2
04
1
2
3

SELECTING A DESTINATION
NAVIGATION - GUIDANCE


TO ONE OF THE RECENT DESTINATIONS

Press NAV
twice to open the list of
recent destinations.

Select the desired destination and
confi rm to start guidance.


TOWARDS A CONTACT IN THE CONTACTS DIRECTORY

Select " Select destination
" and
confi rm, then select " Directory
" and
confi rm.

Selection the desired destination from
your contacts and confi rm " OK
" to start
the guidance.

Press NAV
to display the
" Navigation - guidance
" menu. Navigation towards a contact imported from your telephone is only
possible if the address is compatible with the system.

234
1
04
2
1
2
33
4

Select " Select destination
" and
confi rm, then select " GPS coordinates
"
and confi rm.

Enter the GPS coordinates and confi rm
" OK
" to start the guidance.

Press NAV
to display the
" Navigation - guidance
" menu.
NAVIGATION - GUIDANCE








TOWARDS GPS COORDINATES

TOWARDS A POINT ON THE MAP

With the map displayed, press OK
to
display the contextual menu. Select
" Move the map
" and confi rm.

Press OK
to display the contextual
menu for " Move the map
" mode.

Select " Select as destination
" or
" Select as stage
" and confi rm.

Move the cursor using the control to
identify the desired destination.

235
04
1
3
4
5
2

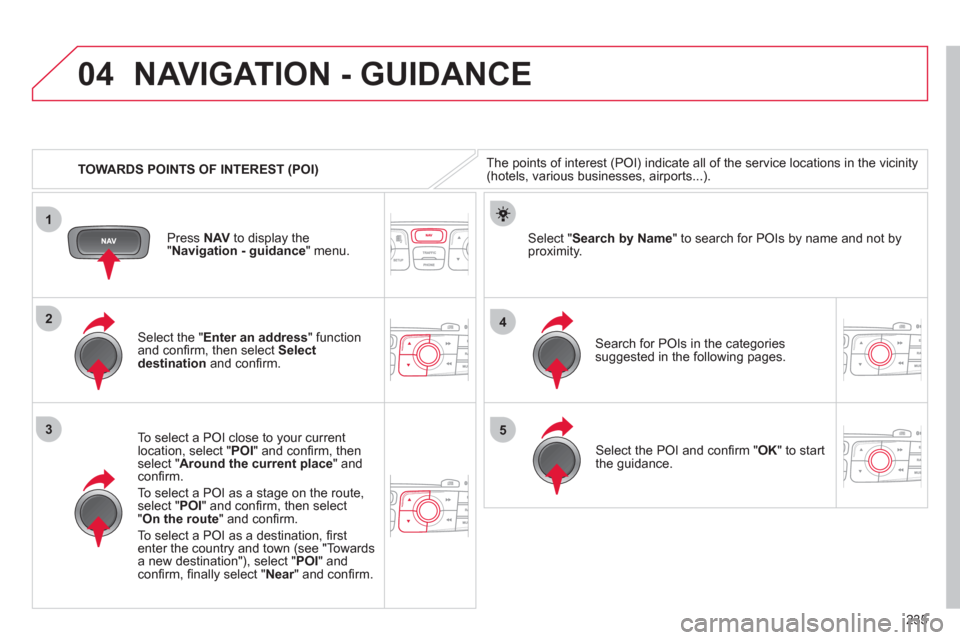

TOWARDS POINTS OF INTEREST (POI)
NAVIGATION - GUIDANCE

The points of interest (POI) indicate all of the service locations in the vicinity
(hotels, various businesses, airports...).

Select the " Enter an address
" function
and confi rm, then select Select
destination
and confi rm.

To select a POI close to your current
location, select " POI
" and confi rm, then
select " Around the current place
" and
confi rm.
To select a POI as a stage on the route,
select " POI
" and confi rm, then select
" On the route
" and confi rm.
To select a POI as a destination, fi rst
enter the country and town (see "Towards
a new destination"), select " POI
" and
confi rm, fi nally select " Near
" and confi rm.
Search for POIs in the categories
suggested in the following pages.
Select " Search by Name
" to search for POIs by name and not by
proximity.
Press NAV
to display the
" Navigation - guidance
" menu.

Select the POI and confi rm " OK
" to start
the guidance.

237
1
2
3
04NAVIGATION - GUIDANCE

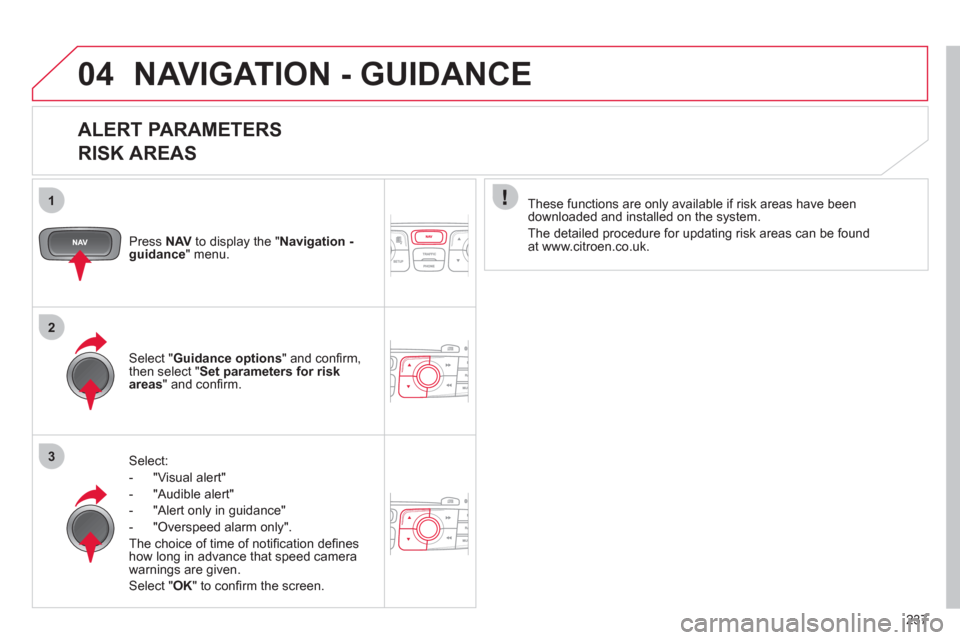

ALERT PARAMETERS
RISK AREAS

Press NAV
to display the " Navigation -
guidance
" menu.

Select:


- "Visual alert"

- "Audible alert"

- "Alert only in guidance"

- "Overspeed alarm only".
The choice of time of notifi cation defi nes
how long in advance that speed camera
warnings are given.
Select " OK
" to confi rm the screen.
Select " Guidance options
" and confi rm,
then select " Set parameters for risk
areas
" and confi rm.
These functions are only available if risk areas have been
downloaded and installed on the system.
The detailed procedure for updating risk areas can be found
at www.citroen.co.uk.

238
04
1
4
3
1
3
22
NAVIGATION - GUIDANCE

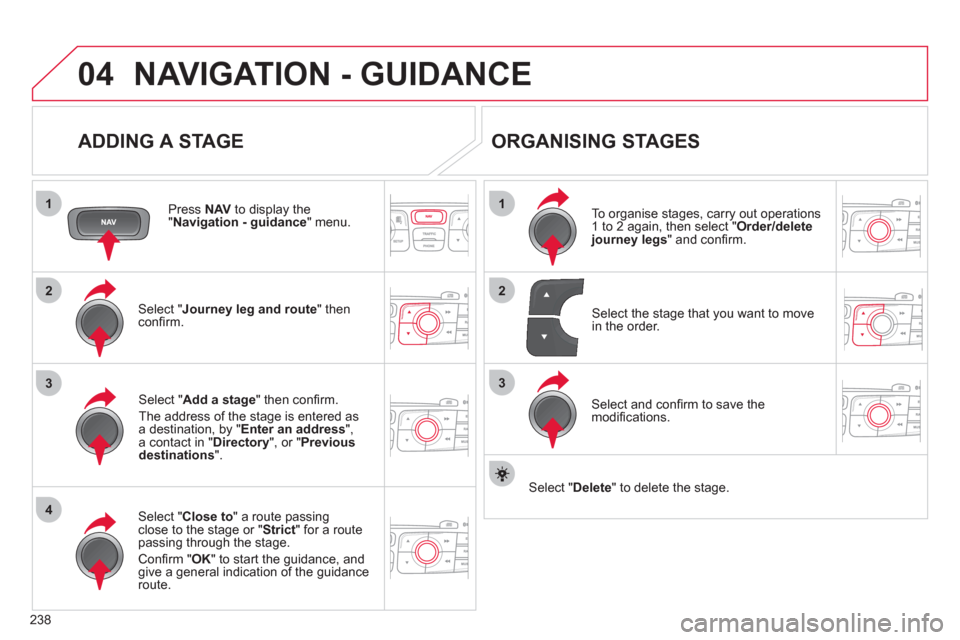

ADDING A STAGE


Press NAV
to display the
" Navigation - guidance
" menu.

Select " Journey leg and route
" then
confi rm.

Select " Close to
" a route passing
close to the stage or " Strict
" for a route
passing through the stage.
Confi rm " OK
" to start the guidance, and
give a general indication of the guidance
route.

Select " Add a stage
" then confi rm .
The address of the stage is entered as
a destination, by " Enter an address
",
a contact in " Directory
", or " Previous
destinations
".


ORGANISING STAGES


To organise stages, carry out operations
1 to 2 again, then select " Order/delete
journey legs
" and confi rm.

Select and confi rm to save the
modifi cations.
Select the stage that you want to move
in the order.

Select " Delete
" to delete the stage.

239
04
3
4
1
2
NAVIGATION - GUIDANCE

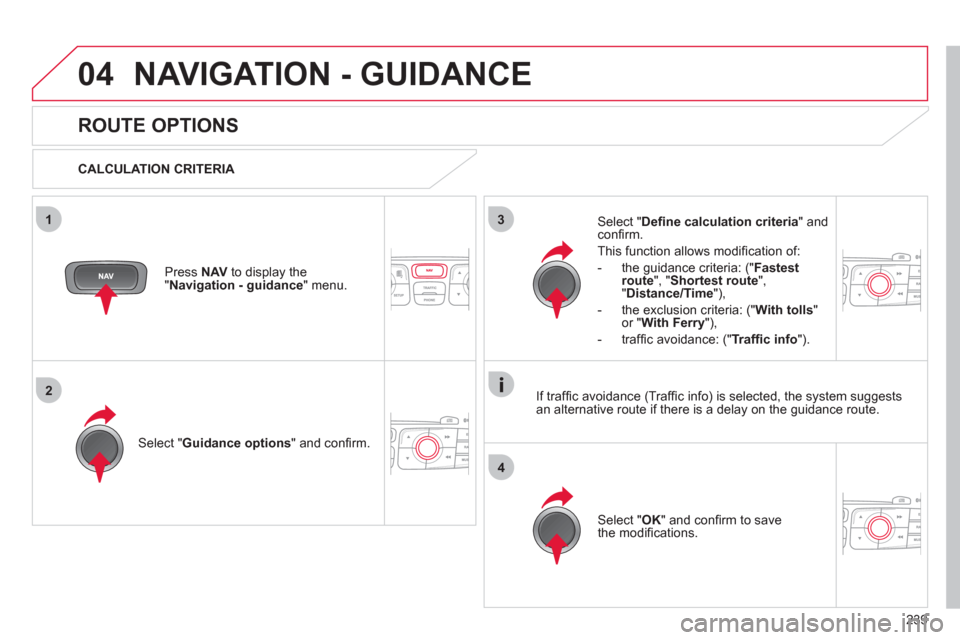

ROUTE OPTIONS


CALCULATION CRITERIA

Select " Guidance options
" and confi rm.

Select " OK
" and confi rm to save
the modifi cations.

Select " Defi ne calculation criteria
" and
confi rm.
This function allows modifi cation of:


- the guidance criteria: (" Fastest
route
", " Shortest route
",
" Distance/Time
"),

- the exclusion criteria: (" With tolls
"
or " With Ferry
"),

- traffi c avoidance: (" Traffi c info
").

Press NAV
to display the
" Navigation - guidance
" menu.
If traffi c avoidance (Traffi c info) is selected, the system suggests
an alternative route if there is a delay on the guidance route.

240
04
35
1
2
4
NAVIGATION - GUIDANCE

Press NAV
to display the
" Navigation - guidance
" menu.

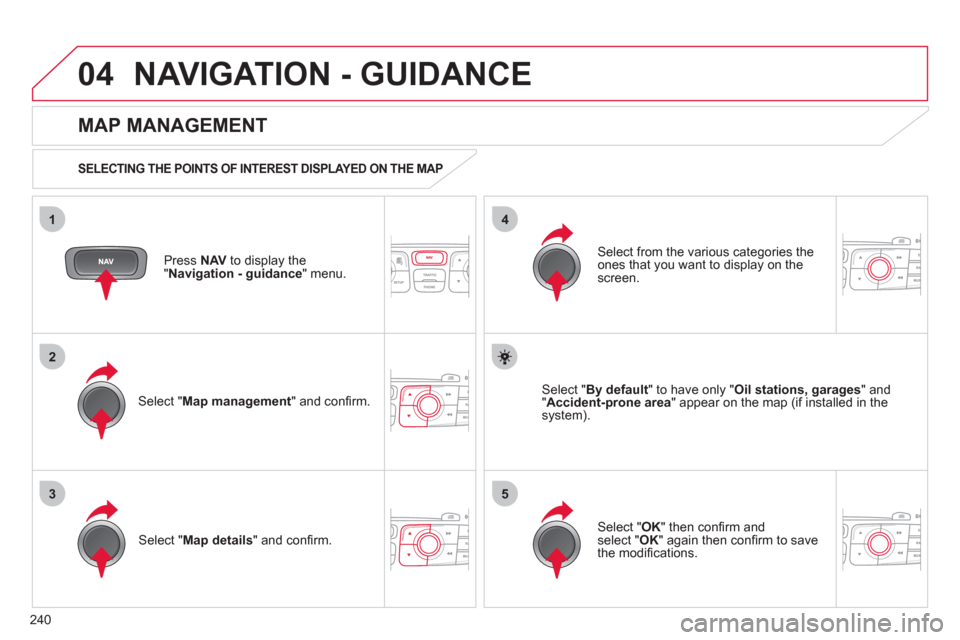

MAP MANAGEMENT


SELECTING THE POINTS OF INTEREST DISPLAYED ON THE MAP


Select " Map management
" and confi rm.
Select from the various categories the
ones that you want to display on the
screen.

Select " Map details
" and confi rm.
Select " By default
" to have only " Oil stations, garages
" and
" Accident-prone area
" appear on the map (if installed in the
system).

Select " OK
" then confi rm and
select " OK
" again then confi rm to save
the modifi cations.

241
04
3
1
2
4
NAVIGATION - GUIDANCE

Select " Map management
" and confi rm.
Select:


- " Vehicle direction
" to have the map
follow the direction of travel,

- " North direction
" to keep the map
always North up,

- " Perspective view
" to display a
perspective view.


Select " Map orientation
" and confi rm.
The colour of the map, different from the day and night mode, is
confi gured in the " SETUP
" menu.

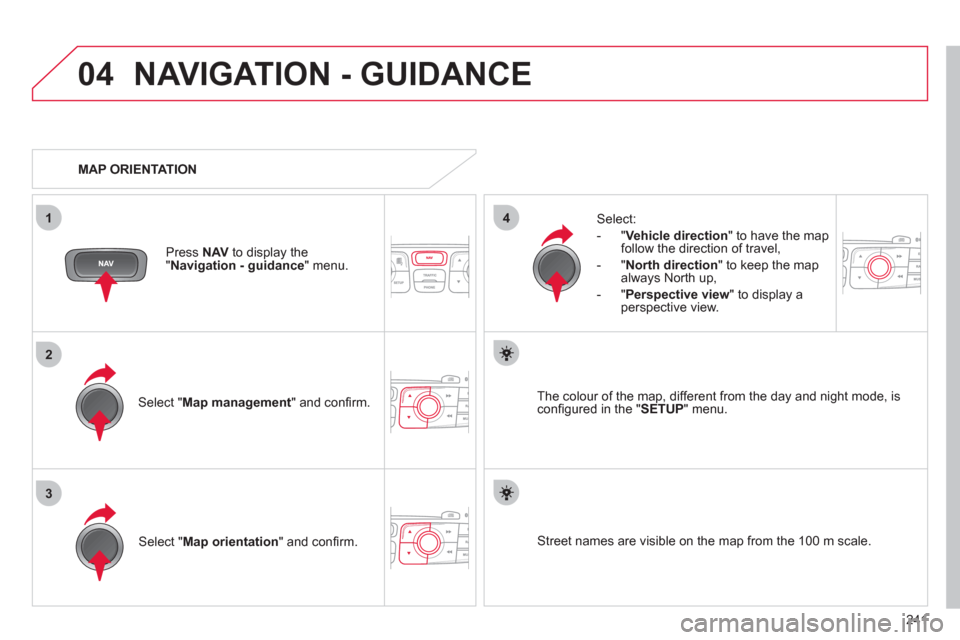

MAP ORIENTATION

Press NAV
to display the
" Navigation - guidance
" menu.

Street names are visible on the map from the 100 m scale.

242
04
1
2
36
4
5
NAVIGATION - GUIDANCE

Press NAV
to display the
" Navigation - guidance
" menu.







ADJUSTING THE GUIDANCE SPEECH SYNTHESIS


Select " Guidance options
" and confi rm.
ADJUSTING THE VOLUME/DEACTIVATION

Select " Set speech synthesis
" and
confi rm.
Select the volume graph and confi rm.

Select " Deactivate
" to deactivate voice messages.

Select " OK
" and press the dial to
confi rm.

Adjust the volume to the desired level
and confi rm.
The volume of messages can be adjusted during the transmission
of the message using the volume adjustment control.
The volume setting of guidance messages is also accessible via the
" SETUP
"/" Voice synthesis
" menu.

243
04
3
1
2
NAVIGATION - GUIDANCE

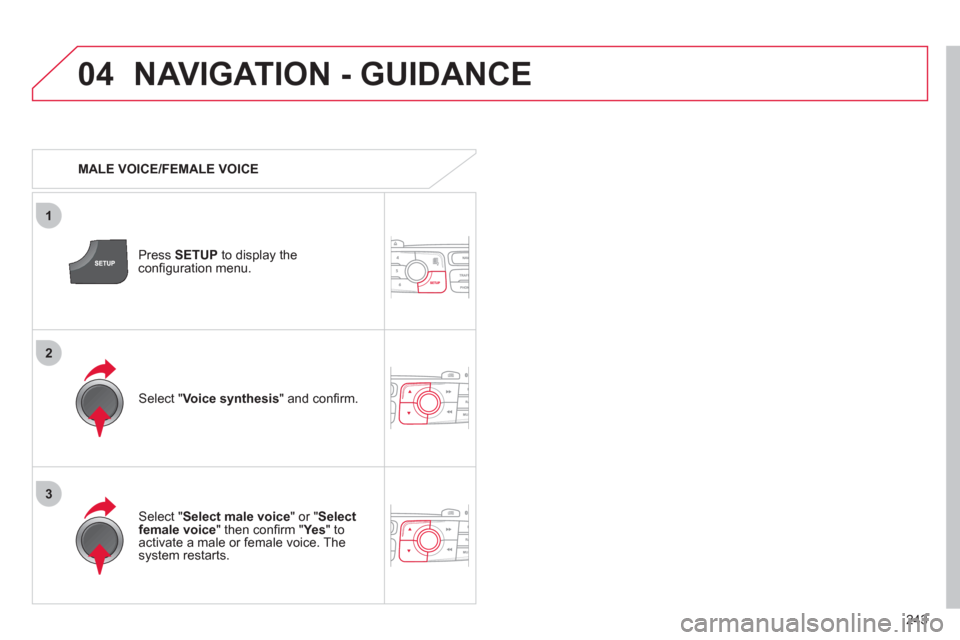

MALE VOICE/FEMALE VOICE

Press SETUP
to display the
confi guration menu.

Select " Select male voice
" or " Select
female voice
" then confi rm " Ye s
" to
activate a male or female voice. The
system restarts.

Select " Voice synthesis
" and confi rm.
