VISIBILITY
109

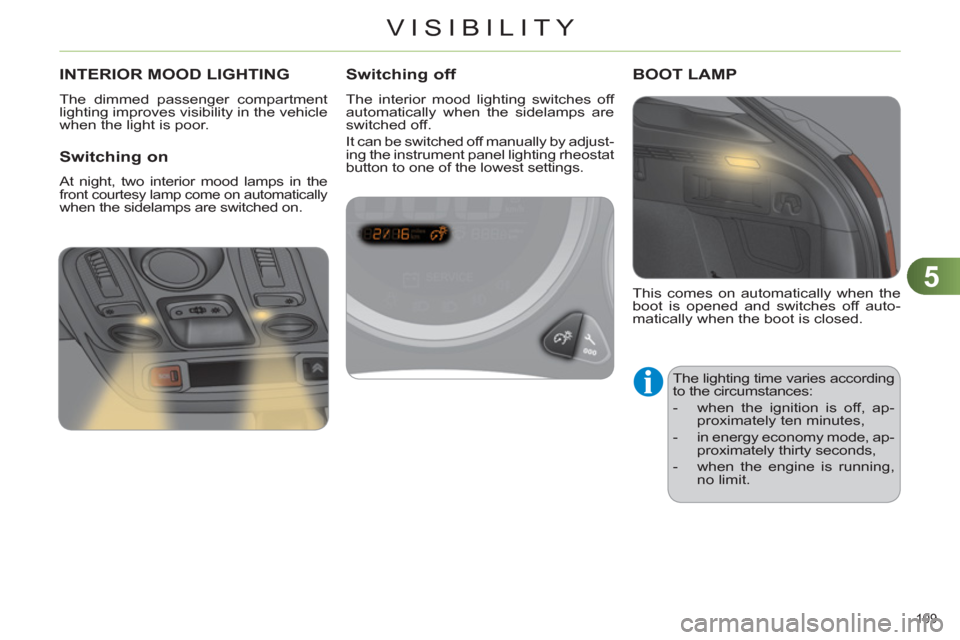

INTERIOR MOOD LIGHTING
The dimmed passenger compartment
lighting improves visibility in the vehicle
when the light is poor.
Switching on
At night, two interior mood lamps in the front courtesy lamp come on automatically
when the sidelamps are switched on.
Switching off
The interior mood lighting switches off
automatically when the sidelamps are
switched off.
It can be switched off manually by adjust-
ing the instrument panel lighting rheostat
button to one of the lowest settings.
This comes on automatically when the
boot is opened and switches off auto-
matically when the boot is closed.
BOOT LAMP
The lighting time varies according
to the circumstances:
- when the ignition is off, ap-
proximately ten minutes,
- in energy economy mode, ap-
proximately thirty seconds,
- when the engine is running,
no limit.
Page 112 of 324
6
FITTINGS
110

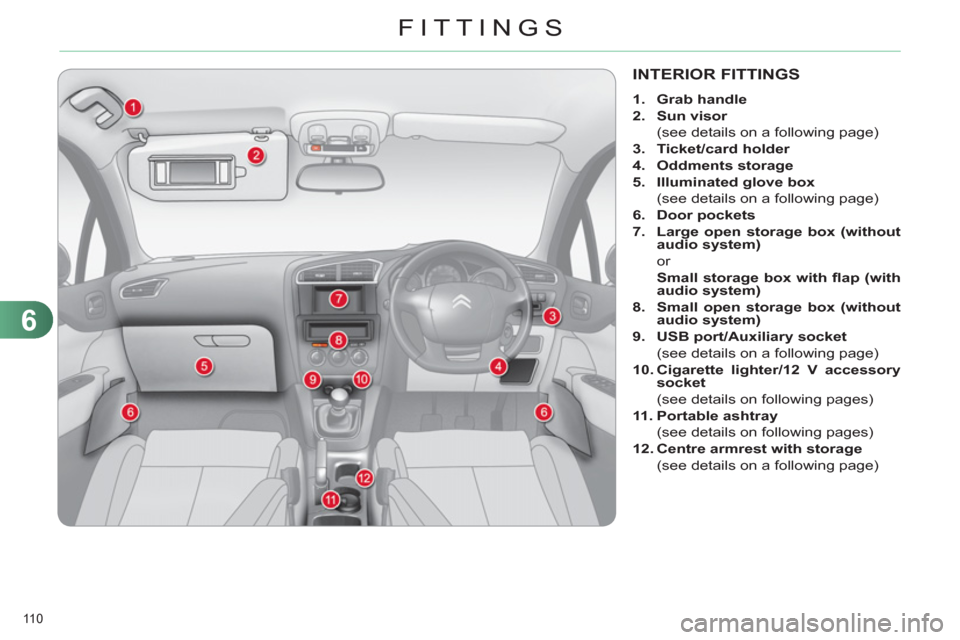

INTERIOR FITTINGS
1.
Grab handle
2.
Sun visor
(see details on a following page)
3.
Ticket/card holder
4.
Oddments storage
5.
Illuminated
glove box
(see details on a following page)
6.
Door pocket
s
7.
Large open storage box (without
audio system)
or
Small storage box with fl ap (with
audio system)
8.
Small open storage box (without
audio system)
9.
USB port/Auxiliary socket
(see details on a following page)
10.
Cigarette lighter/12 V accessory
socket
(see details on following pages)
11 .
Portable ashtray
(see details on following pages)
12.
Centre armrest with storage
(see details on a following page)
Page 113 of 324
6
FITTINGS
111
Component which protects against sunlight
from the front or the side, also equipped with
an illuminated courtesy mirror.
)
With the ignition on, raise the con-
cealing fl ap; the mirror is lit auto-
matically.
This sun visor is also equipped with a
ticket holder.
SUN VISOR
ILLUMINATED GLOVE BOX
Its lid has locations for storing a pen, a
pair of glasses, tokens, maps, a cup...
)
To open the glove box, raise the
handle.
It is lit when the lid is opened.
It houses the front passenger airbag
deactivation switch A
.
If the vehicle is fi tted with air condition-
ing, it provides access to the ventilation
nozzle B
, distributing the same cooled
air as the vents in the passenger com-
partment.
It gives access to the dashboard fuse-
box (see “Practical information - §
Changing a fuse”).
PORTABLE ASHTRAY
)
Pull the cover to open the ashtray.
)
To empty it, remove the ashtray by
pulling it upwards.
To avoid any problem of interfer-
ence or risk of overturning, do
not place the ashtray near the
gear lever.
Page 114 of 324
6
FITTINGS
112
CIGARETTE LIGHTER/12 V
ACCESSORY SOCKET
)
To use the cigarette lighter, press
it in and wait a few seconds until it
pops out automatically.
)
To connect a 12 V accessory (max
power: 120 W), remove the ciga-
rette lighter and connect a suitable
adaptor.
USB PORT/AUXILIARY SOCKET
The "AUX"
connection box, located in
the centre console, comprises an auxil-
iary JACK socket and/or a USB port.
It permits the connection of a portable
device, such as a digital audio player of
the iPod
® or USB memory stick type.
It reads certain audio fi le formats allow-
ing them to be heard via the vehicle's
speakers.
You can manage these fi les using the
steering mounted controls or the audio
system control panel and display them
on the multifunction screen.
For more information on the use of
this equipment, refer to the "Audio and
Telematics" section.
Connected to the USB port, the
portable device charges auto-
matically while in use.
LOWER CENTRE CONSOLE
1.
Storage pocket
2.
Cup holder
3.
Large open storage box
Page 115 of 324
6
FITTINGS
11 3

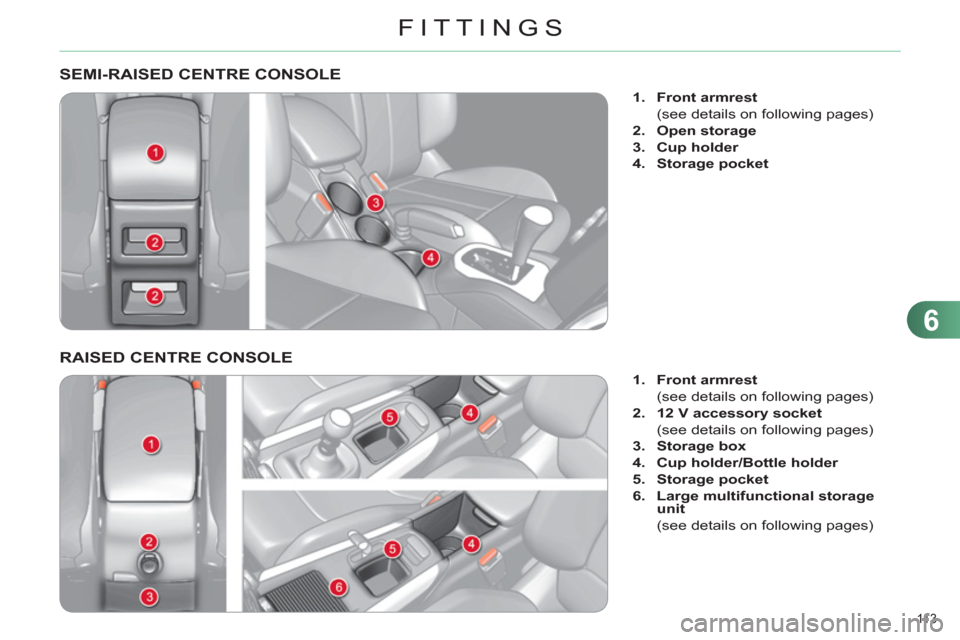

SEMI-RAISED CENTRE CONSOLE
1.
Front armrest
(see details on following pages)
2.
Open storage
3.
Cup holder
4.
Storage pocket
RAISED CENTRE CONSOLE
1.
Front armrest
(see details on following pages)
2.
12 V accessory socket
(see details on following pages)
3.
Storage box
4.
Cup holder/Bottle holder
5.
Storage pocket
6.
Large multifunctional storage
unit
(see details on following pages)
Page 116 of 324
6
FITTINGS
114

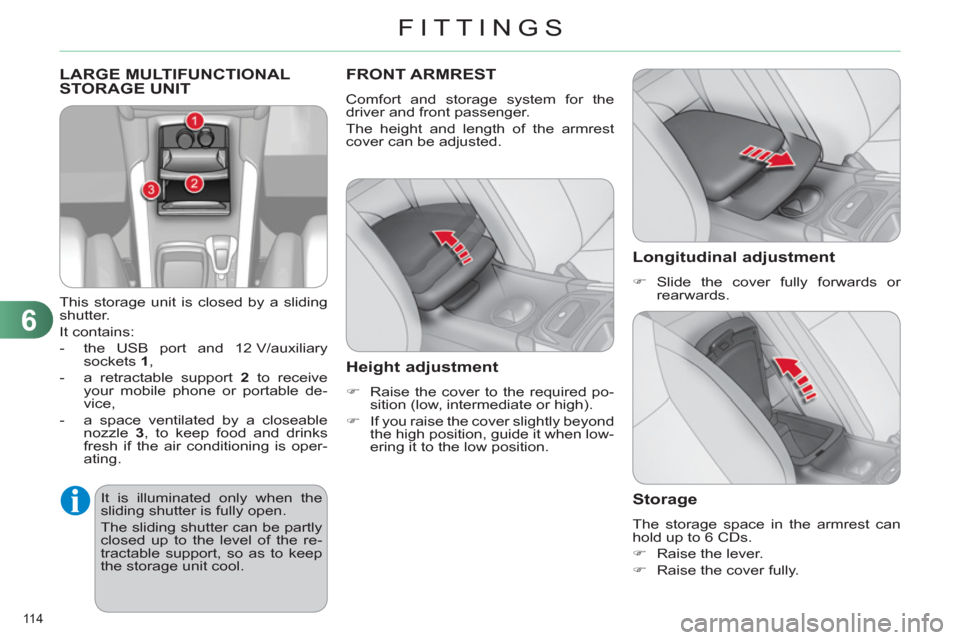

LARGE MULTIFUNCTIONAL
STORAGE UNIT
This storage unit is closed by a sliding
shutter.
It contains:
- the USB port and 12 V/auxiliary
sockets 1
,
- a retractable support 2
to receive
your mobile phone or portable de-
vice,
- a space ventilated by a closeable
nozzle 3
, to keep food and drinks
fresh if the air conditioning is oper-
ating.
FRONT ARMREST
Comfort and storage system for the
driver and front passenger.
The height and length of the armrest
cover can be adjusted.
Height adjustment
)
Raise the cover to the required po-
sition (low, intermediate or high).
)
If you raise the cover slightly beyond
the high position, guide it when low-
ering it to the low position.
Longitudinal adjustment
)
Slide the cover fully forwards or
rearwards.
Storage
The storage space in the armrest can
hold up to 6 CDs.
)
Raise the lever.
)
Raise the cover fully.
It is illuminated only when the
sliding shutter is fully open.
The sliding shutter can be partly
closed up to the level of the re-
tractable support, so as to keep
the storage unit cool.
Page 117 of 324
6
FITTINGS
11 5
)
To connect a 12 V accessory (max
power: 120 W), lift the cover and
connect a suitable adaptor.
12 V ACCESSORY SOCKET
FRONT ARMREST
Comfort and storage device for the driver
and front passenger.
The length of the armrest cover can be
adjusted.
Longitudinal adjustment
)
To move forwards, raise the lever.
The armrest slides forwards to its
stop.
)
To stow it, slide it fully back and
press down to lock it.
Storage
The armrest's compartment can hold
up to 6 CDs.
)
Raise the cover fully.
Page 118 of 324
6
FITTINGS
116

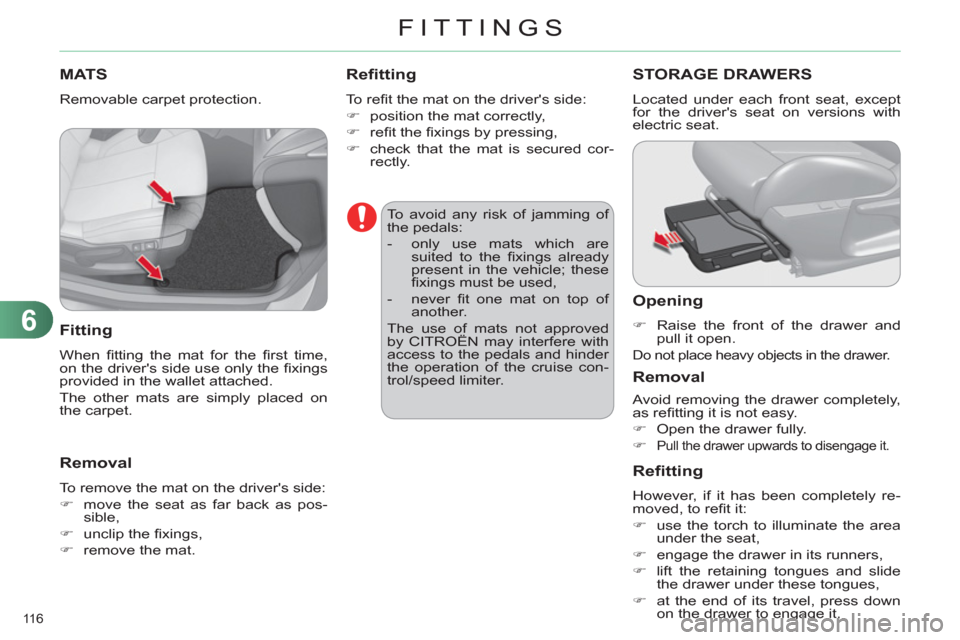

MATS
Removable carpet protection.
Fitting
When fi tting the mat for the fi rst time,
on the driver's side use only the fi xings
provided in the wallet attached.
The other mats are simply placed on
the carpet.
Removal
To remove the mat on the driver's side:
)
move the seat as far back as pos-
sible,
)
unclip the fi xings,
)
remove the mat.
Refitting
To refi t the mat on the driver's side:
)
position the mat correctly,
)
refi t the fi xings by pressing,
)
check that the mat is secured cor-
rectly.
To avoid any risk of jamming of
the pedals:
- only use mats which are
suited to the fi xings already
present in the vehicle; these
fi xings must be used,
- never fi t one mat on top of
another.
The use of mats not approved
by CITROËN may interfere with
access to the pedals and hinder
the operation of the cruise con-
trol/speed limiter.
STORAGE DRAWERS
Located under each front seat, except
for the driver's seat on versions with
electric seat.
Opening
)
Raise the front of the drawer and
pull it open.
Do not place heavy objects in the drawer.
Removal
Avoid removing the drawer completely,
as refi tting it is not easy.
)
Open the drawer fully.
)
Pull the drawer upwards to disengage it.
Refitting
However, if it has been completely re-
moved, to refi t it:
)
use the torch to illuminate the area
under the seat,
)
engage the drawer in its runners,
)
lift the retaining tongues and slide
the drawer under these tongues,
)
at the end of its travel, press down
on the drawer to engage it.
Page 119 of 324
6
FITTINGS
11 7

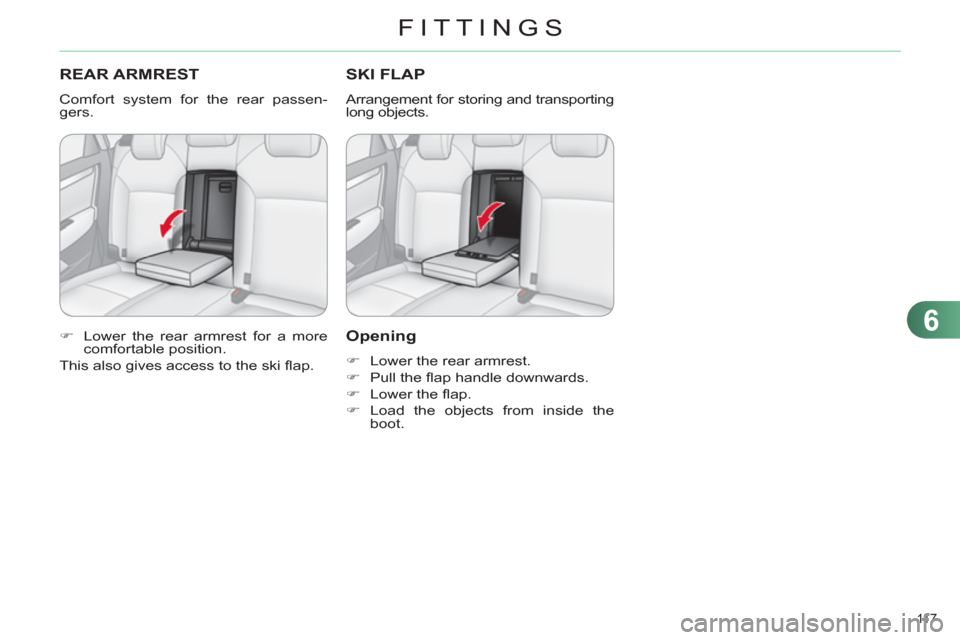

REAR ARMREST
Comfort system for the rear passen-
gers.
)
Lower the rear armrest for a more
comfortable position.
This also gives access to the ski fl ap.
SKI FLAP
Arrangement for storing and transporting
long objects.
Opening
)
Lower the rear armrest.
)
Pull the fl ap handle downwards.
)
Lower the fl ap.
)
Load the objects from inside the
boot.
Page 120 of 324
6
FITTINGS
118

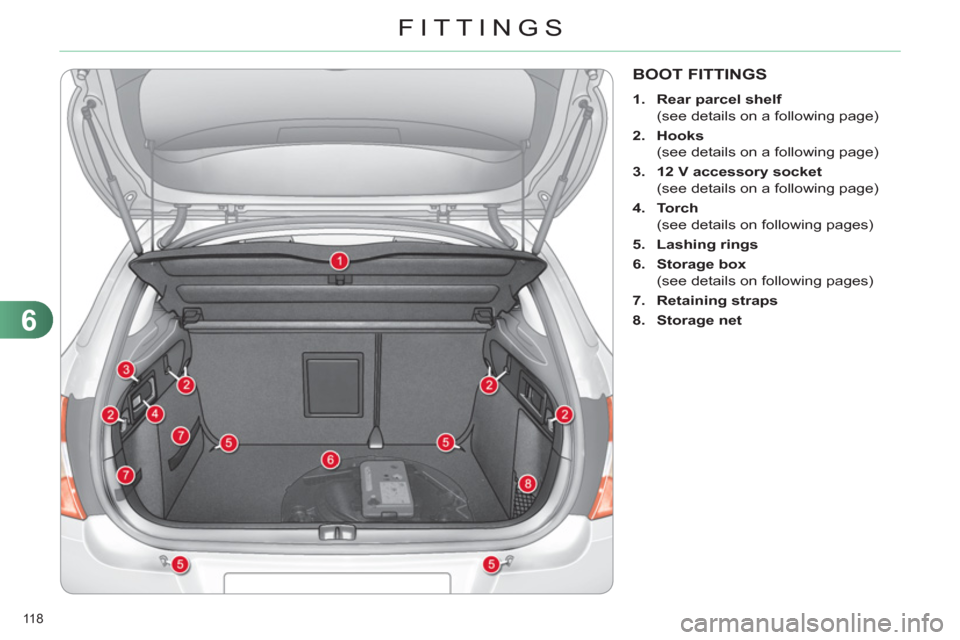

BOOT FITTINGS
1.
Rear parcel shelf
(see details on a following page)
2.
Hooks
(see details on a following page)
3.
12 V accessory socket
(see details on a following page)
4.
Torch
(see details on following pages)
5.
Lashing rings
6.
Storage box
(see details on following pages)
7.
Retaining straps
8.
Storage net
