TECHNICAL DATA
219

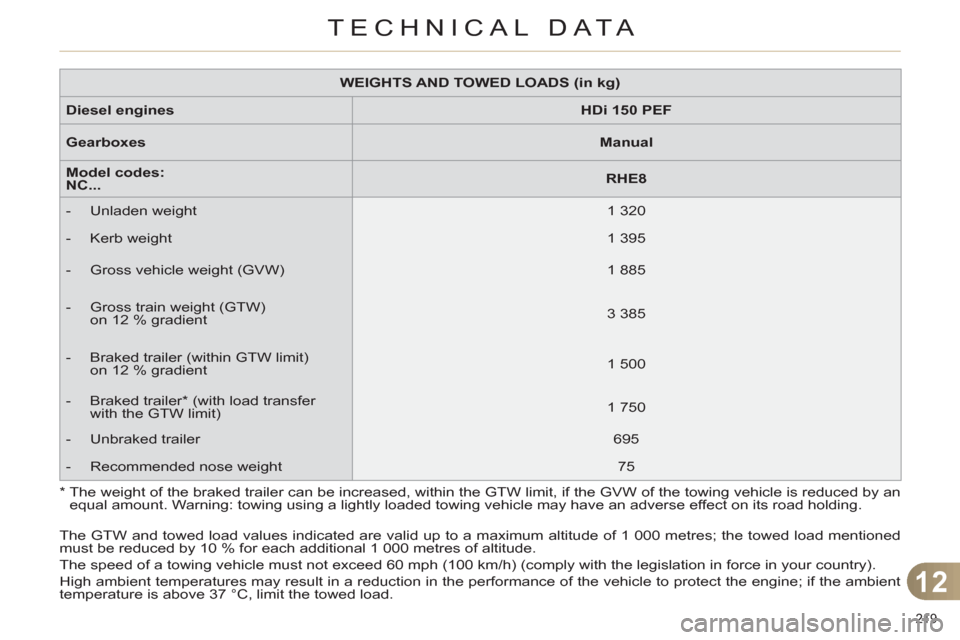

WEIGHTS AND TOWED LOADS (in kg)



Diesel engines


HDi 150 PEF



Gearboxes


Manual



Model codes:
NC...


RHE8




- Unladen weight
1 320


- Kerb weight
1 395


- Gross vehicle weight (GVW)
1 885


- Gross train weight (GTW)
on 12 % gradient
3 385


- Braked trailer (within GTW limit)
on 12 % gradient
1 500


- Braked trailer * (with load transfer
with the GTW limit)
1 750


- Unbraked trailer
695


- Recommended nose weight
75
*

The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount. Warning: towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.

12
TECHNICAL DATA
220

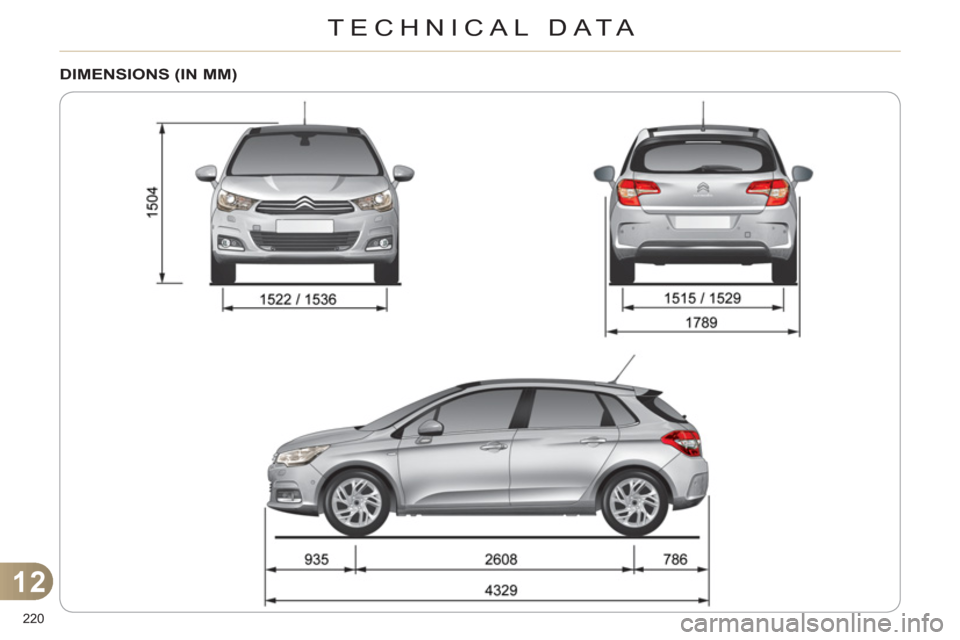

DIMENSIONS (IN MM)

12
TECHNICAL DATA
221

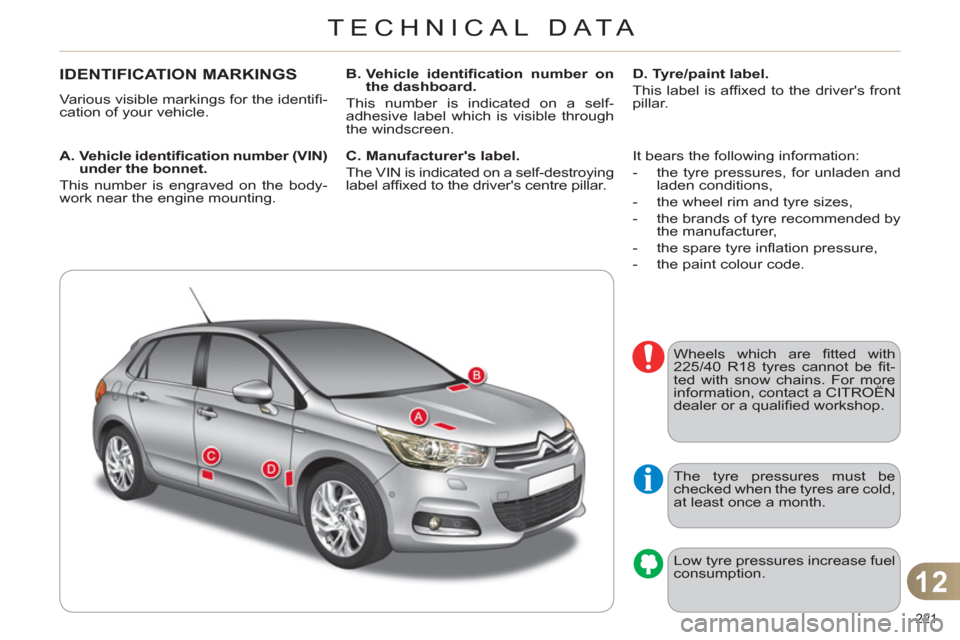

IDENTIFICATION MARKINGS

Various visible markings for the identifi -
cation of your vehicle.

A. Vehicle identifi cation number (VIN)
under the bonnet.
This number is engraved on the body-
work near the engine mounting.
B. Vehicle identifi cation number on
the dashboard.

This number is indicated on a self-
adhesive label which is visible through
the windscreen.
D. Tyre/paint label.

This label is affi xed to the driver's front
pillar.
The tyre pressures must be
checked when the tyres are cold,
at least once a month.
Low tyre pressures increase fuel
consumption.
C. Manufacturer's label.

The VIN is indicated on a self-destroying
label affi xed to the driver's centre pillar. It bears the following information:


- the tyre pressures, for unladen and
laden conditions,

- the wheel rim and tyre sizes,

- the brands of tyre recommended by
the manufacturer,

- the spare tyre infl ation pressure,

- the paint colour code.
Wheels which are fi tted with
225/40 R18 tyres cannot be fi t-
ted with snow chains. For more
information, contact a CITROËN
dealer or a qualifi ed workshop.

314
VISUAL SEARCH
TECHNICAL DATA - MAINTENANCE


Running out of Diesel fuel ............. 175

Checking levels ...................... 178-179


- oil

- brake fl uid

- coolant

- power steering fl uid

- screenwash/headlamp wash fl uid

- additive (Diesel with particle
emissions fi lter)


Changing bulbs....................... 191-196


- front

- rear

Petrol engines..........................211-214
LPG engine............................. 215-216
Diesel engines ........................ 217-219
Dimensions .................................... 220
Identifi cation markings ................... 221

Bonnet ........................................... 174
Petrol underbonnet ........................ 176
Diesel underbonnet ....................... 177
Checking components ............ 180-181


- battery

- air fi lter/passenger compartment fi lter

- oil fi lter

- particle emissions fi lter (Diesel)

- brake pads/discs


Battery .................................... 201-202
Energy economy mode.................. 203

Engine compartment fuses .... 197, 200

318
