technical data Citroen C4 RHD 2012 2.G Owner's Manual
[x] Cancel search | Manufacturer: CITROEN, Model Year: 2012, Model line: C4 RHD, Model: Citroen C4 RHD 2012 2.GPages: 324, PDF Size: 28.17 MB
Page 5 of 324
CONTENTS
3
Direction indicators 130
Hazard warning lamps 130
Horn 130
Tyre under-infl ation detection 131
Braking assistance systems 132
Trajectory control systems
(ESP) 133
Emergency or assistance call 134
Front seat belts 135
Airbags 138
8 - SAFETY 130 Î 141
Electric parking brake 142
Manual parking brake 149
Manual gearbox 149
Gear effi ciency indicator 150
6-speed electronic
gearbox system 151
Automatic gearbox 154
Hill start assist 157
Stop & Start 158
Blind spot sensors 161
Speed limiter 165
Cruise control 167
Parking space sensors 169
Parking sensors 171
9 - DRIVING 142 Î 172
Bonnet 174
Running out of fuel (Diesel) 175
Petrol engines 176
Diesel engines 177
Checking levels 178
Checks 180
10 - CHECKS 173 Î 181
Temporary puncture repair kit 182
Changing a wheel 187
Changing a bulb 191
Changing a fuse 197
Battery 201
Energy economy mode 203
Changing a wiper blade 203
Fitting roof bars 204
Very cold climate screen 204
Towing the vehicle 205
Towing a trailer 207
Audio pre-equipment 208
Accessories 209
11 - PRACTICAL
INFORMATION 182 Î 210
Petrol engines 211
Petrol weights 213
LPG engines 215
LPG weights 216
Diesel engines 217
Diesel weights 218
Dimensions 220
Identifi cation markings 221
12 - TECHNICAL
DATA 211 Î 221
Emergency or assistance 223
eMyWay 225
Audio system 277
AUDIO and
TELEMATICS 222 Î 310
ALPHABETICAL
INDEX 315 Î 318 VISUAL
SEARCH 311 Î 314

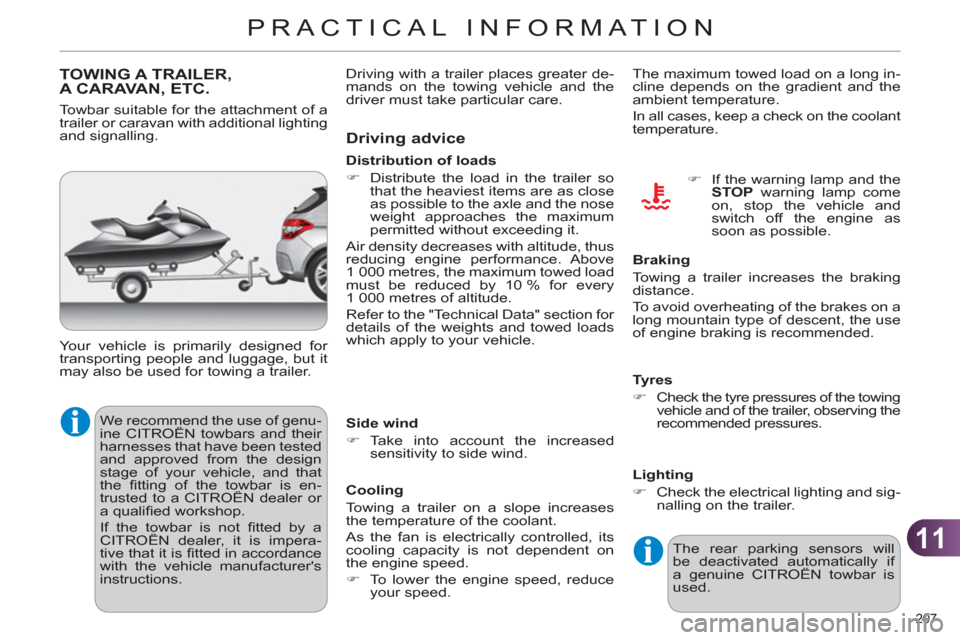

Page 209 of 324
11
PRACTICAL INFORMATION
207
TOWING A TRAILER,
A CARAVAN, ETC.
We recommend the use of genu-
ine CITROËN towbars and their
harnesses that have been tested
and approved from the design
stage of your vehicle, and that
the fi tting of the towbar is en-
trusted to a CITROËN dealer or
a qualifi ed workshop.
If the towbar is not fi tted by a
CITROËN dealer, it is impera-
tive that it is fi tted in accordance
with the vehicle manufacturer's
instructions. The rear parking sensors will
be deactivated automatically if
a genuine CITROËN towbar is
used.
Towbar suitable for the attachment of a
trailer or caravan with additional lighting
and signalling.
Your vehicle is primarily designed for
transporting people and luggage, but it
may also be used for towing a trailer. Driving with a trailer places greater de-
mands on the towing vehicle and the
driver must take particular care.
Driving advice
Distribution of loads
)
Distribute the load in the trailer so
that the heaviest items are as close
as possible to the axle and the nose
weight approaches the maximum
permitted without exceeding it.
Air density decreases with altitude, thus
reducing engine performance. Above
1 000 metres, the maximum towed load
must be reduced by 10 % for every
1 000 metres of altitude.
Refer to the "Technical Data" section for
details of the weights and towed loads
which apply to your vehicle.
Side wind
)
Take into account the increased
sensitivity to side wind.
Cooling
Towing a trailer on a slope increases
the temperature of the coolant.
As the fan is electrically controlled, its
cooling capacity is not dependent on
the engine speed.
)
To lower the engine speed, reduce
your speed. The maximum towed load on a long in-
cline depends on the gradient and the
ambient temperature.
In all cases, keep a check on the coolant
temperature.
)
If the warning lamp and the
STOP
warning lamp come
on, stop the vehicle and
switch off the engine as
soon as possible.
Braking
Towing a trailer increases the braking
distance.
To avoid overheating of the brakes on a
long mountain type of descent, the use
of engine braking is recommended.
Tyres
)
Check the tyre pressures of the towing
vehicle and of the trailer, observing the
recommended pressures.
Lighting
)
Check the electrical lighting and sig-
nalling on the trailer.
Page 213 of 324
12
TECHNICAL DATA
211
MODELS:
ENGINES AND GEARBOXES
Model codes:
NC...
8FR0
5FS0
5FS9
5FS9/D *
PETROL ENGINES
VTi 95
VTi 120
Cubic capacity (cc)
1 397
1 598
Bore x stroke (mm)
77 x 72.5
77 x 85.8
Max power: EU standard (kW)
70
88
Max power engine speed (rpm)
6 000
6 000
Max torque: EU standard (Nm)
135
160
Max torque engine speed (rpm)
4 000
4 250
Fuel
Unleaded
Unleaded
Catalytic converter
yes
yes
GEARBOXES
Manual
(5-speed)
Manual
(5-speed)
Auto
(4-speed)
OIL CAPACITIES (in litres)
Engine (with fi lter replacement)
4.25
4.25
4.25
* According to country of sale.
Page 214 of 324
12
TECHNICAL DATA
212
MODELS:
ENGINES AND GEARBOXES
Model codes:
NC...
NFUB
NFUC
NFUE
5FV8/P
PETROL ENGINES
1.6 i 16V
THP 155
Cubic capacity (cc)
1 587
1 598
Bore x stroke (mm)
78.5 x 82
77 x 85.8
Max power: EU standard (kW)
80
115
Max power engine speed (rpm)
5 800
6 000
Max torque: EU standard (Nm)
147
240
Max torque engine speed (rpm)
4 000
1 400
Fuel
Unleaded
Unleaded
Catalytic converter
yes
yes
GEARBOXES
Manual
(5-speed)
Automatic
(4-speed)
Electronic gearbox system
(6-speed)
OIL CAPACITIES (in litres)
Engine (with fi lter replacement)
3.25
3.25
4.25
Page 215 of 324
12
TECHNICAL DATA
213
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load. *
The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount. Warning: towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
WEIGHTS AND TOWED LOADS (in kg)
Petrol engines
VTi 95
VTi 120
Gearboxes
Manual
Manual
Auto
Model codes:
NC...
8FR0
5FS0
5FS9
5FS9/D
- Unladen weight
1 200
1 205
1 270
- Kerb weight
1 275
1 280
1 345
- Gross vehicle weight (GVW)
1 720
1 765
1 755
- Gross train weight (GTW)
on a 12 % gradient
2 920
3 065
3 055
- Braked trailer (within the GTW limit)
on a 12 % gradient
1 200
1 300
1 300
- Braked trailer * (with load transfer
within the GTW limit)
1 450
1 550
1 550
- Unbraked trailer
635
640
670
- Recommended nose weight
75
75
75

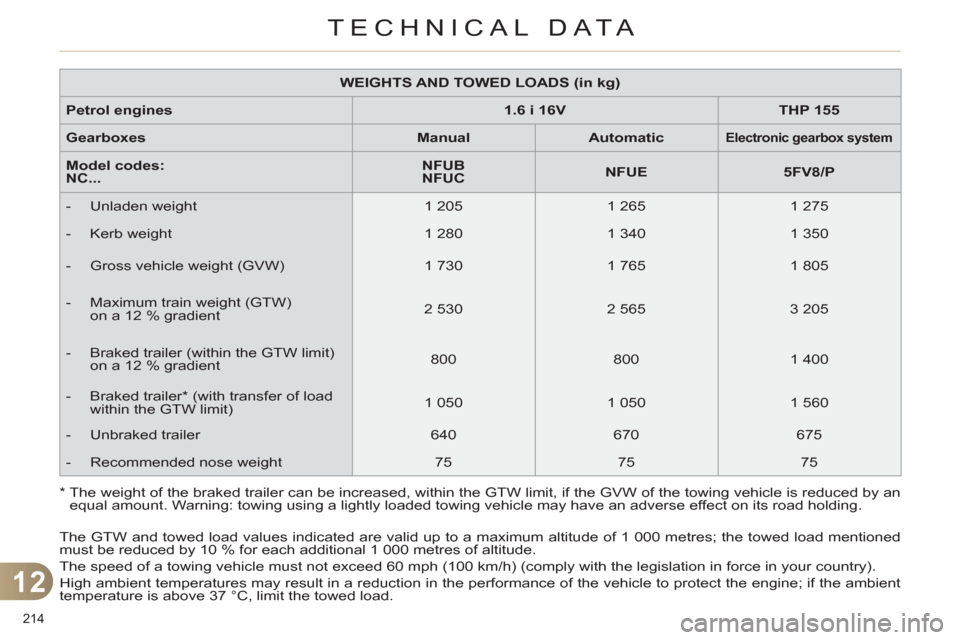

Page 216 of 324
12
TECHNICAL DATA
214
WEIGHTS AND TOWED LOADS (in kg)
Petrol engines
1.6 i 16V
THP 155
Gearboxes
Manual
Automatic
Electronic gearbox system
Model codes:
NC...
NFUB
NFUC
NFUE
5FV8/P
- Unladen weight
1 205
1 265
1 275
- Kerb weight
1 280
1 340
1 350
- Gross vehicle weight (GVW)
1 730
1 765
1 805
- Maximum train weight (GTW)
on a 12 % gradient
2 530
2 565
3 205
- Braked trailer (within the GTW limit)
on a 12 % gradient
800
800
1 400
- Braked trailer * (with transfer of load
within the GTW limit)
1 050
1 050
1 560
- Unbraked trailer
640
670
675
- Recommended nose weight
75
75
75
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load. *
The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount. Warning: towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
Page 217 of 324
12
TECHNICAL DATA
215
MODEL:
ENGINE AND GEARBOX
Model codes:
NC...
5FL0/GL
LPG ENGINE
VTi 120
Cubic capacity (cc)
1 598
Bore x stroke (mm)
77 x 85.8
Max. power: EU standard (kW)
88
Max. power speed (rpm)
6 000
Max torque: EU standard (Nm)
160
Max. torque speed (rpm)
4 250
Fuel
LPG/Unleaded
Catalytic converter
Yes
GEARBOX
Manual
(5-speed)
OIL CAPACITY (in litres)
Engine (with fi lter replacement)
4.25
For more information on the operation and use of your LPG vehicle, refer to the specifi c insert attached to the other vehicle
documents.

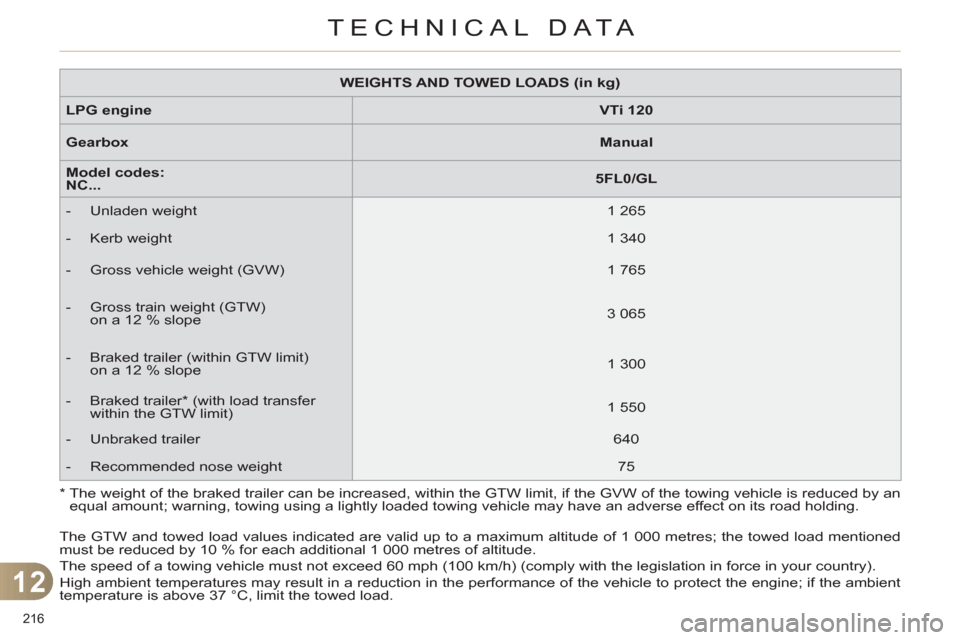

Page 218 of 324
12
TECHNICAL DATA
216
WEIGHTS AND TOWED LOADS (in kg)
LPG engine
VTi 120
Gearbox
Manual
Model codes:
NC...
5FL0/GL
- Unladen weight
1 265
- Kerb weight
1 340
- Gross vehicle weight (GVW)
1 765
- Gross train weight (GTW)
on a 12 % slope
3 065
- Braked trailer (within GTW limit)
on a 12 % slope
1 300
- Braked trailer * (with load transfer
within the GTW limit)
1 550
- Unbraked trailer
640
- Recommended nose weight
75
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.
*
The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
Page 219 of 324
12
TECHNICAL DATA
217
MODELS:
ENGINES AND GEARBOXES
Model codes:
NC...
9HJC
9HP0
9HR8
9HR8
/ S
9HR8/PS
9HR8/1PS
9HR8/2PS
RHE8
DIESEL ENGINES
HDi 90
HDi 90 PEF
HDi 110 PEF
HDi 150 PEF
Cubic capacity (cc)
1 560
1 560
1 560
1 997
Bore x stroke (mm)
75 x 88.3
75 x 88.3
75 x 88.3
85 x 88
Max power: EU standard (kW)
68
68
82
110
Max power engine speed (rpm)
4 000
4 000
3 600
3 750
Max torque: EU standard (Nm)
230
230
270
340
Max torque engine speed (rpm)
1 750
1 750
1 750
2 000
Fuel
Diesel
Diesel
Diesel
Diesel
Catalytic converter
yes
yes
yes
yes
Particle emissions fi lter (PEF)
no
yes
yes
yes
GEARBOXES
Manual
(5-speed)
Manual
(5-speed)
Manual
(6-speed)
Electronic
gearbox system
(6-speed)
Manual
(6-speed)
OIL CAPACITIES (in litres)
Engine (with fi lter replacement)
3.75
3.75
3.75
3.75
-
.../S:
model fi tted with Stop & Start.
.../1:
model fi tted with low rolling resistance tyres (for example: MICHELIN Energy Saver).
.../2:
model fi tted with very low rolling resistance tyres.

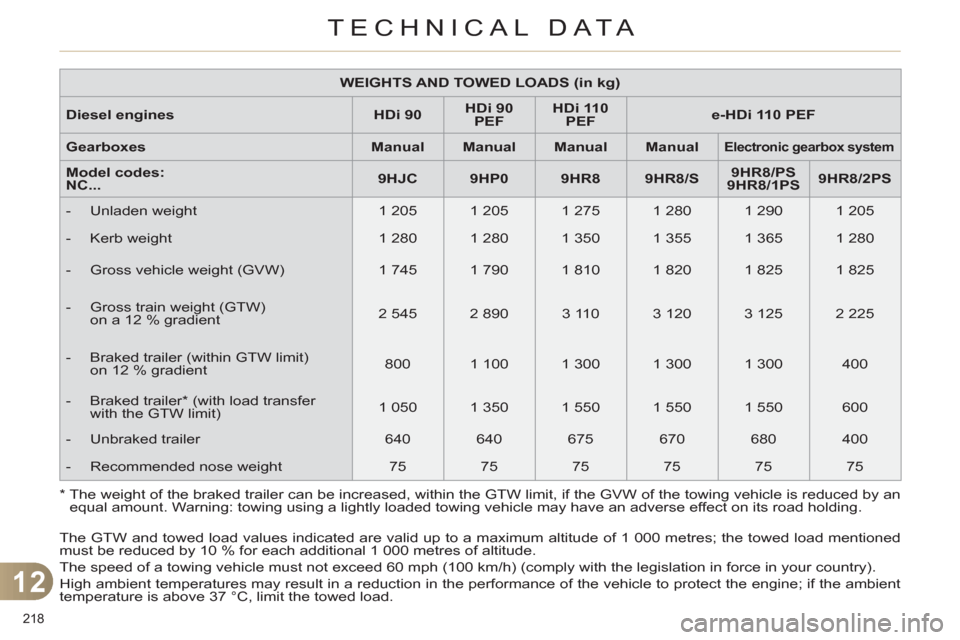

Page 220 of 324
12
TECHNICAL DATA
218
*
The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount. Warning: towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.
WEIGHTS AND TOWED LOADS (in kg)
Diesel engines
HDi 90
HDi 90
PEF
HDi 110
PEF
e-HDi 110 PEF
Gearboxes
Manual
Manual
Manual
Manual
Electronic gearbox system
Model codes:
NC...
9HJC
9HP0
9HR8
9HR8/S
9HR8/P
S
9HR8/1PS
9HR8/2PS
- Unladen weight
1 205
1 205
1 275
1 280
1 290
1 205
- Kerb weight
1 280
1 280
1 350
1 355
1 365
1 280
- Gross vehicle weight (GVW)
1 745
1 790
1 810
1 820
1 825
1 825
- Gross train weight (GTW)
on a 12 % gradient
2 545
2 890
3 110
3 120
3 125
2 225
- Braked trailer (within GTW limit)
on 12 % gradient
800
1 100
1 300
1 300
1 300
400
- Braked trailer * (with load transfer
with the GTW limit)
1 050
1 350
1 550
1 550
1 550
600
- Unbraked trailer
640
640
675
670
680
400
- Recommended nose weight
75
75
75
75
75
75
