Page 5 of 324
CONTENTS
3
Direction indicators 130
Hazard warning lamps 130
Horn 130
Tyre under-infl ation detection 131
Braking assistance systems 132
Trajectory control systems
(ESP) 133
Emergency or assistance call 134
Front seat belts 135
Airbags 138
8 - SAFETY 130 Î 141
Electric parking brake 142
Manual parking brake 149
Manual gearbox 149
Gear effi ciency indicator 150
6-speed electronic
gearbox system 151
Automatic gearbox 154
Hill start assist 157
Stop & Start 158
Blind spot sensors 161
Speed limiter 165
Cruise control 167
Parking space sensors 169
Parking sensors 171
9 - DRIVING 142 Î 172
Bonnet 174
Running out of fuel (Diesel) 175
Petrol engines 176
Diesel engines 177
Checking levels 178
Checks 180
10 - CHECKS 173 Î 181
Temporary puncture repair kit 182
Changing a wheel 187
Changing a bulb 191
Changing a fuse 197
Battery 201
Energy economy mode 203
Changing a wiper blade 203
Fitting roof bars 204
Very cold climate screen 204
Towing the vehicle 205
Towing a trailer 207
Audio pre-equipment 208
Accessories 209
11 - PRACTICAL
INFORMATION 182 Î 210
Petrol engines 211
Petrol weights 213
LPG engines 215
LPG weights 216
Diesel engines 217
Diesel weights 218
Dimensions 220
Identifi cation markings 221
12 - TECHNICAL
DATA 211 Î 221
Emergency or assistance 223
eMyWay 225
Audio system 277
AUDIO and
TELEMATICS 222 Î 310
ALPHABETICAL
INDEX 315 Î 318 VISUAL
SEARCH 311 Î 314
Page 104 of 324
5
VISIBILITY
102
To avoid causing a nuisance to other
road users, the height of the halogen
headlamps should be adjusted accord-
ing to the load in the vehicle.
0.
1 or 2 people in the front seats.
-.
3 people.
1.
5 people.
-.
Intermediate setting.
2.
5 people + maximum authorised load.
-.
Intermediate setting.
3.
Driver + maximum authorised load.
MANUAL ADJUSTMENT OF
HALOGEN HEADLAMPS
The initial setting is position "0"
.
AUTOMATIC ADJUSTMENT OF
XENON HEADLAMPS
This system adjusts the height of the
xenon headlamp beams automatically
and when stationary, according to the
load in the vehicle, so as to avoid caus-
ing a nuisance to other road user.
If a malfunction occurs, this
warning lamp is displayed
in the instrument panel, ac-
companied by an audible signal and a
message in the screen.
The system then places your headlam-
ps in the lowest position.
Do not touch the xenon bulbs.
Contact a CITROËN dealer or a
qualifi ed workshop.
Page 122 of 324
6
FITTINGS
120
This is a removable lamp, fi tted in the
boot wall, which can be used to light the
boot or as a torch.
For the boot lamp function, refer to the
"Visibility - § Boot lamp" section.
Torch
Operation
This torch operates with NiMH type re-
chargeable batteries.
It has a battery life of approximately
45 minutes and charges while you are
driving.
Use
)
Extract the torch from its location
pulling it upwards.
)
Press the switch, located on the
back, to switch the torch on or off.
)
Unfold the support, located on the
back, to set down and raise the
torch; for example, when changing
a wheel.
Storing
)
Put the torch back in place in its lo-
cation starting with the lower part.
If you have forgotten to switch off
the torch, this switches it off auto-
matically.
)
Raise the boot carpet for access to
the storage box.
This has areas for the storage a box of
spare bulbs, a fi rst aid kit, two warning
triangles...
It also contains the vehicle tools, the
temporary puncture repair kit...
Storage box
Observe the polarities when fi t-
ting the rechargeable batteries.
Never replace the rechargeable
batteries with normal disposable
batteries. It the torch is not engaged cor-
rectly, it may not charge and may
not come on when the boot is
opened.
Page 193 of 324
11
PRACTICAL INFORMATION
191
CHANGING A BULB
The headlamps are fi tted with
polycarbonate glass with a pro-
tective coating:
)
do not clean them using a
dry or abrasive cloth, nor
with a detergent or solvent
product,
)
use a sponge and soapy water,
)
when using a high pressure
washer on persistent marks,
do not keep the lance direct-
ed towards the lamps or their
edges for too long, so as not
to damage their protective
coating and seals.
)
Do not touch the bulb directly
with your fi ngers, use lint-
free cloths.
Changing a bulb should only be
done after the headlamp has been
switched off for a few minutes (risk
of serious burns).
It is imperative to use only anti-
ultraviolet (UV) type bulbs in
order not to damage the head-
lamp.
Always replace a failed bulb with
a new bulb with the same type
and specifi cation.
Risk of electrocution
Xenon bulbs (D1S-35W) must be
replaced by a CITROËN dealer
or a qualifi ed workshop.
Front lamps
1.
Direction indicators (H21 clear).
2.
Dipped beam headlamps
(H7 - 55W).
3.
Main beam headlamps
(H1 - 55W).
4.
Daytime running lamps/
sidelamps (P21/5W XL).
5.
Foglamps (H11 - 55W).
1.
Directional dipped/main beam
headlamps (D1S-35W).
2.
Direction indicators (PY21W amber).
3.
Daytime running lamps/sidelamps
(P21/5W XL).
4.
Foglamps (H11-55W).
Model with halogen headlamps
Model with xenon and directional
headlamps
Bulbs with lugs, type H1, H7...
take care to position them cor-
rectly to ensure the best lighting.
Page 194 of 324
11
PRACTICAL INFORMATION
192
Amber coloured bulbs, such as
the direction indicators, must be
replaced with bulbs of identical
specifi cations and colour.
When refi tting, close the protec-
tive cover carefully to preserve
the sealing of the headlamp.
Changing direction indicator bulbs
Model with halogen headlamps
Rapid fl ashing of the direction
indicator warning lamp (right
or left) indicates the failure of a
bulb on that side.
Access to bulbs
)
Remove the air defl ector by unclip-
ping each of its three attachment
points.
)
Unclip the bonnet release cable at
its two fi xings.
)
Move the cable down.
After changing the failed bulb, remember
to put everything back in place (cable and
air defl ector). Depending on the engine and only on
the left hand side, you must fi rst carry
out the following operations for access
to the protective covers on the bulbs.
)
Turn the bulb holder a quarter of a
turn and extract it.
)
Pull out the bulb and change it.
To reassemble, carry out these opera-
tions in reverse order.
Model with Xenon headlamps
)
Remove the protective cover by
pulling on its tongue.
)
Disconnect the electrical connector.
)
Separate the springs to release the
bulb.
)
Pull the bulb out and replace it.
To reassemble, carry out these opera-
tions in reverse order.
Page 195 of 324
11
PRACTICAL INFORMATION
193
Changing dipped beam headlamp
bulbs (only on models with halogen
headlamps)
Changing daytime running lamp/
sidelamp bulbs
)
Remove the protective cover by
pulling on the tab.
)
Disconnect the bulb connector.
)
Turn the bulb holder a quarter of a
turn and extract it.
)
Pull the bulb and change it.
To r efi t, carry out these operations in
reverse order.
)
Remove the protective cover by
pulling on the tab.
)
Disconnect the bulb connector.
)
Spread the springs to release the
bulb.
)
Extract the bulb and change it.
To reassemble, carry out these operations
in reverse order.
Changing main beam headlamp
bulbs (only on models with halogen
headlamps)
)
Remove the protective cover by
pulling on the tab.
)
Disconnect the bulb connector.
)
Squeeze the springs to release the
bulb.
)
Pull out the bulb and replace it.
To reassemble, carry out these operations
in reverse order.
Page 196 of 324
11
PRACTICAL INFORMATION
194
)
Introduce a fl at screwdriver in the
hole in the fi nisher.
)
Pull and lever to unclip the bumper
fi nisher (the parking sensor stays
with the fi nisher).
)
Remove the two module fi xing screws
and remove it from its housing.
)
Disconnect the bulb holder connector.
)
Turn the bulb holder a quarter of a
turn and extract it.
)
Pull the bulb and change it.
To r efi t, carry out these operations in
reverse order.
To replace these bulbs you may also
contact a CITROËN dealer or a qualifi ed
workshop.
Changing foglamp bulbs
Changing the side spotlamps
For the replacement of this type of LED
lamp, contact a CITROËN dealer or a
qualifi ed workshop.
Changing integrated direction
indicator side repeaters
)
Insert a screwdriver towards the
centre of the repeater between the
repeater and the base of the mirror.
)
Tilt the screwdriver to extract the re-
peater and remove it.
)
Disconnect the repeater connector.
To reassemble, carry out these operations
in reverse order.
Contact a CITROËN dealer or a qualifi ed
workshop to obtain replacement repeaters.
Page 197 of 324
11
PRACTICAL INFORMATION
195
Rear lamps
1.
Brake/
sidelamp
(P21/5W).
2.
Direction
indicator
(PY21W amber)
.
3.
Reversing lamp (P21W).
4.
Rear
foglamp
(P21W).
Amber bulbs, such as those for
the direction indicators, must be
replaced by bulbs of the same
rating and colour.
The lamps on the tailgate are
dummy units. They are there for
aesthetic purposes only.
Changing bulbs
These four bulbs are changed from in-
side the boot:
)
open the boot,
)
remove the access fl ap from the
corresponding side trim panel,
)
unclip the lamp unit connector,
)
As a precaution, place a cloth in the
bottom of the housing to catch the
nut if it is dropped on removal,
)
slacken the hexagonal nut using a
10 mm tube spanner then remove
the nut by hand,
)
remove the two bulb holder fi xing
screws,
)
extract the lamp unit carefully pulling
in its middle towards the outside,
)
spread the four tabs and remove
the bulb holder,
)
turn the bulb a quarter of a turn and
change it.
To r efi t, carry out these operations in
reverse order.
Take care to engage the lamp unit in its
guides, while keeping it in line with the
vehicle.
Tighten suffi ciently to ensure sealing,
but without damaging the lamp.
Page 198 of 324
11
PRACTICAL INFORMATION
196

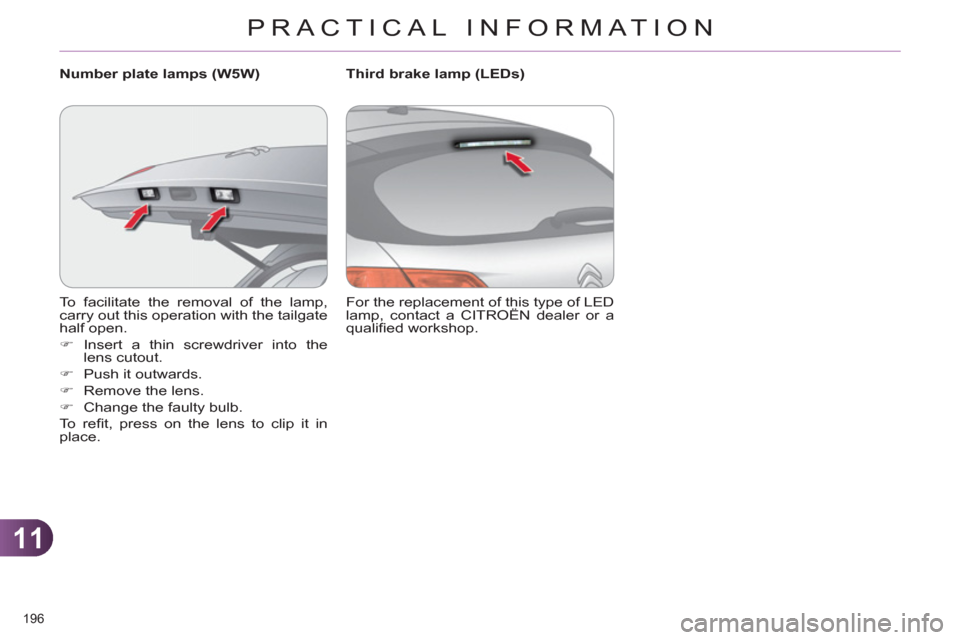

To facilitate the removal of the lamp,
carry out this operation with the tailgate
half open.
)
Insert a thin screwdriver into the
lens cutout.
)
Push it outwards.
)
Remove the lens.
)
Change the faulty bulb.
To r efi t, press on the lens to clip it in
place.
Number plate lamps (W5W)
For the replacement of this type of LED
lamp, contact a CITROËN dealer or a
qualifi ed workshop.
Third brake lamp (LEDs)
Page 212 of 324
11
PRACTICAL INFORMATION
210
Installation of radio
communication transmitters
Before installing any after-
market radio communication
transmitter, you can contact a
CITROËN dealer for the speci-
fi cation of transmitters which
can be fi tted (frequency, maxi-
mum power, aerial position,
specifi c installation require-
ments), in line with the Vehicle
Electromagnetic Compatibility
Directive (2004/104/EC).
Depending on the legislation in
force in the country, it may be
compulsory to have a high vis-
ibility safety vest, warning triangle
and spare bulbs and fuses available
in the vehicle.
The fi tting of electrical equip-
ment or accessories which are
not recommended by CITROËN
may result in a failure of your ve-
hicle's electronic system and ex-
cessive electrical consumption.
Please note this precaution.
You are advised to contact a
CITROËN representative to be
shown the range of recommend-
ed equipment and accessories.
"Multimedia":
audio systems, steering mounted au-
dio controls, speakers, Hi-Fi module,
Bluetooth hands-free system, portable
satellite navigation system, semi-inte-
gral support bracket for portable navi-
gation system, speed camera detector,
USB Box, reversing camera, portable
video screen, portable video support
bracket, 230 V/50 Hz socket, 230 V/50 Hz
adaptor, Wi-Fi on board...
By going to a CITROËN dealer, you
can also obtain cleaning and mainte-
nance products (interior and exterior) -
including ecological products in the
"TECHNATURE" range -, products for
topping up (screenwash...), touch-up
pens and paint aerosols for the exact
colour of your vehicle, recharges (car-
tridge for the temporary puncture repair
kit...), ...
