CONTENTS
3
Direction indicators 130
Hazard warning lamps 130
Horn 130
Tyre under-infl ation detection 131
Braking assistance systems 132
Trajectory control systems
(ESP) 133
Emergency or assistance call 134
Front seat belts 135
Airbags 138
8 - SAFETY 130 Î 141
Electric parking brake 142
Manual parking brake 149
Manual gearbox 149
Gear effi ciency indicator 150
6-speed electronic
gearbox system 151
Automatic gearbox 154
Hill start assist 157
Stop & Start 158
Blind spot sensors 161
Speed limiter 165
Cruise control 167
Parking space sensors 169
Parking sensors 171
9 - DRIVING 142 Î 172
Bonnet 174
Running out of fuel (Diesel) 175
Petrol engines 176
Diesel engines 177
Checking levels 178
Checks 180
10 - CHECKS 173 Î 181
Temporary puncture repair kit 182
Changing a wheel 187
Changing a bulb 191
Changing a fuse 197
Battery 201
Energy economy mode 203
Changing a wiper blade 203
Fitting roof bars 204
Very cold climate screen 204
Towing the vehicle 205
Towing a trailer 207
Audio pre-equipment 208
Accessories 209
11 - PRACTICAL
INFORMATION 182 Î 210
Petrol engines 211
Petrol weights 213
LPG engines 215
LPG weights 216
Diesel engines 217
Diesel weights 218
Dimensions 220
Identifi cation markings 221
12 - TECHNICAL
DATA 211 Î 221
Emergency or assistance 223
eMyWay 225
Audio system 277
AUDIO and
TELEMATICS 222 Î 310
ALPHABETICAL
INDEX 315 Î 318 VISUAL
SEARCH 311 Î 314

10
INSTRUMENTS AND CONTROLS




1.
Steering wheel adjustment control.

2.
Steering mounted control paddles
for the 6-speed electronic gearbox
system.

3.
Lighting and direction indicators
control stalk.

4.
Speaker (tweeter).

5.
Windscreen demisting vent.

6.
Sunshine sensor.

7.
Passenger’s airbag.

8.
Glove box/Audio/video sockets/
Passenger’s airbag deactivation
switch/Fusebox.

9.
Bonnet release.

10.
Heated seat control.

11 .
Lumbar massage control.

12.
Electric parking brake.

13.
Gear lever, 6-speed electronic
gearbox system.

14.
Large multifunctional storage unit.

6
FITTINGS
111
Component which protects against sunlight
from the front or the side, also equipped with
an illuminated courtesy mirror.


)
With the ignition on, raise the con-
cealing fl ap; the mirror is lit auto-
matically.
This sun visor is also equipped with a
ticket holder.








SUN VISOR










ILLUMINATED GLOVE BOX


Its lid has locations for storing a pen, a
pair of glasses, tokens, maps, a cup...


)
To open the glove box, raise the
handle.
It is lit when the lid is opened.
It houses the front passenger airbag
deactivation switch A
.
If the vehicle is fi tted with air condition-
ing, it provides access to the ventilation
nozzle B
, distributing the same cooled
air as the vents in the passenger com-
partment.
It gives access to the dashboard fuse-
box (see “Practical information - §
Changing a fuse”).






PORTABLE ASHTRAY




)
Pull the cover to open the ashtray.

)
To empty it, remove the ashtray by
pulling it upwards.
To avoid any problem of interfer-
ence or risk of overturning, do
not place the ashtray near the
gear lever.

10
CHECKS
176

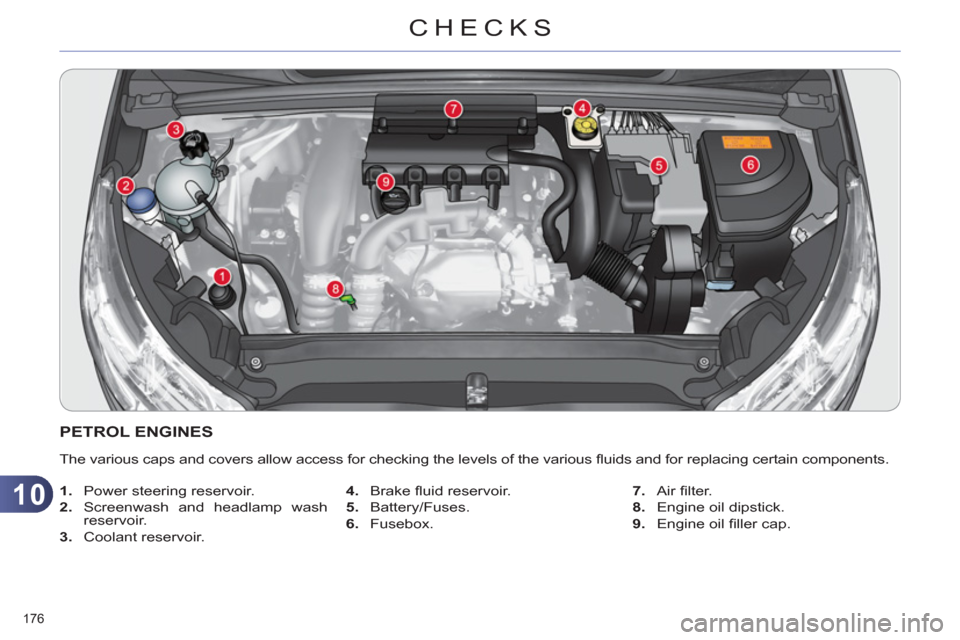

PETROL ENGINES

The various caps and covers allow access for checking the levels of the various fl uids and for replacing certain components.


1.
Power steering reservoir.

2.
Screenwash and headlamp wash
reservoir.

3.
Coolant reservoir.
4.
Brake fl uid reservoir.

5.
Battery/Fuses.

6.
Fusebox.
7.
Air fi lter.

8.
Engine oil dipstick.

9.
Engine oil fi ller cap.

10
CHECKS
177
*
According to engine.














DIESEL ENGINES

The various caps and covers allow access for checking the levels of the various fl uids, for replacing certain components and
for priming the fuel system.


1.
Power steering reservoir.

2.
Screenwash and headlamp wash
reservoir.

3.
Coolant reservoir.
4.
Brake fl uid reservoir.

5.
Battery/Fuses.

6.
Fusebox.

7.
Air fi lter.
8.
Engine oil dipstick.

9.
Engine oil fi ller cap.

10.
Priming pump * .

11 .
Bleed screw * .

11
PRACTICAL INFORMATION
197




















CHANGING A FUSE

Access to the tools

The extraction tweezer is fi tted to the
back of the dashboard fusebox cover.
To gain access to them:


)
open the glove box lid,

)
unclip the carrier fi tted to the fuse-
box cover by pulling on the right,

Changing a fuse

Before changing a fuse,


)
the cause of the failure must be
identifi ed and rectifi ed,

)
all electrical consumers must be
switched off,

)
the vehicle must be immobilised
with the ignition off,

)
Identify the failed fuse using the al-
location tables and illustrations on
the following pages.
Good

Failed

To replace a fuse, you must:


)
use the special tweezer to extract
the fuse from its housing and check
the condition of its fi lament.

)
always replace the failed fuse with
a fuse of the same rating (same
colour); use of a different rating may
cause malfunctions (risk of fi re).
if the fuse fails again soon after re-
placement, have the electrical system
checked by a CITROËN dealer or a
qualifi ed workshop.
Installing electrical
accessories
Your vehicle’s electrical sys-
tem is designed to operate with
standard or optional equipment.
Before installing other electrical
equipment or accessories on
your vehicle, contact a CITROËN
dealer or a qualifi ed workshop.
CITROËN will not accept re-
sponsibility for the cost incurred
in repairing your vehicle or for
rectifying malfunctions resulting
from the installation of accesso-
ries not supplied and not recom-
mended by CITROËN and not
installed in accordance with its
instructions, in particular when
the combined consumption of all
of the additional equipment con-
nected exceeds 10 milliamperes.
The replacement of a fuse not
mentioned in the following ta-
bles may cause a serious mal-
function of your vehicle. Contact
a CITROËN dealer or a qualifi ed
workshop.
Tweezer


)
remove the tweezer,

)
open the fusebox cover by pulling at
top right, then left,

)
fold down the fusebox cover com-
pletely.

11
PRACTICAL INFORMATION
198

Dashboard fuses

The fuseboxes are located in the lower
dashboard (left-hand side).

Access to the fuses


)
Refer to the paragraph "Access to
the tools".

Fuse tables

Fusebox 1



Fuse N°



Rating


Functions



F8



3 A

Alarm siren, alarm ECU.


F13



10 A

Cigarette lighter.


F14



10 A

12 V socket in boot.


F16



3 A

Lighting for the large multifunctional storage unit,
rear map reading lamps, glove box illumination.


F17



3 A

Sun visor illumination, front map reading lamps.


F28



15 A

Audio system, radio (after-market).


F30



20 A

Rear wiper.


F32



10 A

Hi-Fi amplifi er.

11
PRACTICAL INFORMATION
199


Fuse N°



Rating


Functions



F36



15 A

Rear 12 V socket.


F37



-

Not used.


F38



-

Not used.


F39



-

Not used.


F40



-

Not used.
Fusebox 2

11
PRACTICAL INFORMATION
200


Fuse N°



Rating


Functions



F19



30 A

Windscreen wipers slow/fast speed.


F20



15 A

Front and rear screenwash pump.


F21



20 A

Headlamp wash pump.


F22



15 A

Horn.


F23



15 A

Right-hand main beam headlamp.


F24



15 A

Left-hand main beam headlamp.


F27



5 A

Left-hand dipped headlamp.


F28



5 A

Right-hand dipped headlamp.


Engine compartment fuses

The fusebox is placed in the engine
compartment near the battery (left-
hand side).

Access to the fuses


)
Unclip the cover.

)
Change the fuse (see correspond-
ing paragraph).

)
When you have fi nished, close the
cover carefully to ensure sealing of
the fusebox.

Fuse table

11
PRACTICAL INFORMATION
201











BATTERY

The battery is located under the bonnet.
To gain access to it:


)
open the bonnet using the interior
release lever, then the exterior safety
catch,

)
secure the bonnet stay,

)
remove the plastic cover to gain
access to the two terminals,

)
unclip the fuse box to remove the
battery, if necessary.



Access to the battery


Disconnecting the cables

Do not force the tab as locking
will not be possible if the clip is
not positioned correctly; start the
procedure again.





The presence of this label, in
particular with the Stop & Start
system, indicates the use of a
12 V lead-acid battery with spe-
cial technology and specifi cation;
the involvement of a CITROËN
dealer or a qualifi ed workshop is
essential when replacing or dis-
connecting the battery.
Failure to observe this recom-
mendation may cause premature
wear of the battery. Procedure for charging your battery
when it is fl at or for starting the engine
using another battery.

After refi tting the battery, the
Stop & Start system will only be
active after a continuous period
of immobilisation of the vehicle,
a period which depends on the
climatic conditions and the state
of charge of the battery (up to
about 8 hours).

)
Position the open clip 1
of the cable
on the positive terminal (+) of the
battery.

)
Press vertically on the clip 1
to position
it correctly against the battery.

)
Lock the clip by lowering the tab 2
.

)
Raise the locking tab fully.



Reconnecting the cables
