CHECKS
181

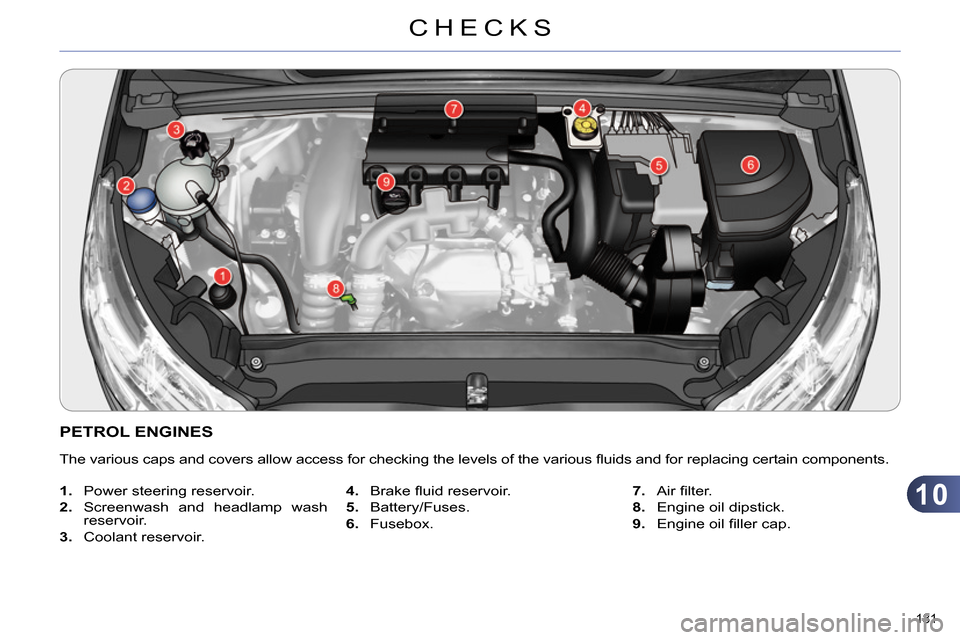

PETROL ENGINES

The various caps and covers allow access for checking the levels of the various fl uids and for replacing certain components.


1.
Power steering reservoir.

2.
Screenwash and headlamp wash
reservoir.

3.
Coolant reservoir.
4.
Brake fl uid reservoir.

5.
Battery/Fuses.

6.
Fusebox.
7.
Air fi lter.

8.
Engine oil dipstick.

9.
Engine oil fi ller cap.

10
CHECKS
182
*
According to engine.

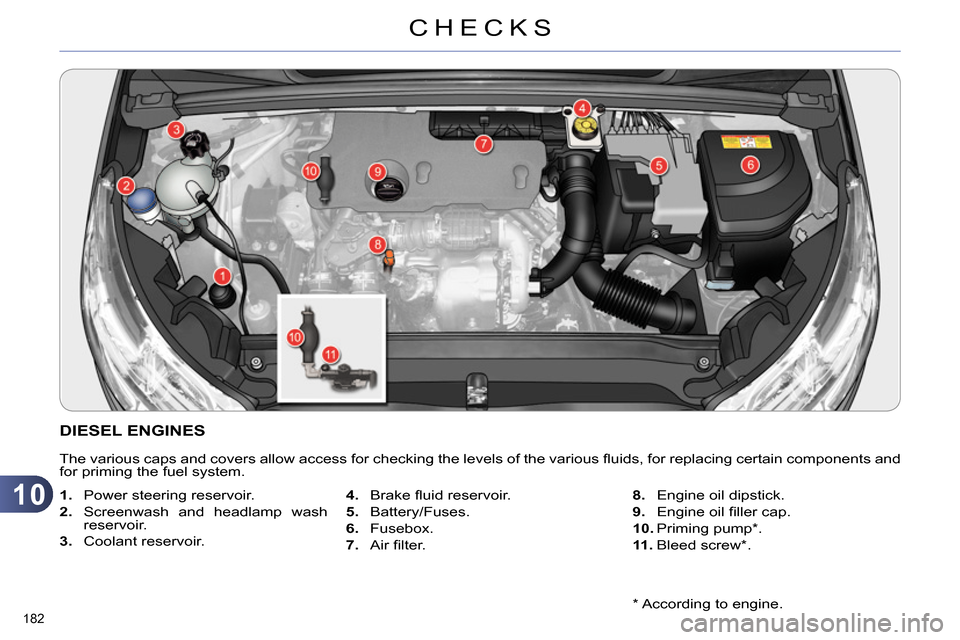

DIESEL ENGINES

The various caps and covers allow access for checking the levels of the various fl uids, for replacing certain components and
for priming the fuel system.


1.
Power steering reservoir.

2.
Screenwash and headlamp wash
reservoir.

3.
Coolant reservoir.
4.
Brake fl uid reservoir.

5.
Battery/Fuses.

6.
Fusebox.

7.
Air fi lter.
8.
Engine oil dipstick.

9.
Engine oil fi ller cap.

10.
Priming pump * .

11 .
Bleed screw * .

10
CHECKS
184








Used products

Avoid prolonged contact of used
oil or fl uids with the skin.
Most of these fl uids are harmful
to health or indeed very corro-
sive.
Do not discard used oil or fl uids
into sewers or onto the ground.
Take used oil to a CITROËN
dealer or a qualifi ed workshop
(France) or to an authorised
waste disposal site.









Additive level (Diesel with
particle emissions filter)
The additive reservoir low level is indi-
cated by:

Topping up
The reservoir must be topped up with-
out delay by a CITROËN dealer or a
qualifi ed workshop.


- fi xed illumination of the par-
ticle emissions fi lter warning
lamp, accompanied by an au-
dible signal and a message
that the particle emissions
fi lter additive level is too low.

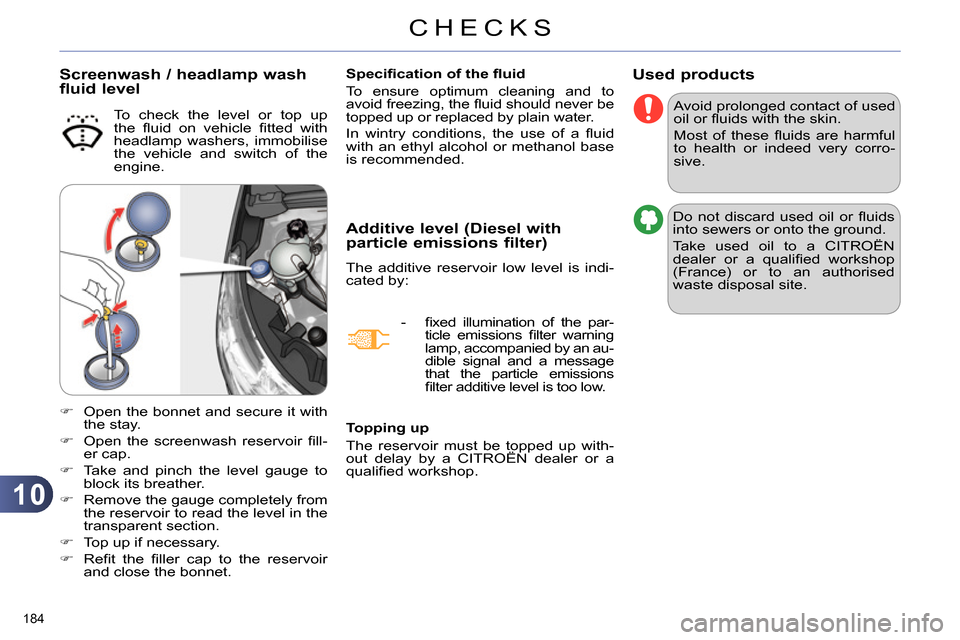

Screenwash / headlamp wash
fluid level
Specifi cation of the fl uid
To ensure optimum cleaning and to
avoid freezing, the fl uid should never be
topped up or replaced by plain water.
In wintry conditions, the use of a fl uid
with an ethyl alcohol or methanol base
is recommended.
To check the level or top up
the fl uid on vehicle fi tted with
headlamp washers, immobilise
the vehicle and switch of the
engine.



Open the bonnet and secure it with
the stay.


Open the screenwash reservoir fi ll-
er cap.


Take and pinch the level gauge to
block its breather.


Remove the gauge completely from
the reservoir to read the level in the
transparent section.


Top up if necessary.


Refi t the fi ller cap to the reservoir
and close the bonnet.

11
PRACTICAL INFORMATION
197











CHANGING A BULB


The headlamps are fi tted with
polycarbonate glass with a pro-
tective coating:



do not clean them using a
dry or abrasive cloth, nor
with a detergent or solvent
product,



use a sponge and soapy wa-
ter or a pH neutral product,


when using a high pressure
washer on persistent marks,
do not keep the lance direct-
ed towards the lamps or their
edges for too long, so as not
to damage their protective
coating and seals.
Changing a bulb should only be
done after the headlamp has
been switched off for a few min-
utes (risk of serious burns).



Do not touch the bulb directly
with your fi ngers, use a lint-
free cloth.
It is imperative to use only anti-
ultraviolet (UV) type bulbs to
avoid damaging the headlamp.
Always replace a failed bulb with
a new bulb with the same type
and specifi cation.


Risk of electrocution
Xenon bulbs (D1S-35W) must
be replaced by a CITROËN
dealer or a qualifi ed workshop.

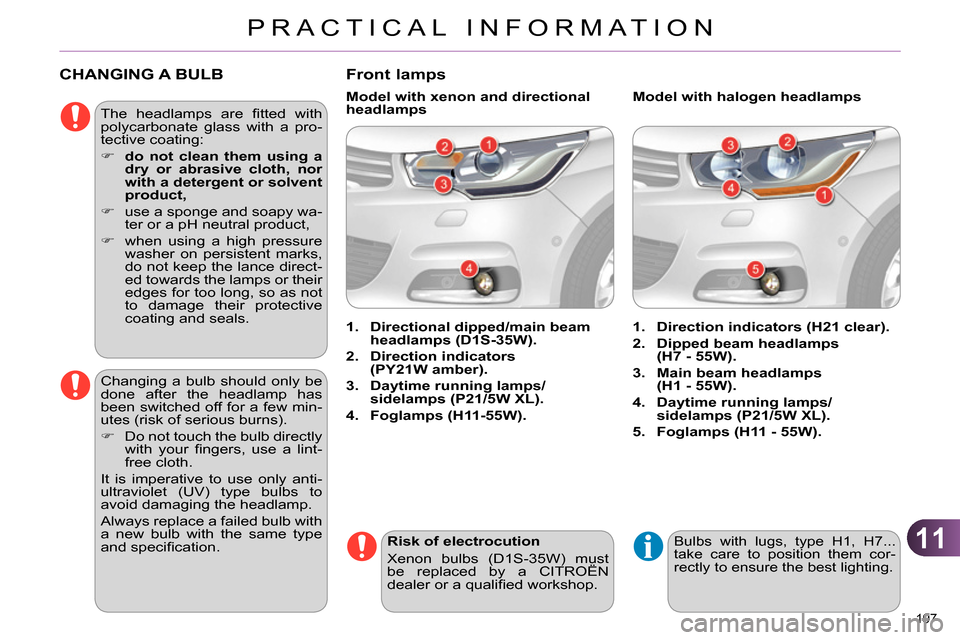

Front lamps



1.
Direction indicators (H21 clear).


2.
Dipped beam headlamps
(H7 - 55W).


3.
Main beam headlamps
(H1 - 55W).


4.
Daytime running lamps/
sidelamps (P21/5W XL).


5.
Foglamps (H11 - 55W).



1.
Directional dipped/main beam
headlamps (D1S-35W).


2.
Direction indicators
(PY21W amber).


3.
Daytime running lamps/
sidelamps (P21/5W XL).


4.
Foglamps (H11-55W).









Model with halogen headlamps




























Model with xenon and directional
headlamps
Bulbs with lugs, type H1, H7...
take care to position them cor-
rectly to ensure the best lighting.

11
PRACTICAL INFORMATION
198
Amber coloured bulbs, such as
the direction indicators, must be
replaced with bulbs of identical
specifi cations and colour.
When refi tting, close the protec-
tive cover carefully to preserve
the sealing of the headlamp.













Changing direction indicator bulbs

Model with halogen headlamps
Rapid fl ashing of the direction
indicator warning lamp (right
or left) indicates the failure of a
bulb on that side.

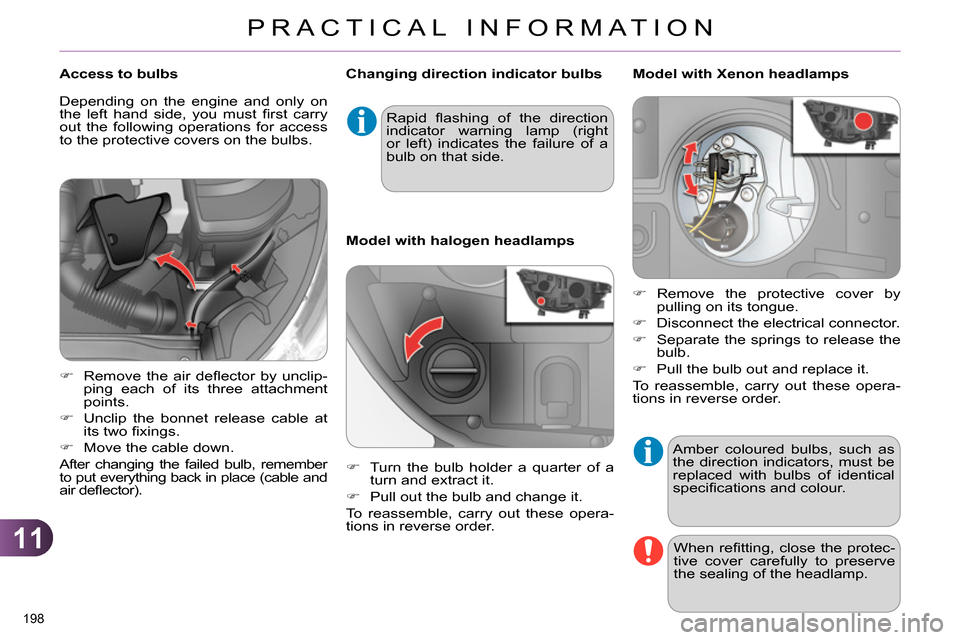

Access to bulbs



Remove the air defl ector by unclip-
ping each of its three attachment
points.


Unclip the bonnet release cable at
its two fi xings.


Move the cable down.
After changing the failed bulb, remember
to put everything back in place (cable and
air defl ector). Depending on the engine and only on
the left hand side, you must fi rst carry
out the following operations for access
to the protective covers on the bulbs.



Turn the bulb holder a quarter of a
turn and extract it.


Pull out the bulb and change it.
To reassemble, carry out these opera-
tions in reverse order.
Model with Xenon headlamps




Remove the protective cover by
pulling on its tongue.


Disconnect the electrical connector.


Separate the springs to release the
bulb.


Pull the bulb out and replace it.
To reassemble, carry out these opera-
tions in reverse order.

11
PRACTICAL INFORMATION
199

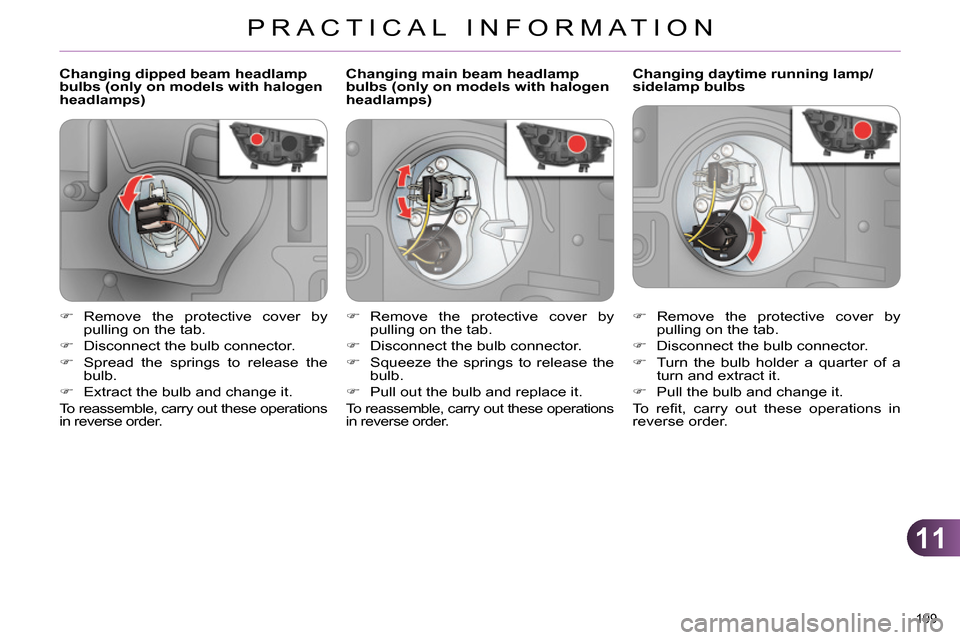

Changing dipped beam headlamp
bulbs (only on models with halogen
headlamps)









Changing daytime running lamp/
sidelamp bulbs



Remove the protective cover by
pulling on the tab.


Disconnect the bulb connector.


Turn the bulb holder a quarter of a
turn and extract it.


Pull the bulb and change it.
To r efi t, carry out these operations in
reverse order.



Remove the protective cover by
pulling on the tab.


Disconnect the bulb connector.


Spread the springs to release the
bulb.


Extract the bulb and change it.
To reassemble, carry out these operations
in reverse order.
Changing main beam headlamp
bulbs (only on models with halogen
headlamps)



Remove the protective cover by
pulling on the tab.


Disconnect the bulb connector.


Squeeze the springs to release the
bulb.


Pull out the bulb and replace it.
To reassemble, carry out these operations
in reverse order.

11
PRACTICAL INFORMATION
206


Fuse N°



Rating


Functions



F19



30 A

Windscreen wipers slow / fast speed.


F20



15 A

Front and rear screenwash pump.


F21



20 A

Headlamp wash pump.


F22



15 A

Horn.


F23



15 A

Right-hand main beam headlamp.


F24



15 A

Left-hand main beam headlamp.


F27



5 A

Left-hand dipped headlamp.


F28



5 A

Right-hand dipped headlamp.

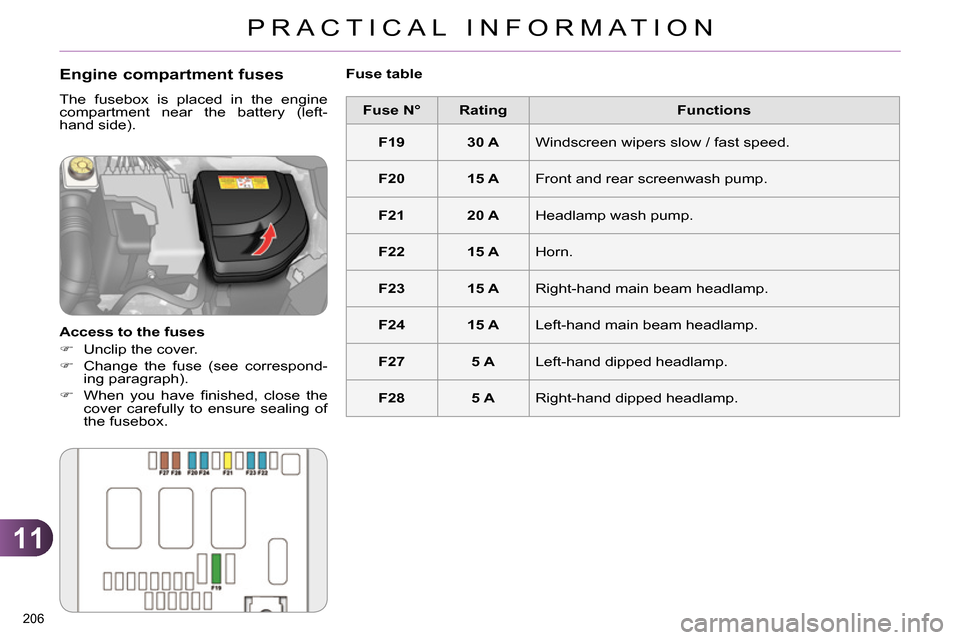

Engine compartment fuses

The fusebox is placed in the engine
compartment near the battery (left-
hand side).

Access to the fuses



Unclip the cover.


Change the fuse (see correspond-
ing paragraph).


When you have fi nished, close the
cover carefully to ensure sealing of
the fusebox.

Fuse table

11
PRACTICAL INFORMATION
210








LOAD REDUCTION MODE

System which manages the use of cer-
tain functions according to the level of
charge remaining in the battery.

When the vehicle is being driven, the
load reduction function temporarily de-
activates certain functions, such as the
air conditioning, the heated rear screen...
The deactivated functions are reactivat-
ed automatically as soon as conditions
permit.








ENERGY ECONOMY MODE

System which manages the period of
use of certain functions to conserve a
suffi cient level of charge in the battery.
After the engine has stopped, you can
still use functions such as the audio
equipment, windscreen wipers, dipped
beam headlamps, courtesy lamps, etc.
for a maximum combined period of thirty
minutes.

Switching to economy mode

Once this period has elapsed, a message
appears in the screen indicating that the
vehicle has switched to economy mode
and the active functions are put on standby.
If the telephone is being used at
the same time on the navigation
system, it will be interrupted after
10 minutes.
A fl at battery prevents the en-
gine from starting (refer to the
corresponding paragraph).


Exiting economy mode

These functions are reactivated auto-
matically the next time the vehicle is
driven.



In order to resume the use of these
functions immediately, start the engine
and let it run for a few minutes.
The time available to you will then be
double the period for which the engine
is left running. However, this period will
always be between fi ve and thirty minutes.

This period may be greatly re-
duced if the battery is not fully
charged.








CHANGING A WIPER BLADE

Before removing a front wiper
blade



Within one minute after switching
off the ignition, operate the wiper
stalk to position the wiper blades
vertically on the windscreen.



Removing




Raise the corresponding wiper arm.


Unclip the wiper blade and remove it.



Fitting




Put the corresponding new wiper
blade in place and clip it.


Fold down the wiper arm carefully.



After fitting a front wiper blade




Switch on the ignition.


Operate the wiper stalk again to
park the wiper blades.

10
270
CONFIGURATION

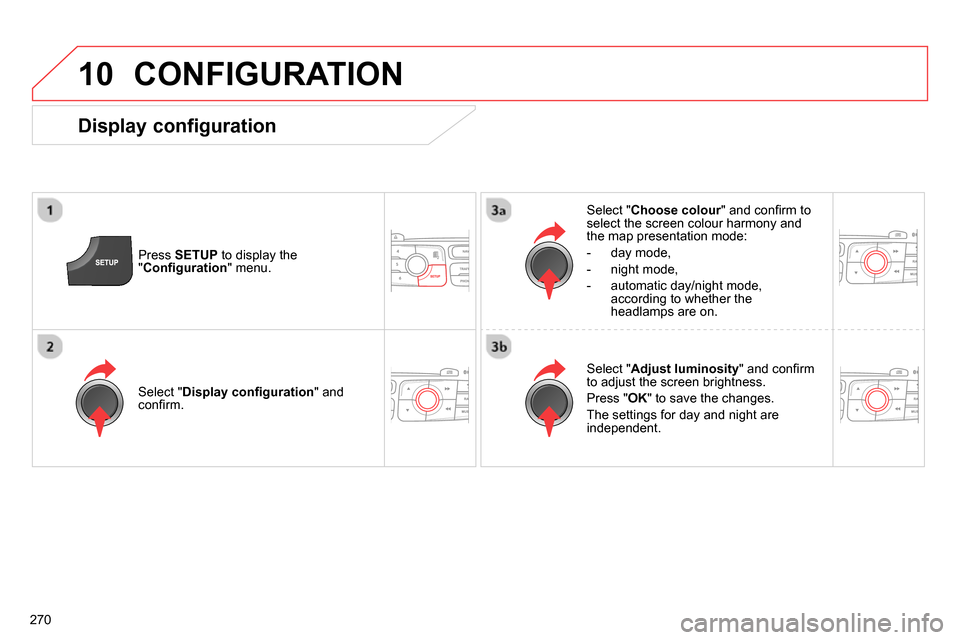

Press SETUP
to display the
" Confi guration
" menu.
Select " Choose colour
" and confi rm to
select the screen colour harmony and
the map presentation mode:


- day mode,

- night mode,

- automatic day/night mode,
according to whether the
headlamps are on.


Select " Adjust luminosity
" and confi rm
to adjust the screen brightness.
Press " OK
" to save the changes.
The settings for day and night are
independent.

Select " Display confi guration
" and
confi rm.


Display configuration

315
VISUAL SEARCH
EXTERIOR


Remote control ........................... 78-82


- opening / closing

- anti-theft protection

- starting

- battery


Wiper controls......................... 104-106
Changing a wiper
blade .............................................. 210
Door mirrors ................................ 75-76
Blind spot sensors .................. 166-168

Boot ........................................... 78, 88
Temporary puncture
repair kit .................................. 187-191
Changing a wheel ................... 192-195


- tools

- removing / refi tting
Snow chains .................................. 196

Changing bulbs....................... 201-202


- rear lamps

- 3
rd
brake lamp

- number plate lamp


Parking sensors ...................... 176-177
Parking space sensors ........... 174-175
Towbar ........................................... 214
Towing .................................... 212-213

Accessories ............................ 216-217
Roof bars ........................................ 211
Panoramic sunroof .......................... 91

Braking assistance ........................ 135
Trajectory control .................... 136-137
Tyre under-infl ation detection ........ 161
Tyre pressures ....................... 191, 224
Lighting controls ......................... 95-99
Headlamp adjustment.................... 101
Welcome lighting ........................... 100
Directional lighting systems .... 102-103
Changing bulbs....................... 197-200


- front lamps

- front foglamps

- side repeaters


Doors ......................................... 83, 87


- opening / closing

- emergency control
Child lock ....................................... 133
Electric windows ......................... 89-90
Alarm .......................................... 85-86

Fuel tank ..................................... 92-93
Misfuel prevention ........................... 94
