MONITORING
35




Service


temporarily,
accompanied by
a message. A minor fault has occurred
for which there is no specifi c
warning lamp. Identify the problem by reading the
message displayed in the screen, such
as, for example:


- the opening of the doors, boot or
bonnet,

- the engine oil level,

- the remote control battery,

- a fault with the tyre pressure
monitoring system.
For any other malfunctions, contact a
CITROËN dealer or a qualifi ed workshop.

fi xed,
accompanied by
a message and
an audible signal. A major fault has occurred
for which there is no specifi c
warning lamp. Identify the fault by reading the message
displayed in the screen and contact a
CITROËN dealer or a qualifi ed workshop.

Warning lamp



is on



Cause



Action/Observations






Foot on the
brake pedal


fi xed. The brake pedal is not
pressed. With an electronic gearbox, press the
brake pedal to start the engine (lever in
position N
).
If you wish to release the parking brake
without pressing the brake pedal, this
warning lamp will remain on.

fl ashing. With an electronic gearbox,
if you hold the vehicle on
a rising incline using the
accelerator for too long, the
clutch overheats. Use the brake pedal and/or the electric
parking brake.

4
ACCESS
85
*
According to country.

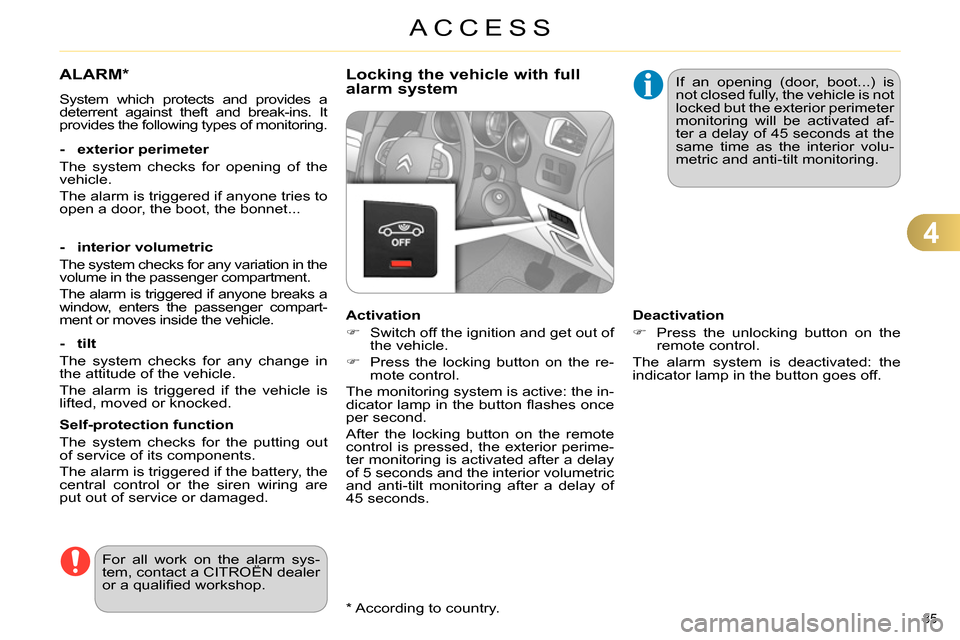

ALARM *

System which protects and provides a
deterrent against theft and break-ins. It
provides the following types of monitoring.

- exterior perimeter
The system checks for opening of the
vehicle.
The alarm is triggered if anyone tries to
open a door, the boot, the bonnet...



- interior volumetric
The system checks for any variation in the
volume in the passenger compartment.
The alarm is triggered if anyone breaks a
window, enters the passenger compart-
ment or moves inside the vehicle.



- tilt
The system checks for any change in
the attitude of the vehicle.
The alarm is triggered if the vehicle is
lifted, moved or knocked.



Self-protection function
The system checks for the putting out
of service of its components.
The alarm is triggered if the battery, the
central control or the siren wiring are
put out of service or damaged.
For all work on the alarm sys-
tem, contact a CITROËN dealer
or a qualifi ed workshop.


Locking the vehicle with full
alarm system

Activation



Switch off the ignition and get out of
the vehicle.


Press the locking button on the re-
mote control.
The monitoring system is active: the in-
dicator lamp in the button fl ashes once
per second.
After the locking button on the remote
control is pressed, the exterior perime-
ter monitoring is activated after a delay
of 5 seconds and the interior volumetric
and anti-tilt monitoring after a delay of
45 seconds. If an opening (door, boot...) is
not closed fully, the vehicle is not
locked but the exterior perimeter
monitoring will be activated af-
ter a delay of 45 seconds at the
same time as the interior volu-
metric and anti-tilt monitoring.

Deactivation



Press the unlocking button on the
remote control.
The alarm system is deactivated: the
indicator lamp in the button goes off.

10
CHECKS
179

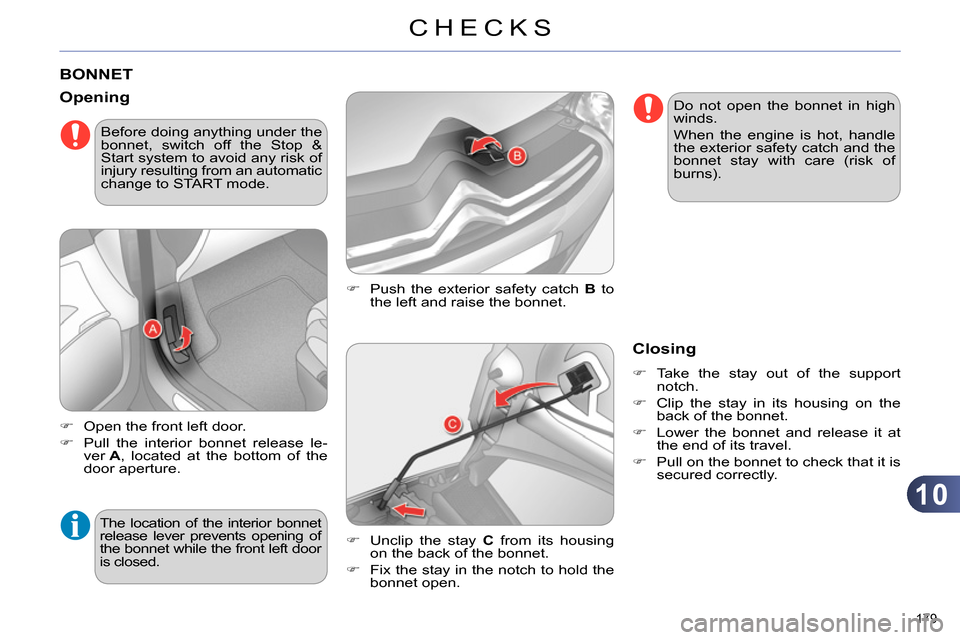

BONNET



Push the exterior safety catch B
to
the left and raise the bonnet.

Opening




Open the front left door.


Pull the interior bonnet release le-
ver A
, located at the bottom of the
door aperture.


Unclip the stay C
from its housing
on the back of the bonnet.


Fix the stay in the notch to hold the
bonnet open.
The location of the interior bonnet
release lever prevents opening of
the bonnet while the front left door
is closed.


Closing




Take the stay out of the support
notch.


Clip the stay in its housing on the
back of the bonnet.


Lower the bonnet and release it at
the end of its travel.


Pull on the bonnet to check that it is
secured correctly.

Do not open the bonnet in high
winds.
When the engine is hot, handle
the exterior safety catch and the
bonnet stay with care (risk of
burns).






Before doing anything under the
bonnet, switch off the Stop &
Start system to avoid any risk of
injury resulting from an automatic
change to START mode.

10
CHECKS
180

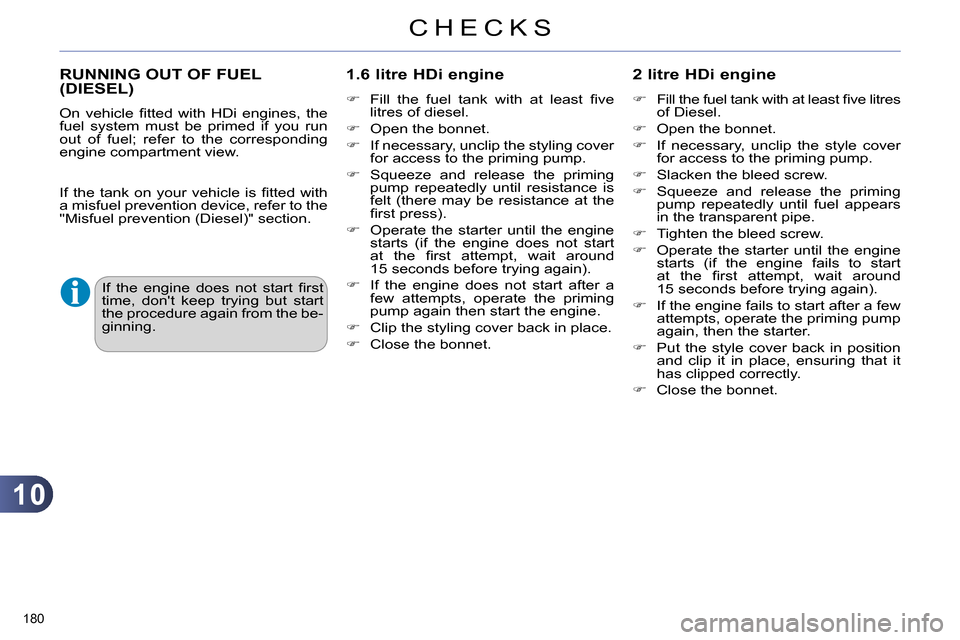

RUNNING OUT OF FUEL
(DIESEL)
1.6 litre HDi engine




Fill the fuel tank with at least fi ve
litres of diesel.


Open the bonnet.


If necessary, unclip the styling cover
for access to the priming pump.


Squeeze and release the priming
pump repeatedly until resistance is
felt (there may be resistance at the
fi rst press).


Operate the starter until the engine
starts (if the engine does not start
at the fi rst attempt, wait around
15 seconds before trying again).


If the engine does not start after a
few attempts, operate the priming
pump again then start the engine.


Clip the styling cover back in place.


Close the bonnet.








2 litre HDi engine




Fill the fuel tank with at least fi ve litres
of Diesel.


Open the bonnet.


If necessary, unclip the style cover
for access to the priming pump.


Slacken the bleed screw.


Squeeze and release the priming
pump repeatedly until fuel appears
in the transparent pipe.


Tighten the bleed screw.


Operate the starter until the engine
starts (if the engine fails to start
at the fi rst attempt, wait around
15 seconds before trying again).


If the engine fails to start after a few
attempts, operate the priming pump
again, then the starter.


Put the style cover back in position
and clip it in place, ensuring that it
has clipped correctly.


Close the bonnet.

If the engine does not start fi rst
time, don't keep trying but start
the procedure again from the be-
ginning.

On vehicle fi tted with HDi engines, the
fuel system must be primed if you run
out of fuel; refer to the corresponding
engine compartment view.

If the tank on your vehicle is fi tted with
a misfuel prevention device, refer to the
"Misfuel prevention (Diesel)" section.

10
CHECKS
184








Used products

Avoid prolonged contact of used
oil or fl uids with the skin.
Most of these fl uids are harmful
to health or indeed very corro-
sive.
Do not discard used oil or fl uids
into sewers or onto the ground.
Take used oil to a CITROËN
dealer or a qualifi ed workshop
(France) or to an authorised
waste disposal site.









Additive level (Diesel with
particle emissions filter)
The additive reservoir low level is indi-
cated by:

Topping up
The reservoir must be topped up with-
out delay by a CITROËN dealer or a
qualifi ed workshop.


- fi xed illumination of the par-
ticle emissions fi lter warning
lamp, accompanied by an au-
dible signal and a message
that the particle emissions
fi lter additive level is too low.


Screenwash / headlamp wash
fluid level
Specifi cation of the fl uid
To ensure optimum cleaning and to
avoid freezing, the fl uid should never be
topped up or replaced by plain water.
In wintry conditions, the use of a fl uid
with an ethyl alcohol or methanol base
is recommended.
To check the level or top up
the fl uid on vehicle fi tted with
headlamp washers, immobilise
the vehicle and switch of the
engine.



Open the bonnet and secure it with
the stay.


Open the screenwash reservoir fi ll-
er cap.


Take and pinch the level gauge to
block its breather.


Remove the gauge completely from
the reservoir to read the level in the
transparent section.


Top up if necessary.


Refi t the fi ller cap to the reservoir
and close the bonnet.
