Page 170 of 328
9
DRIVING
168
The system may suffer tem-
porary interference in certain
weather conditions (rain, hail...).
In particular, driving on a wet sur-
face or moving from a dry area to
a wet area can cause false alerts
(for example, the presence of a
fog of water droplets in the blind
spot angle is interpreted as a ve-
hicle).
In bad or wintry weather, ensure
that the sensors are not covered
by mud, ice or snow.
Take care not to cover the warn-
ing zone in the door mirrors or
the detection zones on the front
and rear bumpers with adhesive
labels or other objects; they may
hamper the correct operation of
the system.
To deactivate the system, press
this button again; the warning lamp
goes off.
The state of the system remains in
memory on switching off the ignition.
Operating fault
In the event of a fault, the warning lamp
in the button fl ashes then goes off.
Have it checked by a CITROËN dealer
or a qualifi ed workshop.
The system is automatically de-
activated when towing with a
towbar approved by CITROËN.
Page 176 of 328
9
DRIVING
174
PARKING SPACE SENSORS
System which measures the parking
space available between two vehicles
or obstacles. It measures the size of the
space and gives you information on:
- the possibility of fi tting into a free
space, depending on the dimensions
of your vehicle and the distances
needed for manoeuvring,
- the level of diffi culty of the manoeuvre
to be performed.
The system does not measure spaces
which are clearly much smaller or larg-
er than the size of the vehicle.
Displays in the instrument panel
- on fi xed:
the function is selected by
a press on control A
.
- off:
the function is not selected,
The parking space sensor
function warning lamp can
have two different states:
Operation
You have identifi ed a parking space:
Press button A
to select the function.
Operate the direction indicator on
the side where the space is to be
measured; a message is displayed
to confi rm that measurement is in
progress.
During measurement, go forward
the length of the space, at a speed
less than 12 mph (approx. 20 km/h),
to prepare for your manoeuvre.
Once the measurement has been
completed, the system informs you
of the level of diffi culty of the ma-
noeuvre by a message in the multi-
function screen accompanied by an
audible signal.
Page 177 of 328
9
DRIVING
175
The function displays the following types
of message:
Parking possible
Parking diffi cult
Parking not advised
The function deselects itself automati-
cally:
- when you engage reverse gear,
- when you switch off the ignition,
- if measuring is not requested,
- within fi ve minutes of selection of
the function,
- if the vehicle speed exceeds the
threshold of 45 mph (approx. 70 km/h)
for one minute.
If the lateral distance between your ve-
hicle and the parking space is too large,
the system may not be able to measure
the space.
If there is a fault, have the sys-
tem checked by a CITROËN
dealer or a qualifi ed workshop.
The system remains available after
each measurement and can therefore
measure several spaces in succession.
In poor or wintry weather, ensure that
the sensors are free of dirt, ice or snow.
The parking space sensor system de-
activates the front parking sensors
when measuring forwards.
Page 178 of 328
9
DRIVING
176
PARKING SENSORS
This system indicates the proximity of an
obstacle (person, vehicle, tree, gate, etc.)
which comes within the fi eld of detection
of sensors located in the bumper.
Certain types of obstacle (stake, road-
works cone, etc.) detected initially will
no longer be detected at the end of the
manoeuvre due to the presence of blind
spots.
This function cannot, in any cir-
cumstances, take the place of
the vigilance and responsibility
of the driver.
The system is switched on by engaging
reverse gear. This is accompanied by
an audible signal.
The system is switched off when you
exit reverse gear.
Rear parking sensors
Audible assistance
The proximity information is given by an
intermittent audible signal, the frequen-
cy of which increases as the vehicle ap-
proaches the obstacle.
The sound emitted by the speaker (right
or left) indicates the side on which the
obstacle is located.
When the distance between the vehicle
and the obstacle becomes less than
approximately thirty centimetres, the
audible signal becomes continuous.
Visual assistance
This supplements the audible signal
by displaying bars in the multifunction
screen which move progressively near-
er to the vehicle. When the obstacle is
near, the "Danger" symbol is displayed
in the screen.
Page 179 of 328
9
DRIVING
177
In addition to the rear parking sensors,
the front parking sensors are triggered
when an obstacle is detected in front
and the speed of the vehicle is still below
6 mph (10 km/h).
The front parking sensors are interrupted
if the vehicle stops for more than three
seconds in forward gear, if no further ob-
stacles are detected or when the speed
of the vehicle exceeds 6 mph (10 km/h).
Front parking sensors
Deactivation/Activation of the front
and rear parking sensors
The function is deactivated by pressing
this button. The indicator lamp in the
button comes on.
Pressing this button again reactivates
the function. The indicator lamp in the
button goes off.
Operating fault
The function will be deactivated
automatically if a trailer is being
towed or a bicycle carrier is fi t-
ted (vehicle fi tted with a towbar
or bicycle carrier recommended
by CITROËN).
In bad weather or in winter, en-
sure that the sensors are not
covered with mud, ice or snow.
When reverse gear is engaged,
an audible signal (long beep) in-
dicates that the sensors may be
dirty.
Certain sound sources (motor-
cycle, lorry, pneumatic drill, etc.)
may trigger the audible signals
of the parking sensor system.
In the event of a malfunction
of the system, when reverse
gear is engaged this warn-
ing lamp is displayed in the instrument
panel and/or a message appears in the
screen, accompanied by an audible
signal (short beep).
Contact a CITROËN dealer or a quali-
fi ed workshop.
The sound emitted by the speaker (front
or rear) indicates whether the obstacle
is in front or behind.
Page 195 of 328
11
PRACTICAL INFORMATION
193
Access to the spare wheel
The spare wheel is installed in the boot
under the fl oor.
Depending on version, the spare wheel
may be a standard size steel or alloy
wheel, or for some countries it is the
"space saver" type.
For access to the spare wheel, refer to
the paragraph "Access to the tools" on
the previous page.
Putting the standard wheel back in
place
Put the wheel back in its housing.
Unscrew the yellow central bolt by a
few turns then put it in place in the
centre of the wheel.
Tighten fully until the central bolt
clicks to retain the wheel correctly.
Tyre under-infl ation detection
The spare wheel is not fi tted with
a sensor. The punctured wheel
must be repaired by a CITROËN
dealer or aqualifi ed workshop.
Taking out the standard wheel
Unscrew the yellow central bolt.
Raise the spare wheel towards you
from the rear.
Take the wheel out of the boot.
Put the box back in place in the cen-
tre of the wheel and clip it.
If your vehicle has an electric
parking brake, only a space sav-
er wheel can be stowed in the
boot.
Page 202 of 328
11
PRACTICAL INFORMATION
200
Introduce a fl at screwdriver in the
hole in the fi nisher.
Pull and lever to unclip the bumper
fi nisher (the parking sensor stays
with the fi nisher).
Remove the two module fi xing screws
and remove it from its housing.
Disconnect the bulb holder connector.
Turn the bulb holder a quarter of a
turn and extract it.
Pull the bulb and change it.
To r efi t, carry out these operations in
reverse order.
To replace these bulbs you may also
contact a CITROËN dealer or a qualifi ed
workshop.
Changing foglamp bulbs
Changing the side spotlamps
For the replacement of this type of LED
lamp, contact a CITROËN dealer or a
qualifi ed workshop.
Changing integrated direction
indicator side repeaters
Insert a screwdriver towards the
centre of the repeater between the
repeater and the base of the mirror.
Tilt the screwdriver to extract the re-
peater and remove it.
Disconnect the repeater connector.
To reassemble, carry out these operations
in reverse order.
Contact a CITROËN dealer or a qualifi ed
workshop to obtain replacement repeaters.
Page 216 of 328
11
PRACTICAL INFORMATION
214
TOWING A TRAILER
We recommend the use of genu-
ine CITROËN towbars and their
harnesses that have been tested
and approved from the design
stage of your vehicle, and that
the fi tting of the towbar is en-
trusted to a CITROËN dealer or
a qualifi ed workshop.
If the towbar is not fi tted by a
CITROËN dealer, it is impera-
tive that it is fi tted in accordance
with the vehicle manufacturer's
instructions.
The rear parking sensors will
be deactivated automatically if
a genuine CITROËN towbar is
used.
Towbar suitable for the attachment of a
trailer or installation of a bicycle carrier,
with additional lighting and signalling.
Your vehicle is primarily designed for
transporting people and luggage, but it
may also be used for towing a trailer.
Driving with a trailer places greater de-
mands on the towing vehicle and the
driver must take particular care.
Driving advice
Distribution of loads
Distribute the load in the trailer so
that the heaviest items are as close
as possible to the axle and the nose
weight approaches the maximum
permitted without exceeding it.
Air density decreases with altitude, thus
reducing engine performance. Above
1 000 metres, the maximum towed load
must be reduced by 10 % for every
1 000 metres of altitude.
Side wind
Take into account the increased
sensitivity to side wind.
Cooling
Towing a trailer on a slope increases
the temperature of the coolant.
As the fan is electrically controlled, its
cooling capacity is not dependent on
the engine speed.
To lower the engine speed, reduce
your speed. The maximum towed load on a long in-
cline depends on the gradient and the
ambient temperature.
In all cases, keep a check on the cool-
ant temperature.
If the warning lamp and the
STOP
warning lamp come
on, stop the vehicle and
switch off the engine as
soon as possible.
Braking
Towing a trailer increases the braking
distance.
To avoid overheating of the brakes on a
long mountain type of descent, the use
of engine braking is recommended.
Tyres
Check the tyre pressures of the towing
vehicle and of the trailer, observing the
recommended pressures.
Lighting
Check the electrical lighting and sig-
nalling on the trailer.
Refer to the "Technical data" section for
details of the weights and towed loads
which apply to your vehicle.

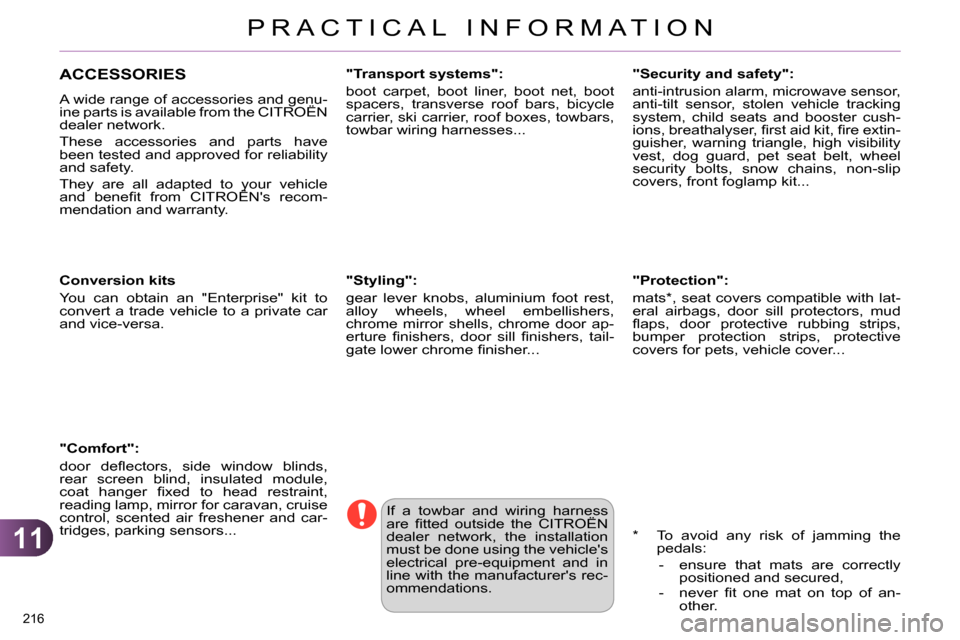

Page 218 of 328
11
PRACTICAL INFORMATION
216
ACCESSORIES
A wide range of accessories and genu-
ine parts is available from the CITROËN
dealer network.
These accessories and parts have
been tested and approved for reliability
and safety.
They are all adapted to your vehicle
and benefi t from CITROËN's recom-
mendation and warranty.
Conversion kits
You can obtain an "Enterprise" kit to
convert a trade vehicle to a private car
and vice-versa.
"Comfort":
door defl ectors, side window blinds,
rear screen blind, insulated module,
coat hanger fi xed to head restraint,
reading lamp, mirror for caravan, cruise
control, scented air freshener and car-
tridges, parking sensors...
"Transport systems":
boot carpet, boot liner, boot net, boot
spacers, transverse roof bars, bicycle
carrier, ski carrier, roof boxes, towbars,
towbar wiring harnesses...
"Styling":
gear lever knobs, aluminium foot rest,
alloy wheels, wheel embellishers,
chrome mirror shells, chrome door ap-
erture fi nishers, door sill fi nishers, tail-
gate lower chrome fi nisher...
* To avoid any risk of jamming the
pedals:
- ensure that mats are correctly
positioned and secured,
- never fi t one mat on top of an-
other.
"Security and safety":
anti-intrusion alarm, microwave sensor,
anti-tilt sensor, stolen vehicle tracking
system, child seats and booster cush-
ions, breathalyser, fi rst aid kit, fi re extin-
guisher, warning triangle, high visibility
vest, dog guard, pet seat belt, wheel
security bolts, snow chains, non-slip
covers, front foglamp kit...
"Protection":
mats * , seat covers compatible with lat-
eral airbags, door sill protectors, mud
fl aps, door protective rubbing strips,
bumper protection strips, protective
covers for pets, vehicle cover...
If a towbar and wiring harness
are fi tted outside the CITROËN
dealer network, the installation
must be done using the vehicle's
electrical pre-equipment and in
line with the manufacturer's rec-
ommendations.
Page 317 of 328
315
VISUAL SEARCH
EXTERIOR
Remote control ........................... 78-82
- opening / closing
- anti-theft protection
- starting
- battery
Wiper controls......................... 104-106
Changing a wiper
blade .............................................. 210
Door mirrors ................................ 75-76
Blind spot sensors .................. 166-168
Boot ........................................... 78, 88
Temporary puncture
repair kit .................................. 187-191
Changing a wheel ................... 192-195
- tools
- removing / refi tting
Snow chains .................................. 196
Changing bulbs....................... 201-202
- rear lamps
- 3
rd
brake lamp
- number plate lamp
Parking sensors ...................... 176-177
Parking space sensors ........... 174-175
Towbar ........................................... 214
Towing .................................... 212-213
Accessories ............................ 216-217
Roof bars ........................................ 211
Panoramic sunroof .......................... 91
Braking assistance ........................ 135
Trajectory control .................... 136-137
Tyre under-infl ation detection ........ 161
Tyre pressures ....................... 191, 224
Lighting controls ......................... 95-99
Headlamp adjustment.................... 101
Welcome lighting ........................... 100
Directional lighting systems .... 102-103
Changing bulbs....................... 197-200
- front lamps
- front foglamps
- side repeaters
Doors ......................................... 83, 87
- opening / closing
- emergency control
Child lock ....................................... 133
Electric windows ......................... 89-90
Alarm .......................................... 85-86
Fuel tank ..................................... 92-93
Misfuel prevention ........................... 94
