engine CITROEN C4 SPACETOURER 2022 Owner's Manual

43

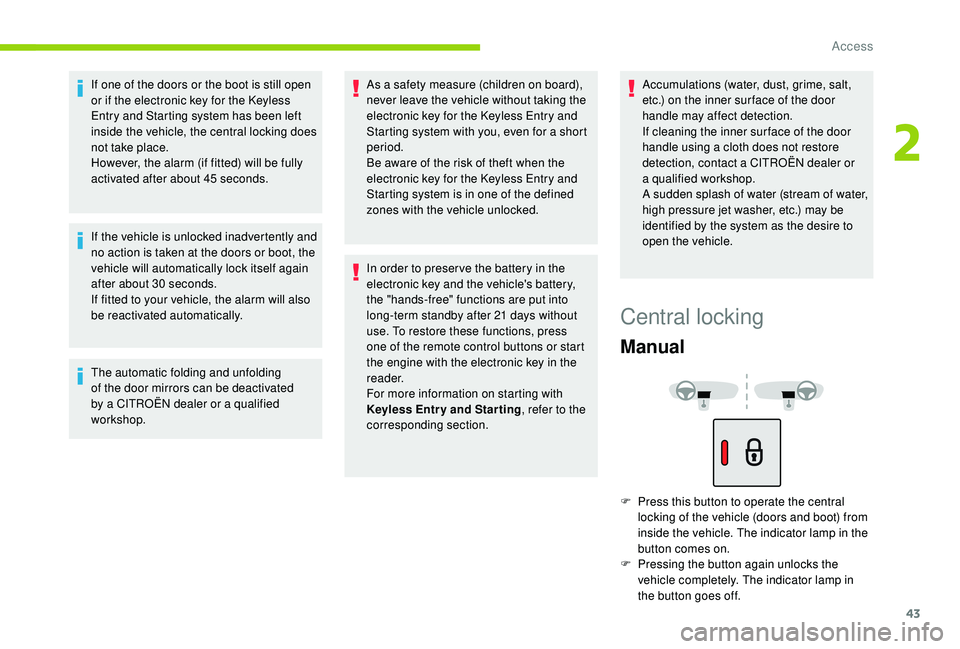

If one of the doors or the boot is still open
or if the electronic key for the K eyless
Entry and Starting system has been left
inside the vehicle, the central locking does
not take place.
However, the alarm (if fitted) will be fully
activated after about 45


seconds.
If the vehicle is unlocked inadvertently and
no action is taken at the doors or boot, the
vehicle will automatically lock itself again
after about 30


seconds.
If fitted to your vehicle, the alarm will also
be reactivated automatically.
The automatic folding and unfolding
of the door mirrors can be deactivated
by a
CITROËN dealer or a qualified
workshop. As a
safety measure (children on board),
never leave the vehicle without taking the
electronic key for the

K
eyless Entry and
Starting system with you, even for a
short
period.
Be aware of the risk of theft when the
electronic key for the

K
eyless Entry and
Starting system is in one of the defined
zones with the vehicle unlocked.
In order to preser ve the battery in the
electronic key and the vehicle's battery,
the "hands-free" functions are put into
long-term standby after 21
days without
use. To restore these functions, press
one of the remote control buttons or start
the engine with the electronic key in the
reader.
For more information on starting with

K

eyless Entr y and Star ting, refer to the
corresponding section. Accumulations (water, dust, grime, salt,
etc.) on the inner sur face of the door
handle may affect detection.
If cleaning the inner sur face of the door
handle using a
cloth does not restore
detection, contact a
CITROËN dealer or
a


qualified workshop.
A sudden splash of water (stream of water,
high pressure jet washer, etc.) may be
identified by the system as the desire to
open the vehicle.
Central locking
Manual
F Press this button to operate the central locking of the vehicle (doors and boot) from
inside the vehicle. The indicator lamp in the
button comes on.
F

P
ressing the button again unlocks the
vehicle completely. The indicator lamp in
the button goes off.
2
Access

44
The indicator lamp also goes off when
unlocking one or more doors.
The central locking does not work if one of
the doors is open.
If the vehicle is locked from the outside or
deadlocked, this button does not work. To
unlock the vehicle from the inside:
F
A
fter normal locking, pull one of the
interior door controls.
F

A
fter deadlocking, use the remote
control, the Keyless Entry and Starting
system or the integral key.
Automatic (anti-intrusion
security)
The doors and boot lock automatically when
driving (speed above 6 mph (10 km/h)).
To deactivate or reactivate this function
(activated by default):
F

P
ress the button until a message appears in
the instrument panel. Transporting long or voluminous
objects
Press the central locking control to
drive with the boot open and the doors
unlocked.
Advice
Remote control
The high frequency remote control is
a
sensitive system; do not operate it while
it is in your pocket as there is a
possibility
that it may unlock the vehicle, without you
being aware of it.
Do not press the buttons of your remote
control out of range and out of sight of
your vehicle. The remote control may stop
working and would have to be reinitialised.
The remote control cannot operate when
the key is in the reader, even when the
ignition is switched on.
Electrical interference
The

K
eyless Entry and Starting electronic
key may not operate if close to certain
electronic devices: telephone, laptop
computer, strong magnetic fields, etc.
Anti-theft protection
Do not make any modifications to the
electronic engine immobiliser system; this
could cause malfunctions.
Do not forget to turn the steering wheel to
engage the steering lock.
Access

58
Passenger seat backrest angle
F Pull the control upwards or turn the knob to adjust the backrest.
When the backrest is correctly inclined, release
the control.
To prevent the backrest from suddenly
folding for wards and hitting you, hold the
backrest with your back or hand while you
move the control.
Table position for the front
passenger seat backrest
Check that no object, either on or
underneath the seat, could hinder its
movement.
F

P
lace the head restraint in the low position,
raise the armrest and fold the tray on the
back of the seat.
F

P
ull the control fully up and tip the backrest
forwards.
To return to the normal position, guide the
backrest backwards until it locks into place.
This position, together with that of the rear
seats, allows you to transport long objects
inside the vehicle.
In this position, the backrest can support
a
maximum load of 30 kg.
Electric adjustments
To avoid discharging the battery, carry out
these adjustments with the engine running.
Longitudinal (driver seat)
F Push the control for wards or backwards to
slide the seat.
Backrest angle
F Tilt the control for wards or backwards to adjust the angle of the seat backrest.
Ease of use and comfort

59

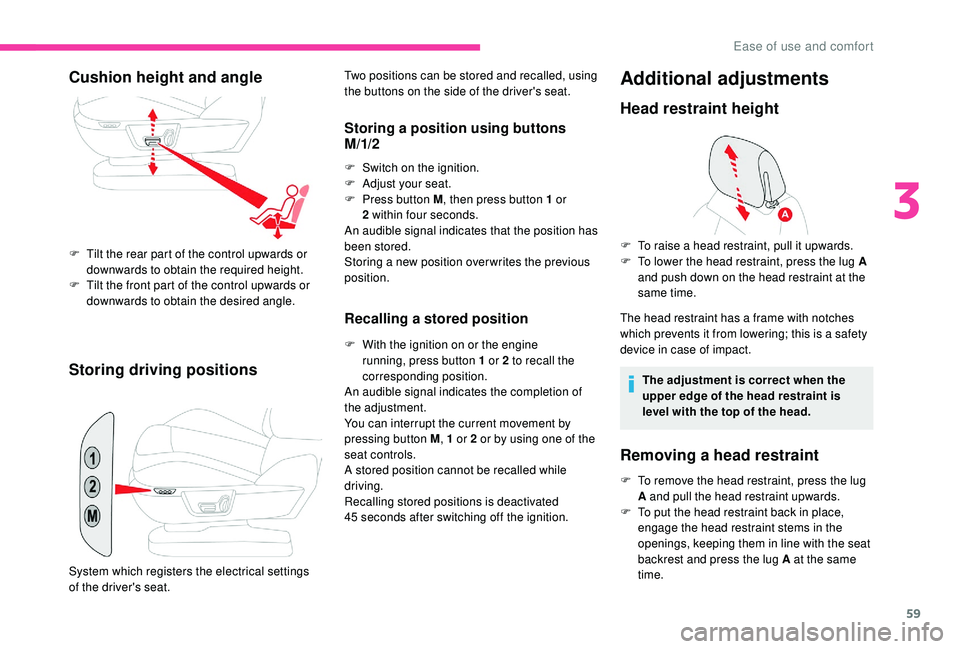

Storing driving positions
Two positions can be stored and recalled, using
the buttons on the side of the driver's seat.
Storing a position using buttons
M /1/2
F Switch on the ignition.
F
Adj ust your seat.
F

P
ress button M , then press button 1
or
2
within four seconds.
An audible signal indicates that the position has
been stored.
Storing a
new position over writes the previous
position.
Recalling a stored position
F With the ignition on or the engine
running, press button 1 or 2 to recall the
corresponding position.
An audible signal indicates the completion of
the adjustment.
You can interrupt the current movement by
pressing button M , 1
or 2 or by using one of the
seat controls.
A stored position cannot be recalled while
driving.
Recalling stored positions is deactivated
45
seconds after switching off the ignition.
Additional adjustments
Head restraint height
F To raise a head restraint, pull it upwards.
F T o lower the head restraint, press the lug A
and push down on the head restraint at the
same time.
The head restraint has a
frame with notches
which prevents it from lowering; this is a
safety
device in case of impact.
The adjustment is correct when the
upper edge of the head restraint is
level with the top of the head.
Removing a head restraint
F To remove the head restraint, press the lug A and pull the head restraint upwards.
F

T
o put the head restraint back in place,
engage the head restraint stems in the
openings, keeping them in line with the seat
backrest and press the lug A at the same
time.
Cushion height and angle
F Tilt the rear part of the control upwards or downwards to obtain the required height.
F

T
ilt the front part of the control upwards or
downwards to obtain the desired angle.
System which registers the electrical settings
of the driver's seat.
3
Ease of use and comfort

60
Relax head restraints
Depending on the version, you can fold the
sides for greater comfort.Never drive with the head restraints
removed; they must be fitted and correctly
adjusted.
Electric lumbar adjustment
F Press the control to obtain the desired lumbar support.
Massage function
Activation/Deactivation
F Press this button.
Its indicator lamp comes on and the
massage function is activated for
a
period of 1 hour.
During this time, massage is per formed in
6

cycles of 10 minutes (6 minutes of massage
followed by 4
minutes of break).
After one hour the function is deactivated, the
indicator lamp goes off.
Deactivate the massage function by pressing
this button, its indicator lamp goes off.
This function provides a
lumbar massage to the
occupants in front; it only operates when the
engine is running as well as in STOP mode of
the Stop & Start system.
Adjustment of intensity
Press this button to choose one of
the two available levels of massage
intensity.
Electric leg rest
Passenger seat with manual adjustments
F Press the front or rear part of the control to unfold or fold the leg rest.
The movement stops when your release the
control.
Electric passenger seat
Ease of use and comfort

61
Heated seats
F Use the adjustment wheel to switch on and select the level of heating required:
0: Of f.
1: Low.
2: Medium.
3: High.
With the engine running, the front seats can be
heated separately. Do not use the function when the seat
is not occupied.
Reduce the intensity of the heating as
soon as possible.
When the seat and passenger
compartment have reached an
adequate temperature, you can stop
the function; reducing the consumption
of electrical current reduces fuel
consumption.
Prolonged use at the highest setting is
not recommended for those with sensitive
skin.
There is a risk of burns for people whose
perception of heat is impaired (illness,
taking medication, for example).
There is a risk of overheating the system if
material with insulating properties is used,
such as cushions or seat covers.
Do not use the function:
-
i
f wearing damp clothing,
-
i
f child seats are fitted.
To avoid breaking the heating element in
the seat:
-
d
o not place heavy objects on the seat,
-
d
o not kneel or stand on the seat,
-
d
o not place sharp objects on the seat,
-
d
o not spill liquids onto the seat.
To avoid the risk of short-circuit:
-
d
o not use liquid products for cleaning
the seat,
-
n
ever use the heating function when
the seat is damp.
F
P
ush the control for wards or rear wards to
unfold or fold the leg rest.
The movement stops when your release the
control.
Prior to handling the leg rest, make sure
that nothing obstructs the movement.
3
Ease of use and comfort

68

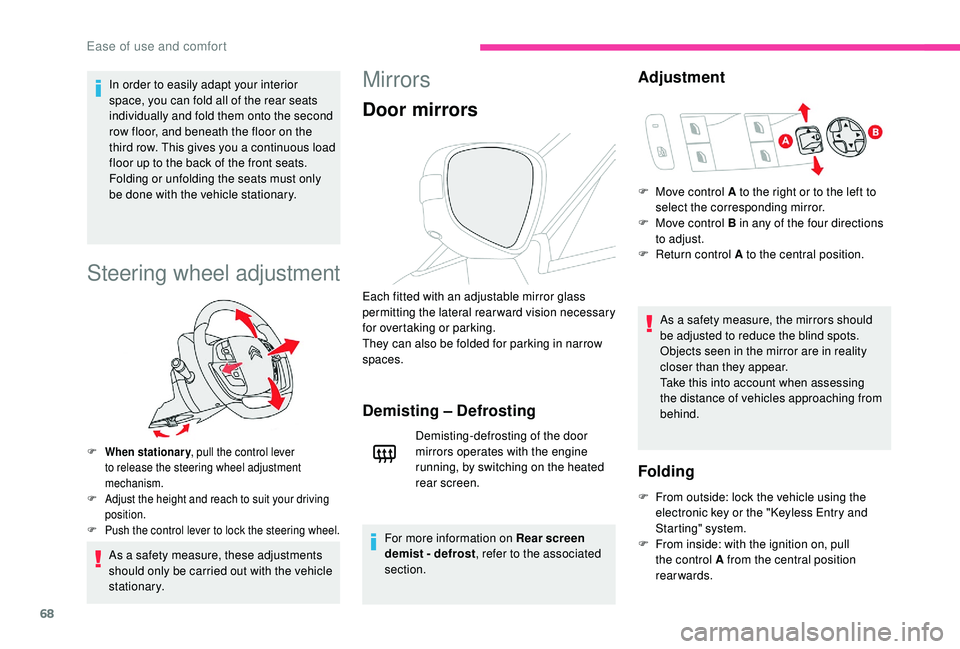

In order to easily adapt your interior
space, you can fold all of the rear seats
individually and fold them onto the second
row floor, and beneath the floor on the
third row. This gives you a continuous load
floor up to the back of the front seats.
Folding or unfolding the seats must only
be done with the vehicle stationary.
Steering wheel adjustment
F When stationary , pull the control lever
to release the steering wheel adjustment
mechanism.
F

A
djust the height and reach to suit your driving
position.
F

P
ush the control lever to lock the steering wheel.
As a safety measure, these adjustments
s hould only be carried out with the vehicle
stationary.
Mirrors
Door mirrors
Each fitted with an adjustable mirror glass
permitting the lateral rearward vision necessary
for overtaking or parking.
They can also be folded for parking in narrow
spaces.
Demisting – Defrosting
Demisting-defrosting of the door
mirrors operates with the engine
running, by switching on the heated
rear screen.
For more information on Rear screen
demist - defrost , refer to the associated
section.
Adjustment
As a safety measure, the mirrors should
b e adjusted to reduce the blind spots.
Objects seen in the mirror are in reality
closer than they appear.
Take this into account when assessing
the distance of vehicles approaching from
behind.
F

M
ove control A to the right or to the left to
select the corresponding mirror.
F

M
ove control B in any of the four directions
to adjust.
F

R
eturn control A to the central position.
Folding
F From outside: lock the vehicle using the
electronic key or the " K eyless Entry and
Starting" system.
F

F
rom inside: with the ignition on, pull
the control A from the central position
rearwards.
Ease of use and comfort

69
Automatic tilting in reverse gear
System which provides a view of the ground
d uring parking manoeuvres in reverse gear.
They return to their initial position:
- a f ew seconds after coming out of reverse gear,
-

o
nce the speed of the vehicle exceeds 6 mph
(10


km/h),
-

o
n switching off the engine.
This function can be activated/deactivated in
the Driving menu of the touch screen.
F

Sel
ect the " Vehicle settings " tab, then
" Comfort " and "Mirror adaptation in
reverse ".
Rear view mirror
Equipped with an anti-dazzle system, which
darkens the mirror glass and reduces the
nuisance to the driver caused by the sun,
headlamps from other vehicles, etc.
Manual model
Adjustment
F
A djust the mirror so that the glass is
directed correctly in the "day" position. F

P
ush the lever to change to the normal
"day" position.
Automatic "electrochrome " model
This system automatically and progressively
changes between day and night use by means
of a

s
ensor measuring the light coming from the
rear of the vehicle.
In order to ensure optimum visibility during
your manoeuvres, the mirror lightens
automatically when reverse gear is
engaged.
Child surveillance mirror
If the mirrors are folded using control A ,
they will not unfold when the vehicle is
unlocked. Pull again on control A .
Unfolding
F From outside: unlock the vehicle using the
electronic key or the " K eyless Entry and
Starting" system.
F

F
rom inside: with the ignition on, pull
the control A from the central position
rearwards.
The folding and unfolding of the door
mirrors using the remote control can be
deactivated by a
CITROËN dealer or
a


qualified workshop.
If necessary, the mirrors can be folded
manually.
With the engine running, on engaging reverse
gear, the mirror glasses tilt downwards.
Day/night position
F P ull the lever to change to the "night" anti-
dazzle position.
3
Ease of use and comfort

71
Recommendations for ventilation and air conditioning
In order for these systems to be fully
effective, follow the operation and
maintenance guidelines below:
F
T
o ensure that the air is distributed
evenly, keep the external air intake
grilles at the base of the windscreen, the
nozzles, the vents, the air outlets and
the air extractor in the boot free from
obstructions.
F

D
o not cover the sunshine sensor,
located on the dashboard; this is used
for regulation of the automatic air
conditioning system.
F

O
perate the air conditioning system for
at least 5
to 10 minutes once or twice
a
month to keep it in per fect working
o r d e r.
F

E
nsure that the passenger compartment
filter is in good condition and have the
filter elements replaced regularly. We
recommend the use of a
combined
passenger compartment filter. Thanks to
its special active additive, it contributes
to the purification of the air breathed by
the occupants and the cleanliness of
the passenger compartment (reduction
of allergic symptoms, bad odours and
greasy deposits). If after an extended stop in sunshine,
the interior temperature is very high,
first air the passenger compartment for
a
few moments.
Put the air flow control at a
setting high
enough to quickly change the air in the
passenger compartment.
The condensation created by the air
conditioning results in a discharge of water
under the vehicle which is per fectly normal.
Stop & Star t
The heating and air conditioning systems
only work when the engine is running.
To maintain a
comfortable temperature
in the passenger compartment, you may
temporarily deactivate the Stop & Start
system.
For more information on Stop & Star t ,
refer to the corresponding section.
F

T

o ensure correct operation of the
air conditioning system, you are also
advised to have it checked regularly as
recommended in the Maintenance and
Warranty Guide.
F

I

f the system does not produce cold air,
switch it off and contact a

CITROËN
dealer or a

qualified workshop.
When towing the maximum load on a

steep
gradient in high temperatures, switching off
the air conditioning increases the available
engine power and so improves the towing
ability.
To avoid the windows misting up and
deterioration in the quality of the air:
-

d

o not drive for too long with the
ventilation switched off.
-

d

o not keep air recirculation set for an
extended period.
3
Ease of use and comfort

72

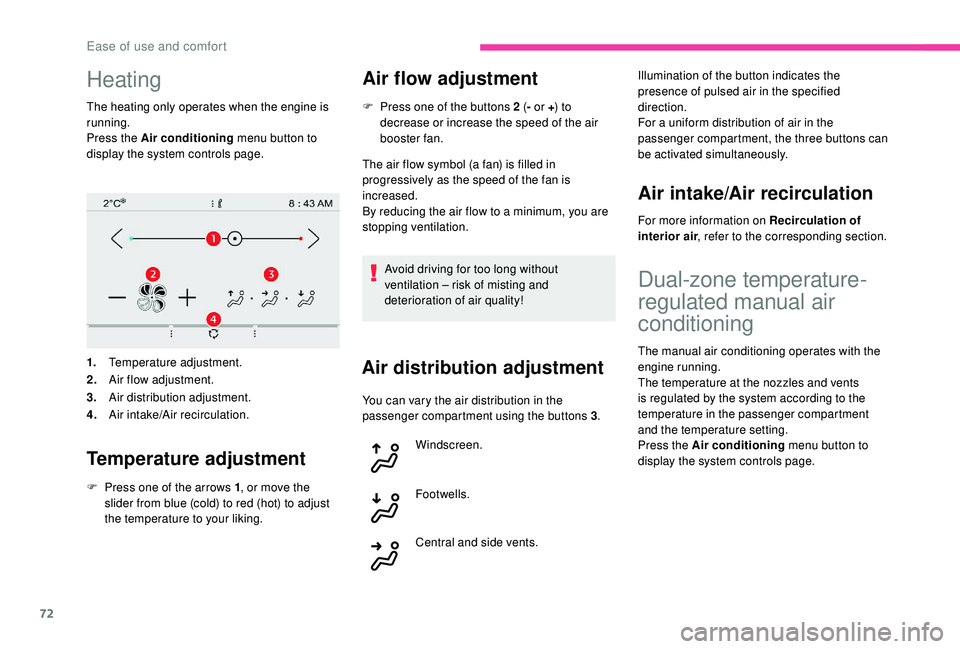

Heating
The heating only operates when the engine is
running.
Press the Air conditioning menu button to
display the system controls page.
1. Temperature adjustment.
2. Air flow adjustment.
3. Air distribution adjustment.
4. Air intake/Air recirculation.
Temperature adjustment
F Press one of the arrows 1 , or move the
slider from blue (cold) to red (hot) to adjust
the temperature to your liking.
Air flow adjustment
F Press one of the buttons 2 ( - or +) to
decrease or increase the speed of the air
booster fan.
The air flow symbol (a fan) is filled in
progressively as the speed of the fan is
increased.
By reducing the air flow to a
minimum, you are
stopping ventilation.
Avoid driving for too long without
ventilation – risk of misting and
deterioration of air quality!
Air distribution adjustment
You can vary the air distribution in the
passenger compartment using the buttons 3 .
Windscreen.
Footwells.
Central and side vents. Illumination of the button indicates the
presence of pulsed air in the specified
direction.
For a
uniform distribution of air in the
passenger compartment, the three buttons can
be activated simultaneously.
Air intake/Air recirculation
For more information on Recirculation of
interior air , refer to the corresponding section.
Dual-zone temperature-
regulated manual air
conditioning
The manual air conditioning operates with the
engine running.
The temperature at the nozzles and vents
is regulated by the system according to the
temperature in the passenger compartment
and the temperature setting.
Press the Air conditioning menu button to
display the system controls page.
Ease of use and comfort
