CITROEN C4 SPACETOURER 2022 Owners Manual

HANDBOOK

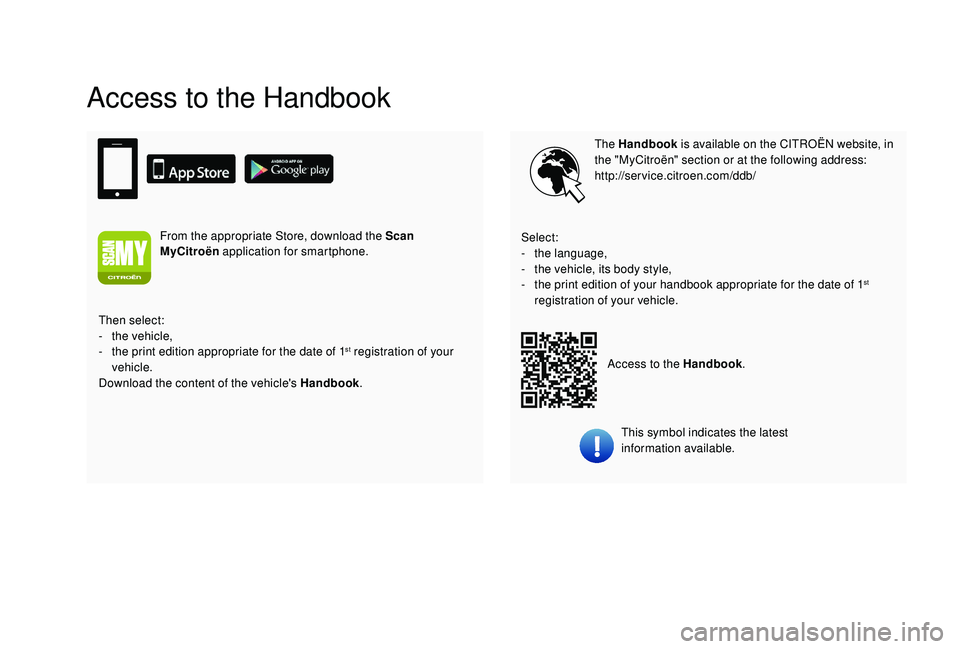

Access to the Handbook
The Handbook is available on the CITROËN website, in
the "MyCitroën" section or at the following address:
http://service.citroen.com/ddb/
This symbol indicates the latest
information available.
Access to the Handbook
.
Then select:
-

t

he vehicle,
-

t

he print edition appropriate for the date of 1
st registration of your
vehicle.
Download the content of the vehicle's Handbook .
From the appropriate Store, download the Scan
MyCitroën
application for smartphone. Select:
-
t
he language,
-
t
he vehicle, its body style,
-
t
he print edition of your handbook appropriate for the date of 1
st
registration of your vehicle.

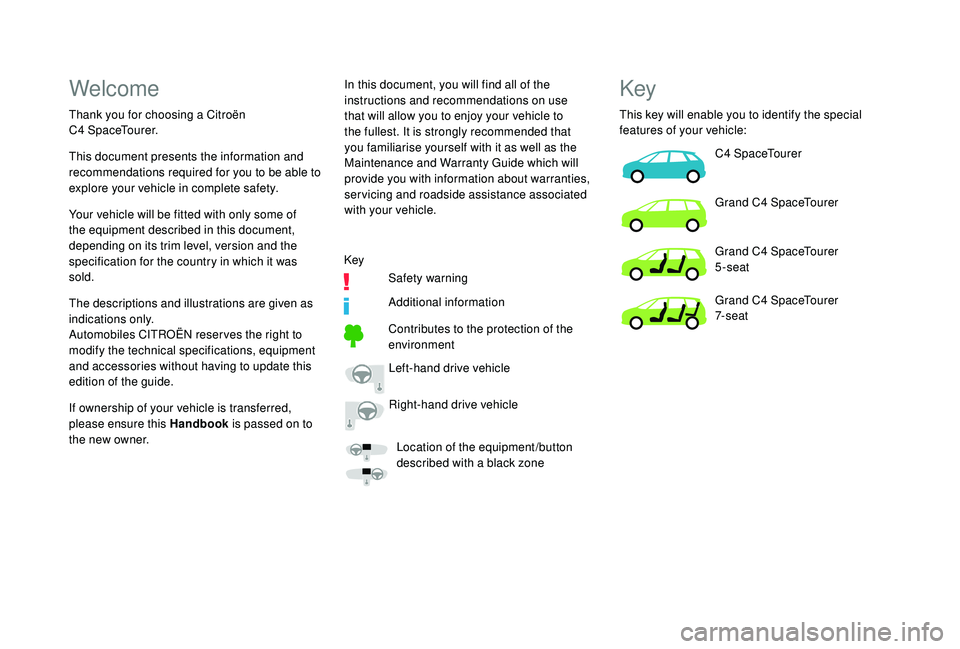

Welcome
Thank you for choosing a Citroën
C 4 SpaceTourer. In this document, you will find all of the
instructions and recommendations on use
that will allow you to enjoy your vehicle to
the fullest. It is strongly recommended that
you familiarise yourself with it as well as the
Maintenance and Warranty Guide which will
provide you with information about warranties,
ser vicing and roadside assistance associated
with your vehicle.
This document presents the information and
recommendations required for you to be able to
explore your vehicle in complete safety.
Your vehicle will be fitted with only some of
the equipment described in this document,
depending on its trim level, version and the
specification for the country in which it was
sold.
The descriptions and illustrations are given as
indications only.
Automobiles CITROËN reser ves the right to
modify the technical specifications, equipment
and accessories without having to update this
edition of the guide.
If ownership of your vehicle is transferred,
please ensure this Handbook
is passed on to
the new owner. Key
Safety warning
Additional information
Contributes to the protection of the
environment
Left-hand drive vehicle
Key
This key will enable you to identify the special
features of your vehicle: C4


SpaceTourer
Grand C4


SpaceTourer
Grand C4
SpaceTourer
5-seat
Grand C4
SpaceTourer
7-seat
Right-hand drive vehicle Location of the equipment /button
described with a

black zone

2
.
.
Instrument panels 8
W arning and indicator lamps 1 1
Indicators
26
Touch screen

3
1
Trip computer

3
6
Setting the date and time

3
9
Instruments and controls

4 E
lectronic key – Remote control
4
0
Keyless Entry and Starting
4
1
Central locking
43
Ba
ck-up procedures
4
5
Doors

47
Boot

47
Motorised tailgate
4
8
Hands-free tailgate
5
1
Alarm

53
Electric windows
5
5
Front seats
5
7
Rear seats
62
S

eat modular design and configuration
6
7
Steering wheel adjustment
6

8
Mirrors
68
Ventilation


70
Recommendations for ventilation and air conditioning 71
H
eating 72
Dual-zone temperature-regulated manual air conditioning 72
D
ual-zone automatic air conditioning 7 4
Recirculation of interior air

7
6
Front demist – defrost

7
7
Rear screen demist – defrost

7
7
Fragrance diffuser
7

7
Front fittings

7
9
Rear fittings

8
4
Boot fittings

8
5
Courtesy lamps

87
In

terior ambient lighting
8
8
Footwell lighting

8
8
Panoramic glass sunroof

8
9 Lighting control stalk

9
0
Automatic headlamp dipping
9
4
Headlamp adjustment
9
6
Cornering lighting
9
6
Directional lighting
9
7
Wiper control stalk
9
8
Automatic wiping
9
9
Screen wash
1
00
General safety recommendations
1
01
Hazard warning lamps
1
01
Horn

102
Emergency or assistance call
1
02
Electronic stability control (ESC)
1
03
Seat belts
1
06
Airbags

109
Child seats 1 12
Deactivating the front passenger airbag 1 13
ISOFIX mountings/child seats 1
19
Child lock

1
24
Over view
Instruments Access
Ease of use and comfort Safety
Lighting and visibility
Eco-driving
Contents

3
.
.
bit.ly/helpPSA
Driving advice 126
Starting/switching off the engine
using the electronic key

1
27
Starting/switching off the engine
with

K
eyless Entry and Starting
1
29
Switching the ignition on (without starting)

1
31
Electric parking brake

1
31
Hill start assist

1
34
5-speed manual gearbox
1

35
6-speed manual gearbox
1

35
Automatic gearbox

1
36
Gear ef ficiency indicator

1
39
Stop & Start

1
40
Tyre under-inflation detection

1
42
Memorising speeds

1
44
Speed Limit recognition and
recommendation


144
Speed limiter
1

47
Cruise control

1
48
Adaptive cruise control

1
51
Adaptive cruise control until vehicle is
stopped/until 19
mph (30 km/h)
1
57
Active Safety Brake with Collision Risk Alert
and Intelligent emergency braking
assistance


165
Lane Departure Warning System
1

69
Blind Spot Detection

1
73
Fatigue detection system

1
75
Parking sensors
1

76
Reversing camera
1

78
Vision 360

1
79
Park Assist

1
81Compatibility of fuels 1
89
Fuel 19 0
Misfuel prevention (Diesel)
1

91
Snow chains

1
91
Towing device

1
92
Towing system with quickly detachable towball

1
93
Load reduction mode

1
95
Energy economy mode
1

95
Changing a


wiper blade
1
95
Roof bars

1
96
Very cold climate screen(s)

1
97
Bonnet
19

8
Engine compartment
1

99
Checking levels

1
99
Checks


202
AdBlue
® (BlueHDi engines) 2 04
Warning triangle
2
08
Temporary puncture repair kit
2

08
Spare wheel

2
11
Changing a


bulb
2
20
Changing a


fuse
2
26
12

V battery
2
31
To w i n g


2 3 4
Running out of fuel (Diesel)

2
36Engine technical data and towed loads

2
37
Engines and towed loads – PETROL
2
38
Engines and towed loads – DIESEL
2
40
Dimensions
2
43
Identification markings
2
44
Driving
Practical information
In the event of a breakdown Technical data
Alphabetical index
Audio and telematics
Access to additional videos
CITROËN Connect Radio
CITROËN Connect Nav
.
Contents

4
Instruments and controlsInstruments and controls
(continued)1
Door mirrors
Electric windows, deactivating
2
Bonnet release
3
Dashboard fuses
4
Automatic gearbox
5
Courtesy lamps
Rear view mirror
Child-monitoring mirror
Panoramic glass sunroof
Emergency or assistance call
6
Instrument panels
Gear efficiency indicator
Lighting dimmer
Warning and indicator lamps
Indicators
-
ser
vice indicator
-

e
ngine oil level indicator
-


AdBlue
® fluid range indicator
7
Touch screen
Equipment configuration
Date and time adjustment
Ventilation
Heating
Dual-zone manual air conditioning
Dual-zone automatic air conditioning
Demisting/Defrosting
8
Electric parking brake
9
5/6-speed manual gearbox
Over view

5
7
Memorising speeds
Speed Limit recognition and
recommendation
Speed limiter
Cruise control
Adaptive cruise control
Adaptive cruise control with Stop function
8
Inter-vehicle distance
Black panel
Choice of instrument panel display
mode (depending on version)
9
Audio and telematic system controls
1
Headlamp adjustment
2
Lighting control stalk
Direction indicators
Choice of instrument panel display
mode (depending on version)
3
Steering wheel adjustment
Horn
4
Wiper and screenwash control stalk
Trip computer
5
START/STOP button
6
Hazard warning lamps
.
Over view

6
Eco- driving
Eco-driving is a range of everyday practices
t hat allow the motorist to optimise their fuel
consumption and CO
2 emissions.
Optimise the use of your
gearbox
With a manual gearbox, move off gently
a nd change up without waiting. When
accelerating, change up early.
With an automatic gearbox, give preference
to automatic mode and avoid pressing the
accelerator pedal heavily or suddenly.
The gear efficiency indicator invites you to
engage the most suitable gear: as soon as the
indication is displayed in the instrument panel,
follow it straight away.
For vehicles fitted with an automatic gearbox,
this indicator appears only in manual mode.
Drive smoothly
Maintain a safe distance between vehicles,
u se engine braking rather than the
brake pedal, and press the accelerator
progressively. These practices contribute
towards a
reduction in fuel consumption and
CO
2 emissions and also help reduce the
b
ackground traffic noise.
Control the use of your electrical
equipment
Before moving off, if the passenger
compartment is too warm, ventilate it by
opening the windows and air vents before
using the air conditioning.
Above 31
mph (50 km/h), close the windows
and leave the air vents open.
Consider using equipment that can help
keep the temperature in the passenger
compartment down (sunroof blind and window
blinds, etc.).
Switch off the air conditioning, unless it has
automatic regulation, as soon as the desired
temperature is attained. Switch off the headlamps and front foglamps
when the ambient light level does not require
their use.
Avoid running the engine before moving off,
particularly in winter; your vehicle will warm up
much faster while driving.
As a
passenger, if you avoid connecting your
multimedia devices (film, music, video game
etc.), you will contribute towards limiting the
consumption of electrical energy, and so of
fuel.
Disconnect your portable devices before
leaving the vehicle.
Limit the causes of excess
consumption
Spread loads throughout the vehicle; place
the heaviest items in the bottom of the boot,
as close as possible to the rear seats.
If your vehicle has cruise control, make use of
the system at speeds above 25

mph (40

km/h)
when the traffic is flowing well. Switch off the demisting and defrosting
controls when not required, if they are not
automatically controlled.
Switch off the heated seat as soon as
possible.
Eco-driving

7
Observe the recommendations
on maintenance
Check the tyre pressures regularly, when cold,
referring to the label in the door aperture,
driver's side.
Carry out this check in particular:
-
b
efore a long journey,
-

a
t each change of season,
-

a
fter a long period out of use.
Do not forget the spare wheel and the tyres on
any trailer or caravan. Have your vehicle ser viced regularly (engine
oil, oil filter, air filter, cabin filter, etc.) and
obser ve the schedule of operations in the
manufacturer's service schedule.
With a
BlueHDi Diesel engine, if the SCR
system is faulty, your vehicle becomes
polluting. Visit a CITROËN dealer or
a qualified workshop as soon as possible to
bring your vehicle's nitrogen oxide emissions
back in line with the regulations.
When filling the tank, do not continue after the
3rd cut-off of the nozzle to avoid over flow.
At the wheel of your new vehicle, it is only
after the first 1,900
miles (3,000 kilometres)
that you will see the fuel consumption settle
down to a
consistent average.
At the end of winter, remove snow tyres and
refit your summer tyres. Limit the loads carried in the vehicle and
reduce wind resistance (roof bars, roof rack,
bicycle carrier, trailer, etc.). Preferably, use a
roof box.
Remove roof bars and roof racks after use.
.
Eco-driving

8
Digital monochrome
instrument panel
Dials and display screens
1.Rev counter (x 1,000 rpm), graduation
depends on the engine (petrol or Diesel).
2. Gear efficiency indicator, selector position
and the gear with an automatic gearbox.
3. Digital speedometer (mph or km/h).
4. Cruise control or speed limiter settings.
5. Fuel gauge.
6. Ser vice indicator, then total distance
recorder (miles or km).
These functions are displayed
successively on switching on the ignition.
7. Trip distance recorder (miles or km).
8. Reminder of heating and air conditioning
settings.
Control buttons
A.Instrument panel and touch screen lighting
dimmer buttons.
B. Reminder of the service information.
Resetting of the selected function (ser vice
indicator or trip distance recorder).
Reminder of the remaining range with the
SCR system and the AdBlue
®.
Alert log (current alerts).
12-inch HD colour
instrument panel
This instrument panel can be customised.
Depending on the selected display mode, some
information may be hidden.
Dials and display screens
1. Rev counter (x 1,000 rpm), ("Dials" mode).
2. Gear efficiency indicator, selector position
and the gear with an automatic gearbox.
3. Digital speedometer (mph or km/h).
4. Cruise control or speed limiter settings.
5. Fuel gauge.
6. Total distance recorder (miles or km).
7. Trip distance recorder (miles or km).
8. Reminder of current media or telephone
information.
9. Reminder of trip computer information.
10. Exterior temperature (blue warning lamp
comes on if there is a
risk of ice).
Control button
A.Reminder of the service information.
Reminder of the remaining range with the
SCR system and the AdBlue
®.
Resetting of the selected function (ser vice
indicator or trip distance recorder).
Instruments
