29
The AdBlue® tank is empty: the starting
inhibition system required by legislation
prevents starting of the engine.
To be able to restart the engine, it is
essential to add at least 5
litres of AdBlue
®
to its tank.
For more information on AdBlue
®
(BlueHDi engines) , and, in particular,
on topping up, refer to the corresponding
section.
With access via the fuel filler flap
Range between 1,500 and 500 miles
( 2,400 and 800 km)
Range between 500 and 62 miles (800 and 100 km)
Range less than 62 miles (100 km)
W hen driving, the audible signal and the
message display are triggered every 6
miles
(10
km) until the AdBlue tank is topped up.
It is essential to top up as soon as possible and
before the tank is completely empty; other wise
it will not be possible to restart the engine after
the next stop. Breakdown related to a
lack of AdBlue
®
The AdBlue® tank is empty: the starting
inhibition system required by legislation
prevents starting of the engine.
To be able to restart the engine, it is
essential to add at least 5
litres of AdBlue
®
to its tank.
For more information on AdBlue
®
(BlueHDi engines) , and, in particular,
on topping up, refer to the corresponding
section.
Each time the vehicle is started, this warning
lamp comes on for about 30

seconds,
accompanied by the display of a

message
("Top up AdBlue: Starting impossible in x
miles") indicating the remaining range in miles
or kilometres.
The reser ve level has been reached; it is
recommended that you top up as soon as
possible.
These messages are accompanied by the
recommendation to not top up with more than
10

litres of AdBlue. When switching on the ignition, this warning
lamp comes on, accompanied by an audible
signal (1

beep) and the display of a

message
("Top up AdBlue: Starting impossible in
x miles") indicating the remaining range
expressed in miles or kilometres.
When driving, the audible signal and the
message display are triggered every 62

miles
(100

km) until the fluid is topped up.
It is essential to top up as soon as possible and
before the tank is completely empty; other wise
it will not be possible to restart the engine after
the next stop.
When switching on the ignition, this warning
lamp comes on, accompanied by an audible
signal (1

beep) and the display of a

message
("Top up AdBlue: Starting impossible in x
miles") indicating the remaining range in miles
or kilometres. When switching on the ignition, this warning
lamp flashes, accompanied by the display
of the message "Top up AdBlue: Starting
impossible".
1
Instruments

30
In the event of a fault with the
S CR emissions control system
A system that prevents engine starting is
activated automatically from 685
miles
(1,100
km) after confirmation of a fault with
the SCR emissions control system.
Have the system checked by a
CITROËN
dealer or a
qualified workshop as soon as
possible.
In the event of the detection of a
fault
If it is a
temporary fault, the alert
disappears during the next journey, after
self-diagnosis of the SCR system. During the permitted driving phase
(between 685
and 0 miles (1,100 and 0 km))
While driving, the message is displayed every
30
seconds while the fault with the SCR system
persists.
The alert is repeated when switching on the
ignition.
You should go to a
CITROËN dealer or a qualified
workshop as soon as possible.
Other wise you will not be able to restart the vehicle.
Starting prevented You have exceeded the authorised driving
limit: the starting prevention system does
not allow the engine to be started.
These warning lamps come on, accompanied
by an audible signal and the display of the
message "Emissions fault".
The alert is triggered when driving when the
fault is detected for the first time, then when
switching on the ignition for subsequent
journeys, while the fault persists. If a
fault with the SCR system is confirmed
(after 31 miles (50 km) covered with the
permanent display of the message signalling
a fault), these warning lamps come on and the
AdBlue warning lamp flashes, accompanied by
an audible signal and the display of a message
(e.g. "Emissions fault: Starting prevented in
185 miles") indicating the remaining range in
miles or kilometres.
Each time the ignition is switched on, these
warning lamps come on and the AdBlue
warning lamp flashes, accompanied by an
audible signal and the display of the message
"Emissions fault: Starting prevented". To be able to start the engine, you must call on
a
CITROËN dealer or a qualified workshop.
Distance recorders
The total and trip distances are displayed for
thirty seconds when the ignition is switched off,
when the driver's door is opened and when the
vehicle is locked or unlocked.
When travelling abroad, you may need
to change the unit of distance: the speed
display must be expressed in the official
units of the country (km or miles). The
change of units is done via the screen
configuration menu, with the vehicle
stationary.
Instruments

31
Total distance recorder
It measures the total distance travelled by the
vehicle since its first registration.
Trip recorder
It measures the distance travelled since it was
reset by the driver.
F
W
ith the ignition on, press the button until
zeros appear.
Touch screen
The touch screen gives access to:
- t he heating/air conditioning controls,
-

m
enus for adjusting settings for vehicle
functions and systems,
-

a
udio system and telephone controls and
the display of associated information,
and, depending on equipment, allows:
-

t
he display of alert messages and the visual
parking sensors information,
-

t
he permanent display of the time and the
exterior temperature (a blue warning lamp
appears when there is a
risk of ice),
-

a
ccess to the internet ser vices and
navigation system controls and the display
of associated information.
As a
safety measure, the driver should
only carry out operations that require
close attention with the vehicle
stationary.
Some functions are not accessible when
driving.
General operation
Recommendations
Use is possible in all temperatures.
Principles
Use the buttons on each side of the touch
screen to access the menus, then use the
buttons that appear on the touch screen.
Certain functions may be displayed over 1
or
2


pages.
To deactivate/activate a
function, press OFF/
ON.
To modify a
setting (lighting duration, etc.) or
find additional information, press the symbol for
the function.
After a
few moments with no action on
the secondary page, the primary page is
displayed automatically.
Use this button to confirm.
Do not use pointed objects on the touch
screen.
Do not touch the touch screen with wet hands.
Use a
soft clean cloth to clean the touch
screen.
Use this button to return to the
previous page.
1
Instruments

32
Menus
For more information on Heating, Manual
air conditioning and Automatic air
conditioning , refer to the corresponding
sections.
Upper bar
* Depending on equipment Certain information is always present in the
upper bar of the touch screen:
-
S
ummary of air conditioning information and
access to the simplified menu (temperature
and air flow adjustment only).
-
S
ummary of information from the Radio
Media , Telephone menus and navigation
instructions*.
-
N
otifications zone (texts and email)*.
Air conditioning.
Allows adjustment of the various
settings for temperature, air flow,
etc.
Connected navigation.
See the "Audio and telematics" section.
Radio Media.
See the "Audio and telematics" section. Telephone.
See the "Audio and telematics" section.
Applications.
Enables the trip computer to
be displayed with the digital
monochrome instrument panel.
See the "Audio and telematics" section. Driving.
Allows the activation, deactivation
and adjustment of settings for
certain functions.
The functions accessible from this menu are
arranged under two tabs: " Vehicle settings"
and " Driving functions ".
Volume control/mute.
See the "Audio and telematics"
section. Access to Configuration
.
Instruments

33
Driving menu
Vehicle settings tab
FamiliesFunctions with CITROËN Connect Radio Functions with CITROËN Connect Nav
Driving lighting -
"

Guide-me-home lighting": activation/deactivation of
automatic guide-me-home lighting.
-
"

Welcome lighting": activation/deactivation of exterior
welcome lighting.
-
"

Directional headlamps": activation/deactivation of the
cornering lighting/directional headlamps.
-

"Daytime running lamps" (LED daytime running lamps)
depending on country of sale.
- "Directional headlamps": activation/deactivation of the cornering lighting/directional headlamps.
-

"Daytime running lamps" (LED daytime running lamps)
depending on country of sale.
Vehicle access - " Unlock driver's door only": activation/deactivation of
selective unlocking of the driver's door.
-

"
Unlock boot only": activation/deactivation of unlocking
at the tailgate.
-
"

Motorised tailgate": activation/deactivation of
motorised operation of the tailgate.
-
"

Hands-Free Tailgate Access": activation/deactivation
of the hands-free tailgate function. -
" Unlock driver's door only": activation/deactivation of
selective unlocking of the driver's door.
-

"
Unlock boot only": activation/deactivation of unlocking
at the tailgate.
-
"

Motorised tailgate": activation/deactivation of
motorised operation of the tailgate.
-
"

Hands-Free Tailgate Access": activation/deactivation
of the hands-free tailgate function.
The functions are grouped into 4
families.
1
Instruments

34

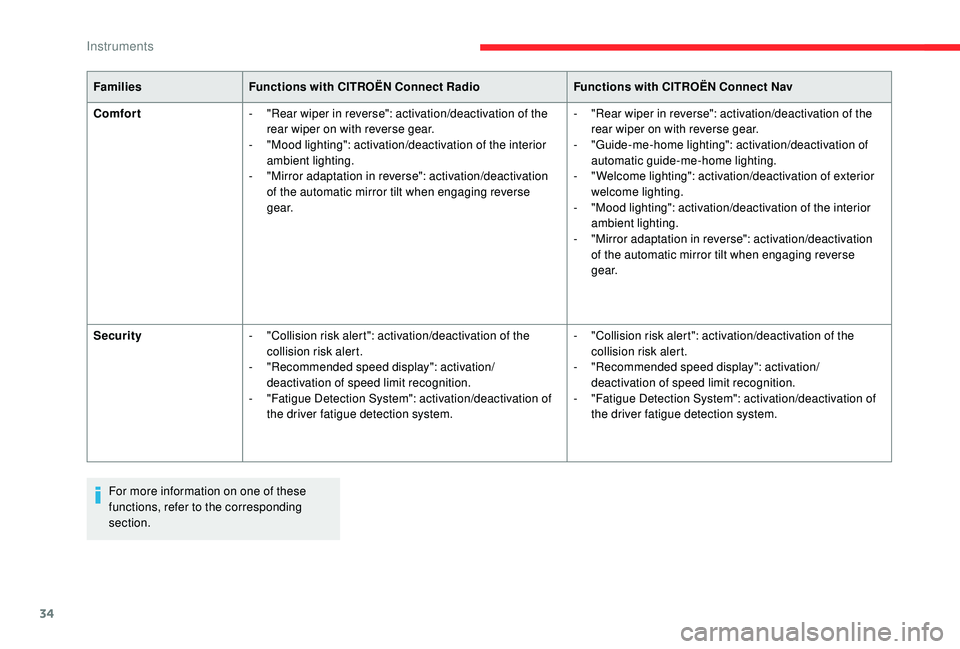

FamiliesFunctions with CITROËN Connect Radio Functions with CITROËN Connect Nav
Comfort -

"
Rear wiper in reverse": activation/deactivation of the
rear wiper on with reverse gear.
-
"

Mood lighting": activation/deactivation of the interior
ambient lighting.
-
"

Mirror adaptation in reverse": activation/deactivation
of the automatic mirror tilt when engaging reverse
g e a r. -

"
Rear wiper in reverse": activation/deactivation of the
rear wiper on with reverse gear.
-
"

Guide-me-home lighting": activation/deactivation of
automatic guide-me-home lighting.
-
"

Welcome lighting": activation/deactivation of exterior
welcome lighting.
-
"

Mood lighting": activation/deactivation of the interior
ambient lighting.
-
"

Mirror adaptation in reverse": activation/deactivation
of the automatic mirror tilt when engaging reverse
g e a r.
Security -
"

Collision risk alert": activation/deactivation of the
collision risk alert.
-
"

Recommended speed display": activation/
deactivation of speed limit recognition.
-
"

Fatigue Detection System": activation/deactivation of
the driver fatigue detection system. -
"

Collision risk alert": activation/deactivation of the
collision risk alert.
-
"

Recommended speed display": activation/
deactivation of speed limit recognition.
-
"

Fatigue Detection System": activation/deactivation of
the driver fatigue detection system.
For more information on one of these
functions, refer to the corresponding
section.
Instruments

35
Driving functions tab
FunctionComment
Adjusting Speeds Memorisation of speed settings for the speed limiter, cruise control and adaptive cruise control.


Under-inflation initialisationReinitialisation of the under-inflation system.
Diagnostic List of current alerts.
Lane assist Activation/deactivation of the "active lane departure warning" system.
Parking sensors Activation/deactivation of the function.
Automatic headlamp dipping Activation/deactivation of the "automatic headlamp dipping" function.
Stop & Star t Activation/deactivation of the function.
Blind spot sensors Activation/deactivation of the function.
Panoramic visual aid Activation/deactivation of the function and then choice of options.
Active cruise control Choice of the standard cruise control or adaptive cruise control function.
Traction control Activation/deactivation of the function.
For more information on one of these
functions, refer to the corresponding
section.
1
Instruments

36

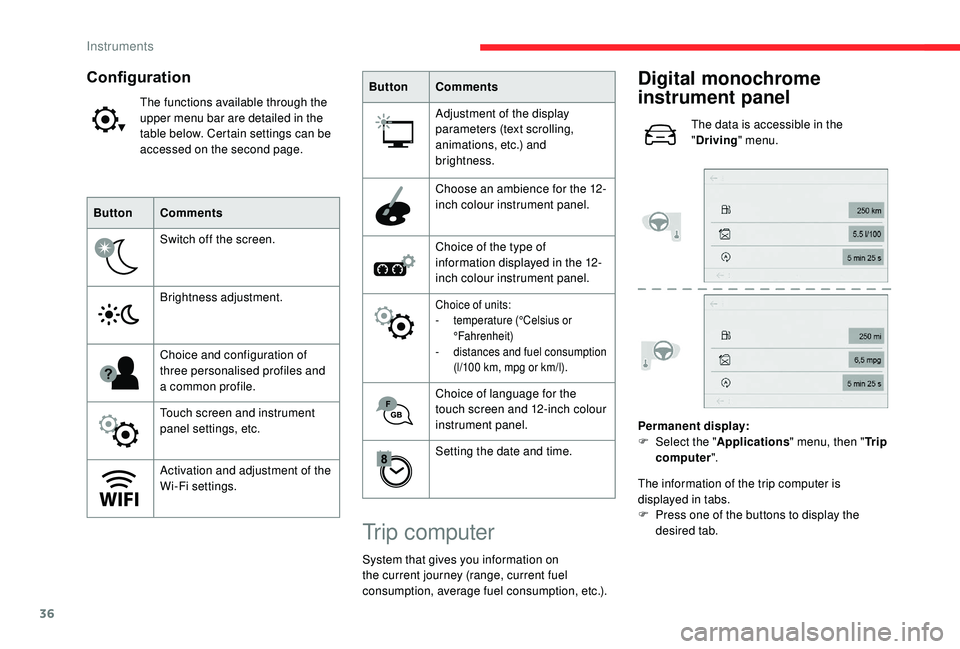

The functions available through the
upper menu bar are detailed in the
table below. Certain settings can be
accessed on the second page.
Configuration
ButtonComments
Switch off the screen.
Brightness adjustment.
Choice and configuration of
three personalised profiles and
a


common profile.
Touch screen and instrument
panel settings, etc.
Activation and adjustment of the
Wi-Fi settings. Button
Comments
Adjustment of the display
parameters (text scrolling,
animations, etc.) and
brightness.
Choose an ambience for the 12-
inch colour instrument panel.
Choice of the type of
information displayed in the 12-
inch colour instrument panel.
Choice of units:
- t
emperature (°Celsius or
°Fahrenheit)
-

d
istances and fuel consumption
(l/100
km, mpg or km/l).
Choice of language for the
touch screen and 12-inch colour
instrument panel.
Setting the date and time.
Trip computer
System that gives you information on
the current journey (range, current fuel
consumption, average fuel consumption, etc.).
Digital monochrome
instrument panel
The data is accessible in the
"Driving " menu.
Permanent display:
F

Sel

ect the " Applications " menu, then " Tr i p
computer ".
The information of the trip computer is
displayed in tabs.
F

P

ress one of the buttons to display the
desired tab.
Instruments

37
F When the desired trip is displayed, press the reset button or on the end of the wiper
control stalk.
Tr i p s " 1" and " 2" are independent and are used
identically.
For example, trip 1 can be used for daily
calculations, and trip 2 for monthly calculations.

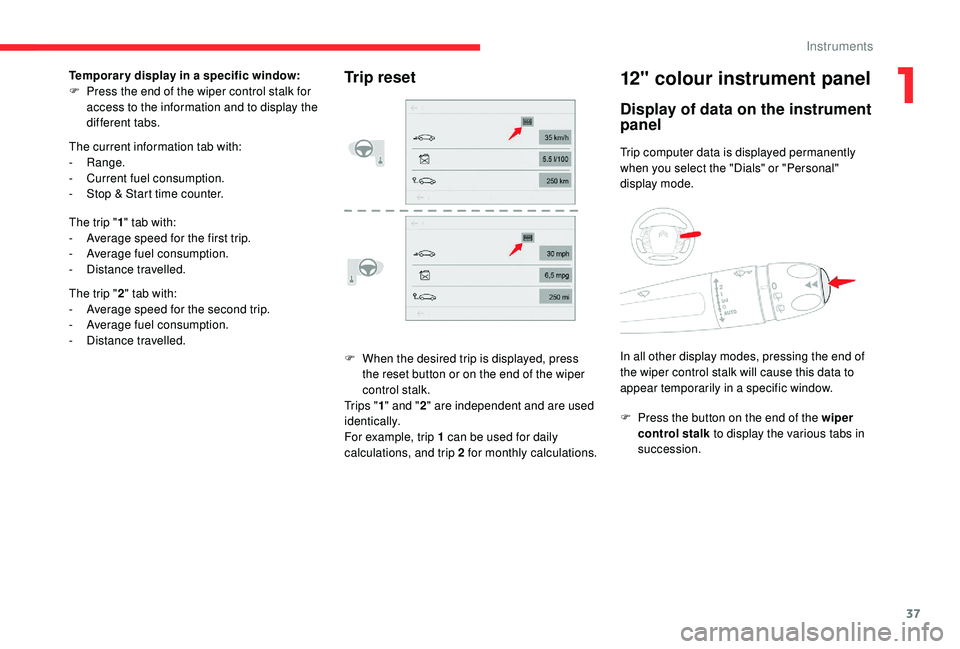

12" colour instrument panel
Display of data on the instrument
panel
Trip computer data is displayed permanently
when you select the "Dials" or "Personal"
display mode.
F

P
ress the button on the end of the wiper
control stalk to display the various tabs in
succession.
The current information tab with:
-
Range.
-

C

urrent fuel consumption.
-

S

top & Start time counter.
The trip " 1" tab with:
-

A

verage speed for the first trip.
-
A

verage fuel consumption.
-
D

istance travelled.
The trip " 2" tab with:
-

A

verage speed for the second trip.
-
A

verage fuel consumption.
-
D

istance travelled.
Trip resetTemporar y display in a specific window:
F P ress the end of the wiper control stalk for
access to the information and to display the
different tabs.
In all other display modes, pressing the end of
the wiper control stalk will cause this data to
appear temporarily in a specific window.
1
Instruments

38

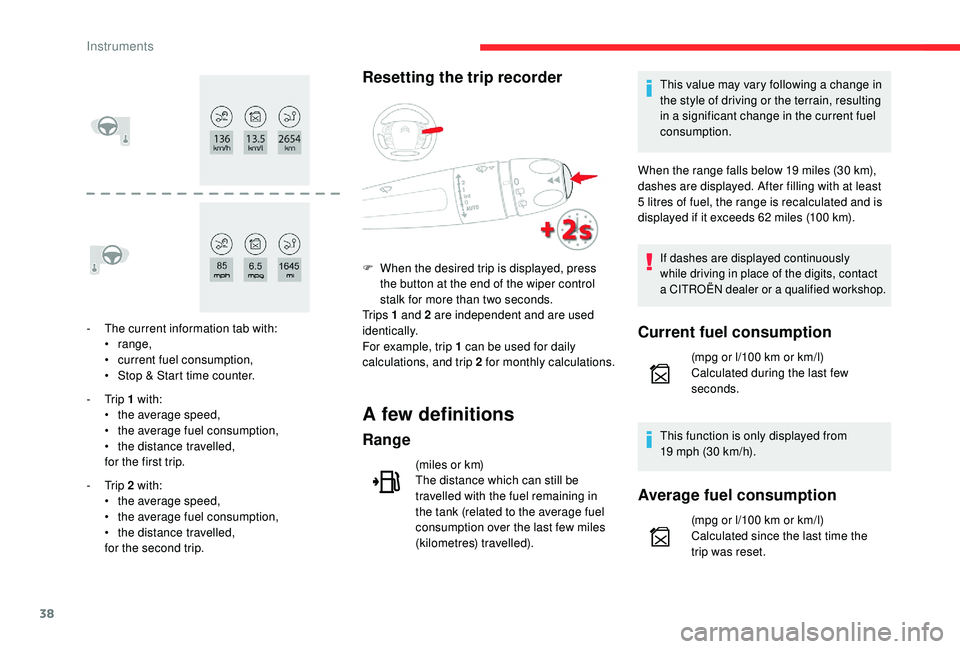

- The current information tab with:• range,
•

c
urrent fuel consumption,
•

S
top & Start time counter.
-
Trip 1
with:
•
t

he average speed,
•
t

he average fuel consumption,
•

t
he distance travelled,
for the first trip.
-
Trip 2
with:
•
t

he average speed,
•
t

he average fuel consumption,
•

t
he distance travelled,
for the second trip.
Resetting the trip recorder
F When the desired trip is displayed, press the button at the end of the wiper control
stalk for more than two seconds.
Tr i p s 1
and 2 are independent and are used
identically.
For example, trip 1
can be used for daily
calculations, and trip 2
for monthly calculations.
A few definitions
Range
(miles or km)
The distance which can still be
travelled with the fuel remaining in
the tank (related to the average fuel
consumption over the last few miles
(kilometres) travelled). This value may vary following a
change in
the style of driving or the terrain, resulting
in a significant change in the current fuel
consumption.
When the range falls below 19 miles (30 km),
dashes are displayed. After filling with at least
5 litres of fuel, the range is recalculated and is
displayed if it exceeds 62 miles (100 km).
If dashes are displayed continuously
while driving in place of the digits, contact
a
CITROËN dealer or a qualified workshop.
Current fuel consumption
(mpg or l/100 km or km/l)
C alculated during the last few
seconds.
This function is only displayed from
19 mph (30 km/h).
Average fuel consumption
(mpg or l/100 km or km/l)
C alculated since the last time the
trip was reset.
Instruments
