Page 5 of 231
I
8
9
10
17
18
11
1
2
12
1314
153
5
8
6
4
7
16
19
20
21
IN BRIEF
1 Electric windows / Rear view mirrors / Child
safety controls
2 Memorisation of driver's seat and exterior rear
view mirror adjustments
3 Bonnet release
4 Controls at the steering wheel:
Speed limiter
Cruise control
5 Horn
6 Audio/telematic controls under steering wheel
7 Driver's airbag
8 Navigation controls
9 Driver's air vent
10 Instrument panel
11 Driver's air vent
12 Lighting control
13 Windscreen wiper / Screen wash controls
14 Ignition switch
15 Controls:
Central locking/unlocking of doors and boot
Lane Departure Warning System
16 Steering column adjustment
17 Knees airbag
18 Oddments tray
19 Checks / Anti-intrusion alarm / Parking space
sensor controls
20 Lighting / Direction indicators / Foglamp / Voice
recognition controls
21 Manual headlamp height adjustment
-
-
-
-
D A S H B O A R D

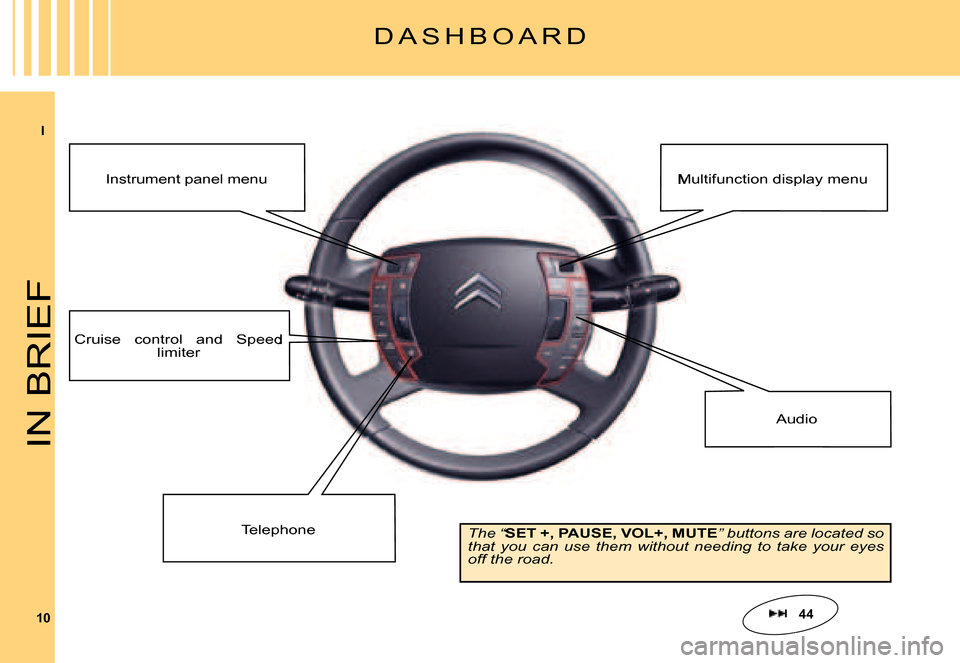

Page 7 of 231
I
10
IN BRIEF
D A S H B O A R D
Audio
Instrument panel menuMultifunction display menu
Telephone
Cruise control and Speed limiter
44
The “SET +, PAUSE, VOL+, MUTEThe “The “” buttons are located so that you can use them without needing to take your eyes off the road.
Page 12 of 231
II
1515
2
3
4
1
5
2
3
4
1
5
IN BRIEF
D R I V I N G
This system allows you to main-tain a constant vehicle speed pro-grammed by the driver.1. Selection of « CRUISE »: Acti-vation of cruise control.2/3.« SET »: Memorisation of the speed.2. « SET + »: Increase of the memorised speed.3. « SET - »: Reduction of the memorised speed.4. Suspension or resumption of mode.5. Deactivation.
Cruise controlSpeed limiter
This system allows you to choose a maximum speed that you do not wish to exceed.1. Selection of « LIMIT »: Activa-tion of speed limiter mode.2. « SET + »: Increase of the maximum speed.3. « SET - »: Reduction of the maximum speed.4. Suspension or resumption of mode.5. Deactivation.
The chosen speed is memorised.
6567
Note: The chosen speed must be higher than 30 km/h (20 mph).
Cruise control is active on the higher gears of the gearbox. The chosen speed must be higher than 40 km/h (20 mph).
Instrument panel display
The speed limiter or cruise control mode is displayed on the instru-ment panel when selected.
Cruise control
Speed limiter
Page 15 of 231
I
18
E
D
FAJ
CI
B
H
G
IN BRIEF
Instrument panel
The hazard lamps can also be used with the ignition switched off.
M O N I T O R I N G
A. Fuel gauge and low fuel warning lamp.B. Cruise control/speed limiter information.C. Coolant temperature.D. Speed indicator.E. Instrument panel.F. Mileage recorder.
G. Trip mileage recorder reset button.H. Rev counter. I. Engine oil temperature.J. Display of automatic gearbox information.
Note:When the ignition is switched on, the orange and red warning lamps light up.
When the engine is running, these warning lamps should go out.
If any warning lamps remain lit, refer to the relevant page.
Page 27 of 231
30
II
G
C
F
ADBE
I N S T R U M E N T P A N E L
A Fuel gaugeB Indicator:Coolant temperature
Cruise control/Speed limiter informationC Speed indicatorD Rev counterE Indicator:Engine oil temperature
Gear selector position and gear engaged (Auto-matic gearbox)
F Controls:Lighting rheostat
Resetting to zero of trip mileage computer and maintenance indicator
Page 41 of 231
44
II
1
2
10
9
3
4
5
6
7
8
F I X E D C E N T R E D C O N T R O L S S T E E R I N G
W H E E L
1
Rotate- Scroll through the different information screens on instrument panel- Move through the different instrument panel menus- Increase/reduction of values
Shor t press- Open the instrument panel menu (only when vehicle s tationar y)- Select and validate information
Long pressReset the trip computer (if the trip computer page is displayed)
2Shor t press- Cancel the current operation- Return to the previous instrument panel display
Long pressReturn to the original instrument panel display
3Shor t pressIncrease speed in steps of 1 km/h/memorisation of sp eed
Press and holdIncrease speed in steps of 5 km/h
4Shor t pressReduce speed in steps of 1 km/h/memorisation of spee d
Press and holdReduce speed in steps of 5 km/h
5Shor t pressSuspend or restar t cruise control/speed limiter (depending on mode selected)
6Shor t pressSelect cruise control or speed limiter (the cycle on this button always star ts with the speed limiter selector)
7Shor t pressDeactivation
8Shor t press
- Pick up an incoming call- Hang up during a call- Open the contextual telephone menu- Validate in the telephone list or menu
Long pressRefuse an incoming call
9S h o r t p r e s s / Long pressHorn
10Shor t pressActivation/deactivation of Black Panel mode (night d riving)
Page 61 of 231
65
II
3
5
4
2
1
A
This driving assistance function allows you to drive at the speed of your choice without the need to action the accelerator. It is active over speeds of around 40 km/h (25 mph).
Remark: For the function to be active, the gearbox must be in at least:4th gear for manual gearboxes.2nd gear for automatic gear-boxes.
The cruise control controls are located on the left-hand side of the steering wheel and cruise control information is displayed in zone Aof the instrument panel.
Page 62 of 231
66
II
3
5
4
2
1
C R U I S E C O N T R O L
To cancel the functionPress on button 5.
Select the cruise control func-tion.Or stop the engine.
The speed that was chosen is no longer memorised.
If there is a malfunction, a mes-sage is displayed accompanied by a sound signal and lighting of the SERVICE warning lamp.
Contact a CITROËN dealer.
Page 63 of 231
67
II
3
5
4
2
1
A
S P E E D L I M I T E R
This driving aid allows you to choose a maximum speed that you do not wish to exceed. This has to be over 30 km/h (19 mph).
The speed limiter controls are located on the steering wheel.Note: The speed limiter informa-tion is displayed in zone A of the instrument panel.
To select the function
Press on button 4 to select speed limiter mode “LIMIT”.
T h e s e l e c t i o n i s c o n fi r m e d b y t h e display of the function in zone A of the instrument panel.
To adjust the maximum speed
With the engine running, you can adjust the memorised maximum speed, displayed in zone A, by pressing on:Button 1 to increase the memo-rised maximum speed.
Button 2 to decrease the mem-orised maximum speed.
Remark: Successive presses will modify the cruise speed in steps of 1 km/h and a continuous press in steps of 5 km/h (3 mph).
