Citroen C5 2007.5 (DC/DE) / 1.G Owner's Manual

I
4
IN BRIEF
Glass sun roof
The sun roof provides you with improved ventilation and brightness in the passenger compartment.
E X T E R I O R
The Xenon dual-function directional headlamps
This function automatically pro-vides you with extra visibility on bends. This lighting is linked with the angular lighting which max-imises the area lit at intersections and when parking.
Lane Departure Warning System
This driving assistance device warns you when you unwittingly cross a lane marking.
Parking assistance (visual + sound)
This function warns you, whilst manoeuvring, by detecting obsta-cles located in front of and behind the vehicle.
Tyre defl ation detection
This function monitors the pressure of each tyre and warns you of tyres that are punctured or defl ated.
119
50
89
9069

II
55
F
BA
D
C
E
IN BRIEF
A. Key release / storage.
B. Locking of the vehicle.
C. Unlocking of the vehicle.
D. Guide-me-home lighting.
Press upwards on the lever E.
The boot automatically locks when the vehicle is moving at a speed of over 10 km/h (6 mph), even if automatic central locking is deacti-vated. It is unlocked when a door is opened or when the central locking button is pressed (speed lower than 10 km/h (6mph)).
To open the fuel fl ap, press on the top left part of it, then pull from the edge.
Locking fi ller cap*
Turn the key a quarter turn to lock and unlock the fi ller cap.
When refuelling, place the cap on hook F.
Remote control keyOpening the bootFuel tank
22159
Tank capacity:
approximately 71 litres
95
O P E N I N G

I
6
A
B
Access to the spare wheel
To access the spare wheel:1. Lift up the boot fl oor using the fi rst strap.2. Fold back the boot carpet.3. Attach the second strap to the upper section of the boot.4. To remove the spare wheel, detach the strap then push the wheel forwards so as to be able to lift it.
Spare wheel
Note: The tools are to be found in a protective holder inside the spare wheel.
170138
O P E N I N G
Bonnet release
This operation should only be performed while the vehicle is stationary.
Open the door.
To unlock, pull release lever A.
Lift up lever B, then raise the bon-net.
171
Puncture kit
The puncture repair kit is a com-plete system including a compres-sor and a setting product.

II
77
IN BRIEF
INTERIOR
Dual-zone automatic air conditioning
This function enables you to adjust the comfort levels of the driver and the front passenger independently. It is also automatically regulated depending on the external climatic conditions.
Audio and communication systems
This equipment benefi ts from the latest technology : MP3 compatible RD4 radio, Bluetooth®technology technology hands-free kit, NaviDrive (See ®
NaviDrive instructions).
Electric parking brake
The electric parking brake combines automatic engagement when the engine is switched off, and automatic release when the vehicle is set in motion (automatic function activated by default).Note: Manual locking/unlocking is possible.
9892
77
Parking space sensor
The “Parking Space Sensor” function assists you in fi nding a parking space.
120

I
8
9
10
17
18
11
1
2
12
1314
153
5
8
6
4
7
16
19
20
21
IN BRIEF
1 Electric windows / Rear view mirrors / Child
safety controls
2 Memorisation of driver's seat and exterior rear
view mirror adjustments
3 Bonnet release
4 Controls at the steering wheel:
Speed limiter
Cruise control
5 Horn
6 Audio/telematic controls under steering wheel
7 Driver's airbag
8 Navigation controls
9 Driver's air vent
10 Instrument panel
11 Driver's air vent
12 Lighting control
13 Windscreen wiper / Screen wash controls
14 Ignition switch
15 Controls:
Central locking/unlocking of doors and boot
Lane Departure Warning System
16 Steering column adjustment
17 Knees airbag
18 Oddments tray
19 Checks / Anti-intrusion alarm / Parking space
sensor controls
20 Lighting / Direction indicators / Foglamp / Voice
recognition controls
21 Manual headlamp height adjustment
-
-
-
-
D A S H B O A R D

II
99
24
33
38
39
3736
35
22
23
30
28
25
27
2629
31
32
34
41
40
IN BRIEF
D A S H B O A R D
22 Sunlight sensor
23 Soft diffusion air conditioning adjustment knob
24 Passenger's airbag
25 Side window demister
26 Key switch:
Passenger' airbag activation/deactivation
27 Passenger's air vents
28 Hazard lamps button
29 Glovebox:
Vehicle document storage
Audio-video sockets
Fusebox access fl ap
30 ESP / Parking assistance controls
31 Automatic gearbox SPORT/SNOW mode con-
trols
32 Electric parking brake
33 Armrest with cup-holder
34 Suspension controls:
Ground clearance adjustment
Sport mode
35 Ashtray with lighter
36 Gear lever
37 Storage
38 Radio mono CD or NaviDrive
39 Air conditioning controls
40 Storage
41 Multifunction display
-
-
-
-
-
-

I
10
IN BRIEF
D A S H B O A R D
Audio
Instrument panel menuMultifunction display menu
Telephone
Cruise control and Speed limiter
44
The “SET +, PAUSE, VOL+, MUTEThe “The “” buttons are located so that you can use them without needing to take your eyes off the road.

II
1111
A
IHGF
C
BD
J
J
E
IN BRIEF
F. Seat height and slide adjust-ments.
G. Adjustment of the backrest angle.
H. Adjustment of top of backrest.
I. Adjustment of 2 axis lumbar support.
J. Massage function.
A. Adjustment of the backrest angle.B. Adjustment of the seat height and angle.C. Heated seat control.D. Longitudinal adjustment of seat.E. Adjustment of the backrest lum-bar support.
5556
G E T T I N G S T A R T E D
54
Memorisation
The Memorisation function allows you to programme the driver's seat and exterior rear view mirror set-tings.
The correct positioning of the belt strap is through the middle of the shoulder. See “Seat belts”.
To adjust the seat belt for height, compress the control and slide it in the desired direction.
Seat belt height adjustmentFront seats
Electrical adjustmentsElectrical adjustmentsManual adjustments

I
12
4
3
2
ba
c
A
1
IN BRIEF
G E T T I N G S T A R T E D

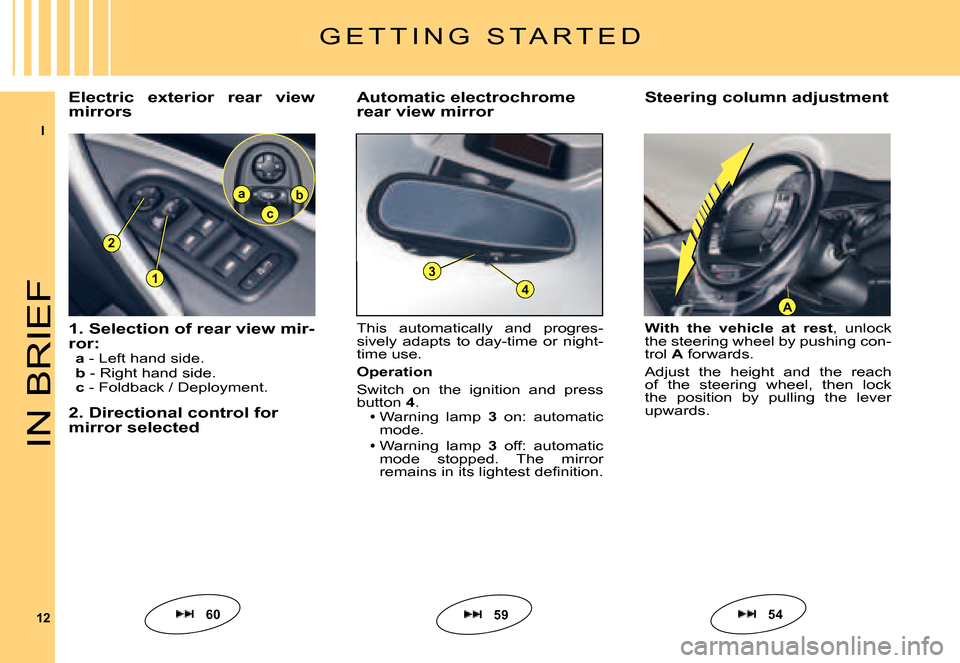

Automatic electrochrome rear view mirror
6054
This automatically and progres-sively adapts to day-time or night-time use.
Operation
Switch on the ignition and press button 4.Warning lamp 3 on: automatic mode.
Warning lamp 3 off: automatic mode stopped. The mirror remains in its lightest defi nition.

II
1313
AB
IN BRIEF
LightingWipers
V I S I B I L I T Y
Ring A
Sidelamps.
Dipped beams/main beams.
Lamps off.
Pull the control stalk towards youto change between dipped beam and main beam.
Front foglamps and rear foglamps on.
Front foglamps on.
Switching off
First action rearwards, rear foglamps off.
Second action rearwards, front and rear foglamps off.
Ring B
5147- 48
Automatic lighting of head-lamps.
Control positions3. Rapid wipe.2. Normal wipe.1. Intermittent wipe.0. Off.
One press downwards:AUTO:Automatic wipe acti-vated.Single wipe.
Screen wash
Pull the screen wipe control stalk towards you.
