steering wheel Citroen C5 2007.5 (DC/DE) / 1.G Owner's Manual

I
8
9
10
17
18
11
1
2
12
1314
153
5
8
6
4
7
16
19
20
21
IN BRIEF
1 Electric windows / Rear view mirrors / Child
safety controls
2 Memorisation of driver's seat and exterior rear
view mirror adjustments
3 Bonnet release
4 Controls at the steering wheel:
Speed limiter
Cruise control
5 Horn
6 Audio/telematic controls under steering wheel
7 Driver's airbag
8 Navigation controls
9 Driver's air vent
10 Instrument panel
11 Driver's air vent
12 Lighting control
13 Windscreen wiper / Screen wash controls
14 Ignition switch
15 Controls:
Central locking/unlocking of doors and boot
Lane Departure Warning System
16 Steering column adjustment
17 Knees airbag
18 Oddments tray
19 Checks / Anti-intrusion alarm / Parking space
sensor controls
20 Lighting / Direction indicators / Foglamp / Voice
recognition controls
21 Manual headlamp height adjustment
-
-
-
-
D A S H B O A R D

28
II
S T E E R I N G L O C K - I G N I T I O N - S T A R T E R
NEVER REMOVE THE IGNITION KEY BEFORE THE ENGINE HAS COME TO A COMPLETE STOP.
IT IS ESSENTIAL ALWAYS TO DRIVE WITH THE ENGINE RUNNING, SO AS TO RETAIN STEERING AND BRAKING ASSISTANCE (risk of the steering lock engaging and loss of safety features).
When stationary, having removed the key, carefully turn the steering wheel if you wish to lock the steering.
S : Steering lock
To unlock the steering, gently move the steering wheel while turning the key, without exerting undue force.
When you remove the key, turn your steering wheel to lock the steering. The key can only be removed when in position S.
M : Drive position
The steering is unlocked (by turn-ing the key in position M, if neces-sary move the steering wheel).
D : Starting
Release the key as soon as the engine starts. Never turn it while the engine is running.
Economy mode
When the engine is stopped, some functions (radio, screen wipe , electric windows, sunroof, electric seats, telephone, video etc) are only electrically supplied for about 30 minutes, to avoid discharging the battery.
Once the 30 minutes are over, a message appears on the instrumen t panel screen and the active functions are put on standby.
The electrical components relating to comfort and also the headlamps (not sidelamps or hazard warning lamps) cut out automatically. To react ivate them, it is necessary to start the engine.

36
II
I N S T R U M E N T P A N E L
T R I P C O M P U T E R
Distance travelled
This is the distance that has been travelled since the last reset to zero of the Journey selected.
Journeys
Journeys 1 and 2 are independent of each other but identical in use. They allow you, for example, to assign journey 1for daily calculations and journey 2 for monthly calculations.
Reset a journey to zero
When the required journey is displayed, make a long press on th e left-hand control knob A on the steering wheel.
Return to the main instrument panel screen display
Successive rotations of the control knob A on the steering wheel allow you to return you to the main instrument panel screen display (vehicle speed), via the navigation information scree n, then the screen displaying only the total mile-age and the trip mileage (bottom of screen).
A second rotation of control knob A allows you to display the information for journey A2.
Average speed
This is calculated (since the last reset to zero of the trip computer) by dividing the dis-tance travelled by the time taken (with the engine running).
Average consumption
This is the relationship between the fuel consumed and the distance travelled since the last reset to zero of the selected journey.
Information for two journeys 1 and 2
A fi rst rotation of control knob A on the steering wheel allows you to display the information for journey 1.

37
II
A
I N S T R U M E N T P A N E L
T E L E M A T I C S
Display of navigation information on instrument panel screen
You can display navigation information on the instrument panel screen by rotating the left-hand knob A on the steering wheel.

46
II

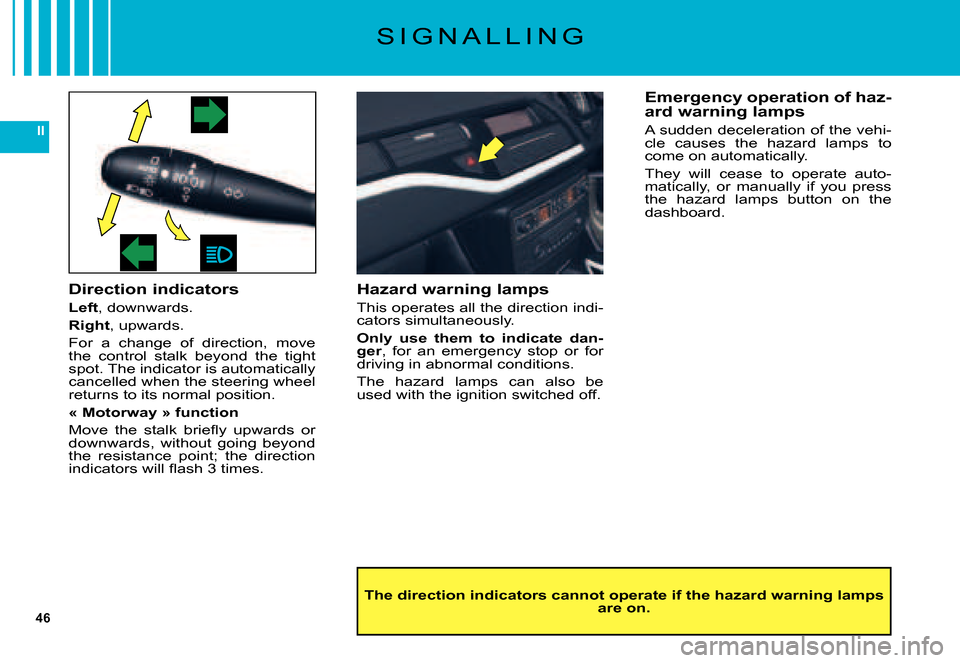

S I G N A L L I N G
Direction indicators
Left, downwards.
Right, upwards.
For a change of direction, move the control stalk beyond the tight spot. The indicator is automatically cancelled when the steering wheel returns to its normal position.
« Motorway » function
Move the stalk briefl y upwards or downwards, without going beyond the resistance point; the direction indicators will fl ash 3 times.
Hazard warning lamps
This operates all the direction indi-cators simultaneously.
Only use them to indicate dan-ger, for an emergency stop or for driving in abnormal conditions.
The hazard lamps can also be used with the ignition switched off.
The direction indicators cannot operate if the hazard warning lamps are on.
Emergency operation of haz-ard warning lamps
A sudden deceleration of the vehi-cle causes the hazard lamps to come on automatically.
They will cease to operate auto-matically, or manually if you press the hazard lamps button on the dashboard.

50
II
With dipped beams or main beams, the Directional headlamps function turns the headlamps in the direction the road ahead is taking. Your vision on bends is considerably enhanced.
This function is activated once your vehicle speed reaches 10 km/h (6 mph) and stops when your speed decreases to 5 km/h (3 mph).Note: An automatic correction of the beam height enables you not to dazzle other drivers.
X E N O N D U A L F U N C T I O N D I R E C T I O N A L
H E A D L A M P S - A N G L E D L I G H T I N G
Function activatedFunction deactivated
Activation/Deactivation
Activated by default, this function can be activated/deactivated in the “Main Menu” of the instrument panel screen. To do so, select “Vehicle parameters / Lighting / Directional headlamps”.
The activated/deactivated status is retained when you switch off the engine.Note: This function is not active when the vehicle is stationary, moving at very low speed, or in reverse gear.
If there is a malfunction, the “Dipped beams” warning lamp fl ashes, accompanied by a message on the instrument panel. Contact a CITROËN dealer.If there is a malfunction, the “Dipped beams” warning lamp fl ashes, accompanied by a message If there is a malfunction, the “Dipped beams” warning lamp fl ashes, accompanied by a message
This device is linked with the Angular lighting which lights up the inside of a bend when the vehicle speed is lower than 40 km/h (25 mph). This maximises the lighting at intersectio ns and when parking, for example.
The angular lighting is deployed:When the direction indicators are activated,
and/orfrom a certain angle of rotation of the steering wheel.
Note: The angular lighting is deactivated when the directional headlamps are deactivated.

54
II
A
S T E E R I N G C O L U M N A D J U S T M E N T –
S E A T B E L T H E I G H T A D J U S T M E N T
Adjustment of height and reach of steering wheel
With the vehicle at rest, unlock the steering wheel by pushing con-trol A forwards.
Adjust the height and the reach of the steering wheel, then lock the position by pulling the lever upwards.
As a matter of safety, the adjustments in your driving position must be made only while the vehicle is stationary.
First adjust your seat to the most suitable position, then a djust the position of the steering wheel. See “Driving position”.
Seat belt height adjustment
The correct positioning of the belt strap is through the middle of the shoulder. See “Seat belts”.
To adjust the seat belt for height, compress the control and slide it in the desired direction.

61
II
BC
A
BDC
AC
231

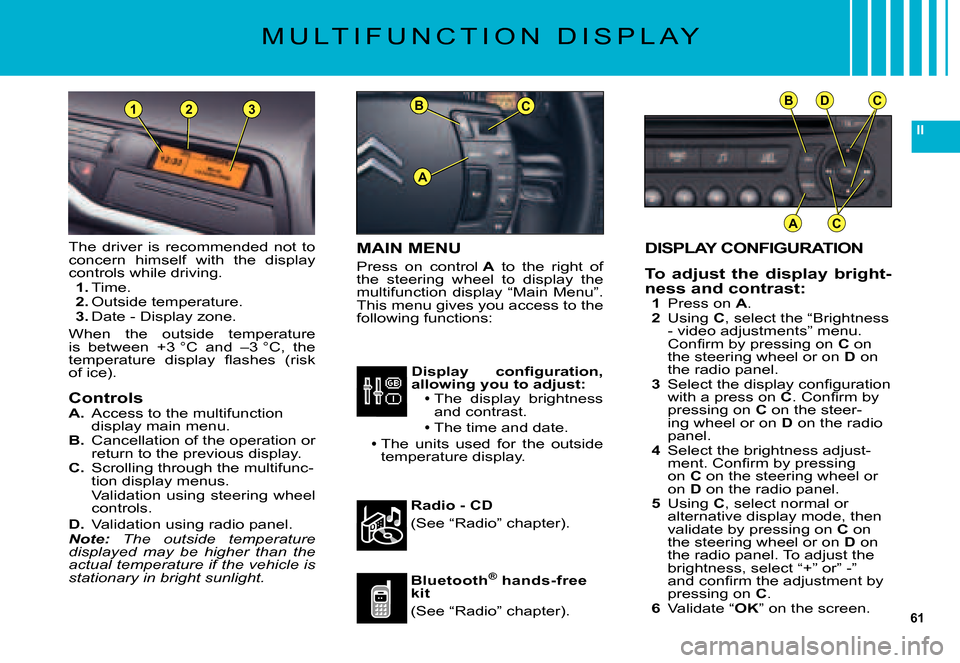

DISPLAY CONFIGURATION
To adjust the display bright-ness and contrast:1 Press on A.2 Using C, select the “Brightness - video adjustments” menu. Confi rm by pressing on C on the steering wheel or on D on the radio panel.3 Select the display confi guration with a press on C. Confi rm by pressing on C on the steer-ing wheel or on D on the radio panel.4 Select the brightness adjust-ment. Confi rm by pressing on C on the steering wheel or on D on the radio panel.5 Using C, select normal or alternative display mode, then validate by pressing on C on the steering wheel or on D on the radio panel. To adjust the brightness, select “+” or” -” and confi rm the adjustment by pressing on C.6 Validate “OK” on the screen.
Radio - CD
(See “Radio” chapter).
Display confi guration, allowing you to adjust:The display brightness and contrast.
The time and date.
The units used for the outside temperature display.

62
II
BC
A
BDC
A

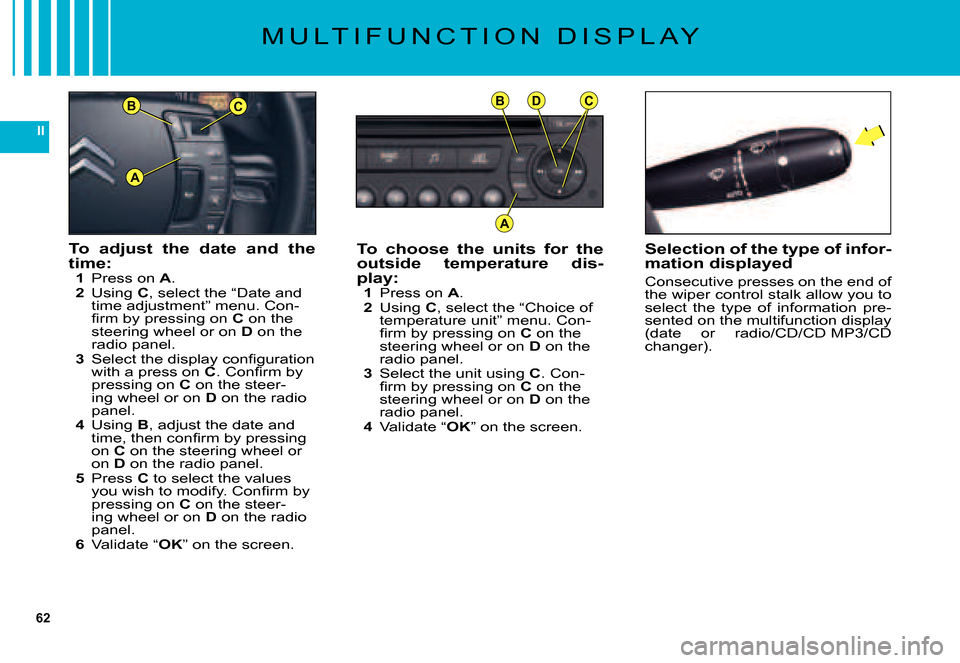

To choose the units for the outside temperature dis-play:1 Press on A.2 Using C, select the “Choice of temperature unit” menu. Con-fi rm by pressing on C on the steering wheel or on D on the radio panel.3 Select the unit using C. Con-fi rm by pressing on C on the steering wheel or on D on the radio panel.4 Validate “OK” on the screen.
To adjust the date and the time:1 Press on A.2 Using C, select the “Date and time adjustment” menu. Con-fi rm by pressing on C on the steering wheel or on D on the radio panel.3 Select the display confi guration with a press on C. Confi rm by pressing on C on the steer-ing wheel or on D on the radio panel.4 Using B, adjust the date and time, then confi rm by pressing on C on the steering wheel or on D on the radio panel.5 Press C to select the values you wish to modify. Confi rm by pressing on C on the steer-ing wheel or on D on the radio panel.6 Validate “OK” on the screen.
Selection of the type of infor-mation displayed
Consecutive presses on the end of the wiper control stalk allow you to select the type of information pre-sented on the multifunction display (date or radio/CD/CD MP3/CD changer).
M U L T I F U N C T I O N D I S P L A Y

65
II
3
5
4
2
1
A
This driving assistance function allows you to drive at the speed of your choice without the need to action the accelerator. It is active over speeds of around 40 km/h (25 mph).
Remark: For the function to be active, the gearbox must be in at least:4th gear for manual gearboxes.2nd gear for automatic gear-boxes.
The cruise control controls are located on the left-hand side of the steering wheel and cruise control information is displayed in zone Aof the instrument panel.
