Page 179 of 306
177
11
P R A C T I C A L I N F O R M A T I O N
Interior lamps
Roof lamps
Unclip the transparent cover of
the roof lamp to reach the bulb.
Bulb: W 5 W
Rear reading lamps (Tourer)
Detach the cover of the reading
lamp to access the bulb.
Bulb: W 5 W
Map reading lamp
Detach the cover.
If necessary, detach the partition
of the affected map reading lamp. Boot lamp
Detach the cover and use a
W 5 W bulb.
Pavement lighting
Detach the cover and use a
W 5 W bulb. Floor lighting
Detach the cover and use a
W 5 W bulb.
Glovebox
Detach the cover and use a
W 5 W bulb.
Page 182 of 306
179
11
P R A C T I C A L I N F O R M A T I O N
FUSEBOX A Table of fuses
Fuse N° Rating
Function
G29 - -
G30 5 A Heated rear view mirrors
G31 5 A Rain and brightness sensor
G32 5 A Seat belt not fastened warning lamps
G33 5 A Electrochrome rear view mirrors
G34 20 A Sunroof (saloon)
G35 5 A Passenger door lighting - passenger rear view mirror adjustment
G36 30 A Electric tailgate (tourer)
G37 20 A Heated front seats
G38 30 A Driver’s electric seat
G39 30 A P a s s e n g e r ’ s e l e c t r i c s e a t - H I F I a m p l i fi e r
G40 3 A Trailer relay unit supply
FUSEBOX B
Fuse N° Rating
Function
G36
15 A 6 s p e e d a u t o m a t i c g e a r b o x
5 A 4 s p e e d a u t o m a t i c g e a r b o x
G37 10 A Daytime-running lamps - Diagnostic socket
G38 3 A ESP
G39 10 A Hydraulic suspension
G40 3 A STOP switch
Page 183 of 306
180
11
P R A C T I C A L I N F O R M A T I O N
FUSEBOX C
Fuse N° Rating
Function
F1 15 A Rear screen wipe (Tourer)
F2 30 A Locking and deadlocking relay
F3 5 A Airbags
F4 10 A A u t o m a t i c g e a r b o x - a d d i t i o n a l h e a t e r u n i t ( D i e s e l ) - e l e c t r o c h r o m e r e a r v i e w m i r r o r s
F5 30 A Front window - sun roof - passenger door lighting - passeng er rear view mirror adjustment
F6 30 A Rear window
F7 5 A V a n i t y m i r r o r l i g h t i n g - G l o v e b o x l i g h t i n g - i n t e r i o r l a m p s - t o r c h ( t o u r e r )
F8 20 A R a d i o - C D c h a n g e r - C o n t r o l s a t t h e s t e e r i n g w h e e l - D i s p l a
y - D e fl a t i o n d e t e c t i o n - E l e c t r i c
boot ECU
F9 30 A Cigar-lighter - front 12 V socket
F10 15 A Alarm - Controls on the steering wheel, signalling and scre en wipe controls
F11 15 A Low current ignition switch
F12 15 A Driver’s electric seat - instrument panel - seat belt not fasten
ed warning lamps -air
conditioning controls
F13 5 A Engine relay unit - Hydraulic suspension pump cut-off relay - a irbag ECU supply
F14 15 A Rain and brightness sensor - parking assistance - passenger’s electri
c seat - trailer relay
u n i t - H I F I a m p l i fi e r E C U - H a n d s - f r e e k i t - L a n e D e p a r t u r e W a r n i n g S y s t e m
F15 30 A Locking and deadlocking relay
F17 40 A H e a t e d r e a r s c r e e n - e x t e r i o r h e a t e d r e a r v i e w m i r r o r s
FSH SHUNT PARK SHUNT
Page 189 of 306
186
P R A C T I C A L I N F O R M A T I O N
TOWING THE VEHICLE
Procedure for having your vehicle
towed or for towing another vehicle
using a removable towing eye.
Access to the tools
The towing eye is installed in the
j a c k b o x p l a c e d i n t h e s p a r e w h e e l .
To gain access to it:
open the boot,
r a i s e t h e fl o o r ,
remove the towing eye from the
j a c k b o x . Towing your vehicle
On the front bumper, unclip the
cover by pressing at the top.
Screw the towing eye in fully.
Attach the towing bar.
Switch on the hazard warning
lamps on the towed vehicle.
Place the gear lever in neutral
(position N on the automatic
g e a r b o x ) . Towing another vehicle
On the rear bumper, unclip the
cover by pressing:
- on the right (Saloon),
- at the bottom (Tourer).
Screw the towing eye in fully.
Attach the towing bar.
Switch on the hazard warning
lamps on the towed vehicle.
Failure to observe this special con-
dition could result in damage to
certain braking components and
the absence of braking assistance
t h e n e x t t i m e t h e e n g i n e i s s t a r t e d . When towing with all four wheels
on the ground, always use a towing
bar.
When towing with only two wheels
on the ground, always use profes-
sional lifting equipment.
When towing with the engine off,
there is no longer any braking or
steering assistance.
Page 198 of 306
194
12
T E C H N I C A L D A T A
FUEL
CONSUMPTION (TOURER) In accordance with directive 80/1268/CEE
Petrol
engines
Gearboxes
Model codes:
RW...
Urban
Litres
/100 km
(
mpg
)
Extra
-urban
Litres
/100 km
(
mpg
)
Mixed
Litres
/100 km
(
mpg
)
Emission of
CO 2 by weight
(g/km)
1.8 l. 16V
127
hp
Manual 6FYC 11.1 (25.4) 6.3 (44.8) 8.1 (34.9) 192
2 l. 16V
143
hp
Manual RFJC 12.1 (23.3) 6.4 (44.1) 8.5 (33.2) 200
Auto. RFJF 12.8 (22.1) 6.8 (41.5) 9 (31.4) 214
B i o fl e x 2 l .
16V 143
hp
Manual RFJC/FF 12.1 (23.3) * 6.4 (44.1) * 8.5 (33.2) * 200
*
15.6 (18.1) ** 9.2 (30.7) ** 11.5 (24.6) ** 191 **
3 l. V6 24V
215
hp
Auto. XFVJ 15.7 (18.0) 7.6 (37.2) 10.6 (26.6) 250
T h e f u e l c o n s u m p t i o n fi g u r e s s h o w n h e r e c o r r e s p o n d t o t h e v a l u e s c o m m u n i c a t e d a t t h e t i m e o f p r i n t i n g .
These fuel consumption values were established in accordance wi th Directive 80/1268/CEE. They may vary depending
o n t h e s t y l e o f d r i v i n g , t r a f fi c c o n d i t i o n s , w e a t h e r c o n d i t i o n s , t h e l o a d i n t h e v e h i c l e , t h e m a i n t e n a n c e o f t h e v e h i c l e a n d
the use of equipment.
* Unleaded.
** E85.
Page 200 of 306
199
12
T E C H N I C A L D A T A
FUEL
CONSUMPTION (TOURER) In accordance with directive 80/1268/CEE
Diesel
engines
Gearboxes
Model codes:
RW...
Urban
Litres
/100 km
(
mpg
)
Inter-urban
Litres
/100 km
(
mpg
)
Mixed
Litres
/100 km
(
mpg
)
Emission of
CO 2 by weight
(g/km)
1.6 l. HDi
110
hp
Airdream
Manual 9HZC/1 6.6 (42.8) 4.6 (61.4) 5.3 (53.3) 140
1.6 l. HDi
110
hp
Manual 9HZC 7.4 (38.2) 4.8 (58.9) 5.7 (49.6) 150
2 l. HDi 140
hp Manual RHF8 7.6 (37.2) 4.9 (57.6) 5.9 (47.9) 155
2 l. HDi 138
hp Auto. RHRJ 10.0 (28.2) 5.6 (50.4) 7.2 (39.2) 191
2 l. HDi 173
hp Manual 4HTH 8.9 (31.7) 5.3 (53.3) 6.6 (42.8) 175
V6 HDi 208
hp Auto. UHZJ 11.9 (23.7) 6.5 (43.5) 8.5 (33.2) 225
T h e f u e l c o n s u m p t i o n fi g u r e s s h o w n h e r e c o r r e s p o n d t o t h e v a l u e s c o m m u n i c a t e d a t t h e t i m e o f p r i n t i n g .
These fuel consumption values were established in accordance wi th Directive 80/1268/CEE. They may vary depending
o n t h e s t y l e o f d r i v i n g , t r a f fi c c o n d i t i o n s , w e a t h e r c o n d i t i o n s , t h e l o a d i n t h e v e h i c l e , t h e m a i n t e n a n c e o f t h e v e h i c l e a n d
the use of accessories.
Page 202 of 306
196
12
T E C H N I C A L D A T A
WEIGHTS AND TOWED LOADS (TOURER) in kg
Petrol engines
1.8 l. 16V
127
hp
2 l. 16V 143
hp
B i o fl e x 2 l .
16V 143
hp
3 l. V6 24V
215
hp
Gearboxes Manual Manual Auto.
Manual
Auto.
Model codes:
RW...
6FYC RFJC RFJF RFJC/FF XFVJ
- Unladen weight 1 549 1 578 1 619 1 578 1 761
- Kerb weight 1 624 1 653 1 694 1 653 1 836
- Payload 605 605 605 605 605
- Gross vehicle weight (GVW) 2 154 2 183 2 224 2 183 2 366
- Gross train weight (GTW) 3 454 3 683 3 724 3 683 3 666
- Braked trailer (within GTW limit)
o n a 1 0 % o r 1 2 % g r a d i e n t 1 300 1 500 1 500 1 300
- Braked trailer * (with load transfer within GTW limit) 1 600 1 790 1 800 1 790 1 600
- Unbraked trailer 750 750 750 750
- Recommended nose weight 64 72 72 68
T h e G T W a n d t o w e d l o a d v a l u e s i n d i c a t e d a p p l y u p t o a m a x i m u m a l t i t u d e o f 1 , 0 0 0 m e t r e s ; t h e t o w e d l o a d m e n t i o n e d
m u s t b e r e d u c e d b y 1 0 % f o r e a c h a d d i t i o n a l 1 , 0 0 0 m e t r e s o f a l t i t u d e .
T h e s p e e d o f a t o w i n g v e h i c l e m u s t n o t e x c e e d 1 0 0 k m / h ( a p p r o x . 6 0 m p h ) ( c o m p l y w i t h t h e l e g i s l a t i o n i n f o r c e i n y o u r c o u n t r y ) .
H i g h e x t e r i o r t e m p e r a t u r e s m a y r e s u l t i n a r e d u c t i o n i n t h e p e r f o r m a n c e o f t h e v e h i c l e i n o r d e r t o p r o t e c t t h e e n g i n e ; w h e n
t h e e x t e r i o r t e m p e r a t u r e i s h i g h e r t h a n 3 7 ° C , l i m i t t h e w e i g h t t o w e d .
* The weight of the braked trailer can be increa
sed, within the GTW limit, on condition that the GV W of the towing vehicle is reduced
by the same amount; warning, towing with a lightly loaded towing vehicle may have an adverse effect on its road holding.
Page 204 of 306
201
12
T E C H N I C A L D A T A
T h e G T W a n d t o w e d l o a d v a l u e s i n d i c a t e d a p p l y u p t o a m a x i m u m a l t i t u d e o f 1 , 0 0 0 m e t r e s ; t h e t o w e d l o a d m e n t i o n e d
m u s t b e r e d u c e d b y 1 0 % f o r e a c h a d d i t i o n a l 1 , 0 0 0 m e t r e s o f a l t i t u d e .
T h e s p e e d o f a t o w i n g v e h i c l e m u s t n o t e x c e e d 1 0 0 k m / h ( a p p r o x . 6 0 m p h ) ( c o m p l y w i t h t h e l e g i s l a t i o n i n f o r c e i n y o u r
country).
H i g h e x t e r i o r t e m p e r a t u r e s m a y r e s u l t i n a r e d u c t i o n i n t h e p e r f o r m a n c e o f t h e v e h i c l e i n o r d e r t o p r o t e c t t h e e n g i n e ; w h e n
t h e e x t e r i o r t e m p e r a t u r e i s h i g h e r t h a n 3 7 ° C , l i m i t t h e w e i g h t t o w e d .
WEIGHTS AND TOWED LOADS (TOURER) in kg
Diesel engines
1.6 l. HDi
110
hp
2 l. HDi
140
hp
2 l. HDi
138
hp
2 l. HDi
173
hp
V6 HDi
208
hp
Gearboxes Manual Manual Auto. Manual Auto.
Model codes:
RW...
9HZC
9HZC/1
RHF8 RHRJ 4HTH UHZJ
- Unladen weight 1 537 1 655 1 695 1 765 1 802
- Kerb weight 1 612 1 730 1 770 1 840 1 877
- Payload 641 621 631 587 571
- Gross vehicle weight (GVW) 2 178 2 276 2 326 2 352 2 373
- Gross train weight (GTW) 3 178 3 776 3 526 3 952 3 676
- Braked trailer (within GTW limit)
o n a 1 0 % o r 1 2 % g r a d i e n t 1 000 1 500 1 200 1 600 1 300
- Braked trailer * (with load transfer within GTW limit) 1 300 1 800 1 500 1 900 1 600
- Unbraked trailer 750 750 750 750 75 0
- Recommended nose weight 52 72 60 77 64
Page 207 of 306
204
12
T E C H N I C A L D A T A

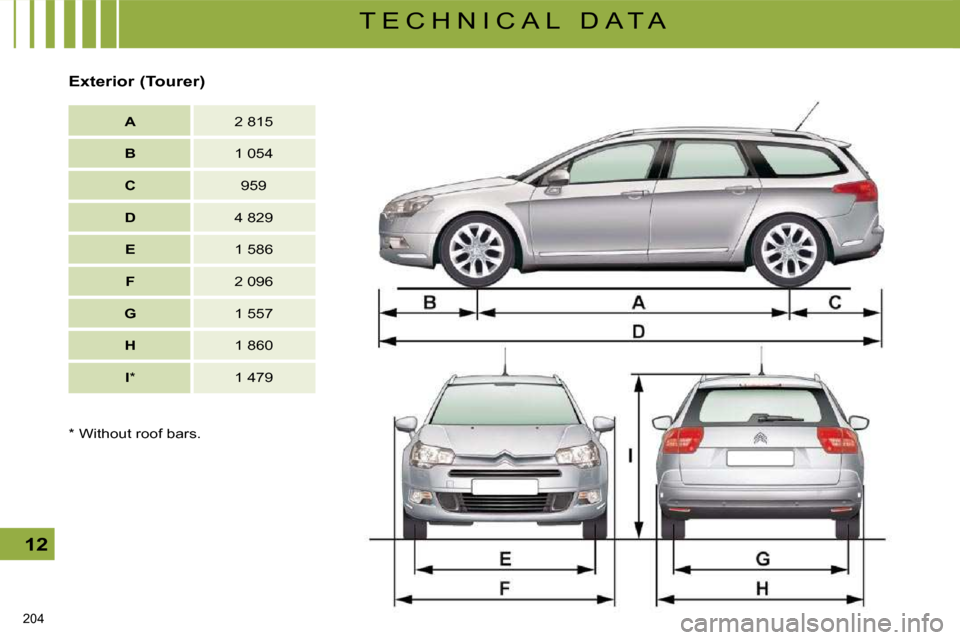

Exterior (Tourer)
A 2 815
B 1 054
C 959
D 4 829
E 1 586
F 2 096
G 1 557
H 1 860
I * 1 479
* Without roof bars.
Page 208 of 306
205
12
T E C H N I C A L D A T A

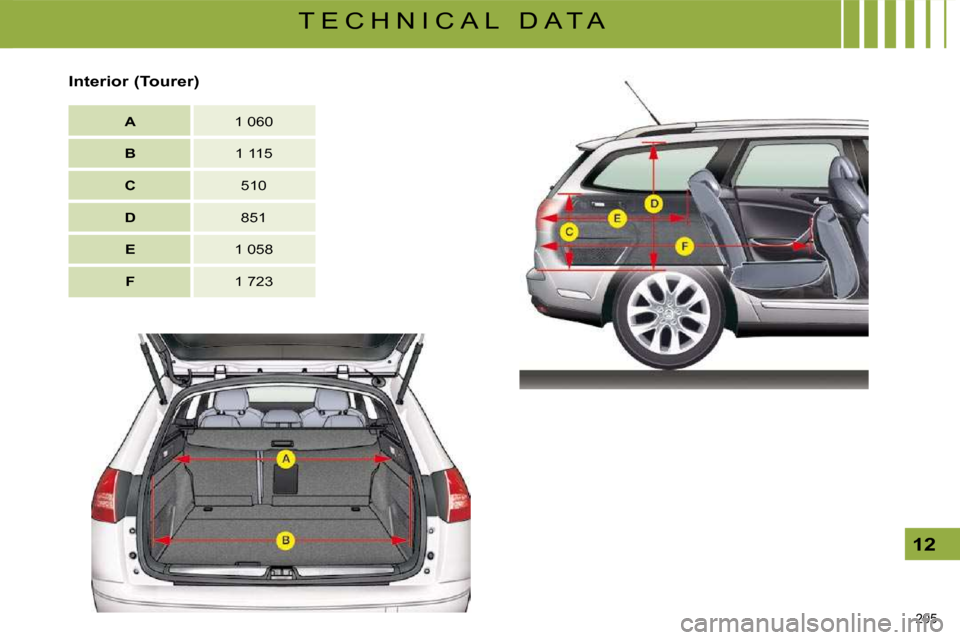

Interior (Tourer)
A 1 060
B 1 115
C 510
D 851
E 1 058
F 1 723
