Citroen C5 2008 (RD/TD) / 2.G Owner's Manual

I
4
IN BRIEF
E X T E R I O R
The Xenon dual-function directional headlamps
This function automatically provides you with extra visibility on bends. This lighting is linked with the angular lighting which max-imises the area lit at intersections and when parking.
48
Lane Departure Warning System
This driving assistance device warns you when you unwittingly cross a lane marking.
87
Parking assistance (visual + sound)
This function warns you, whilst manoeuvring, by detecting obstacles located in front of and behind the vehicle.
Tyre defl ation detection
This function monitors the pres-sure of each tyre and warns you of tyres that are punctured or defl ated.
8872
Glass panoramic roof (Tourer)
This provides you with improved brightness in the passenger compartment.
Glass sun roof (saloon)
This also provides you with improved ventilation in the passenger compartment.
124-125

II
55
F
BA
D
C
E
E
IN BRIEF
A. Key release / storage.
B. Locking of the vehicle.
C. Unlocking of the vehicle.
D. Guide-me-home lighting.
To open the fuel fl ap, press on the top left part of it, then pull from the edge.
Locking fi ller cap
Turn the key a quarter turn to lock and unlock the fi ller cap.
When refuelling, place the cap on hook F.
Remote control keyOpening the bootFuel tank
22161
Tank capacity:
approximately 71 litres
93
O P E N I N G
Press upwards on the lever E.
The boot automatically locks when the vehicle is moving at a speed of over 10 km/h (6 mph), even if automatic central locking is deacti-vated. It is unlocked when a door is opened or when the central locking button is pressed (speed lower than 10 km/h (6mph)).

I
6
A
B
IN BRIEF
Access to the spare wheel
To access the spare wheel:1. Lift up the boot fl oor using the strap (saloon) or the retractable hook (Tourer).2. Fold back the boot carpet (saloon).3. Attach the hook to the upper section of the boot.4. To remove the spare wheel, detach the strap then push the wheel forwards, before lifting it out.
Spare wheel
Note: The tools are to be found in a protective holder inside the spare wheel.
173144
O P E N I N G
Bonnet release
This operation should only be performed while the vehicle is stationary.
Open the door.
To unlock, pull release lever A.
Lift up lever B, then raise the bon-net.
174
Puncture kit
The puncture repair kit is a com-plete system including a compres-sor and a setting product.
Saloon
Tourer

II
77
IN BRIEF
INTERIOR
Electric parking brake
The electric parking brake combines automatic engagement when the engine is switched off, and automatic release when the vehicle is set in motion (automatic function activated by default).Note: Manual locking/unlocking is possible.
Parking space sensor
The “Parking Space Sensor” func-tion assists you in fi nding a parking space.
12675
Dual-zone automatic air conditioning
This function enables you to adjust the com-fort levels of the driver and the front passen-ger independently. It is also automatically regulated depending on the external climatic conditions.
100
Audio and communication systems
This equipment benefi ts from the lat-est technology: MP3 compatible RD4 radio, Bluetooth®technology: MP3 technology: MP3 hands-free kit, ®
NaviDrive (See NaviDrive instruc-tions).
90

I
8
8
9
17
10
1
2
11
5
18
4
7
3
6
16
12
14
15
13
19
20
IN BRIEF
1 Electric windows / rear view mirrors / Child safety controls
2 Memorisation of driver’s seat, rear view mirrors and air conditioning settings
3 Controls at the steering wheel:Speed limiterCruise control
4 Horn
5 Audio/telematic controls under steering wheel
6 Driver's airbag
7 Navigation controls
8 Driver's air vent
9 Instrument panel
10 Driver's air vent
11 Lighting control
12 Windscreen wiper / Screen wash controls
13 Ignition switch
14 Controls:Locking/unlocking of doors and boot
Lane Departure Warning System
15 Steering column adjustment
16 Knees airbag
17 Oddments tray
18 Checks / Anti-intrusion alarm / Parking space sensor controls
19 Lighting / Direction indicators / Foglamp / Voice recognition controls
20 Manual headlamp height adjustment
--
-
-
D A S H B O A R D

II
99
23
33
38
39
3736
35
21
24
30
28
22
25
29
31
32
34
41
40
26
27
IN BRIEF
D A S H B O A R D
21 Sunlight sensor
22 Soft diffusion air conditioning adjustment knob
23 Passenger's airbag
24 Side window demister
26 Bonnet release
25 Passenger's air vents
27 Hazard lamps button
28 Key switch:Passenger’s airbag activation/deactivation
29 Glovebox:Vehicle document storageAudio-video socketsFusebox access fl ap
30 ESP / Parking assistance controls/
31 Automatic gearbox SPORT/SNOW mode controls
32 Electric parking brake
33 Armrest with cup-holder
34 Suspension controls:Ground clearance adjustment Sport mode
35 Ashtray with lighter
36 Gear lever
37 Storage
38 Radio mono CD or NaviDrive
39 Air conditioning controls
40 Storage
41 Multifunction display
-
---
--

I
10
IN BRIEF
D A S H B O A R D
Audio
Instrument panel menuMultifunction display menu
Telephone
Cruise control and Speed limiter
42
The “SET +, PAUSE, VOL+, MUTEThe “The “” buttons are located so that you can use them without needing to take your eyes off the road.
Activation of voice recognition or reminder of navigation guidance
MODE: selection of the type of information displayed on multifunction screen.

II
1111
A
FG
HI
C
B
D
J
J
E
K
IN BRIEF
F. Seat height and slide adjust-ments.
G. Adjustment of the backrest angle.
H. Adjustment of top of backrest.
I. Adjustment of 2 axis lumbar support.
J. Massage function.
K. Heated seat control.
A. Adjustment of the backrest angle.
B. Adjustment of the seat height and angle.
C. Heated seat control.
D. Longitudinal adjustment of seat.
E. Adjustment of the backrest lum-bar support.
5354
G E T T I N G S T A R T E D
56
Memorisation
The Memorisation function allows you to programme the driver’s seat, rear view mirrors and air conditioning settings.
The correct positioning of the belt strap is through the middle of the shoulder. See “Seat belts”.
To adjust the seat belt for height, compress the control and slide it in the desired direction.
Seat belt height adjustmentFront seats
Electrical adjustmentsManual adjustments

I
12
A4
3
2
ba
c
1
IN BRIEF
G E T T I N G S T A R T E D
Automatic electrochrome rear view mirror
585852
This automatically and progres-sively adapts to day-time or night-time use.
Operation
Switch on the ignition and press button 4.Warning lamp 3 on: automatic mode.
Warning lamp 3 off: automatic mode stopped. The mirror remains in its lightest defi nition.

II
1313
AB
C
IN BRIEF

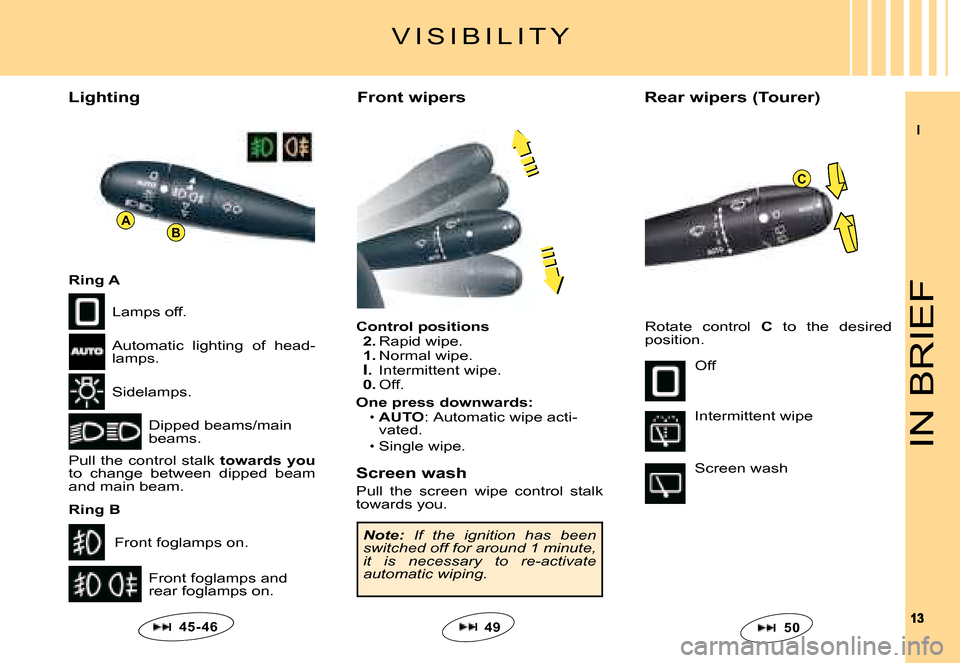

Front wipers
V I S I B I L I T Y
5045- 46
Control positions2. Rapid wipe.1. Normal wipe.I. Intermittent wipe.0. Off.
One press downwards:AUTO:Automatic wipe acti-vated.
Single wipe.
Screen wash
Pull the screen wipe control stalk towards you.
