Page 98 of 240
101
III
A U T O M A T I C A I R C O N D I T I O N I N G
D U A L - Z O N E
Operating the air conditioning sys-tem on “AUTO” guarantees good ventilation inside the cabin.Note: The value indicated on the display corresponds to a comfort level and not to a temperature in Celsius or Fahrenheit.
Manual mode
One or more functions can be adjusted manually, while still retain-ing the other functions in automatic mode.
Press on any of the buttons, except for temperature 2a and 2b. Lights Aon buttons “AUTO” go out.
Changing to manual mode may result in a decrease in comfort level (temperature, humidity, smell, misting) and is not advised for opti-mum comfort.
To return to “AUTO” mode, press on buttons 1a and 1b. Lights Acome on.
3a-3b. Adjusting the air distribution
Press but-ton 3a to change the driver's side air fl o w d i s t r i b u -tion.
-
T h e a i r fl o w l e v e l i s i n d i c a t e d b y t h e progressive lighting of the ventilator blades.
B y r e d u c i n g t h e a i r fl o w t o i t s m i n i -mum setting, the air conditioning system switches itself off (OFF).
To prevent misting and poor air qual-ity in the passenger compartment, take c a r e t o m a i n t a i n a s u f fi c i e n t fl o w o f a i r .
4 . A d j u s t i n g t h e a i r fl o w
T h e a i r fl o w c a n o n l y b e a d j u s t e d with the engine running.
T o a d j u s t t h e a i r fl o w , p r e s s b u t t o n :
t o i n c r e a s e t h e a i r fl o w
t o r e d u c e t h e a i r fl o w
5. Air conditioning
Air conditioning only works with the engine running. The air blower button (air fl o w a d j u s t m e n t ) m u s t be activated to obtain air conditioning.Press on button 6. The warning lamp comes on. T o f u n c t i o n e f fi c i e n t l y , air conditioning should be used with the windows closed.
This button activates the recirculation of air in the passenger compart-ment and can function automatically.
6. Air recirculation – Entry of air from outside
Press button 3b to change the p a s s e n g e r ' s s i d e a i r fl o w d i s t r i -bution.
The symbol (arrows) correspond-ing to the chosen distribution lights up:Windscreen and front windows.Front air vents (central, side and soft diffusion grille if open) and rear air vents.
Front and rear footwells.
Note: You cannot select distribu-tion to the windscreen/front win-dows and to the front/rear air vents at the same time.
-
Page 99 of 240
102
III
A U T O M A T I C A I R C O N D I T I O N I N G
D U A L - Z O N E
Switching off the entry of air
Press button 6 to switch off the entry of air from outside.
Whilst retaining the other settings, this position allows the driver at any moment to exclude unpleas-ant smells or smoke/emissions coming from outside.
This mode should be cancelled as soon as possible to allow the redistribution of air in the pas-senger compartment.
Entry of air from outside
Press once on button 6 to return to the original status (Entry of air from outside).
7. Rear demisting - deicing
Press button 7, with the engine running, to start a rapid deicing or demisting of the rear screen and rear view mirrors. The warning lamp comes on.
This mode automatically stops depending on the outside tempera-ture. It can be interrupted by a fur-ther press on button 7 or by stop-ping the engine.
In some cases, “AUTO” mode may not be suf- fi c i e n t t o d e m i s t o r defrost the windows (e.g. humidity, several passengers, frost).
Press button 8 for rapid clear win-dows. The warning lamp comes on. This system controls air con-ditioning, temperature and air fl o w / e n t r y . I t d i s t r i b u t e s v e n t i l a t i o n towards the windscreen and the front windows.
You can manually exit “Demisting” mode. This mode should be can-celled as soon as possible to allow the redistribution of air in the pas-senger compartment.
A press on either of the buttons 1aor 1b allows you to return to “AUTO” mode.
8. Front demisting - deicing
Remarks:
When starting from cold, in order to prevent unwanted cold a i r , t h e a i r fl o w w i l l i n c r e a s e o n l y gradually to its optimum level.
If you enter the vehicle after a fairly prolonged stop and the temperature inside the vehicle is far from comfortable, it serves no purpose to modify the tem-perature that is displayed as an attempt to go immediately to the desired comfort level. The sys-tem automatically uses all of its power to compensate the tem-perature gap as quickly as pos-sible.
Water arising from the conden-sation in the air conditioning drains out through a hole pro-vided for this purpose ; a pool of water may thus form under-neath the vehicle when station-ary.
Whatever the time of year, even in cool weather the air condition-ing is useful in removing humid-ity and misting. Avoid driving for too long with air conditioning deactivated.

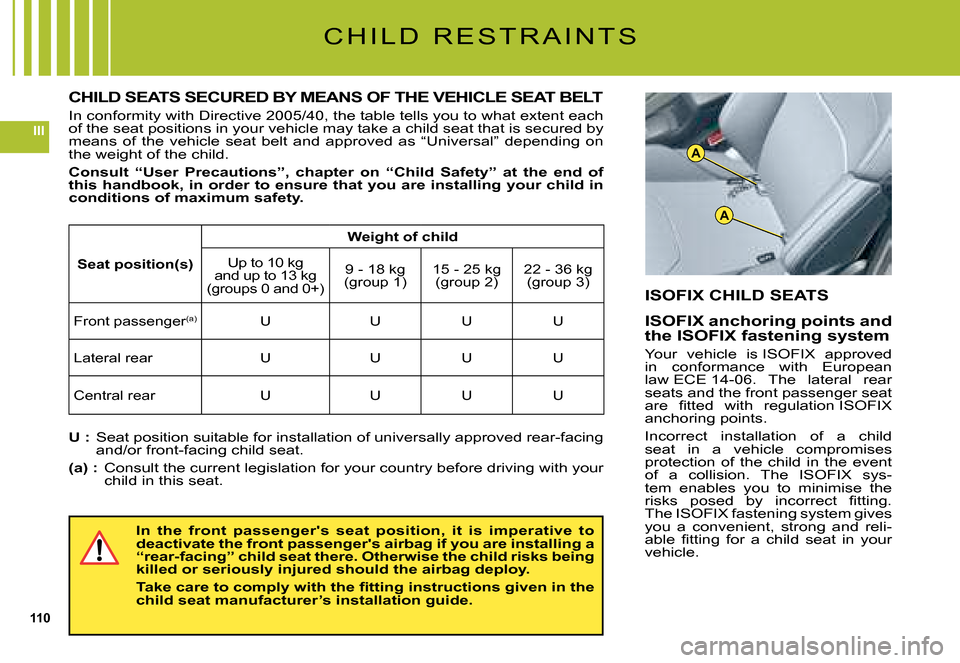

Page 107 of 240
110
III
A
A
C H I L D R E S T R A I N T S
CHILD SEATS SECURED BY MEANS OF THE VEHICLE SEAT BELT
In conformity with Directive 2005/40, the table tells you to what extent each of the seat positions in your vehicle may take a child seat tha t is secured by means of the vehicle seat belt and approved as “Universal” depen ding on the weight of the child.
Consult “User Precautions”, chapter on “Child Safety” at the end of this handbook, in order to ensure that you are installing your child in conditions of maximum safety.
Seat position(s)
Weight of child
Up to 10 kg and up to 13 kg (groups 0 and 0+)
9 - 18 kg (group 1)15 - 25 kg (group 2)22 - 36 kg (group 3)
Front passenger(a)UUUU
Lateral rearUUUU
Central rearUUUU
U: Seat position suitable for installation of universally approved rear-facing and/or front-facing child seat.
(a): Consult the current legislation for your country before driving w ith your child in this seat.
In the front passenger's seat position, it is imperative to deactivate the front passenger's airbag if you are install ing a “rear-facing” child seat there. Otherwise the child risks being killed or seriously injured should the airbag deploy .
T a k e c a r e t o c o m p l y w i t h t h e fi t t i n g i n s t r u c t i o n s g i v e n i n t h e child seat manufacturer’s installation guide.
ISOFIX CHILD SEATS
ISOFIX anchoring points and the ISOFIX fastening system
Your vehicle is ISOFIX approved in conformance with European law ECE 14-06. The lateral rear seats and the front passenger seat a r e fi t t e d w i t h r e g u l a t i o n I S O F I X anchoring points.
Incorrect installation of a child seat in a vehicle compromises protection of the child in the event of a collision. The ISOFIX sys-tem enables you to minimise the r i s k s p o s e d b y i n c o r r e c t fi t t i n g . The ISOFIX fastening system gives you a convenient, strong and reli- a b l e fi t t i n g f o r a c h i l d s e a t i n y o u r vehicle.
Page 114 of 240
117
III
CB
A
I N T E R I O R C O M F O R T
Air conditioned glovebox
To open the glovebox, pull on the handle and lower the lid.
The glovebox has a manually clos-able air conditioning vent B.
It has 2 or 3 sockets C to connect audio/video equipment.
It has automatic lighting.
It gives you access to the fusebox underneath the dashboard.
Driver's oddments tray
To open the driver's oddments tray, pull the handle towards you.W h i l s t d r i v i n g , t h e glovebox should be kept closed.
Front armrest
The armrest gives you extra com-fort in your driving position.
To optimise your driving position, lift the control A and push the arm-rest forwards.
The armrest returns to its initial position when you push it rear-wards.
Cup-holder in front armrest
Lift up the armrest to access the cup-holder.
Page 155 of 240
158
V
T A B L E O F F U S E S
Fusebox C
Ref.RatingFunction
F115ARear screen wipe (Tourer)
F230ALocking and deadlocking relay
F35AAirbags
F410AAutomatic gearbox - Additional heater unit (Diesel) - Electrochrome rear view mirrors
F530AFront window - Sun roof - Passenger door lighting - Passenger rear view mirror adjustment
F630ARear window
F75AVanity mirror lighting – Glove box lighting – Interior lamps - Torch (Tourer)
F820A R a d i o - C D c h a n g e r - C o n t r o l s a t t h e s t e e r i n g w h e e l – D i s p l a y – T y r e d e fl a t i o n detection - Electric boot ECU
F930ACigar-lighter - Front 12V socket
F1015AAlarm - Controls on the steering wheel, signalling and screen w ipe controls
F1115ALow current anti-theft switch
F1215ADriver’s electric seat - Instrument panel - Seat belt not fastened warning lamps - Air conditioning controls
F135AEngine relay unit - Hydraulic suspension pump cut-off relay - Airbag ECU supply
F1415ARain and brightness sensor - Parking assistance - Passenger’s electric sea t - Trailer r e l a y u n i t - H I F I a m p l i fi e r E C U - H a n d s - f r e e k i t - L a n e D e p a r t u r e W a r n i n g S y s t e m
F1530ALocking and deadlocking relay
F1740AHeated rear screen - Exterior heated rear view mirrors
FSHSHUNTCUSTOMER PARK SHUNT
Page 156 of 240
159
V
F U S E S
U N D E R T H E B O N N E T
To access the fusebox under the bonnet, undo each screw by a 1/4 turn.
After a repair, take care to reclose the cover.
Any repairs on the MAXI fuses (that give additional protection), located in the fuseboxes, must be left to a CITROËN dealer.fuseboxes, must be left to a fuseboxes, must be left to a
Ref.RatingFunction
F120AEngine control unit
F215AHorn
F310AScreen wash pump
F410AHeadlamp wash pump
F515AStarter
F610A A i r fl o w m e t e r - D i r e c t i o n a l h e a d l a m p s - D i a g n o s -
F710AAutomatic gearbox lever lock - Power steering
F825AStarter
F910AClutch switch - STOP switch
F1030AStarter
F1140AAir conditioning blower
F1230AWipers
F1340ABSI supply (ignition on)
F1430A-
F1510ARight-hand main beam
F1610ALeft-hand main beam
F1715ARight-hand dipped beam
F1815ALeft-hand dipped beam
F1915AStarter
F2010AStarter
F215AStarter
Page 234 of 240
4949
V
T E L E P H O N E
T E L E M A T I C S E R V I C E S
To benef it from the localised emergency service with vehicle location, you have:to have signed the general conditions of the service stated on your vehicle order f o r m , o r h a v e s i g n e d t h e s p e c i fi c C I T R O Ë N the service stated on your vehicle order order
Emergency Contract,to have made an initial call to the CITROËN Emergency service.To initialise this service:press on the SOS button, with the vehicle stationary and parked in the open air in an area covered by your mobile telephone operator,be prepared to refer to your registration document,specify to the operator that you are mak-ing a “ CIT RO ËN Em er gency ser v ic e specify to the operator that you are mak-e ope
initialisation” call.
When should you use this service ?In an emergency situation (accident with injuries, assault, etc.).
How to access this service ?Press on the SOS button of your NaviDrive.You are put in contact with our specialised assistance platform. An operator will rapidly assess the situation and if necessary send help to the spot.Your vehicle is automatically located thanks to the GPS function of your NaviDrive.
