Page 3 of 314
6
F A M I L I A R I S A T I O N
This operation should only be per-
formed while the vehicle is stationary.
Open the driver’s door.
Pull release lever A to unlock.
Bonnet release
O P E N I N G
Lift up safety catch B , t h e n r a i s e t h e
bonnet.
Saloon
Tourer
Spare wheel
The tools are to be found in a protective
holder inside the spare wheel.
166 Access to the spare wheel
To access the spare wheel:
L i f t u p t h e b o o t fl o o r a n d f o l d i t i n
two (Saloon) or secure it using the
retractable hook (Tourer).
Attach the hook to the top of the
boot.
T o r e m o v e t h e s p a r e w h e e l , d e t a c h
the strap then push the wheel for-
w a r d s , b e f o r e l i f t i n g i t o u t .
Temporary puncture repair kit
The kit is a complete system including a
compressor and a sealing product.
163
152
Page 74 of 314
IV
!
71
O P E N I N G S
ALARM
System which protects and provides
a deterrent against theft and break-
ins. It provides the following types of
monitoring.
- Exterior perimeter
The system checks for opening of
the vehicle.
The alarm is triggered if anyone tries
to open a door, the boot, the bonnet...
- Interior volumetric
The system checks for any variation
in the volume in the passenger com-
partment.
The alarm is triggered if anyone breaks
a window, enters the passenger com-
partment or moves inside the vehicle.
- Tilt
The system checks for any change
in the attitude of the vehicle.
The alarm is triggered if the vehicle
is lifted, moved or knocked. Locking the vehicle with full
alarm system
Activation
Switch off the ignition and get out
of the vehicle.
Press the locking button on the
remote control.
The monitoring system is active: the
i n d i c a t o r l a m p o n t h e b u t t o n fl a s h e s
once per second.
After the locking button on the re-
mote control is pressed, the exterior
perimeter monitoring is activated
after a delay of 5 seconds and the
interior volumetric and anti-tilt moni-
toring after a delay of 45 seconds.
If an opening (door, boot...) is not
closed fully, the vehicle is not locked
but the exterior perimeter monitor-
ing will be activated after a delay of
45 seconds at the same time as the
interior volumetric and anti-tilt moni-
toring. Deactivation
Press the unlocking button on
the remote control.
The alarm system is deactivated: the in-
dicator lamp on the button switches off.
Locking the vehicle with
exterior perimeter monitoring
only
Deactivate the interior volumetric
and anti-lift monitoring to avoid un-
wanted triggering of the alarm in
certain cases such as:
- leaving a pet in the vehicle,
- leaving a window partially open,
- washing your vehicle,
- changing a wheel,
- having your vehicle towed,
- transportation by sea.
Self-protection function
The system checks for the
putting out of service of its
components.
The alarm is triggered if the bat-
tery, the central control or the
wires of the siren are put out of
service or damaged.
For all work on the alarm system,
contact a CITROËN dealer. Deactivation of the interior
volumetric and anti-tilt
monitoring
Switch off the ignition.
Within ten seconds, press the
button until the indicator lamp is
lit continuously.
Get out of the vehicle.
Press the locking button on the
remote control immediately.
The exterior perimeter monitoring alone is activated: the indicator lamp on the
b u t t o n fl a s h e s o n c e p e r s e c o n d .
To be effective, this deactivation must
be carried out each time the ignition is
switched off.
Page 170 of 314
X
152
C H E C K S

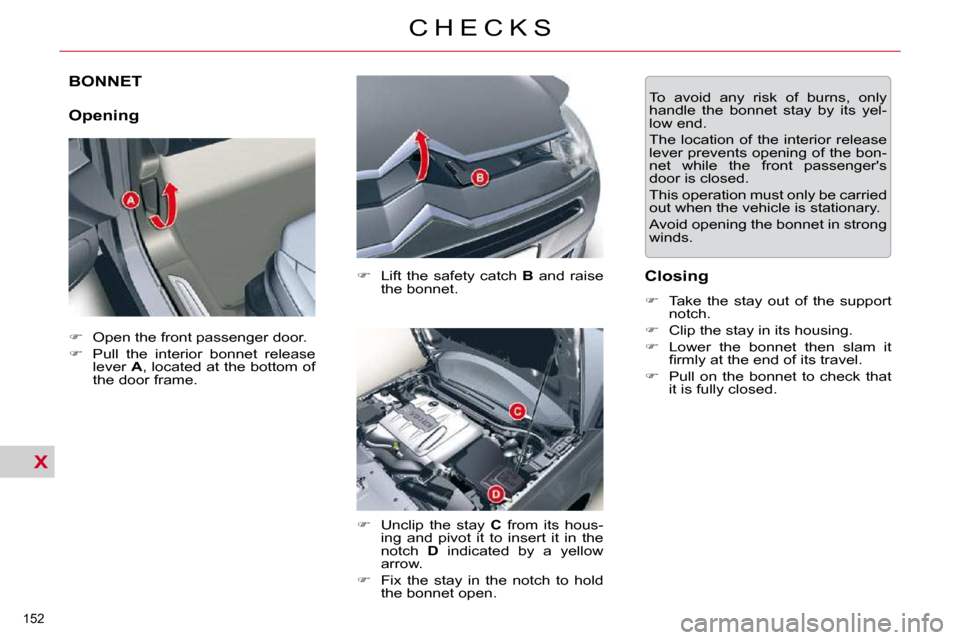

BONNET
Opening
Lift the safety catch B and raise
the bonnet.
Unclip the stay C from its hous-
ing and pivot it to insert it in the
notch D indicated by a yellow
arrow.
Fix the stay in the notch to hold
the bonnet open. Closing
Take the stay out of the support
notch.
Clip the stay in its housing.
Lower the bonnet then slam it
fi r m l y a t t h e e n d o f i t s t r a v e l .
Pull on the bonnet to check that
it is fully closed.
To avoid any risk of burns, only
handle the bonnet stay by its yel-
low end.
The location of the interior release
lever prevents opening of the bon-
net while the front passenger's
door is closed.
This operation must only be carried
out when the vehicle is stationary.
Avoid opening the bonnet in strong
winds.
Open the front passenger door.
Pull the interior bonnet release
lever A , located at the bottom of
the door frame.
Page 204 of 314
XI
1 8 3
P R A C T I C A L I N F O R M A T I O N
Fuses under the bonnet
A f t e r a r e p a i r , c a r e f u l l y r e fi t t h e
cover.
Any repairs on the MAXI fuses
(that give additional protection),
located in the fuseboxes, must
be left to a
CITROËN
dealer.
Access to the fuses
U n d o e a c h s c r e w b y a 1 / 4 t u r n .
R e p l a c e t h e f u s e . Table of fuses
Fuse N° Rating Function
F1 20 A Engine control unit
F2 15 A Horn
F3 10 A S c r e e n w a s h p u m p
F4 10 A H e a d l a m p w a s h p u m p
F5 15 A Starter
F6 10 A A i r fl o w s e n s o r - D i r e c t i o n a l h e a d l a m p s -
Diagnostic socket
F7 10 A A u t o m a t i c g e a r l e v e r l o c k - P o w e r s t e e r i n g
F8 25 A S t a r t e r m o t o r
F9 10 A C l u t c h s w i t c h - S t o p s w i t c h
F10 30 A A c t u a t o r m o t o r s
F11 40 A Air conditioning blower
F12 30 A W i p e r s
F13 40 A B S I s u p p l y ( i g n i t i o n o n )
F14 30 A -
F15 10 A R i g h t - h a n d m a i n b e a m
F16 10 A L e f t - h a n d m a i n b e a m
F17 15 A R i g h t - h a n d d i p p e d b e a m
F18 15 A L e f t - h a n d d i p p e d b e a m
F19 15 A A c t u a t o r m o t o r s
F20 10 A A c t u a t o r m o t o r s
F21 5 A A c t u a t o r m o t o r s
