Citroen C5 2014.5 (RD/TD) / 2.G Manual Online

79
Press the buttons 1 to display the duration of
operation.
Setting the duration of
operation
This symbol is displayed.
Once the duration of operation has
been displayed, press buttons 4 and 5
simultaneously within 10 seconds. This symbol flashes. Set the duration by pressing the buttons 1
(adjustment in steps of 10
mins and max value
30 mins).
Press buttons 4 and 5 simultaneously to save
the duration of operation.
This symbol is displayed (fixed).
The factory setting value is 30 minutes.
3
Ease of use and comfort

80

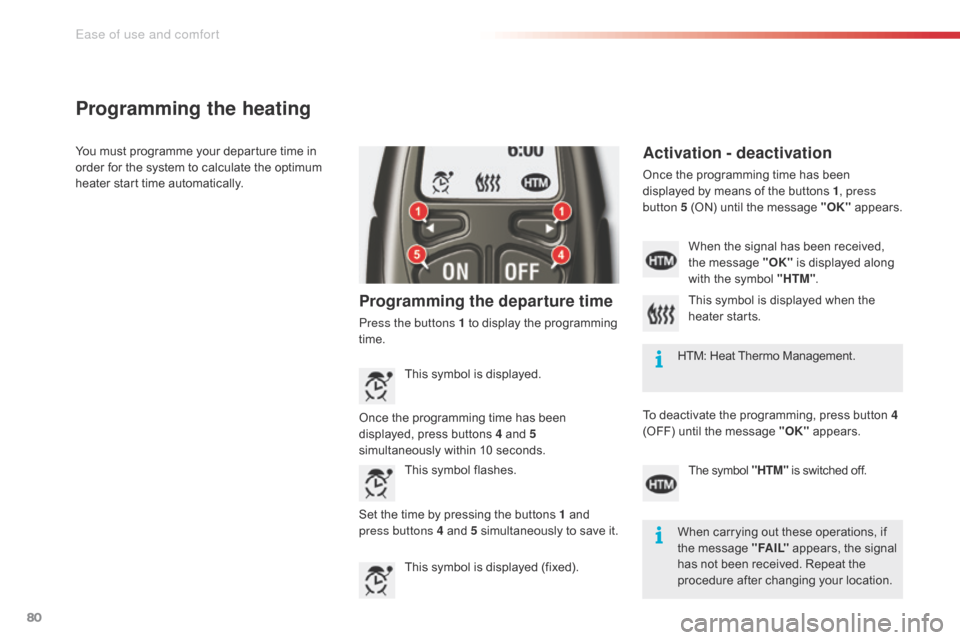

Programming the heating
Programming the departure time
Press the buttons 1 to display the programming
time.
Activation - deactivation
Once the programming time has been
displayed by means of the buttons 1, press
button 5 (ON) until the message "OK" appears.
This symbol is displayed.
Once the programming time has been
displayed, press buttons 4 and 5
simultaneously within 10 seconds. This symbol flashes.
Set the time by pressing the buttons

1 and
press buttons 4 and 5 simultaneously to save it.
This symbol is displayed (fixed). This symbol is displayed when the
heater starts. When the signal has been received,
the message "OK"
is displayed along
with the symbol "HTM" .
To deactivate the programming, press button 4
(OFF) until the message "OK" appears.
The symbol "HTM" is switched off.
You must programme your departure time in
order for the system to calculate the optimum
heater start time automatically.
HTM: Heat Thermo Management.
When carrying out these operations, if
the message " F A I L" appears, the signal
has not been received. Repeat the
procedure after changing your location.
Ease of use and comfort

81
Switching off the heating
Press button 5 (ON).The symbol "HTM" remains on.
Changing the level of heating
The system offers 5 levels of heating (from the
lowest level C1 to the highest level C5 ).
Once the level of heating has been displayed
by means of the buttons
1, press buttons 4 and
5 simultaneously.
The letter "C" flashes.
Set the level of heating by pressing the
buttons 1 .
Press buttons 4 and 5 simultaneously to save
the level selected. The letter "C" is displayed
(fixed). The factory pre-sets are replaced by the
new settings entered. The programmed
times are stored until the next time they
are changed.
When the departure time is activated,
the level of heating cannot be changed.
The departure time must be deactivated
first.
Changing the battery
The remote control is supplied by a
6V-28L battery, which is supplied.
Information on the display indicates when it is
time to replace this battery.
Unclip the casing then replace the battery.
The remote control must then be reinitialised,
see below.
Do not discard the used batteries, take
them to an approved collection point.
3
Ease of use and comfort

82
Reinitialising the remote control
If the vehicle's battery is disconnected or the
remote control's battery is replaced, the remote
control must be reinitialised.
After switching on the power, press button 4
(OFF) for 1 second within the next 5 seconds.
If the operation has taken place correctly the
message "OK" is displayed on the remote
control screen.
If a problem occurs, the message " F A I L"
appears. Repeat the operation. Always switch off the programmable
heating while filling with fuel to avoid
any risk of fire or explosion.
To avoid any risk of poisoning and
asphyxiation, the programmable
heating must not be used, even for
short periods, in an enclosed space
such as a garage or workshop which
is not equipped with an exhaust gas
extraction system.
Do not park the vehicle on an
inflammable sur face (dry grass, dead
leaves, paper…), there is a risk of fire.
The programmable heating system
is supplied by the vehicle's fuel tank.
Before use, ensure that the quantity
of fuel remaining is sufficient. If the
fuel tank is at the reserve, we strongly
advise that you do not programme the
heating.
The interior volumetric protection alarm
movement sensor may be disturbed by
the flow of air from the programmable
heating when it is in operation.
To avoid any unexpected triggering
of the alarm during use of the
programmable heating, it is advisable
to deactivate the interior volumetric
protection.
An adaptation of your programmable
heating allows you to pre-heat your
vehicle's passenger compartment.
Contact a CITROËN dealer or a
qualified workshop.
Ease of use and comfort

83
Map reading lamps
F With the ignition on, press the corresponding switch.
Panoramic sunroof rear
reading lamps (Tourer)
With the key in position or with the ignition on:
F P ress the corresponding switch 1 .
The reading lamp concerned comes on for
ten
m

inutes.
The rear reading lamps come on:
-

w
hen the key is removed from the ignition,
-

w
hen the vehicle is unlocked.
They switch off gradually:
-

w
hen the vehicle is locked,
-

w
hen the ignition is switched on.
Courtesy lamps
1. Front courtesy lamp
2. M ap reading lamp s
Front courtesy lamp
Rear courtesy lamp
1. Rear courtesy lamp
2. M
ap reading lamps In this position, the courtesy lamp
comes on gradually:
Lighting off.
Lighting on.
-
w
hen the vehicle is unlocked,
-
w
hen a door is opened,
-
w
hen the key is removed from the ignition,
-
w
hen the remote control locking button is
activated, in order to locate your vehicle.
It switches off gradually:
-
w
hen the vehicle is locked,
-
w
hen the ignition is switched on,
-
3
0 seconds after the last door is closed.
In lighting on mode, different lighting
times are available:
-
w
ith the ignition off, approximately
ten minutes,
- i n energy economy mode,
approximately thirty seconds,
-

w
ith the engine running, unlimited.
3
Ease of use and comfort

84
Interior mood lightingYour vehicle is equipped with interior mood lighting for the centre console and the door handles.
Central consoleLighting for door opening
controls
Operation
These lamps are activated with the automatic
illumination of headlamps, when the ambient
light is poor. They are deactivated when the
instrument panel is off.
The intensity of the lighting varies along with
that of the instrument panel.
F

P
ress buttons A to increase or reduce the
intensity of the lighting. This is located on the front and rear interior
door opening controls.
The rear door opening controls lighting is
deactivated if the child lock is on.
The lamps are located on the roof console,
near the front interior lamp. They illuminate the
central console.
Ease of use and comfort

85
Pavement lighting
With the door open, this illuminates the ground
next to the vehicle.
Floor lighting
In the front of the vehicle, when a door
is opened, this illuminates the interior of
the vehicle.
The welcome lighting is made up of:
-

T
he interior (roof) lamps.
-
T
he floor lighting.
-
T
he pavement lighting when a door is open.
Welcome lighting
3
Ease of use and comfort

86
Sun visor
F With the ignition on, lift the flap; the mirror is illuminated automatically.
To prevent dazzle from ahead, fold the visor
downwards.
It can be disengaged from its central fixing and
pivoted over to the side windows if required.
Cooled glove box
F To open the glove box, pull the handle and lower the lid.
The glove box has an air vent B that can be
closed manually.
It has automatic illumination.
It provides access to the dashboard fusebox.
The glove box should be kept closed
while driving.
Interior fittings
Ease of use and comfort

87
Mats
Removing
F Slide the seat back as far as possible,
F u nclip the fixings,
F

r
emove the fixings, then the mat.
Refitting
F Position the mat correctly,
F c lip the fixings,
F

c
heck that the mat is held is place
c o r r e c t l y.
Equipment available for the driver and front
passenger.
To avoid any inter ference with the
pedals:
-
o
nly use mats which are suitable
for the fixings already present in the
vehicle. The use of these fixings is
essential,
-
n
ever fit more than 1 mat.
The use of a mat not approved by
CITROËN may obstruct access to the
pedals and hinder the cruise control/
speed limiter function.
Floor mats approved by CITROËN
are fitted with a 3rd fixing located in
the pedal area to avoid any risk of
inter ference with the pedals .
3
Ease of use and comfort

88
Front armrest
Comfort and storage system for the driver and front passenger.
Adjustment
To optimise your driving position:
F l ift the control A ,
F

p
ush the armrest for wards.
The armrest returns to its initial position when
you push it rear wards.
Driver's oddments tray
F Pull the handle towards you.
Cup holder / USB port and/or
auxiliary JACK socket*
The front armrest includes a cup holder and a
USB port and/or auxiliary JACK socket.
The USB port allows connection of a portable
device, sending the audio files to your audio
system so that they can be heard via the
vehicle's speakers.
F

L
ift the armrest to access the cup holder or
the USB port and/or auxiliary JACK socket.
* Depending on equipment.
Ease of use and comfort
