Alarm*
- exterior perimeter
The system checks for opening of the vehicle.
The alarm is triggered if anyone tries to open a
door, the boot, the bonnet...
- interior volumetric
The system checks for any variation in the
volume in the passenger compartment.
The alarm is triggered if anyone breaks a
window, enters the passenger compartment or
moves inside the vehicle.
- tilt
The system checks for any change in the
attitude of the vehicle.
The alarm is triggered if the vehicle is lifted,
moved or knocked.
Locking the vehicle with full
alarm system
Activation
* Depending on the country of sale.
Self-protection function
The system checks for the putting out of
service of its components.
The alarm is triggered if the battery, the
central control or the siren wiring are
put out of service or damaged.
For all work on the alarm system,
contact a CITRoËn dealer or a
qualified workshop.
System which protects and provides a deterrent
against theft and break-ins. It provides the
following types of monitoring:
F
Switch off the ignition and get out of the
vehicle.
F Press the locking button on the remote control.
The monitoring system is active: the indicator lamp
in the button flashes once per second.
After the locking button on the remote control
is pressed, the exterior perimeter monitoring is
activated after a delay of 5 seconds and the interior
volumetric and anti-tilt monitoring after a delay of
45 seconds.
If an opening (door, boot...) is not closed fully, the
vehicle is not locked but the exterior perimeter
monitoring will be activated after a delay of
45 seconds at the same time as the interior
volumetric and anti-tilt monitoring.
access

128
C5_en_Chap04_conduite_ed01-2015

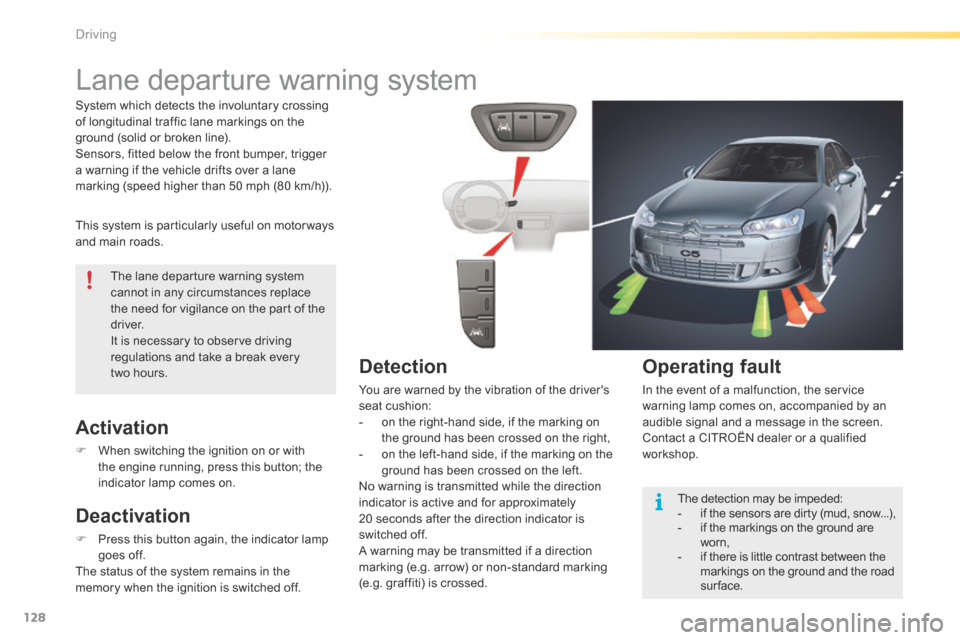

Lane departure warning system
This system is particularly useful on motor ways
and main roads.
Activation
F When switching the ignition on or with
the engine running, press this button; the
indicator lamp comes on.
Deactivation
F Press this button again, the indicator lamp
goes off.
The status of the system remains in the
memory when the ignition is switched off.
Detection
You are warned by the vibration of the driver's
seat cushion:
- on the right-hand side, if the marking on
the ground has been crossed on the right,
- on the left-hand side, if the marking on the
ground has been crossed on the left.
No warning is transmitted while the direction
indicator is active and for approximately
20 seconds after the direction indicator is
switched off.
A warning may be transmitted if a direction
marking (e.g. arrow) or non-standard marking
(e.g. graffiti) is crossed.
Operating fault
In the event of a malfunction, the service
warning lamp comes on, accompanied by an
audible signal and a message in the screen.
Contact a CITROËN dealer or a qualified
workshop.
System which detects the involuntary crossing
of longitudinal traffic lane markings on the
ground (solid or broken line).
Sensors, fitted below the front bumper, trigger
a warning if the vehicle drifts over a lane
marking (speed higher than 50 mph (80 km/h)).
The detection may be impeded:
- if the sensors are dirty (mud, snow...),
- if the markings on the ground are
worn,
- if there is little contrast between the
markings on the ground and the road
sur face.
The lane departure warning system
cannot in any circumstances replace
the need for vigilance on the part of the
driver.
It is necessary to observe driving
regulations and take a break every
two hours.
Driving

227
C5_en_Chap09_verification_ed01-2015

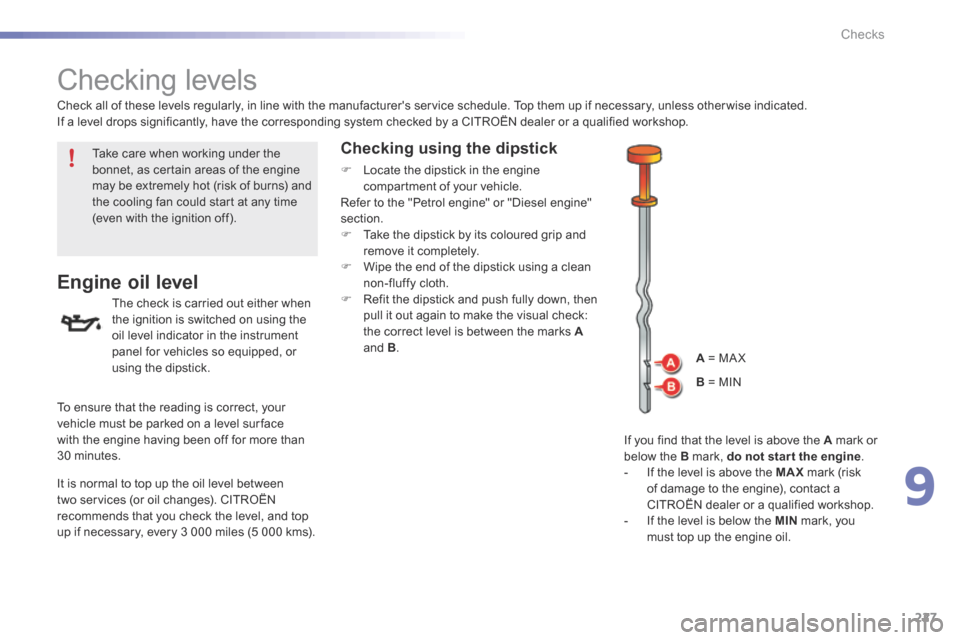

Checking levels
Engine oil level
The check is carried out either when
the ignition is switched on using the
oil level indicator in the instrument
panel for vehicles so equipped, or
using the dipstick.
Check all of these levels regularly, in line with the manufacturer's service schedule. Top them up if necessary, unless other wise indicated.
If a level drops significantly, have the corresponding system checked by a CITROËN dealer or a qualified workshop.
If you find that the level is above the A mark or
below the B mark, do not star t the engine.
- If the level is above the MAX mark (risk
of damage to the engine), contact a
CITROËN dealer or a qualified workshop.
- If the level is below the MIN mark, you
must top up the engine oil.
Take care when working under the
bonnet, as certain areas of the engine
may be extremely hot (risk of burns) and
the cooling fan could start at any time
(even with the ignition off).
To ensure that the reading is correct, your
vehicle must be parked on a level sur face
with the engine having been off for more than
30 minutes.
It is normal to top up the oil level between
two services (or oil changes). CITROËN
recommends that you check the level, and top
up if necessary, every 3 000 miles (5 000 kms).
Checking using the dipstick
F Locate the dipstick in the engine
compartment of your vehicle.
Refer to the "Petrol engine" or "Diesel engine"
section.
F Take the dipstick by its coloured grip and
remove it completely.
F Wipe the end of the dipstick using a clean
non-fluffy cloth.
F Refit the dipstick and push fully down, then
pull it out again to make the visual check:
the correct level is between the marks A
and B .
A = MaX
B = MI n
9
Checks

228
C5_en_Chap09_verification_ed01-2015
Oil grade
Before topping-up the oil or changing the oil,
check that the oil is the correct grade for your
engine and conforms to the manufacturer's
recommendations.
Topping up the engine oil level
F Locate the oil filler cap in the engine
compartment of your vehicle.
Refer to the "Petrol engine" or "Diesel engine"
section.
F Unscrew the oil filler cap to reveal the filler
aperture.
F Add oil in small quantities, avoiding any
spills on engine components (risk of fire).
F Wait a few minutes before checking the
level again using the dipstick.
F Add more oil if necessary.
F After checking the level, carefully refit the
oil filler cap and the dipstick in its tube.
After topping up the oil, the check when
switching on the ignition with the oil
level indicator in the instrument panel
is not valid during the 30 minutes after
topping up.
Engine oil change
Refer to the manufacturer's service schedule
for details of the interval for this operation.
In order to maintain the reliability of the engine
and emission control system, never use
additives in the engine oil.
Checks

251
C5_en_Chap11a_bTa_ed01-2015
Emergency or assistance call
If an impact is detected by the airbag
control unit, and independently of
the deployment of any airbags, an
emergency call is made automatically.
Localised Emergency Call
In an emergency, press this
button for more than 2 seconds.
Flashing of the green indicator
lamp and a voice message
confirm that the call has
been made to the "Localised
Emergency Call"* centre.
Pressing this button again immediately cancels
the call.
The green indicator lamp goes off.
At any time, pressing this button for more than
8 seconds cancels the call.
The green indicator lamp remains on (without
flashing) when communication is established.
It goes off at the end of the call.
This call is dealt with by the "Localised
Emergency Call" centre, which receives
locating information from the vehicle and
can send a detailed alert to the appropriate
emergency services.
In countries in which a centre is not
operational, or when the locating service
has been expressly declined, the call is dealt
with directly by the emergency services (112)
without the vehicle location. *
These services are subject to conditions and
availability.
Consult a CITROËN dealer. If you benefit from the CITROËN
Connect Box offer with the SOS and
assistance pack included, there are
additional services available to you in
your MyCITR
oËn personal space, via
the CITR oËn Internet website in your
country, accessible on www.citroen.com.
.
audio and Telematics

252
C5_en_Chap11a_bTa_ed01-2015
Localised Assistance Call
If you purchased your vehicle outside
the CITROËN dealer network, we
invite you to have a dealer check the
configuration of these services and, if
desired, modified to suit your wishes.
In a multi-lingual country, configuration
is possible in the official national
language of your choice.
For technical reasons, particularly
to improve the quality of Telematic
services to customers, the
manufacturer reserves the right to
carry out updates to the vehicle's
on-board telematic system.
The fault with the system does not
prevent the vehicle being driven. Press this button for more than
2 seconds to request assistance
if the vehicle breaks down.
A voice message confirms that
the call has been started*.
Pressing this button again immediately cancels
the request.
The cancellation is confirmed by a voice
message.
The orange indicator lamp is on fixed: the back-
up battery should be replaced.
In both cases, the emergency and assistance
calls service may not work.
Contact a qualified repairer as soon as
possible.
Operation of the system
When the ignition is switched on,
the green indicator lamp comes
on for 3 seconds indicating that
the system is operating correctly.
The orange indicator lamp
flashes then goes off: the system
has a fault.
* These services are subject to conditions and
availability.
Consult a CITROËN dealer.
audio and Telematics

336
C5_en_Chap12_index-alpha_ed01-2015
Mat .................................................................. 87
Menu ................... 258, 260, 264, 272, 274, 276,
286, 288, 290, 300, 302
Menu, main ............................................. 15, 318
Menus (audio) ........................................ 272-277
Menus (Touch screen tablet) ................253, 257
Mirror, rear view .............................................. 70
Mirrors, door .................................................... 69
Misfuel prevention ......................................... 178
Mountings, Isofix ........................................... 172
MP3 CD ......................................................... 322Opening the fuel filler flap
.............................17 7
Opening the panoramic sunroof blind ............62
Opening the sunroof ....................................... 61
Pads, brake ................................................... 233
Paint colour code .......................................... 250
Panoramic glass sunroof ................................62
Parking brake ................................ 100, 101, 233
Parking brake, electric ..................................101
Parking sensors, front ...................................131
Parking sensors, rear .................................... 131
Parking space sensors .................................129
Petrol ............................................................. 179
Plates, identification ...................................... 250
Player, a pple
® ....................................... 284, 323
Player, MP3 CD ..................................... 321, 322
Player, US b ........................................... 282, 320
Port, US b ........................................ 88, 282, 320
Pressures, tyres ............................................ 250
Priming the fuel system ................................180
Protecting
children ........................................ 156, 162-176
Puncture ........................................................ 181
P
R
Radio ..................................................... 278, 318
Radio, digital (Digital Audio Broadcasting - DAB) ...........................280, 281
R dS ....................................................... 279, 319
Reading lamps, rear ........................................ 83
Recharging the battery .........................210, 212
Recirculation, air ....................................... 78, 81
Regeneration of the particle filter .................232
Reinitialising the electric windows ..................53
Reinitialising the remote control .....................48
Reinitialising the sunroof ................................61
Reminder, key in ignition .................................99
Reminder, lighting on .................................... 13 9
Remote control .................................... 45, 46, 49
Removing a wheel ........................................ 188
Removing the mat ........................................... 87
Replacing bulbs ..................................... 193 -203
Replacing fuses .................................... 204-209
Replacing the air filter ...................................231
Replacing the oil filter ...................................231
Replacing the passenger
compartment filter ...................................... 231
Reservoir, headlamp wash ...........................230
Reservoir, screenwash ................................. 230
Resetting the service indicator .......................23
Resetting the trip recorder ..............................25
Reset trip .................................................... 17, 18
Rev counter ..................................................... 14
Reversing camera ......................................... 13 3
Reversing lamp ..................................... 197, 19 9
Risk areas (update) ....................................... 269
Roof bars ....................................................... 218
Roof, opening .................................................. 61
Running out of fuel (Diesel) ..........................180
Navigation
.............................................. 25 8 -271
Net, high load retaining ...................................94
Number plate lamps ...................................... 201
Oil change ..................................................... 227
Oil consumption ............................................ 227
OIl, engine ..................................................... 227
Opening the bonnet ...................................... 224
Opening the boot ............................................ 45
Opening the doors .................................... 45, 55
N
O
alphabetical index

337
C5_en_Chap12_index-alpha_ed01-2015
S
T
U
Steering wheel, adjustment ............................68
Steering wheel, fixed centred controls ....................................................... 120
Stop & Start ......................................... 19, 77, 82,
115, 177, 210, 224, 231
Storage ............................................................ 86
Storing driving positions .................................67
Stowing rings .................................................. 91
Sun visor ......................................................... 86
Suspension, Hydractive III+ .......................... 13 4
Switching off the engine .................................97
Synchronising the remote control ........................................................... 48
Table of weights .................................... 243, 245
Tables of engines .................................. 242, 244
Tables of fuses .............................................. 204
Tank, AdBlue
® additive ......................... 234, 239
Tank, fuel ................................................ 17 7, 178
Technical data ........................................ 242-246
Telephone ............................................. 300, 324
Temperature, coolant ...................................... 21
Three flashes (direction indicators) ................................... 148Under-inflation (detection)
............................ 118
Unlocking ........................................................ 45
Unlocking from the inside ...............................55
Updating risk areas ....................................... 269
Time (setting)
............................................ 39, 44
TMC (Traffic info) .......................................... 270
To o l s .............................................................. 185
Total distance recorder ................................... 25
Touch screen tablet .................................. 18, 40, 42, 43, 253
To w b a r ........................................................... 216
Towed loads .......................................... 243, 245
Towing another vehicle .................................214
Towing eye .................................................... 214
Traction control (ASR) ............................29, 151
Traffic information (TA) .........................271, 319
Traffic information (TMC) ..............................270
Tr a i l e r ............................................................ 216
Trajectory control systems ............................151
Trip computer ............................................. 17-19
Trip distance recorder ..................................... 25
Ty r e s ........................................................ 12, 25 0
Tyre under-inflation detection ............... 118, 191
Safety, children
.............................. 156, 162-176
Screen, cold climate ..................................... 220
Screen, instrument panel .............15, 17, 20, 120
Screen menu ................258, 260, 264, 272, 274,
276, 286, 288, 290, 300, 302
Screen, multifunction
monochrome C ............................. 37, 318, 326
Screenwash, front ......................................... 145
Screenwash, rear .......................................... 145
SCR system .................................................. 234
Seat belts ....................................... 15 4 -15 6, 16 8
Seats, front .......................................... 64, 65, 67
Seats, heated ............................................ 64, 66
Seats, rear ....................................................... 71
Serial number, vehicle ..................................250
Service indicator ....................................... 22, 23
Servicing ................................................... 12, 23
Settings, equipment .................... 15, 37, 42, 326
Settings (Menus) .......................... 286, 288, 290
Settings, system ............................................ 293
Sidelamps ............................. 136, 193, 197, 199
Side repeater ................................................ 193
Ski flap ............................................................ 90
Snow chains .................................................. 192
Snow motion ................................................. 151
Socket, 12 volt accessory ...............................89
Socket, auxiliary .............................. 88, 282, 321
Soft distribution ............................................... 73
Speed limiter ................................................. 12 2
Speedometer .................................................. 14
Starting the engine ......................................... 97
Station, radio ......................................... 278, 318
Stay, bonnet .................................................. 224
Steering mounted controls, audio ........256, 317
.
alphabetical index

338
C5_en_Chap12_index-alpha_ed01-2015
Updating the date ...................................... 39, 44
Updating the time ...................................... 39, 44
URE a .................................................... 234, 235
US b ................................................. 88, 282, 320
W
Warning and indicator lamps ....................26-36
Warning lamp, airbag ...................................... 35
Warning lamp,
SCR emissions control system ....................33
Warning lamp, Service ....................................27
Weights ................................................. 243, 245
Welcome function ........................................... 67
Wheel, spare ................................................. 18 6
Window controls ............................................. 53
Wiper blades (changing) ............................... 147
Wiper, rear ..................................................... 145
Wipers .................................................... 14 4 -146
Wipers, automatic rain sensitive ...........14 4, 146
V
Ventilation ................................................. 73, 74
Very cold protection ...................................... 219
alphabetical index
