service indicator Citroen C5 2016 (RD/TD) / 2.G Owner's Manual

14
C5_en_Chap01_controle-de-marche_ed01-2015
Instrument panels - petrol and Diesel
A. Fuel gauge
B. Indicator:
● Coolant temperature
● Cruise control/Speed limiter information
C. Analogue speedometer
D. Rev counter
E. Indicator:
● Engine oil temperature
● Gear shift.
● Gear selector position and gear engaged
(automatic gearbox). F.
Controls:
● Lighting dimmer
● Reset the trip mileage recorder and
service indicator
G. Instrument panel screen indicating:
● Depending on the page selected with the
left-hand thumb wheel on the steering
wheel:
- Digital speed repeater
- Trip computer
- Navigation (guidance) information
- Display of message alerts
- Engine oil level indicator
- Service indicator ●
Permanently:
- Trip mileage recorder
- Total mileage recorder
● Temporarily:
- Service indicator.
- Engine oil level indicator.
- Alert messages.
Panel grouping together the dials and vehicle operation indicator and warning lamps.
Monitoring

20
C5_en_Chap01_controle-de-marche_ed01-2015
Return to the main
instrument panel screen
display
Successive rotations of the left-hand thumb
wheel on the steering wheel allow you to return
to the main instrument panel screen display
(vehicle speed), via the navigation information
screen, then the screen displaying only the
total mileage and the trip mileage (bottom of
screen).You can display navigation information in the
instrument panel screen by rotating the left-
hand thumb wheel on the steering wheel.This function allows you to display the log of
alerts.
F Press on button A .
The following messages appear consecutively
in the instrument panel screen:
- Reminder of the state of the tyre pressures.
- Service indicator reminder.
- Display of message alerts.
Check function
Display of navigation
information in the
instrument panel screen
Monitoring

21
C5_en_Chap01_controle-de-marche_ed01-2015
Engine oil temperature
gauge
Under normal operating conditions, the bars
should be within section 1.
In severe operating conditions, the bars may
extend into section 2 .
In this event, slow down, and if necessary,
stop the engine and check the levels (see the
corresponding section).
Coolant temperature gauge
Under normal operating conditions, the bars
should be within section 1 .
In severe operating conditions, the bars may
extend into section 2 , the engine coolant
temperature warning lamp A and the STOP
warning lamp come on in the instrument panel.
Stop as soon as it is safe to do so . Switch off
the ignition. The cooling fan may continue to
operate for a cer tain time .
Contact a CITROËN dealer or a qualified
workshop.
If the SERVICE warning lamp comes on, check
the levels (see the corresponding section). On horizontal ground, illumination of the fuel
low warning lamp indicates that you are at the
reser ve level.
An alert message is displayed in the instrument
panel.
Fuel gauge
Indicators
1
Monitoring

22
C5_en_Chap01_controle-de-marche_ed01-2015
More than 1 800 miles (3 000 km)
remain before the next service is
due
When the ignition is switched on, no service
information appears in the instrument panel
screen.
Between 600 miles (1 000 km)
and 1 800 miles (3 000 km) remain
before the next service is due
For a few seconds after the ignition is switched
on, the spanner symbolising the service
operations comes on and a message is displayed
in the instrument panel indicating the distance or
time remaining before the next service is due.
Example: 1 900 miles (2 800 km) remain
before the next service is due.
When the ignition is switched on, the instrument
panel screen temporarily indicates:
Less than 600 miles (1 000 km)
remain before the next service is
due
Example: 500 miles (900 km) remain before
the next service is due.
For a few seconds after the ignition is switched
on, the instrument panel screen indicates:
After the message disappears, the spanner
remains on alongside the mileage recorder as
a reminder that a service must be carried out
soon.
Service indicator
System which informs the driver when the
next service is due, in accordance with the
manufacturer's service schedule.
The point at which the service is due is
calculated from the last service indicator reset
to zero, according to the mileage covered and
the time elapsed since the last service.
A few seconds after the ignition is switched on,
the spanner goes off.
For BlueHDi Diesel versions, depending
on the country of sale, the degree of
deterioration of the engine oil may also
be taken into account.
Monitoring

23
C5_en_Chap01_controle-de-marche_ed01-2015
Service indicator zero resetService overdue
For a few seconds after the ignition is switched
on, the spanner flashes to indicate that
the service must be carried out as soon as
possible.
Example: the service is overdue by 180 miles
(300 km).
When the ignition is switched on, the
instrument panel screen indicates:
The spanner remains on alongside the
mileage recorder to indicate that a service is
overdue. For b
lueHdi d iesel versions, the
spanner may also come on early,
according to the level of deterioration
of the engine oil, which depends on the
driving conditions in which the vehicle
is used. After each service, the service indicator must
be reset to zero.
The procedure for resetting to zero is as
follows:
F
switch off the ignition,
F press and hold the trip distance recorder
zero reset button,
F switch on the ignition; the distance recorder
display begins a countdown,
F when the display indicates "=0" , release
the button; the spanner disappears.
Following this operation, if you wish to
disconnect the battery, lock the vehicle and
wait at least five minutes for the zero reset to
be taken into account.
With b
lueHdi d iesel versions, the
Service warning lamp also comes on
when the ignition is switched on. The spanner may come on if you have
exceeded the period since the last service,
as indicated in the manufacturer's service
schedule.
1
Monitoring

24
C5_en_Chap01_controle-de-marche_ed01-2015
Engine oil level indicator*
on versions fitted with an electric oil level
indicator, the state of the engine oil level is
displayed in the instrument panel for a few
seconds, after the servicing information.Oil level correct
This is indicated by the display of the message
"Oil level incorrect" in the instrument panel
screen, accompanied by the service warning
lamp and an audible signal.
Oil level indicator fault
* Depending on version. In the event of a fault with the electric
indicator, the oil level is no longer
monitored.
If the system is faulty, you must check
the engine oil level using the manual
dipstick located under the bonnet.
Refer to the "Checking levels" section.
Oil level incorrect
This is signalled by the display of the message
"Oil level measurement invalid" in the
instrument panel.
Contact a CITROËN dealer or a qualified
workshop.
If the low oil level is confirmed by a
check using the dipstick, the level
must be topped up to avoid damage to
the engine.
Refer to the "Checking levels" section.
The level read will only be correct if
the vehicle is on level ground and the
engine has been off for more than
30
minutes.
Monitoring

27
C5_en_Chap01_controle-de-marche_ed01-2015
Warning/indicator lampis on Cause Action / Observations
STOP fixed, associated with
another warning lamp. It is associated with the braking
system or the engine coolant
temperature. Stop as soon as it is safe to do so.
Park, switch off the ignition and call a CITROËN
dealer or a qualified workshop.
Service temporarily,
accompanied by
a message. One or more minor faults for which
there is no specific warning lamp
have been detected. Identify the cause of the fault using the message
displayed in the screen.
You can deal with some problems yourself, such as a
door open or the start of saturation of the particle filter
(as soon as the traffic conditions allow, regenerate
the filter by driving at a speed of at least 40 mph
(60 km/h), until the warning lamp goes off).
For any other problems, such as a fault with the tyre
under inflation detection system, contact a CITROËN
dealer or a qualified workshop.
fixed, accompanied by
a message. One or more major faults for which
there is no specific warning lamp
have been detected. Identify the cause of the fault using the message
displayed in the screen; you must then contact a
CITROËN dealer or a qualified workshop.
fixed, associated with the
flashing and then fixed
display of the service
indicator spanner.The servicing interval has been
exceeded.
Only on BlueHDi Diesel versions.
Your vehicle must be serviced as soon as possible.
1
Monitoring

29
C5_en_Chap01_controle-de-marche_ed01-2015
Dynamic
stability control
(DSC/ASR) flashing.
The DSC/ASR regulation is
operating. The system optimises traction and improves the
directional stability of the vehicle in the event of loss of
grip or trajectory.
fixed. The DSC/ASR system has a fault. Have it checked by a CITROËN dealer or a qualified
workshop.
Warning
/indicator lampis on Cause Action / Observations
Brake pad wear fixed, accompanied
by an audible signal
and a message in the
display screen. The brake pads are at an advanced
state of wear.
Have the brake pads replaced by a CITROËN dealer
or a qualified workshop.
Deactivation of
the automatic
functions of the
electric parking
brake
fixed.
The "automatic application" (on
switching off the engine) and
"automatic release" functions are
deactivated or faulty. Activate the function (depending on the country of
sale) via the vehicle parameters menu or contact a
CITROËN dealer or a qualified workshop if automatic
application / release is not possible.
For more information on the electric parking brake,
refer to the corresponding section.
Under-inflation fixed. The pressure in one or more wheels
is too low. Check the pressure of the tyres as soon as possible.
This check should preferably be carried out when the
tyres are cold.
+ flashing then fixed,
accompanied by the
Service warning lamp.The tyre pressure monitoring system
has a fault or no sensor is detected
on one of the wheels. Under-inflation detection is not assured.
Have the system checked by a CITROËN dealer or a
qualified workshop.
1
Monitoring

32
C5_en_Chap01_controle-de-marche_ed01-2015
Warning/indicator lampis on Cause Action / Observations
AdBlue
® additive
(BlueHDi Diesel) fixed, on switching
on the ignition,
accompanied by an
audible signal and a
message indicating the
remaining driving range. The remaining driving range is
between 350 miles (600 km) and
1500 miles (2400 km).
Have the a
db lue® additive tank topped up as soon
as possible: go to a CITROËN dealer or a qualified
workshop, or carry out this operation yourself by
referring to the corresponding section.
+ flashing associated with
the SERVICE warning
lamp, accompanied by
an audible signal and a
message indicating the
remaining driving range.The remaining driving range is
between 0 and 350 miles (600 km).
You must top-up the ad
blue
® additive tank to avoid
a breakdown : go to a CITROËN dealer or a qualified
workshop, or carry out this operation yourself by
referring to the corresponding section.
flashing, associated
with the SERVICE
warning lamp,
accompanied by an
audible signal and a
message indicating that
starting is prevented. The ad
blue
® tank is empty: the
starting inhibition system required
by legislation prevents starting of the
engine. To be able to start the engine, you must top-up the
ad blue® additive tank: go to a CITROËN dealer or a
qualified workshop, or carry out this operation yourself
by referring to the corresponding section.
It is essential to add at least 3.8 litres of AdBlue
® to
the additive tank.
Monitoring

33
C5_en_Chap01_controle-de-marche_ed01-2015

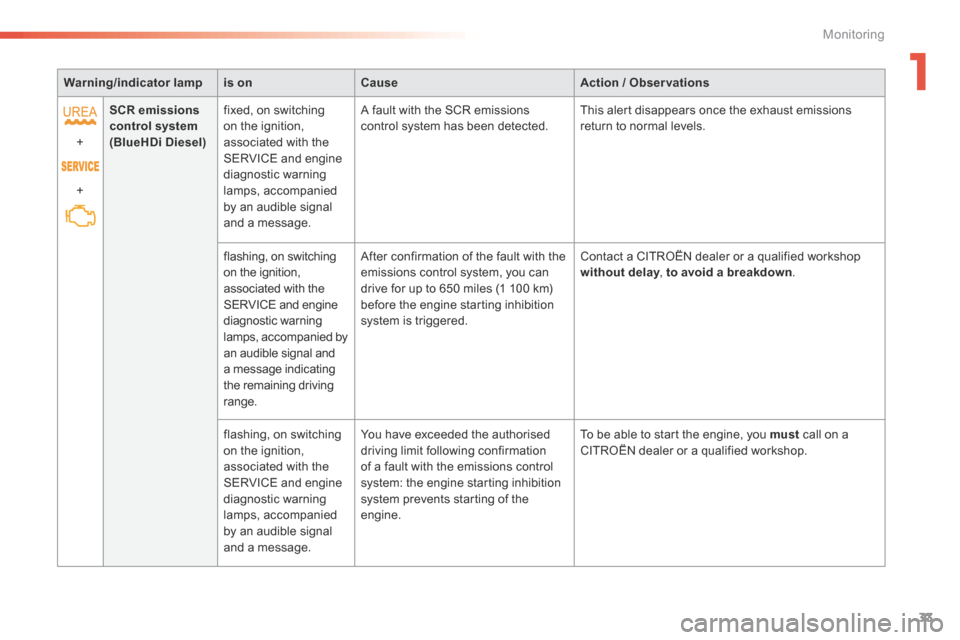

Warning/indicator lampis on Cause Action / Observations
+
+ SCR emissions
control system

(BlueHDi Diesel) fixed, on switching
on the ignition,
associated with the
SERVICE and engine
diagnostic warning
lamps, accompanied
by an audible signal
and a message. A fault with the SCR emissions
control system has been detected.
This alert disappears once the exhaust emissions
return to normal levels.
flashing, on switching
on the ignition,
associated with the
SERVICE and engine
diagnostic warning
lamps, accompanied by
an audible signal and
a message indicating
the remaining driving
range. After confirmation of the fault with the
emissions control system, you can
drive for up to 650 miles (1 100 km)
before the engine starting inhibition
system is triggered.
Contact a CITROËN dealer or a qualified workshop
without delay
, to avoid a breakdown .
flashing, on switching
on the ignition,
associated with the
SERVICE and engine
diagnostic warning
lamps, accompanied
by an audible signal
and a message. You have exceeded the authorised
driving limit following confirmation
of a fault with the emissions control
system: the engine starting inhibition
system prevents starting of the
engine.
To be able to start the engine, you must
call on a
CITROËN dealer or a qualified workshop.
1
Monitoring
