technical data Citroen C5 2016 (RD/TD) / 2.G User Guide

249
C5_en_Chap10_caracteristique_ed01-2015

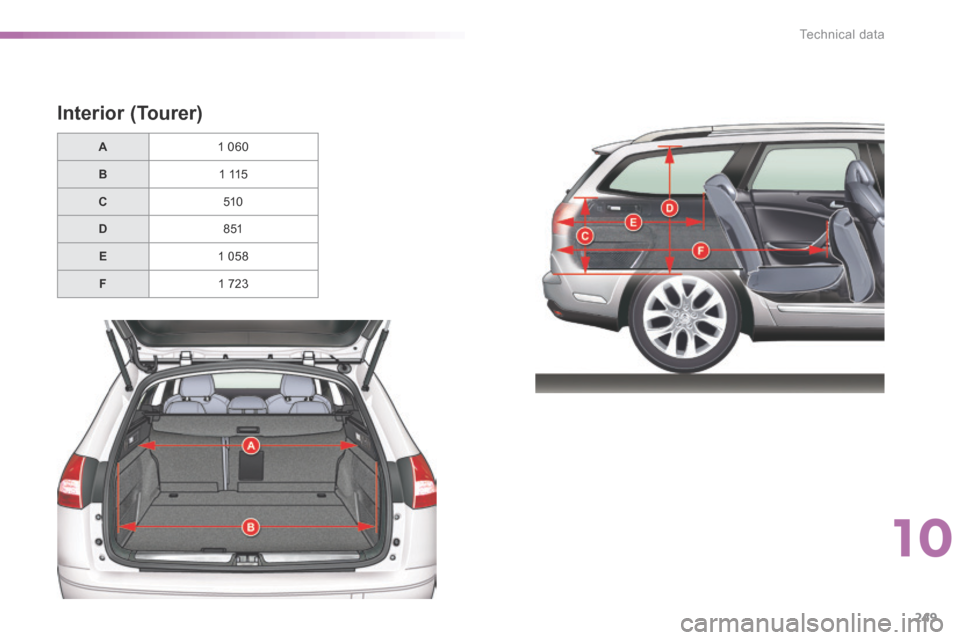

Interior (Tourer)
A1 060
B 1 115
C 510
D 8 51
E 1 058
F 1 723
10
Technical data

250
C5_en_Chap10_caracteristique_ed01-2015

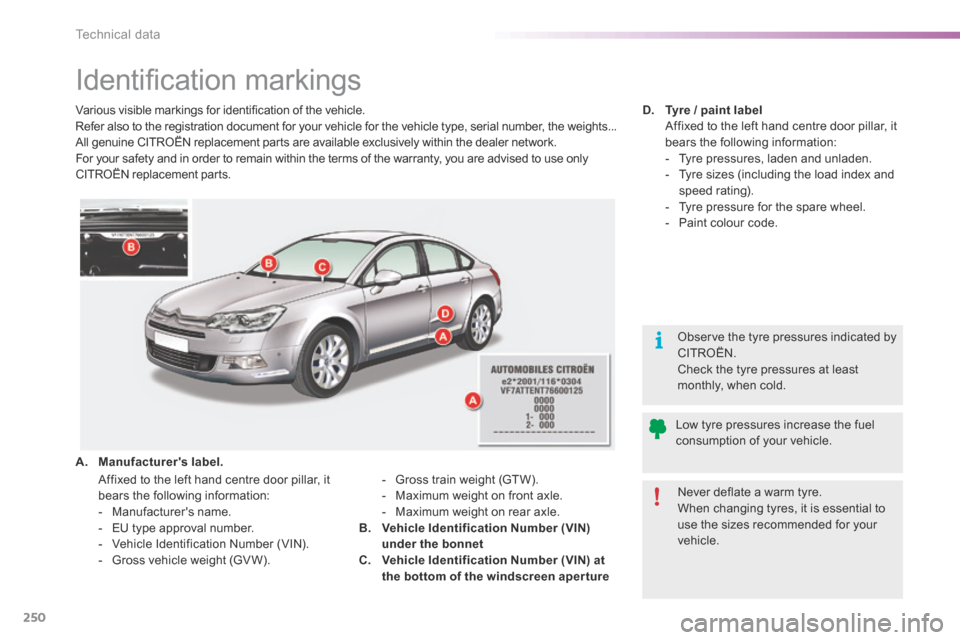

Identification markings
Various visible markings for identification of the vehicle.
Refer also to the registration document for your vehicle for the vehicle type, serial number, the weights...
All genuine CITROËN replacement parts are available exclusively within the dealer network.
For your safety and in order to remain within the terms of the warranty, you are advised to use only
CITROËN replacement parts.D.
Tyre / paint label
Affixed to the left hand centre door pillar, it
bears the following information:
- Tyre pressures, laden and unladen.
- Tyre sizes (including the load index and
speed rating).
- Tyre pressure for the spare wheel.
- Paint colour code.
o bserve the tyre pressures indicated by
CITROËN.
Check the tyre pressures at least
monthly, when cold.
A. Manufacturer's label.
- Gross train weight (GTW).
- Maximum weight on front axle.
- Maximum weight on rear axle.
B. Vehicle Identification Number (VIN)
under the bonnet
C. Vehicle Identification Number (VIN) at
the bottom of the windscreen aper ture Never deflate a warm tyre.
When changing tyres, it is essential to
use the sizes recommended for your
vehicle.
Low tyre pressures increase the fuel
consumption of your vehicle.
Affixed to the left hand centre door pillar, it
bears the following information:
- Manufacturer's name.
- EU type approval number.
- Vehicle Identification Number (VIN).
- Gross vehicle weight (GV W).
Technical data

337
C5_en_Chap12_index-alpha_ed01-2015
S
T
U
Steering wheel, adjustment ............................68
Steering wheel, fixed centred controls ....................................................... 120
Stop & Start ......................................... 19, 77, 82,
115, 177, 210, 224, 231
Storage ............................................................ 86
Storing driving positions .................................67
Stowing rings .................................................. 91
Sun visor ......................................................... 86
Suspension, Hydractive III+ .......................... 13 4
Switching off the engine .................................97
Synchronising the remote control ........................................................... 48
Table of weights .................................... 243, 245
Tables of engines .................................. 242, 244
Tables of fuses .............................................. 204
Tank, AdBlue
® additive ......................... 234, 239
Tank, fuel ................................................ 17 7, 178
Technical data ........................................ 242-246
Telephone ............................................. 300, 324
Temperature, coolant ...................................... 21
Three flashes (direction indicators) ................................... 148Under-inflation (detection)
............................ 118
Unlocking ........................................................ 45
Unlocking from the inside ...............................55
Updating risk areas ....................................... 269
Time (setting)
............................................ 39, 44
TMC (Traffic info) .......................................... 270
To o l s .............................................................. 185
Total distance recorder ................................... 25
Touch screen tablet .................................. 18, 40, 42, 43, 253
To w b a r ........................................................... 216
Towed loads .......................................... 243, 245
Towing another vehicle .................................214
Towing eye .................................................... 214
Traction control (ASR) ............................29, 151
Traffic information (TA) .........................271, 319
Traffic information (TMC) ..............................270
Tr a i l e r ............................................................ 216
Trajectory control systems ............................151
Trip computer ............................................. 17-19
Trip distance recorder ..................................... 25
Ty r e s ........................................................ 12, 25 0
Tyre under-inflation detection ............... 118, 191
Safety, children
.............................. 156, 162-176
Screen, cold climate ..................................... 220
Screen, instrument panel .............15, 17, 20, 120
Screen menu ................258, 260, 264, 272, 274,
276, 286, 288, 290, 300, 302
Screen, multifunction
monochrome C ............................. 37, 318, 326
Screenwash, front ......................................... 145
Screenwash, rear .......................................... 145
SCR system .................................................. 234
Seat belts ....................................... 15 4 -15 6, 16 8
Seats, front .......................................... 64, 65, 67
Seats, heated ............................................ 64, 66
Seats, rear ....................................................... 71
Serial number, vehicle ..................................250
Service indicator ....................................... 22, 23
Servicing ................................................... 12, 23
Settings, equipment .................... 15, 37, 42, 326
Settings (Menus) .......................... 286, 288, 290
Settings, system ............................................ 293
Sidelamps ............................. 136, 193, 197, 199
Side repeater ................................................ 193
Ski flap ............................................................ 90
Snow chains .................................................. 192
Snow motion ................................................. 151
Socket, 12 volt accessory ...............................89
Socket, auxiliary .............................. 88, 282, 321
Soft distribution ............................................... 73
Speed limiter ................................................. 12 2
Speedometer .................................................. 14
Starting the engine ......................................... 97
Station, radio ......................................... 278, 318
Stay, bonnet .................................................. 224
Steering mounted controls, audio ........256, 317
.
