Your vehicle is primarily designed for transporting people and luggage, but it may also be used for towing a trailer.
Side wind
F Take into account the increased sensitivity
to side wind.
Driving advice
Cooling
Towing a trailer on a slope increases the
temperature of the coolant.
As the fan is electrically controlled, its cooling
capacity is not dependent on the engine speed.
F To lower the engine speed, reduce your
speed.
The maximum towed load on a long incline
depends on the gradient and the ambient
temperature.
In all cases, keep a check on the coolant
temperature.
We recommend the use of genuine
CITR
oËn towbars and their harnesses
that have been tested and approved
from the design stage of your vehicle,
and that the fitting of the towbar is
entrusted to a CITR oËn dealer or a
qualified workshop.
If the towbar is not fitted by a
CITROËN dealer, it must still be
fitted in accordance with the vehicle
manufacturer's instructions.
Driving with a trailer places greater demands
on the towing vehicle and the driver must take
particular care.
Distribution of loads
F d istribute the load in the trailer so that the
heaviest items are as close as possible to
the axle and the nose weight approaches
the maximum permitted without
exceeding it.
a ir density decreases with altitude, thus
reducing engine per formance. Above
1 000 metres, the maximum towed load must
be reduced by 10 % for every 1 000 metres of
altitude.
F If the warning lamp and the
STOP warning lamp come on,
stop the vehicle and switch off
the engine as soon as possible.
Refer to the "Technical data" section for
details of the weights and towed loads
which apply to your vehicle.
Practical information

242
C5_en_Chap10_caracteristique_ed01-2015
Engines and gearboxes
Petrol engineTHP 155THP 160
THP 15 0
Gearbox Automatic (6-speed)Automatic (6-speed)
Model code:
RD... RW... 5F V- A

5 FN - A* * 5FM-A

5FE-A /D**
Cubic capacity (cc) 1 5981 598
Bore x stroke (mm) 77 x 85.877 x 85.8
EU standard maximum power (kW)* / hp DIN 115 / 110**120 / 110**
Maximum power engine speed (rpm) 6 0006 000
EU standard maximum torque (Nm) 240240
Maximum torque engine speed (rpm) 1 4001 400
Fuel UnleadedUnleaded
Catalytic converter Ye sYe s
Engine oil capacity (with filter replacement) 4.254.25
* The maximum power corresponds to the type approved value on a test bed, under conditions defined by European legislation
(directive 1999/99/EC).
** In Russia, the maximum power is 110 kW and in Brazil, the maximum power is 120 kW. RD...: Saloon.
RW...: Tourer.
Technical data

243
C5_en_Chap10_caracteristique_ed01-2015
Weights and towed loads (in kg)
Petrol engineTHP 155THP 160
THP 15 0
Gearbox Automatic (6-speed)Automatic (6-speed)
Model code RD 5F V- A

RD 5FN -A RW 5F V- A
RW 5FN-A RD 5FM-A
RD 5FE-A /D RW 5FM-A
RW 5FE-A/D
Body SaloonTourerSaloon Tourer
Unladen weight 1 5151 534 1 5151 534
Kerb weight 1 5901 609 1 5901 609
Gross vehicle weight (GV W) 2 0262 200 2 0262 200
Gross train weight (GTW) 3 5263 700 2 5262 700
Braked trailer (within GTW limit)
- on a 10% or 12% slope 1 500
1 500 500500
Braked trailer* (with load transfer within GTW
limit) 1 710
1 790 710790
Unbraked trailer 750750500 500
Recommended nose weight 697469 74
The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
The maximum authorised speed is reduced when towing (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the per formance of the vehicle in order to protect the engine; when the ambient temperature is
higher than 37 °C, limit the weight towed. * The weight of the braked trailer can be increased, within the GTW limit, on condition that the GV W of the towing vehicle is reduced by the same
amount; warning, towing with a lightly loaded towing vehicle may have an adverse effect on its road holding.
10
Technical data

244
C5_en_Chap10_caracteristique_ed01-2015
RD...: Saloon.
RW...: Tourer.
* The maximum power corresponds to the type approved value on a test bed, under conditions defined by European legislation
(directive 1999/99/EC).
Engines and gearboxes
Diesel engine BlueHDi 150 S&SHDi 160BlueHDi 180 S&S
Gearbox Manual (6-speed)Automatic (6-speed)EAT6 automatic (6-speed)
Model code:
RD... RW... AHR- M/S
RHH-AAHW-T/S
Cubic capacity (cc) 1 9971 9971 997
Bore x stroke (mm) 85 x 8885 x 8885 x 88
EU standard maximum power (kW)* 11 0120 13 3
Maximum power engine speed (rpm) 4 0003 7503 750
EU standard maximum torque (Nm) 370340 400
Maximum torque engine speed (rpm) 2 0002 0002 000
Fuel diesel diesel diesel
Catalytic converter Ye sYe sYe s
Particle filter (FAP) Ye sYe sYe s
Engine oil capacity (with filter replacement) 5 .15.5 5 .1
.../S: model fitted with Stop & Star t.
Technical data

245
C5_en_Chap10_caracteristique_ed01-2015
Diesel engineBlueHDi 160 S&SHDi 160BlueHDi 180 S&S
Gearbox Manual (6-speed)Automatic (6-speed)EAT6 automatic (6-speed)
Model code RD AHR- M/SRW AHR- M/S RD RHH-ARW RHH-ARD AHW-T/S RW AHW-T/S
Body SaloonTourerSaloon TourerSaloon Tourer
Unladen weight 1 5401 5751 609 1 6421 6201 655
Kerb weight 1 6151 650 1 684 1 7171 695 1 730
Gross vehicle weight (GV W) 2 1602 235 2 1902 286 2 1902 290
Gross train weight (GTW) 3 6603 6353 290 3 2863 290 3 290
Braked trailer (within GTW limit)
- on a 10% or 12% slope 1 500
1 400 1 10 01 000 1 10 01 000
Braked trailer* (with load transfer within GTW
limit) 1 750
1 650 1 390 1 290 1 350 1 250
Unbraked trailer 750750750750750750
Recommended nose weight 73675753 57 51
The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
The maximum authorised speed is reduced when towing (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the per formance of the vehicle in order to protect the engine; when the ambient temperature is
higher than 37 °C, limit the weight towed. * The weight of the braked trailer can be increased within the GTW limit, on condition that the GV W of the towing vehicle is reduced by the same
amount; warning, towing with a lightly loaded towing vehicle may have an adverse effect on its road holding.
Weights and towed loads (in kg)
10
Technical data

246
C5_en_Chap10_caracteristique_ed01-2015

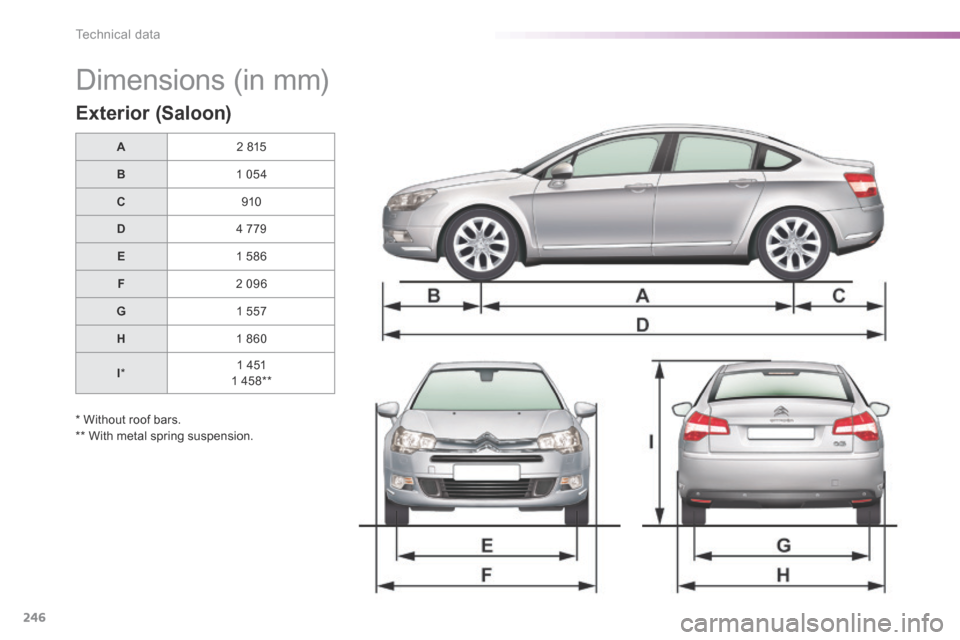

Dimensions (in mm)
Exterior (Saloon)
A2 815
B 1 054
C 910
D 4 779
E 1 586
F 2 096
G 1 557
H 1 860
I * 1 451
1 458**
* Without roof bars.
** With metal spring suspension.
Technical data

247
C5_en_Chap10_caracteristique_ed01-2015
Interior (Saloon)
A1 030
B 1 115
C 566
D 504
E 1 040
F 1 705
10
Technical data

248
C5_en_Chap10_caracteristique_ed01-2015

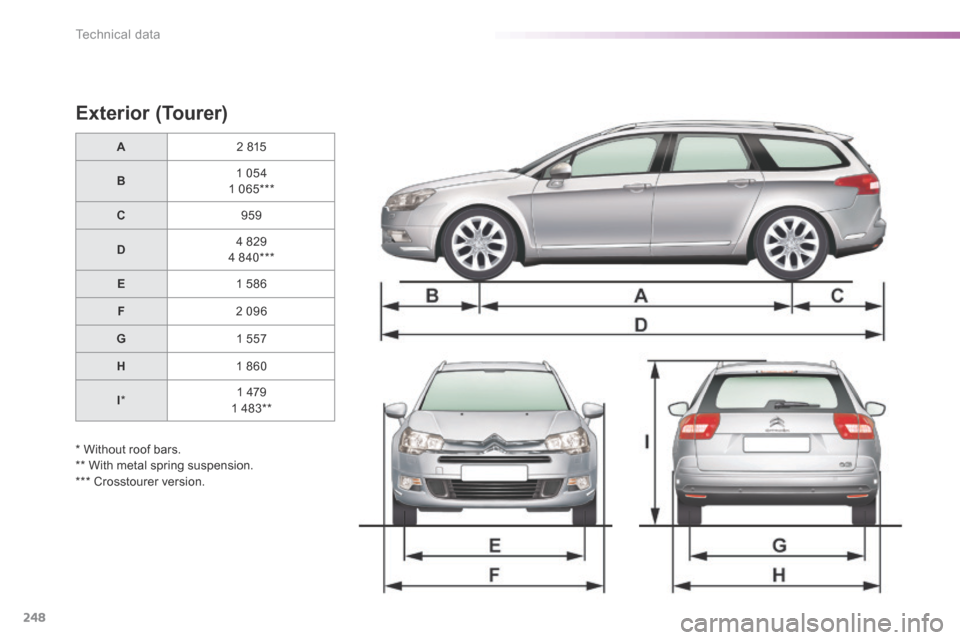

Exterior (Tourer)
A2 815
B 1 054
1 065***
C 959
D 4 829
4 840***
E 1 586
F 2 096
G 1 557
H 1 860
I * 1 479
1 483**
* Without roof bars.
** With metal spring suspension.
*** Crosstourer version.
Technical data
