Lost keys
Go to a CITROËN dealer with the vehicle's registration document, your personal
identification documents and if possible the key code label.
The CITROËN dealer will be able to look up the key code and the transponder code
required to order a new key.
Remote control
The high frequency remote control is a sensitive system; do not operate it while it is in your
pocket as there is a possibility that it may unlock the vehicle, without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and out of sight of
your vehicle. You run the risk of stopping it from working and the remote control would have
to be reinitialised.
No remote control can operate when the key is in the ignition switch, even when the ignition
is switched off, except for reinitialisation.
Locking the vehicle
Driving with the doors locked may make access to the passenger compartment by the
emergency services more difficult in an emergency.
As a safety precaution, never leave children alone in the vehicle, except for a very short
period.
In all cases, it is essential to remove the key from the ignition switch when leaving the vehicle.
Anti-theft protection
Do not make any modifications to the electronic engine immobiliser system; this could
cause malfunctions.
When purchasing a second-hand vehicle
Have the pairing of all of the keys in your possession checked by a CITROËN dealer, to
ensure that only your keys can be used to open and start the vehicle.Do not throw the remote control
batteries away, they contain metals
which are harmful to the environment.
Take them to an approved collection
point.
2
access

50
C5_en_Chap02_ouverture_ed01-2015
Alarm*
- exterior perimeter
The system checks for opening of the vehicle.
The alarm is triggered if anyone tries to open a
door, the boot, the bonnet...
- interior volumetric
The system checks for any variation in the
volume in the passenger compartment.
The alarm is triggered if anyone breaks a
window, enters the passenger compartment or
moves inside the vehicle.
- tilt
The system checks for any change in the
attitude of the vehicle.
The alarm is triggered if the vehicle is lifted,
moved or knocked.
Locking the vehicle with full
alarm system
Activation
* Depending on the country of sale.
Self-protection function
The system checks for the putting out of
service of its components.
The alarm is triggered if the battery, the
central control or the siren wiring are
put out of service or damaged.
For all work on the alarm system,
contact a CITRoËn dealer or a
qualified workshop.
System which protects and provides a deterrent
against theft and break-ins. It provides the
following types of monitoring:
F
Switch off the ignition and get out of the
vehicle.
F Press the locking button on the remote control.
The monitoring system is active: the indicator lamp
in the button flashes once per second.
After the locking button on the remote control
is pressed, the exterior perimeter monitoring is
activated after a delay of 5 seconds and the interior
volumetric and anti-tilt monitoring after a delay of
45 seconds.
If an opening (door, boot...) is not closed fully, the
vehicle is not locked but the exterior perimeter
monitoring will be activated after a delay of
45 seconds at the same time as the interior
volumetric and anti-tilt monitoring.
access

51
C5_en_Chap02_ouverture_ed01-2015
Deactivation
F Press the unlocking button on the remote
control.
The alarm system is deactivated: the indicator
lamp in the button goes off.
Locking the vehicle
with exterior perimeter
monitoring only
Deactivate the interior volumetric and anti-tilt
monitoring to avoid unwanted triggering of the
alarm in certain cases such as:
- leaving a pet in the vehicle,
- leaving a window partially open,
- washing your vehicle,
- changing a wheel,
- having your vehicle towed,
- transport by sea.
Deactivation of the interior
volumetric and anti-tilt monitoring
F Switch off the ignition.
F Within ten seconds, press the button until
the indicator lamp is on continuously.
F Get out of the vehicle.
F Press the locking button on the remote
control immediately.
The exterior perimeter monitoring alone is
activated: the indicator lamp in the button
flashes once per second.
Reactivation of the interior
volumetric and anti-tilt monitoring
F Press the unlocking button on the remote
control to deactivate the exterior perimeter
monitoring.
F Press the locking button on the remote
control to activate all the monitoring
functions.
The indicator lamp in the button again flashes
once per second.
To be effective, this deactivation must
be carried out each time the ignition is
switched off.
2
access

52
C5_en_Chap02_ouverture_ed01-2015
Triggering of the alarm
This is indicated by sounding of the siren and
flashing of the direction indicators for thirty
seconds.
The monitoring functions remain active until
the alarm has been triggered eleven times in
succession.
When the vehicle is unlocked using the remote
control, rapid flashing of the indicator lamp
in the button informs you that the alarm was
triggered during your absence. When the
ignition is switched on, this flashing stops
immediately.
Failure of the remote control
F unlock the vehicle using the key in the
driver's door lock,
F open the door; the alarm is triggered,
F switch on the ignition; the alarm stops;
the indicator lamp in the button goes off.
Locking the vehicle without
activating the alarm
F Lock or deadlock the vehicle using the key
in the driver's door lock.
Operating fault
When the ignition is switched on, fixed
illumination of the indicator lamp in the button
indicates a fault with the system.
Have it checked by a CITROËN dealer or a
qualified workshop.
Automatic activation*
2 minutes after closing the last door or the
boot, the system is activated automatically.
F To avoid triggering the alarm when entering
the vehicle, first press the remote control
unlocking button.
* Depending on the country of sale.
To deactivate the monitoring functions:
access

53
C5_en_Chap02_ouverture_ed01-2015
Electric windows
1. Driver's electric window control.
2. Passenger's electric window control.
3. Rear right electric window control.
4. Rear left electric window control.
5. Deactivation of the rear electric window
and door controls.
One-touch electric
windows
- automatic mode
F Press or pull the control firmly. The
window opens or closes fully when the
control is released.
F Pressing the control again stops the
movement of the window.
Safety anti-pinch
When the window rises and meets an obstacle,
it stops and partially lowers again.
The electric window controls remain
operational for approximately
45 seconds after the ignition is switched
off or until the vehicle is locked after a
door is opened.
If one of the passenger windows cannot
be operated from the driver's door
control panel, carry out the operation
from the control panel of the passenger
door concerned, and vice versa. If the window cannot be closed (for
example, in the presence of ice),
immediately after the movement is
reversed:
F
press and hold the control until the
window opens fully,
F then pull the control immediately
and hold it until the window closes,
F continue to hold the control for
approximately one second after the
window has closed.
The safety anti-pinch function is not
operational during these operations.
There are two options:
-
manual mode
F Press or pull the control gently. The
window stops when the control is
released.
2
access

54
C5_en_Chap02_ouverture_ed01-2015
Reinitialisation
If a window does not rise automatically, its
operation must be reinitialised:
F pull the control until the window stops,
F release the control and pull it again until
the window closes fully,
F continue to hold the control for
approximately one second after the window
has closed,
F press the control to lower the window
automatically to the low position,
F when the window has reached the low
position, press the control again for
approximately one second.
The safety anti-pinch function is not
operational during these operations.
Deactivation of the rear
electric window and door
controls
F For the safety of your children, press
control 5 to deactivate the rear electric
window controls regardless of their
position.
Indicator lamp on, the rear controls are
deactivated.
Indicator lamp off, the rear controls are
activated.
A message in the instrument panel screen
informs you of the activation / deactivation of
the control. Always remove the key from the ignition
when leaving the vehicle, even for a
short time.
If an obstacle is encountered during
operation of the electric windows, you
must reverse the movement of the
window. To do this, press the control
concerned.
When the driver operates the controls
for the passengers' electric windows,
they must ensure that no one is
preventing correct closing of the
windows.
The driver must ensure that the
passengers use the electric windows
c o r r e c t l y.
b
e particularly aware of children when
operating the windows.
This control also deactivates the interior
controls for the rear doors (refer to the "Child
safety - Electric child lock" section). Any other status of the indicator lamp
indicates a fault with the electric child
lock.
Have it checked by a CITROËN dealer
or a qualified workshop.
access

55
C5_en_Chap02_ouverture_ed01-2015

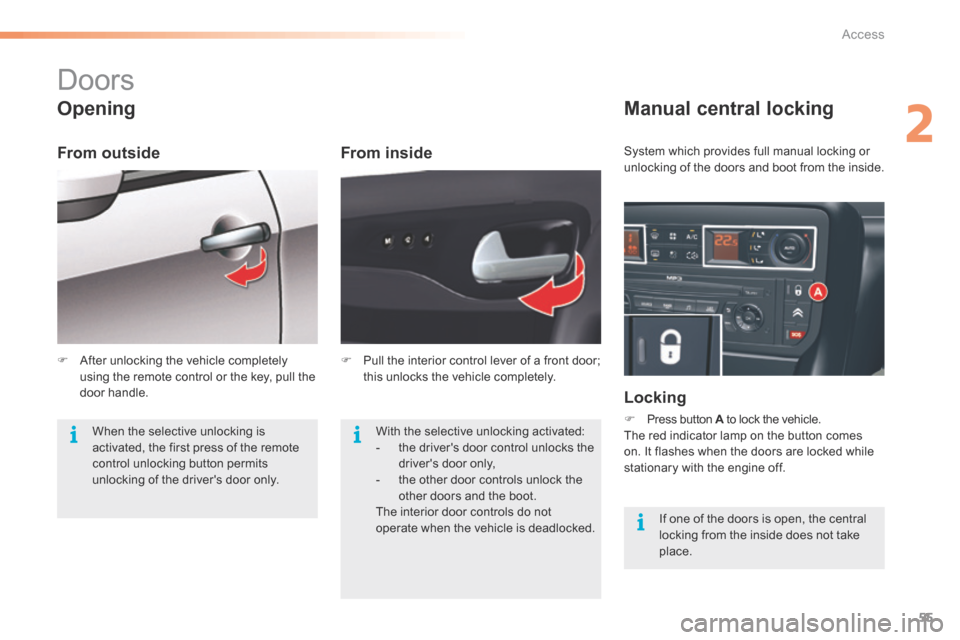

doors
Opening
From inside
Manual central locking
Locking
F Press button A to lock the vehicle.
The red indicator lamp on the button comes
on. It flashes when the doors are locked while
stationary with the engine off.
From outside
When the selective unlocking is
activated, the first press of the remote
control unlocking button permits
unlocking of the driver's door only. With the selective unlocking activated:
-
the driver's door control unlocks the
driver's door only,
- the other door controls unlock the
other doors and the boot.
The interior door controls do not
operate when the vehicle is deadlocked. If one of the doors is open, the central
locking from the inside does not take
place.
System which provides full manual locking or
unlocking of the doors and boot from the inside.
F After unlocking the vehicle completely
using the remote control or the key, pull the
door handle. F
Pull the interior control lever of a front door;
this unlocks the vehicle completely.
2
access

56
C5_en_Chap02_ouverture_ed01-2015
Unlocking
F Press button A again to unlock the vehicle.
The red indicator lamp on the button
switches off.

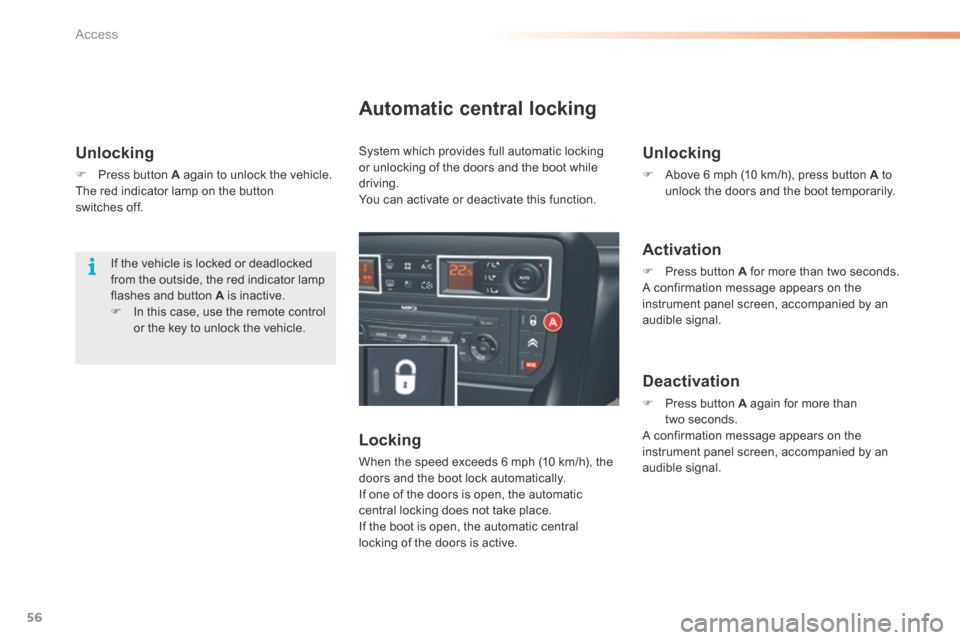

Automatic central locking
Locking
When the speed exceeds 6 mph (10 km/h), the
doors and the boot lock automatically.
If one of the doors is open, the automatic
central locking does not take place.
If the boot is open, the automatic central
locking of the doors is active.
Unlocking
F Above 6 mph (10 km/h), press button A to
unlock the doors and the boot temporarily.
Activation
F Press button A for more than two seconds.
A confirmation message appears on the
instrument panel screen, accompanied by an
audible signal.
Deactivation
F Press button A again for more than
two seconds.
A confirmation message appears on the
instrument panel screen, accompanied by an
audible signal.
If the vehicle is locked or deadlocked
from the outside, the red indicator lamp
flashes and button A is inactive.
F
In this case, use the remote control
or the key to unlock the vehicle. System which provides full automatic locking
or unlocking of the doors and the boot while
driving.
You can activate or deactivate this function.
access

57
C5_en_Chap02_ouverture_ed01-2015
System allowing the doors to be locked and
unlocked manually in the event of a malfunction
of the central locking system or battery failure.
Locking the driver's door
F Insert the key in the door lock, then turn it
to the rear.
You can also apply the procedure described for
the passenger doors.
Unlocking the driver's door
F Insert the key in the door lock, then turn it
to the front.
Locking the front and rear
passenger doors
F Open the doors.
F On the rear doors, check that the child lock
is not on (see the corresponding section).
F Remove the black cap, located on the edge
of the door, using the key.
F Insert the key in the socket without forcing
it, then without turning it, move the latch
sideways towards the inside of the door.
F Remove the key and refit the cap.
F Close the doors and check that the vehicle
has locked correctly from the outside.
Unlocking the front and rear
passenger doors
F Pull the interior door opening control.
Back-up control
2
access

58
C5_en_Chap02_ouverture_ed01-2015
Boot (Saloon)
F Press upwards on lever 1 and lift up the
boot lid. With the vehicle stationary, this is carried out
using:
-
The remote control.
- The key in a door lock.
- The interior central locking/ unlocking control.
The boot automatically locks when the vehicle
is moving at a speed of over 6 mph (10 km/h),
even if automatic central locking is deactivated.
It is unlocked when a door is opened or when
the central locking button is pressed (speed
lower than 6 mph (10 km/h)).
Opening Locking/unlocking Emergency boot release
Unlocking
F Fold back the rear seats to gain access to
the lock from inside the boot.
F Insert a small screwdriver into hole A of the
lock to unlock the tailgate.
F Push the white part, located inside the
lock, to the left to unlock the boot.
System for mechanical unlocking of the boot
in the event of a battery or central locking
malfunction.
access
