warning Citroen C5 2016 (RD/TD) / 2.G Manual PDF

237
C5_en_Chap09_verification_ed01-2015
In the event of a fault with the the SCR emissions
control system
The UREA, SERVICE and diagnostic warning
lamps comes on, accompanied by an audible
signal and the display of the message
"Emissions fault".
The alert is triggered when driving when the
fault is detected for the first time, then when
switching on the ignition for subsequent
journeys, while the fault persists.If it is a temporary fault, the alert
disappears during the next journey,
after self-diagnosis of the SCR system. During an authorised driving phase (between
650 miles and 0 miles) (1 100 km and 0 km)
A system that prevents engine starting
is activated automatically from
650 miles (1 100 km) after confirmation
of a fault with the SCR emissions
control system. Have the system
checked by a CITROËN dealer or a
qualified workshop as soon as possible. In the event of the detection
of a fault
If a fault with the SCR system is confirmed
(after 30 miles (50 km) covered with the
permanent display of the message signalling
a fault), the SERVICE and engine diagnostic
warning lamps come on and the UREA
warning lamp flashes, accompanied by an
audible signal and the display of a message
(e.g.: "Emissions fault: Starting prevented in
150 miles") indicating the remaining range
express in miles or kilometres.
While driving, the message is displayed every
30 seconds while the fault with the SCR system
persists.
The alert is repeated when switching on the
ignition.
You should go to a CITROËN dealer or a
qualified workshop as soon as possible.
other wise, you will not be able to restart your
engine.
9
Checks

238
C5_en_Chap09_verification_ed01-2015
Every time the ignition is switched on, the
SERVICE and engine diagnostic warning
lamps come on and the UREA warning lamp
flashes, accompanied by an audible signal and
the display of the message "Emissions fault:
Starting prevented".You have exceeded the authorised
driving limit: the starting prevention
system inhibits engine starting. Freezing of the AdBlue
® additive
The ad blue
® additive freezes at
temperatures below around -11°C.
The SCR system includes a heater
for the a db lue
® tank, allowing you to
continue driving in very cold conditions.
Starting prevented
To be able to start the engine, you must call on
a CITROËN dealer or a qualified workshop.
Checks

239
C5_en_Chap09_verification_ed01-2015

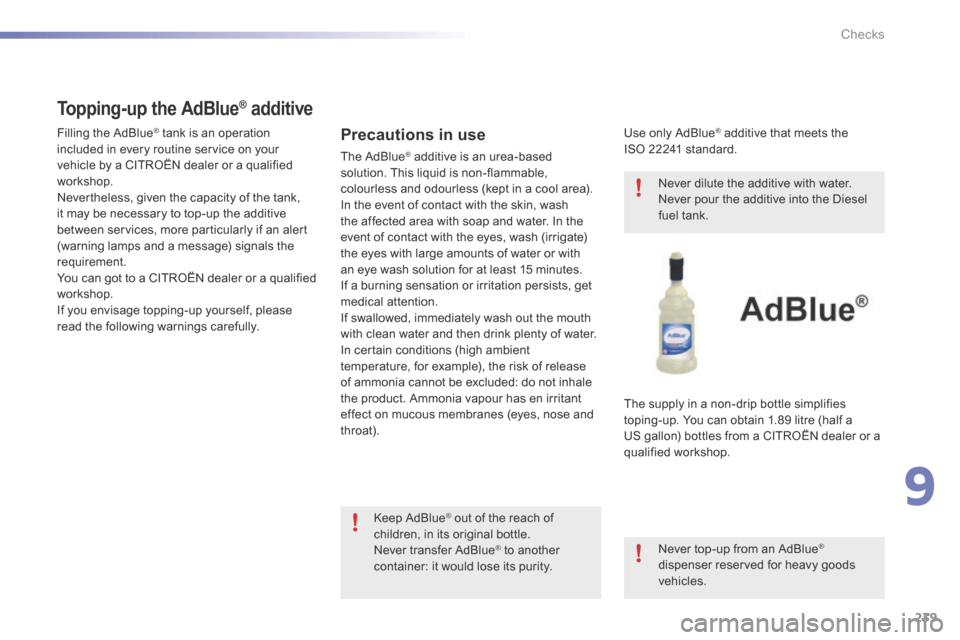

Precautions in use
The adblue® additive is an urea-based
solution. This liquid is non-flammable,
colourless and odourless (kept in a cool area).
In the event of contact with the skin, wash
the affected area with soap and water. In the
event of contact with the eyes, wash (irrigate)
the eyes with large amounts of water or with
an eye wash solution for at least 15 minutes.
If a burning sensation or irritation persists, get
medical attention.
If swallowed, immediately wash out the mouth
with clean water and then drink plenty of water.
In certain conditions (high ambient
temperature, for example), the risk of release
of ammonia cannot be excluded: do not inhale
the product. Ammonia vapour has en irritant
effect on mucous membranes (eyes, nose and
throat).
keep ad blue
® out of the reach of
children, in its original bottle.
n ever transfer ad blue
® to another
container: it would lose its purity. Use only ad
blue
® additive that meets the
ISO 22241 standard.
Never dilute the additive with water.
never pour the additive into the d iesel
fuel tank.
The supply in a non-drip bottle simplifies
toping-up. You can obtain 1.89 litre (half a
US gallon) bottles from a CITROËN dealer or a
qualified workshop. Never top-up from an AdBlue
®
dispenser reserved for heavy goods
vehicles.
Topping-up the AdBlue® additive
Filling the AdBlue® tank is an operation
included in every routine service on your
vehicle by a CITROËN dealer or a qualified
workshop.
Nevertheless, given the capacity of the tank,
it may be necessary to top-up the additive
between services, more particularly if an alert
(warning lamps and a message) signals the
requirement.
You can got to a CITROËN dealer or a qualified
workshop.
If you envisage topping-up yourself, please
read the following warnings carefully.
9
Checks

243
C5_en_Chap10_caracteristique_ed01-2015
Weights and towed loads (in kg)
Petrol engineTHP 155THP 160
THP 15 0
Gearbox Automatic (6-speed)Automatic (6-speed)
Model code RD 5F V- A

RD 5FN -A RW 5F V- A
RW 5FN-A RD 5FM-A
RD 5FE-A /D RW 5FM-A
RW 5FE-A/D
Body SaloonTourerSaloon Tourer
Unladen weight 1 5151 534 1 5151 534
Kerb weight 1 5901 609 1 5901 609
Gross vehicle weight (GV W) 2 0262 200 2 0262 200
Gross train weight (GTW) 3 5263 700 2 5262 700
Braked trailer (within GTW limit)
- on a 10% or 12% slope 1 500
1 500 500500
Braked trailer* (with load transfer within GTW
limit) 1 710
1 790 710790
Unbraked trailer 750750500 500
Recommended nose weight 697469 74
The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
The maximum authorised speed is reduced when towing (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the per formance of the vehicle in order to protect the engine; when the ambient temperature is
higher than 37 °C, limit the weight towed. * The weight of the braked trailer can be increased, within the GTW limit, on condition that the GV W of the towing vehicle is reduced by the same
amount; warning, towing with a lightly loaded towing vehicle may have an adverse effect on its road holding.
10
Technical data

245
C5_en_Chap10_caracteristique_ed01-2015
Diesel engineBlueHDi 160 S&SHDi 160BlueHDi 180 S&S
Gearbox Manual (6-speed)Automatic (6-speed)EAT6 automatic (6-speed)
Model code RD AHR- M/SRW AHR- M/S RD RHH-ARW RHH-ARD AHW-T/S RW AHW-T/S
Body SaloonTourerSaloon TourerSaloon Tourer
Unladen weight 1 5401 5751 609 1 6421 6201 655
Kerb weight 1 6151 650 1 684 1 7171 695 1 730
Gross vehicle weight (GV W) 2 1602 235 2 1902 286 2 1902 290
Gross train weight (GTW) 3 6603 6353 290 3 2863 290 3 290
Braked trailer (within GTW limit)
- on a 10% or 12% slope 1 500
1 400 1 10 01 000 1 10 01 000
Braked trailer* (with load transfer within GTW
limit) 1 750
1 650 1 390 1 290 1 350 1 250
Unbraked trailer 750750750750750750
Recommended nose weight 73675753 57 51
The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
The maximum authorised speed is reduced when towing (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the per formance of the vehicle in order to protect the engine; when the ambient temperature is
higher than 37 °C, limit the weight towed. * The weight of the braked trailer can be increased within the GTW limit, on condition that the GV W of the towing vehicle is reduced by the same
amount; warning, towing with a lightly loaded towing vehicle may have an adverse effect on its road holding.
Weights and towed loads (in kg)
10
Technical data

270
C5_en_Chap11b_SMEGplus_ed01-2015
Hazard zone / Danger zone
alert settings
Press on Navigation to display the
primary page.
Press on the secondary page.
Select " Settings ".
Select " Alarm!".
It is then possible to activate Risk Areas alerts
then:
- "Audible warning"
- "Alert only when navigating"
- "a lert only for overspeed"
- "Display speed limits"
- Timing: the choice of timing allows the
time before giving a Risk Area alert to be
defined.
Select " Confirm ". This series of alerts and displays is
only available if Risk Areas have first
been downloaded and installed on the
system.
Tr a f fi c
Traffic information
Display of messages
Press on Navigation
to display the
primary page.
Press on the secondary page.
Select " Traffic messages ".
Set the: "On the route ",
" Around ",
" Near destination ", filters to fine-
tune the list of messages.
Press again to remove the filter.
audio and Telematics

308
C5_en_Chap11b_SMEGplus_ed01-2015
The table below gives answers to the most frequently asked questions on your audio system.QUESTION ANSWER SOLUTION
The route calculation is
not successful. The navigation settings may conflict with the current location
(exclusion of toll roads on a toll motor way). Check the settings in the "Navigation" menu.
The POIs do not appear. The POIs have not been selected. Select the POIs in the list of POIs.
The Hazard zone audible
warning does not work. The audible warning is not active.
Activate audible warnings in the "Navigation"
menu.
The system does not
suggest a detour around
an incident on the route. The guidance criteria do not take account of TMC messages.
Select the "Traffic info" function in the list of
guidance criteria.
I receive a a ccident-prone
area alert which is not on
my route. Other than guidance, the system announces all Hazard zone
positioned in a cone located in front of the vehicle. It may provide
an alert for a Hazard zone located on nearby or parallel roads. Zoom in on the map to view the exact position of
the Accident-prone area. Select "On the route" to
no longer receive alerts other than guidance or to
reduce the time for the announcement.
Frequently asked questions
Navigation
audio and Telematics

327
C5_en_Chap11c_RD45_ed01-2015
Screen C
Audio functions
Alternative frequencies (RDS)Activate / deactivate
FM
preferences
Regional mode (REG) Activate / deactivate
Radio-text information (RDTXT) Activate / deactivate
1
2
3
4
3
4
3
4
Play modes
Album repeat (RPT)Activate / deactivate
Track random play (RDM) Activate / deactivate2
3
4
3
4
Enter distance to destination1
1
1
2
2
2
Pressing the MENU button displays:
Audio functions Trip computerDistance: x miles
Vehicle diagnosis
Warning log
Systems activated or deactivated
State of systems
.
Audio and Telematics

333
C5_en_Chap12_index-alpha_ed01-2015
ABS and EBFD systems ...............................150
a ccessories .................................................. 221
ad blue
® ......................................................... 234
additive, ad blue .............................. 32, 234, 238
Adjusting headlamps .................................... 141
Adjusting head restraints ....................64, 66, 71
Adjusting seat ........................................... 64, 65
Adjusting the air distribution .....................76, 80
Adjusting the air flow .................................77, 81
Adjusting the date ..................................... 39, 44
Adjusting the height and reach of the steering wheel .................................... 68
Adjusting the seat belt height .......................15 4
Adjusting the temperature ........................75, 80
Adjusting the time ..................................... 39, 44
Advice on driving ............................................ 96
Airbags .................................................... 35, 157
Airbags, curtain ...................................... 160 -161
Airbags, front ......................................... 158, 161
Airbags, lateral ...................................... 160, 161
Air conditioning ......................................... 12, 74
Air conditioning, digital ................................... 79
Air conditioning, mono-zone ...........................75
Air intake ................................................... 78, 81
a ir vents .................................................... 73, 74
Alarm ............................................................... 50
Anti-lock braking system (ABS) .............................................. 150
a nti-pinch ............................................ 53, 61, 63
a nti-theft ......................................................... 97
Armrest, front .................................................. 88
Armrest, rear ................................................... 89
a ssistance call ...................................... 149, 251
Audible warning .................................... 121, 149
A
B
C
battery ............................................ 210 -212, 231
Battery, charging ........................................... 212
Battery, remote control .............................48, 49
Blanking screen (snow shield) ......................220
Blind, panoramic sunroof ................................62
b linds, side ...................................................... 90
b lue H di ................................................ 114, 234
Bluetooth (hands-free) ..........................300, 324
Bluetooth (telephone) ............................ 300, 324
b olts, wheel security ..................................... 188
b onnet ........................................................... 224
boot ........................................................... 58, 59
Boot (fittings) ............................................. 91, 92
Brake discs .................................................... 233
Brake lamps .......................................... 197, 19 9
Brakes ........................................................... 233
Braking assistance system ...........................150
Bulbs (changing) .................................... 193 -203
Audio streaming (Bluetooth)
.................284, 323
Audio system ................................................. 315
Auxiliary .................................. 88, 282, 320, 321 Cable, audio
............................ 88, 282, 320, 321
Capacity, fuel tank ........................................ 17 7
Cap, fuel filler ................................................ 17 7
Cd ................................................................. 321
CD, MP3 ........................................................ 322
Central locking .......................................... 46, 55
Changing a bulb ..................................... 193 -203
Changing a fuse .................................... 204-209
Changing a wheel .................................. 18 5 -191
Changing a wiper blade ................................147
Changing the remote control battery ..............48
Check .............................................................. 20
Checking the engine oil level ..................24, 227
Checking the levels .......................227, 229, 230
Checks ................................................... 2 2 5 - 2 41
Checks, routine ...................................... 231-233
Child lock ....................................................... 176
Children .......................................... 156, 162-176
Child seats ............................................ 16 2-175
Child seats, conventional ...................... 168, 169
Child seats, IS oFIX ....................... 172, 174, 175
CITROËN Connect Box ...............................2 51
CITR oËn Localised
Emergency Call .................................. 149, 251
Closing the boot .............................................. 46
Closing the doors ...................................... 46, 55
Configuration, vehicle ......... 15, 37, 42, 286, 328
Connection, b luetooth ......... 296, 304, 305, 324
Connection, MirrorLink ................................. 299
Connection, Wi-Fi network ...........................296
Control, electric windows ................................ 53
Control, emergency boot release ...................58
Control, emergency door ................................ 57
Control, heated seats ...................................... 66
.
alphabetical index

334
C5_en_Chap12_index-alpha_ed01-2015
Filling the fuel tank ................................. 17 7-179
Filter, air ........................................................ 231
Filter, oil ......................................................... 231
Filter, particle ........................................ 230, 232
Filter, passenger compartment ..................... 231
Fitting a wheel ............................................... 19 0
Fitting roof bars ............................................. 218
Fittings, boot ............................................. 91, 92
Fittings, interior ............................................... 86
Fittings, rear .................................................... 89
Flap, fuel filler ......................................... 17 7, 178
Flashing indicators ........................................ 148
Foglamps, front ..................................... 137, 196
Foglamps, rear ............................... 137, 197, 199
Folding the rear seats ..................................... 71
Frequency (radio) ..........................278, 279, 318
Fuel ................................................... 12, 177, 179
Fuel consumption ............................................ 12
Fuel tank ........................................................ 178
Fusebox, dashboard ..................................... 205
Fusebox, engine compartment ..................... 208
Fuses ............................................................. 204
Driving economically
....................................... 12
Driving positions (storing) ...............................67
Dynamic stability control (DSC) ..............29, 151
Eco-driving ..................................................... 12
Economy mode ............................................. 213
Electronic brake force distribution (EBFD) ........................................................ 150
Emergency braking
assistance (EBA) ........................................ 150
Emergency call ..................................... 149, 251
Emergency warning lamps ........................... 148
Emissions control system, SCR .............33, 234
Energy economy mode .................................213
Engine compartment ............................ 225, 226
Engine, Diesel .......................179, 226, 244, 245
Engine, petrol ........................ 179, 225, 242, 243
Environment .............................................. 12, 49
Gauge, fuel .............................................. 21, 177
Gearbox, automatic .........12, 110, 115, 212, 232
Gearbox, manual .................... 12, 109, 115, 232
Gear shift indicator ....................................... 114
DAB (Digital Audio Broadcasting) -
Digital radio ......................................... 280, 281
Date (setting) ............................................. 39, 44
Daytime running lamps .........................139, 193
Deactivating ESP .......................................... 152
Deactivating the passenger airbag ............... 15 8
Deadlocking .................................................... 47
Demisting/defrosting, front ....................... 77, 82
Demisting/defrosting, rear ........................ 78, 82
d iesel ............................................................ 179
Dimensions ................................................... 246
Dipstick .................................................... 24, 227
d irection indicators ....................... 148, 195, 199
d isplay screen,
instrument panel .............................. 14, 17, 114
d isplay screen,
multifunction ................................................. 37
d oors ............................................................... 55
E
F
G
D
Control, panoramic sunroof blind ...................62
Control stalk, lighting .............................13 6 -14 0
Control stalk, wipers ..............................14 4 -146
Courtesy lamps ............................................... 83
Cover, load space ........................................... 93
Cruise control ................................................ 125
Cup holder ................................................. 88, 89
alphabetical index
