CITROEN C5 2018 Owners Manual

119
C5_en_Chap04_conduite_ed01-2016

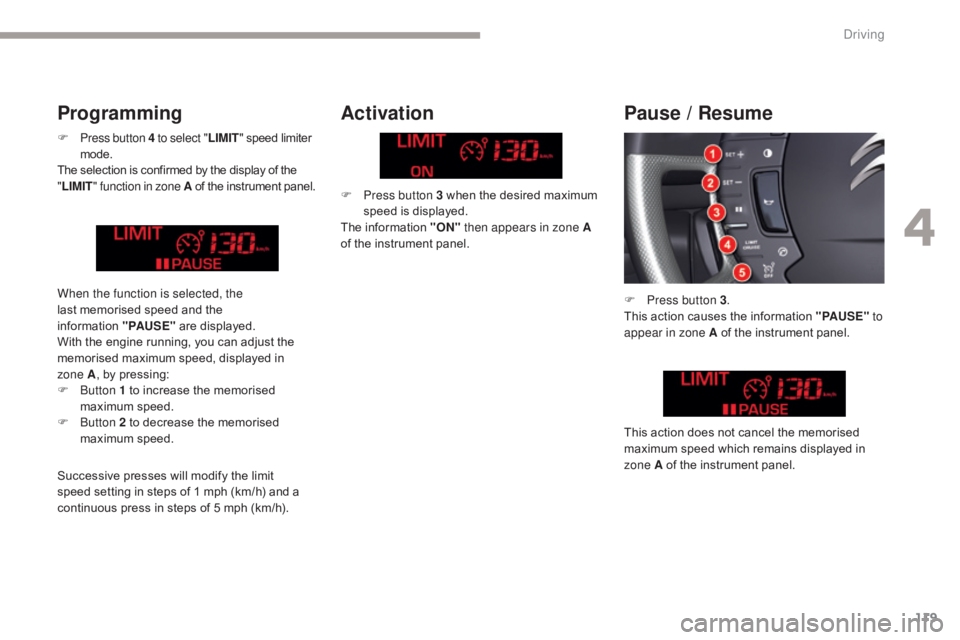

F Press button 4 to select "LIMIT" speed limiter
mode.
The selection is confirmed by the display of the
" LIMIT " function in zone A of the instrument panel.
Activation
F Press button 3 when the desired maximum
speed is displayed.
The information "ON" then appears in zone A
of the instrument panel.
When the function is selected, the
last memorised speed and the
information
"

PAUS E " are displayed.
With the engine running, you can adjust the
memorised maximum speed, displayed in
zone

A , by pressing:
F

Button 1 to increase the memorised
maximum speed.
F

Button 2 to decrease the memorised
maximum speed.
Successive presses will modify the limit
speed setting in steps of 1 mph (km/h) and a
continuous press in steps of 5 mph (km/h).
Programming
F Press button 3 .
This action causes the information " PAUS E " to
appear in zone A of the instrument panel.
This action does not cancel the memorised
maximum speed which remains displayed in
zone A of the instrument panel.
Pause / Resume
4
Driving

120
C5_en_Chap04_conduite_ed01-2016

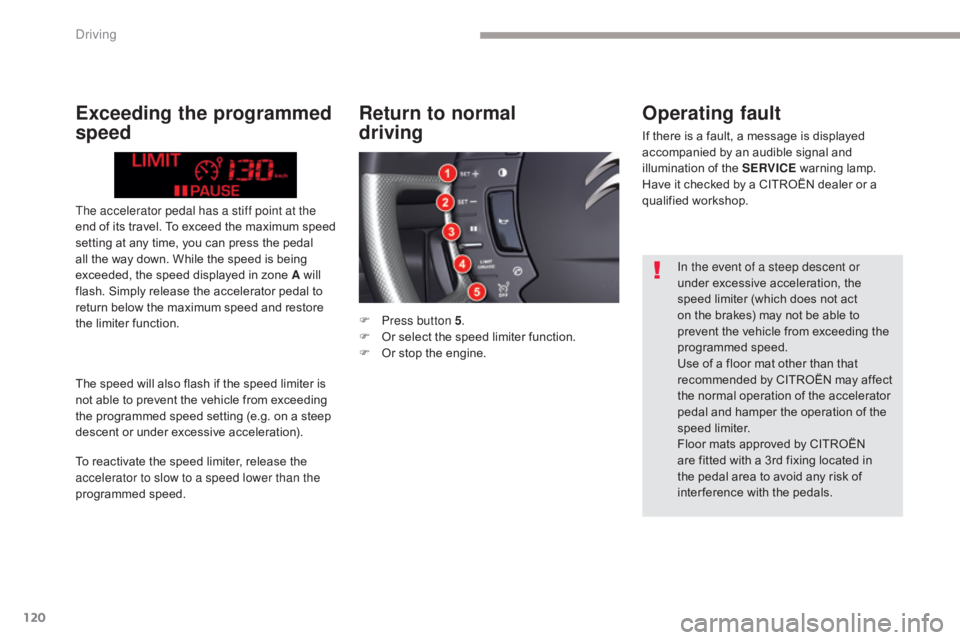

The accelerator pedal has a stiff point at the
end of its travel. To exceed the maximum speed
setting at any time, you can press the pedal
all the way down. While the speed is being
exceeded, the speed displayed in zone A will
flash. Simply release the accelerator pedal to
return below the maximum speed and restore
the limiter function.
Return to normal
driving Operating fault
If there is a fault, a message is displayed
accompanied by an audible signal and
illumination of the SERVICE
warning lamp.
Have it checked by a CITROËN dealer or a
qualified workshop.
Exceeding the programmed
speed
In the event of a steep descent or
under excessive acceleration, the
speed limiter (which does not act
on the brakes) may not be able to
prevent the vehicle from exceeding the
programmed speed.
Use of a floor mat other than that
recommended by CITROËN may affect
the normal operation of the accelerator
pedal and hamper the operation of the
speed limiter.
Floor mats approved by CITROËN
are fitted with a 3rd fixing located in
the pedal area to avoid any risk of
inter ference with the pedals.
The speed will also flash if the speed limiter is
not able to prevent the vehicle from exceeding
the programmed speed setting (e.g. on a steep
descent or under excessive acceleration).
To reactivate the speed limiter, release the
accelerator to slow to a speed lower than the
programmed speed. F

P

ress button 5 .
F

O

r select the speed limiter function.
F

O

r stop the engine.
Driving

121
C5_en_Chap04_conduite_ed01-2016
Cruise control
Displays in the instrument panel
The information related to the cruise control is
grouped together in zone A of the instrument
panel.
Steering mounted controls
The cruise control switches are located on the
left-hand side of the steering wheel.
1.
A
ctivate the cruise control at the current
speed of the vehicle, then increase the
programmed speed.
2.
A

ctivate the cruise control at the current
speed of the vehicle, then decrease the
programmed speed.
3.
P

ause / Restore the cruise control.
4.
S

elect cruise control mode.
5.
D

eactivate the cruise control.
System which automatically maintains the
vehicle speed programmed by the driver,
without any action on the accelerator pedal.
The cruise control is switched on manually:
the vehicle speed must be at least 25 mph
(40

km/h) and you must be in at least:
-

4

th gear for a manual gearbox,
-

2

nd gear for an automatic gearbox.
The driver must remain attentive and in
complete control of the vehicle.
You are recommended to keep your feet
within range of the pedals .
4
Driving

122
C5_en_Chap04_conduite_ed01-2016
Exceeding the programmed
speed
While cruise control is in operation, it is always
possible to go above the programmed speed
simply by pressing the accelerator pedal (for
example to overtake another vehicle).
The speed displayed in zone A flashes.
You only have to release the accelerator pedal
to return to the programmed speed.

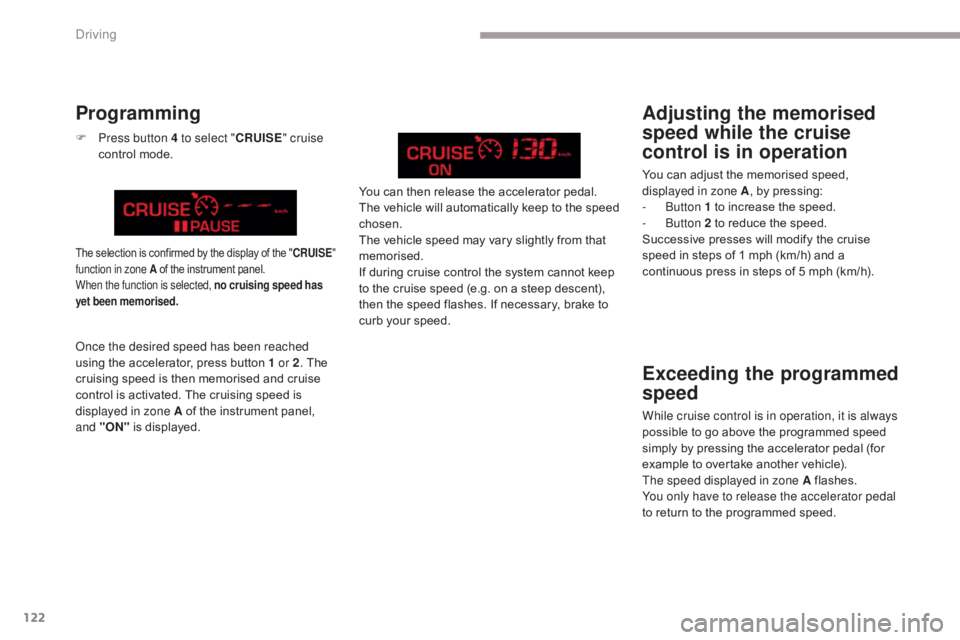

Programming
The selection is confirmed by the display of the "CRU ISE"
function in zone A of the instrument panel.
When the function is selected, no cruising speed has
yet been memorised.
Once the desired speed has been reached
using the accelerator, press button 1 or 2 . The
cruising speed is then memorised and cruise
control is activated. The cruising speed is
displayed in zone A of the instrument panel,
and "ON" is displayed.
Adjusting the memorised
speed while the cruise
control is in operation
You can adjust the memorised speed,
displayed in zone A , by pressing:
-
Button 1 to increase the speed.
-
Button 2 to reduce the speed.
Successive presses will modify the cruise
speed in steps of 1 mph (km/h) and a
continuous press in steps of 5 mph (km/h).
You can then release the accelerator pedal.
The vehicle will automatically keep to the speed
chosen.
The vehicle speed may vary slightly from that
memorised.
If during cruise control the system cannot keep
to the cruise speed (e.g. on a steep descent),
then the speed flashes. If necessary, brake to
curb your speed.
F

P

ress button 4 to select "
CRUISE" cruise
control mode.
Driving

123
C5_en_Chap04_conduite_ed01-2016

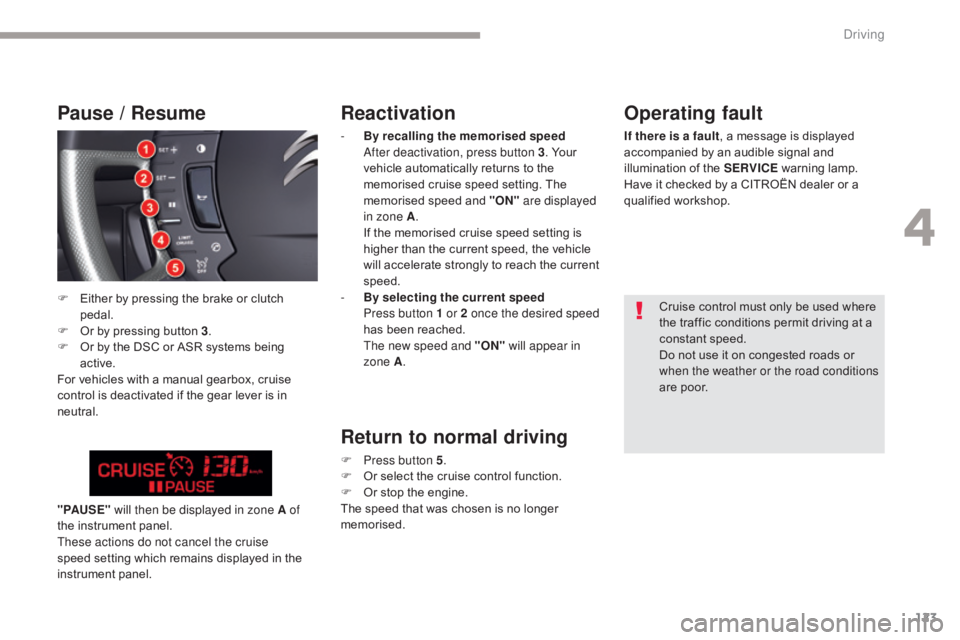

Reactivation
- By recalling the memorised speed After deactivation, press button 3. Your
vehicle automatically returns to the
memorised cruise speed setting. The
memorised speed and "ON" are displayed
in zone A .
I

f the memorised cruise speed setting is
higher than the current speed, the vehicle
will accelerate strongly to reach the current
speed.
-

B
y selecting the current speed
P

ress button 1 or 2 once the desired speed
has been reached.
T

he new speed and "ON" will appear in
zone A .
Return to normal driving
F Press button 5 .
F O r select the cruise control function.
F

O
r stop the engine.
The speed that was chosen is no longer
memorised.
" PAUS E "
will then be displayed in zone A of
the instrument panel.
These actions do not cancel the cruise
speed setting which remains displayed in the
instrument panel.
Operating fault
If there is a fault , a message is displayed
accompanied by an audible signal and
illumination of the SERVICE warning lamp.
Have it checked by a CITROËN dealer or a
qualified workshop.
Cruise control must only be used where
the traffic conditions permit driving at a
constant speed.
Do not use it on congested roads or
when the weather or the road conditions
are poor.
Pause / Resume
F Either by pressing the brake or clutch pedal.
F

O
r by pressing button 3 .
F

O
r by the DSC or ASR systems being
active.
For vehicles with a manual gearbox, cruise
control is deactivated if the gear lever is in
neutral.
4
Driving

124
C5_en_Chap04_conduite_ed01-2016

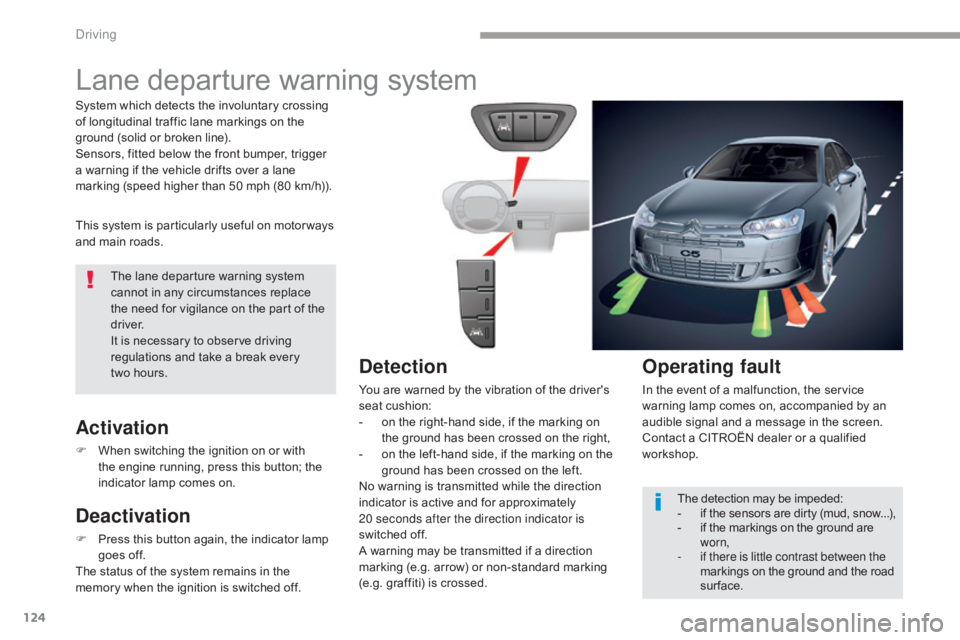

Lane departure warning system
This system is particularly useful on motor ways
and main roads.
Activation
F When switching the ignition on or with the engine running, press this button; the
indicator lamp comes on.
Deactivation
F Press this button again, the indicator lamp goes off.
The status of the system remains in the
memory when the ignition is switched off.
Detection
You are warned by the vibration of the driver's
seat cushion:
-

o
n the right-hand side, if the marking on
the ground has been crossed on the right,
-

o
n the left-hand side, if the marking on the
ground has been crossed on the left.
No warning is transmitted while the direction
indicator is active and for approximately
20
seconds after the direction indicator is
switched off.
A warning may be transmitted if a direction
marking (e.g. arrow) or non-standard marking
(e.g. graffiti) is crossed.
Operating fault
In the event of a malfunction, the service
warning lamp comes on, accompanied by an
audible signal and a message in the screen.
Contact a CITROËN dealer or a qualified
workshop.
System which detects the involuntary crossing
of longitudinal traffic lane markings on the
ground (solid or broken line).
Sensors, fitted below the front bumper, trigger
a warning if the vehicle drifts over a lane
marking (speed higher than 50 mph (80 km/h)).
The detection may be impeded:
-
i
f the sensors are dirty (mud, snow...),
-
i

f the markings on the ground are
worn,
-
i

f there is little contrast between the
markings on the ground and the road
sur face.
The lane departure warning system
cannot in any circumstances replace
the need for vigilance on the part of the
driver.
It is necessary to observe driving
regulations and take a break every
two

hours.
Driving

125
C5_en_Chap04_conduite_ed01-2016

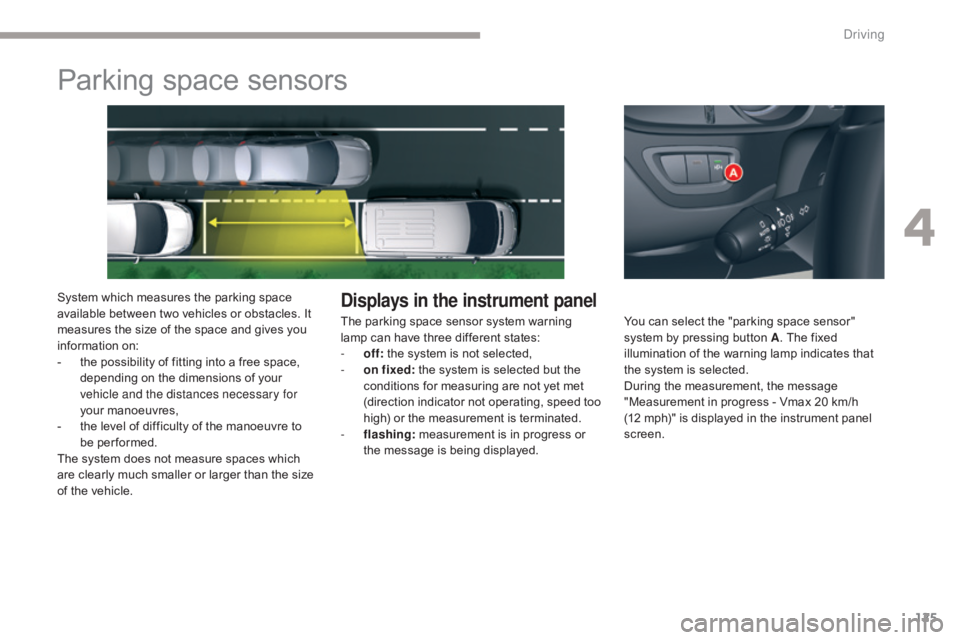

Parking space sensors
System which measures the parking space
available between two vehicles or obstacles. It
measures the size of the space and gives you
information on:
-
t
he possibility of fitting into a free space,
depending on the dimensions of your
vehicle and the distances necessary for
your manoeuvres,
-

t
he level of difficulty of the manoeuvre to
be performed.
The system does not measure spaces which
are clearly much smaller or larger than the size
of the vehicle. The parking space sensor system warning
lamp can have three different states:
-

o
ff: the system is not selected,
-

o
n fixed: the system is selected but the
conditions for measuring are not yet met
(direction indicator not operating, speed too
high) or the measurement is terminated.
-

f
lashing: measurement is in progress or
the message is being displayed. You can select the "parking space sensor"
system by pressing button A
. The fixed
illumination of the warning lamp indicates that
the system is selected.
During the measurement, the message
"Measurement in progress - Vmax 20 km/h
(12 mph)" is displayed in the instrument panel
screen.Displays in the instrument panel
4
Driving

126
C5_en_Chap04_conduite_ed01-2016

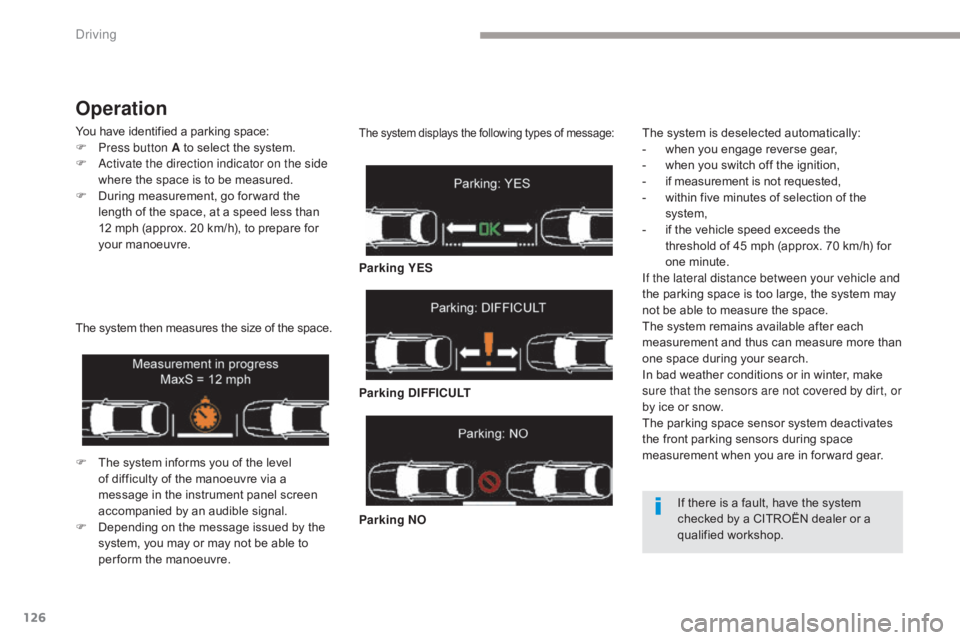

Operation
You have identified a parking space:
F P ress button A to select the system.
F

A
ctivate the direction indicator on the side
where the space is to be measured.
F

D
uring measurement, go for ward the
length of the space, at a speed less than
12 mph (approx. 20 km/h), to prepare for
your manoeuvre.
The system then measures the size of the space.
F

T
he system informs you of the level
of difficulty of the manoeuvre via a
message in the instrument panel screen
accompanied by an audible signal.
F

D
epending on the message issued by the
system, you may or may not be able to
per form the manoeuvre.The system displays the following types of message:
Parking YES
Parking DIFFICULT
Parking NO The system is deselected automatically:
-

w
hen you engage reverse gear,
-
w
hen you switch off the ignition,
-
i
f measurement is not requested,
-
w
ithin five minutes of selection of the
system,
-
i
f the vehicle speed exceeds the
threshold of 45 mph (approx. 70 km/h) for
one minute.
If the lateral distance between your vehicle and
the parking space is too large, the system may
not be able to measure the space.
The system remains available after each
measurement and thus can measure more than
one space during your search.
In bad weather conditions or in winter, make
sure that the sensors are not covered by dirt, or
by ice or snow.
The parking space sensor system deactivates
the front parking sensors during space
measurement when you are in for ward gear.
If there is a fault, have the system
checked by a CITROËN dealer or a
qualified workshop.
Driving

127
C5_en_Chap04_conduite_ed01-2016

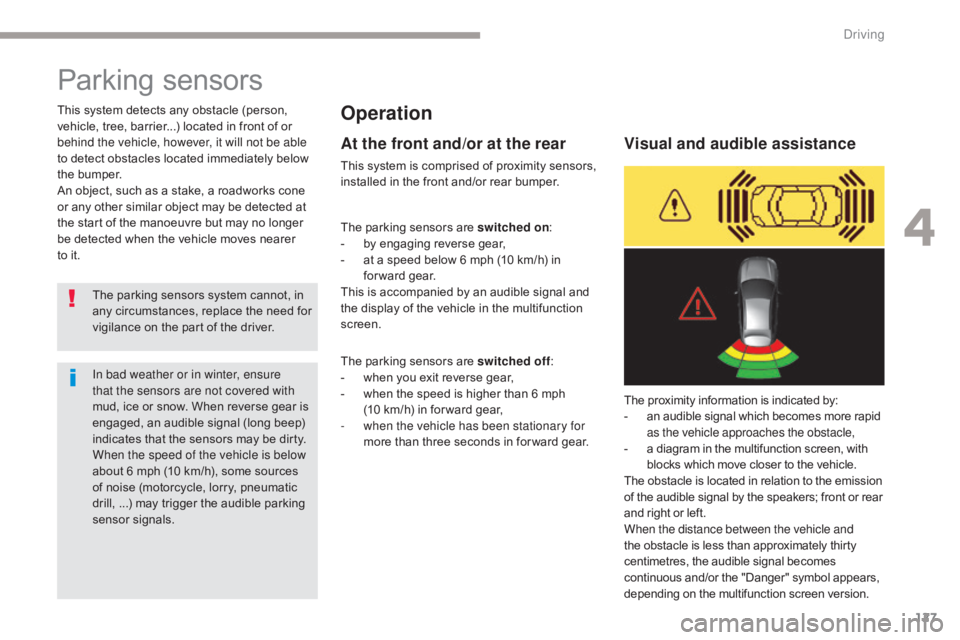

Parking sensors
Operation
The parking sensors system cannot, in
any circumstances, replace the need for
vigilance on the part of the driver.
This system detects any obstacle (person,
vehicle, tree, barrier...) located in front of or
behind the vehicle, however, it will not be able
to detect obstacles located immediately below
the bumper.
An object, such as a stake, a roadworks cone
or any other similar object may be detected at
the start of the manoeuvre but may no longer
be detected when the vehicle moves nearer
to it.
At the front and/or at the rear
This system is comprised of proximity sensors,
installed in the front and/or rear bumper.
Visual and audible assistance
The proximity information is indicated by:
- a
n audible signal which becomes more rapid
as the vehicle approaches the obstacle,
-
a d

iagram in the multifunction screen, with
blocks which move closer to the vehicle.
The obstacle is located in relation to the emission
of the audible signal by the speakers; front or rear
and right or left.
When the distance between the vehicle and
the obstacle is less than approximately thirty
centimetres, the audible signal becomes
continuous and/or the "Danger" symbol appears,
depending on the multifunction screen version.
In bad weather or in winter, ensure
that the sensors are not covered with
mud, ice or snow. When reverse gear is
engaged, an audible signal (long beep)
indicates that the sensors may be dirty.
When the speed of the vehicle is below
about 6 mph (10 km/h), some sources
of noise (motorcycle, lorry, pneumatic
drill, ...) may trigger the audible parking
sensor signals. The parking sensors are switched on
:
-

b

y engaging reverse gear,
-

a

t a speed below 6 mph (10 km/h) in
forward gear.
This is accompanied by an audible signal and
the display of the vehicle in the multifunction
screen.
The parking sensors are switched off :
-

w

hen you exit reverse gear,
-
w
hen the speed is higher than 6 mph
(10

km/h) in for ward gear,
-

w

hen the vehicle has been stationary for
more than three seconds in for ward gear.
4
Driving

128
C5_en_Chap04_conduite_ed01-2016

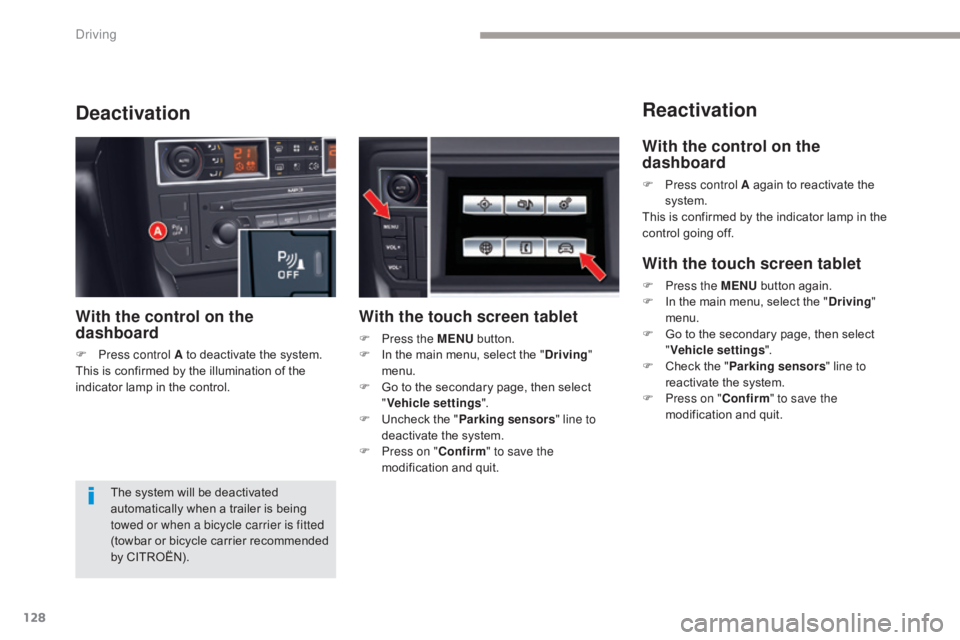

Reactivation
Deactivation
The system will be deactivated
automatically when a trailer is being
towed or when a bicycle carrier is fitted
(towbar or bicycle carrier recommended
by CITROËN).
With the control on the
dashboard
F Press control A to deactivate the system.
This is confirmed by the illumination of the
indicator lamp in the control.
With the touch screen tablet
F Press the MENU button.
F I n the main menu, select the " Driving"
menu.
F

G
o to the secondary page, then select
" Vehicle settings ".
F

U
ncheck the " Parking sensors " line to
deactivate the system.
F

P
ress on " Confirm" to save the
modification and quit.
With the control on the
dashboard
F Press control A again to reactivate the system.
This is confirmed by the indicator lamp in the
control going off.
With the touch screen tablet
F Press the MENU button again.
F I n the main menu, select the " Driving"
menu.
F

G
o to the secondary page, then select
" Vehicle settings ".
F

C
heck the " Parking sensors " line to
reactivate the system.
F

P
ress on " Confirm" to save the
modification and quit.
Driving
