Citroen C5 DAG 2007.5 (DC/DE) / 1.G User Guide
Manufacturer: CITROEN, Model Year: 2007.5, Model line: C5 DAG, Model: Citroen C5 DAG 2007.5 (DC/DE) / 1.GPages: 231, PDF Size: 8.02 MB
Page 11 of 231
I
14
B
A
IN BRIEF
D R I V I N G
Electric parking brake
77
Never leave a child alone inside the vehicle with the ignition on, as they could release the parking brake.
Hill start assist
Manual operation
The MANUAL application/release of the parking brake is possible permanently by pulling/pushing control B.
Before leaving the vehicle, check that warning lamp A (!) (red) on the instru-ment panel is permanently lit and that warning lamp P (red) on con-trol B is lit.
With the engine running, if you leave the vehicle, manually apply the park-ing brake.
Do not leave the vehicle while it is being held in the temporary immobilisation hill start assist phase.
To aid starting on a gradient, your vehicle is equipped with a system which keeps it immobilised for a short time (about 2 seconds), the approximate time it takes to move your foot from the brake pedal to the accelerator pedal.
This function is only active when:The vehicle is completely sta-tionary, with your foot on the brake pedal.
In particular conditions on a slope.With the driver's door closed.
Page 12 of 231
II
1515
2
3
4
1
5
2
3
4
1
5
IN BRIEF
D R I V I N G

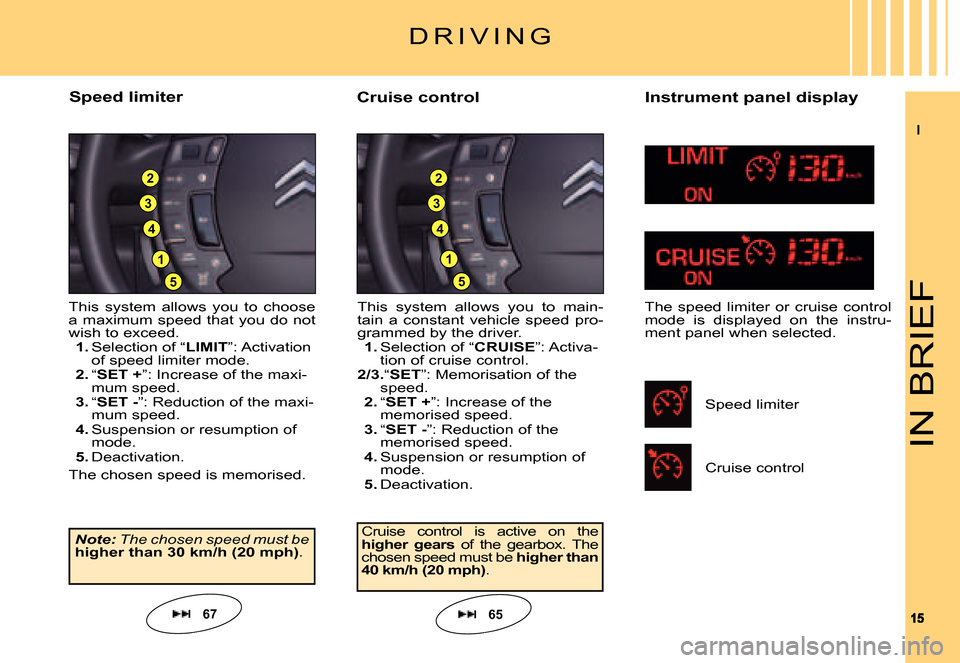

This system allows you to main-tain a constant vehicle speed pro-grammed by the driver.1. Selection of “CRUISE”: Activa-tion of cruise control.2/3.“SET”: Memorisation of the speed.2. “SET +”: Increase of the memorised speed.3. “SET -”: Reduction of the memorised speed.4. Suspension or resumption of mode.5. Deactivation.
Cruise controlSpeed limiter
This system allows you to choose a maximum speed that you do not wish to exceed.1. Selection of “LIMIT”: Activation of speed limiter mode.2. “SET +”: Increase of the maxi-mum speed.3. “SET -”: Reduction of the maxi-mum speed.4. Suspension or resumption of mode.5. Deactivation.
The chosen speed is memorised.
6567
Note: The chosen speed must be higher than 30 km/h (20 mph).
Cruise control is active on the higher gears of the gearbox. The chosen speed must be higher than 40 km/h (20 mph).
Instrument panel display
The speed limiter or cruise control mode is displayed on the instru-ment panel when selected.
Cruise control
Speed limiter
