IN BRIEF
1 Electric windows / Rear view mirrors / Child
safety controls
2 Memorisation of driver's seat and exterior rear
view mirror adjustments
3 Bonnet release
4 Controls at the steering wheel:
Speed limiter
Cruise control
5 Horn
6 Audio/telematic controls under steering wheel
7 Driver's airbag
8 Navigation controls
9 Driver's air vent
10 Instrument panel
11 Driver's air vent
12 Lighting control
13 Windscreen wiper / Screen wash controls
14 Ignition switch
15 ESP / Parking assistance controls
16 Steering column adjustment
17 Knees airbag
18 - Oddments tray
- F u s e b o x a c c e s s fl a p
19 Checks / Anti-intrusion alarm / Parking space
sensor controls
20 Lighting / Direction indicators / Foglamp / Voice
recognition controls
21 Manual headlamp height adjustment
-
-
D A S H B O A R D
Page 34 of 231
36
II
I N S T R U M E N T P A N E L
T R I P C O M P U T E R
Distance travelled
This is the distance that has been travelled since the last reset to zero of the Journey selected.
Journeys
Journeys 1 and 2 are independent of each other but identical in use. They allow you, for example, to assign journey 1for daily calculations and journey 2 for monthly calculations.
Reset a journey to zero
When the required journey is displayed, make a long press on th e left-hand control knob A on the steering wheel.
Return to the main instrument panel screen display
Successive rotations of the control knob A on the steering wheel allow you to return you to the main instrument panel screen display (vehicle speed), via the navigation information scree n, then the screen displaying only the total mile-age and the trip mileage (bottom of screen).
A second rotation of control knob A allows you to display the information for journey A2.
Average speed
This is calculated (since the last reset to zero of the trip computer) by dividing the dis-tance travelled by the time taken (with the engine running).
Average consumption
This is the relationship between the fuel consumed and the distance travelled since the last reset to zero of the selected journey.
Information for two journeys 1 and 2
A fi r s t r o t a t i o n o f c o n t r o l k n o b A on the steering wheel allows you to display the information for journey 1.
Page 35 of 231
37
II
A
I N S T R U M E N T P A N E L
T E L E M A T I C S

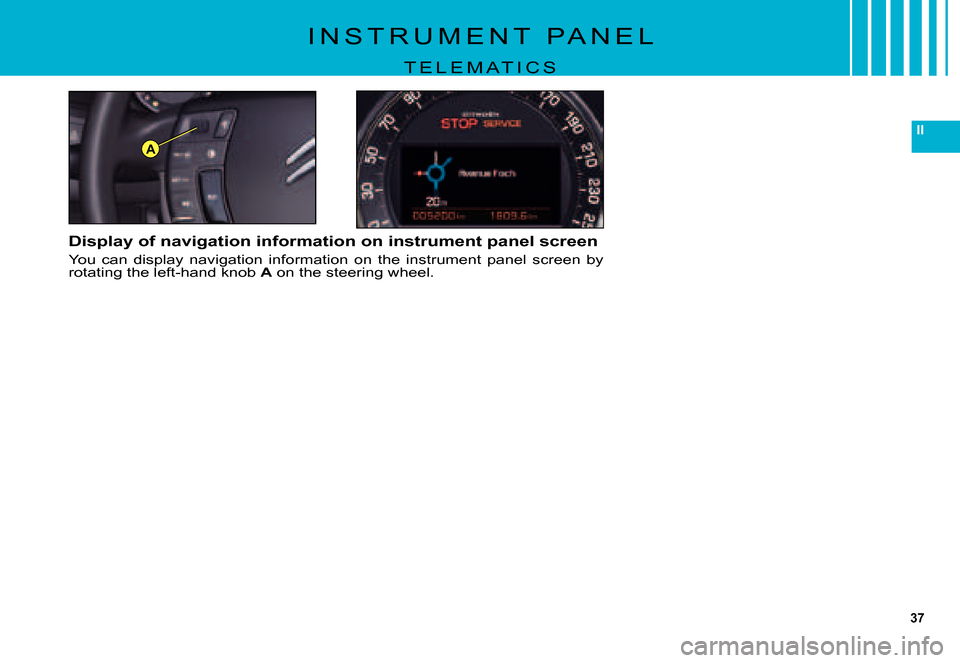

Display of navigation information on instrument panel screen
You can display navigation information on the instrument panel screen by rotating the left-hand knob A on the steering wheel.
Page 59 of 231
63
II
BDC
A
BC
A
E
1234
M U L T I F U N C T I O N D I S P L A Y
T E L E M A T I C S
ControlsA. Access to the telematics multi-function display menu.B. Cancellation of the operation or return to the previous display.C. Scrolling through the menus of the telematics multifunction display. Validation using steer-ing wheel controls.D. Validation using radio panel.E Selection of the type of infor-mation presented on the telematics multifunction display (date, radio/CD/CD MP3/CD changer/jukebox, navigation information, telephone).
T r a f fi c i n f o r m a t i o n
See NaviDrive instruc-tions.
Navigation/guidance
See NaviDrive instruc-tions.
Audio
See NaviDrive instruc-tions.
Main Menu
Press on button A to display the telematics multifunction display “Main Menu”. This menu gives you access to the following functions:
Telephone and telematic services
See NaviDrive instruc-tions.
Map
See NaviDrive instruc-tions.

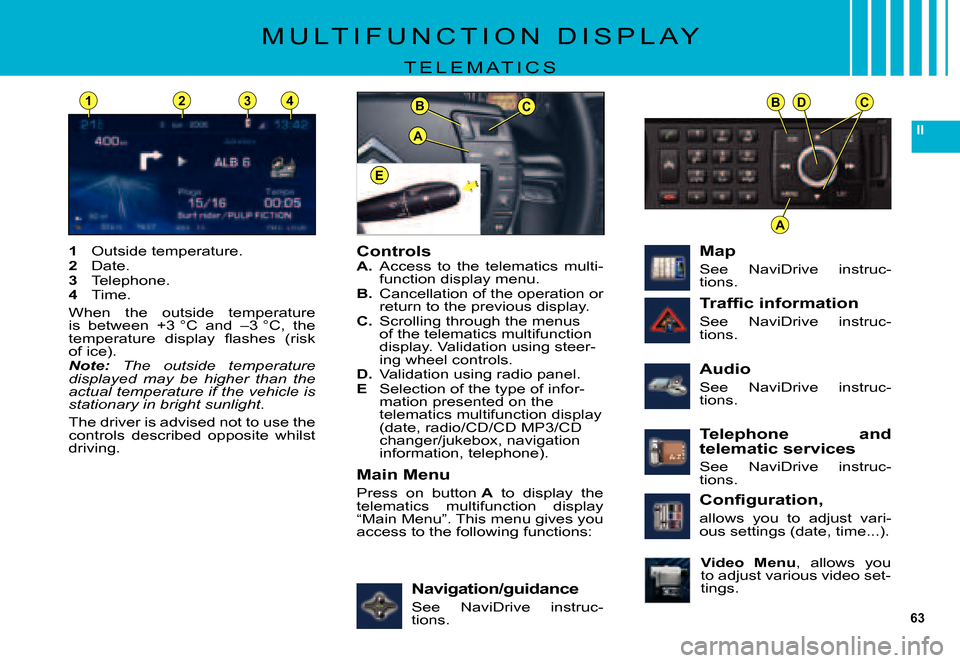

1 Outside temperature.2 Date.3 Telephone.4 Time.
When the outside temperature is between +3 °C and –3 °C, the t e m p e r a t u r e d i s p l a y fl a s h e s ( r i s k of ice).Note: The outside temperature displayed may be higher than the actual temperature if the vehicle is stationary in bright sunlight.
The driver is advised not to use the controls described opposite whilst driving.
C o n fi g u r a t i o n ,
allows you to adjust vari-ous settings (date, time...).
Video Menu, allows you to adjust various video set-tings.
Page 119 of 231
123
IV

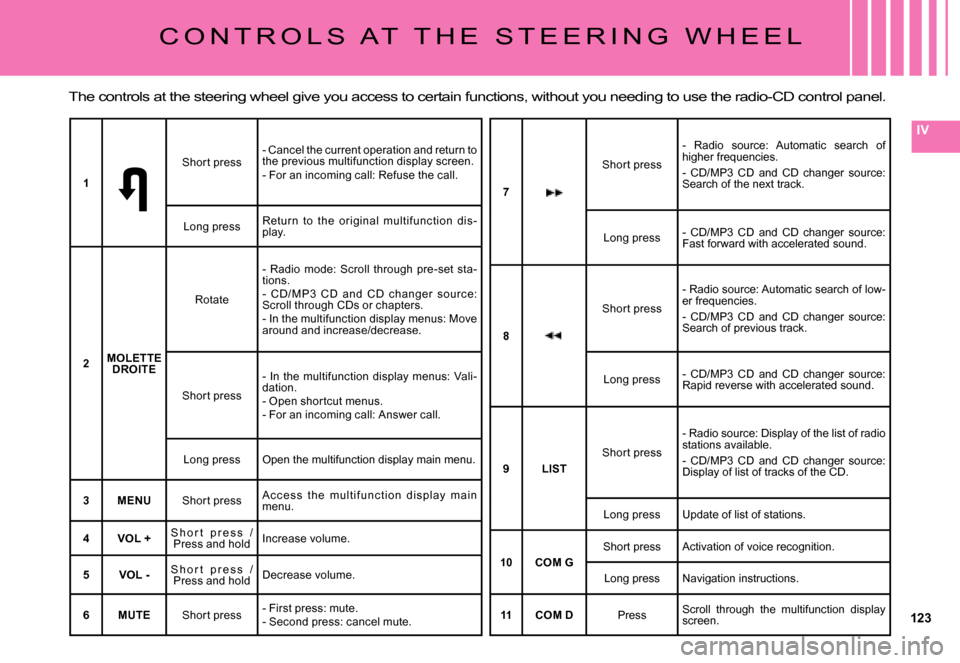

C O N T R O L S A T T H E S T E E R I N G W H E E L
The controls at the steering wheel give you access to certain functions, without you needing to use the radio-CD control panel.
1
Shor t press- Cancel the current operation and return to the previous multifunction display screen.- For an incoming call: Refuse the call.
Long pressRetur n to the or iginal multifunc tion dis -play.
2MOLETTE DROITE
Rotate
- Radio mode: Scroll through pre-set sta-tions.- CD/ M P3 CD and CD changer sourc e: Scroll through CDs or chapters.- In the multifunction display menus: Move around and increase/decrease.
Shor t press
- In the multifunction display menus: Vali-dation.- Open shor tcut menus.- For an incoming call: Answer call.
Long pressOpen the multifunction display main menu.
3MENUShor t pressA c c e s s t h e m u l t i f u n c t i o n d i s p l ay m a i n menu.
4VOL +S h o r t p r e s s / Press and holdIncrease volume.
5VOL -S h o r t p r e s s / Press and holdDecrease volume.
6MUTEShor t press- First press: mute.- Second press: cancel mute.
7
Shor t press
- Radio source: Automatic search of higher frequencies.- CD/MP3 CD and CD changer source: Search of the next track.
Long press- CD/MP3 CD and CD changer source: Fast forward with accelerated sound.
8
Shor t press
- Radio source: Automatic search of low-er frequencies.- CD/MP3 CD and CD changer source: Search of previous track.
Long press- CD/MP3 CD and CD changer source: Rapid reverse with accelerated sound.
9LISTShor t press
- Radio source: Display of the list of radio stations available.- CD/MP3 CD and CD changer source: Display of list of tracks of the CD.
Long pressUpdate of list of stations.
10COM GShort pressActivation of voice recognition.
Long pressNavigation instructions.
11COM DPressScroll through the multifunction display screen.
Page 177 of 231
11
1
CONTENTS
What is NaviDrive ? .................................................. .................1
Description of the controls .........................................................2
Voice commands ........................................................................7
Main Menu................................................... ...............................9
Navigation - Guidance .............................................................10
Map .................................................. ........................................19
T r a f fi c i n f o r m a t i o n ....................................................................23
Audio system (Radio, CD player, CD changer, MP3) ..............26
Telephone................................................... .............................43
Telematic services ...................................................................49
C o n fi g u r a t i o n ............................................................................51
Video .................................................. .....................................53
Frequently-asked questions ....................................................54
Index NaviDrive .................................................. .....................56
W H A T I S N A V I D R I V E ?
NAVI DRIVE IS A SYSTEM WHICH ENABLES YOU :
To navigate to the destination of your choice (Euro pean map on hard disc) including journeys to your Centres of interest (cinema, hotel, restaurant...) a n d t a k i n g a c c o u n t o f t r a f fi c c o n d i t i o n s .To listen to the radio.To listen to CDs / MP3 CDs.To copy CDs into your Jukebox source (10 Go's avail able on the hard disc).To telephone hands-free.To enjoy access to CITROËN services according to the country you are in (Citroën Emergency, Citroën Assistance, Citroën On line and NaviDrive services).To connect a nomad audio/video device.
Page 185 of 231
99
T o k e e p t h e d i s p l a y c l e a n , i t i s r e c o m m e n d e d t o w i p e w i t h a s o f t , n o n - a b r a s i v e c l o t h ( e . g . f o r s p e c t a c l e s ) w i t h o u t a n y c l e a n i n g product added.

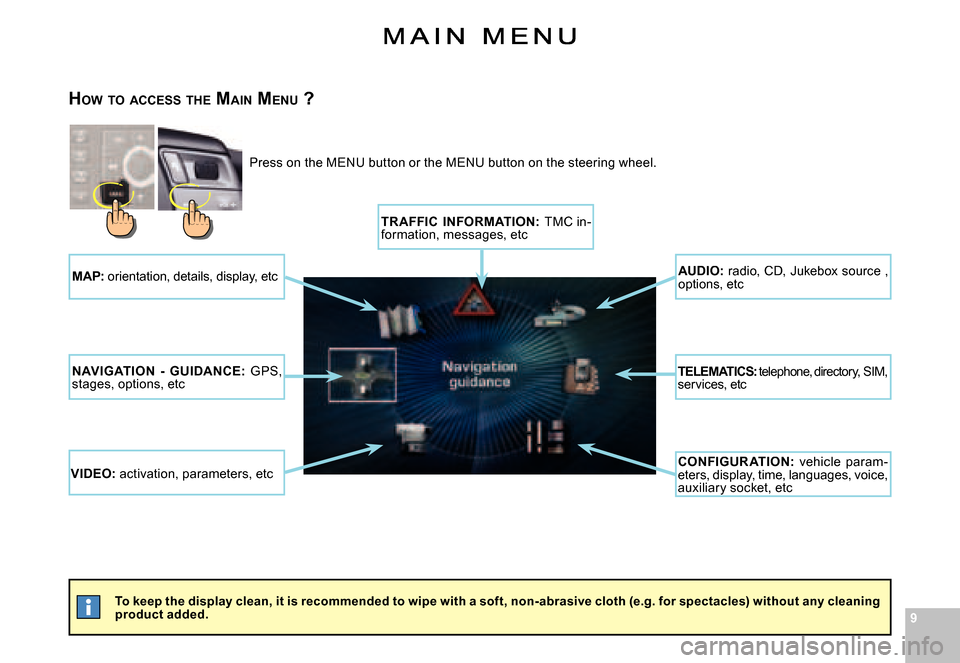

HOW TO ACCESS THE MAIN MENU ?
Press on the MENU button or the MENU button on the st eering wheel.
TR AFFIC INFORMATION: TMC in-formation, messages, etc
AUDIO: radio, CD, Jukebox source , options, etc
TELEMATICS: telephone, directory, SIM, services, etc
CONFIGUR ATION: vehicle param-eters, display, time, languages, voice, auxiliary socket, etcVIDEO: activation, parameters, etc
NAVIGATION - GUIDANCE: GPS, stages, options, etc
MAP: orientation, details, display, etc
Page 186 of 231
101010
I
N A V I G A T I O N / G U I D A N C E
G E N E R A L

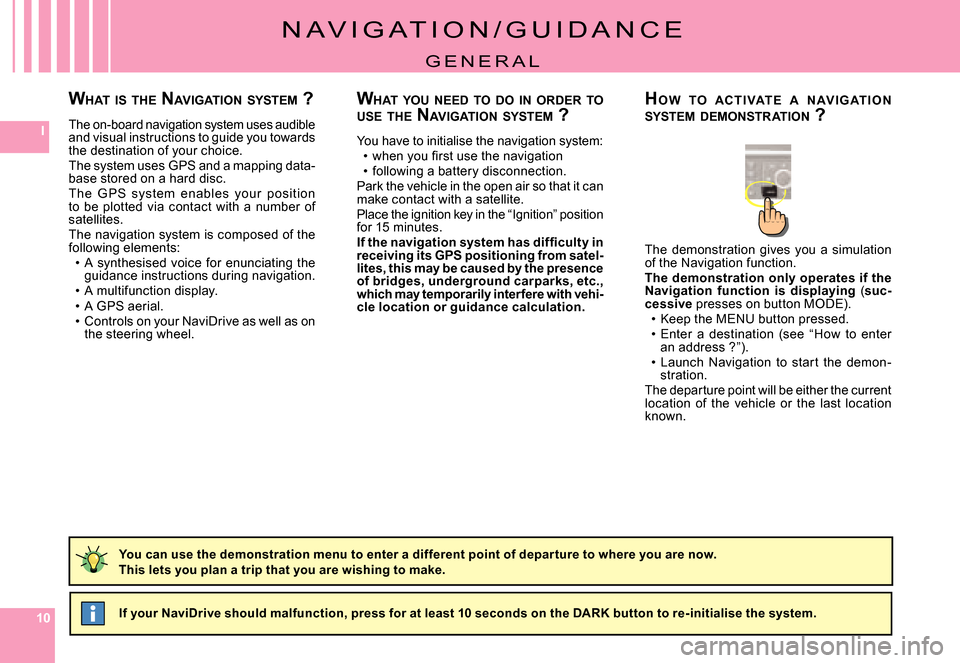

WHAT YOU NEED TO DO IN ORDER TO USE THE NAVIGATION SYSTEM ?
You have to initialise the navigation system: w h e n y o u fi r s t u s e t h e n a v i g a t i o nfollowing a battery disconnection.Park the vehicle in the open air so that it can make contact with a satellite.Place the ignition key in the “Ignition” position for 15 minutes. I f t h e n a v i g a t i o n s y s t e m h a s d i f fi c u l t y i n receiving its GPS positioning from satel- l i t e s , t h i s m a y b e c a u s e d b y t h e p r e s e n c e o f b r i d g e s , u n d e r g r o u n d c a r p a r k s , e t c . , which may temporarily interfere with vehi-cle location or guidance calculation.
Page 187 of 231
111111
I
e
abc
fgh
d
i
N A V I G A T I O N / G U I D A N C E
G E N E R A L
The Multifunction screenDuring a guidance, you have access to the following types of information:
a Manœuvre to be made, or direction to be taken.b Distance to the next manoeuvre.c Next manoeuvre to be made.d N ex t r o a d t o b e t a ke n a n d n a m e o f town.e S y m b o l c o n c e r n i n g T r a f fi c i n f o r m a t i o n o r the services that are in proximity.f Road you are currently on, name of the town.g Estimated time of arrival at destination ( b a s e d o n fl o w i n g t r a f fi c ) .h D i s t a n c e t o fi n a l d e s t i n a t i o n .i Altitude.
Apart from on the screen, the manœuvres t o b e m a d e a r e a n n o u n c e d by a vo i c e synthesiser.
Repeating the last piece of voice infor-mationA few seconds after enunciation of a guid-ance voice instruction, you have the pos-sibility of hearing it again.Keep the end of the lighting control stalk pressed.
How to adjust the volume for the voice instructions ?While a voice instruction is being spoken, press on the volume adjustment but ton c ontrols either on the system or on the steering wheel. A d j u s t m e n t i s a l s o p o s s i b l e i n t h e “ C o n fi g u -ration” menu.

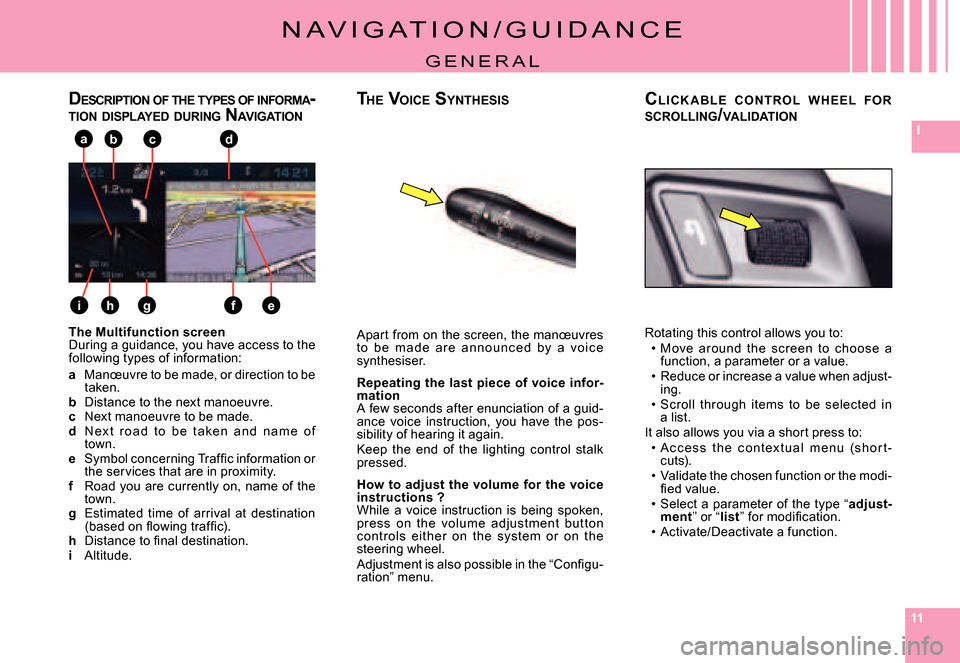

DESCRIPTION OF THE TYPES OF INFORMA -TION DISPLAYED DURING NAVIGATIONTHE VOICE SYNTHESIS
Rotating this control allows you to:M ove around the screen to choose a function, a parameter or a value.Reduce or increase a value when adjust-ing.Scroll through items to be selected in a list.It also allows you via a short press to:A c c e s s t h e c o n t ex t u a l m e n u (s h o r t -cuts).Validate the chosen function or the modi- fi e d v a l u e .Select a parameter of the type “adjust-ment” or “list ” f o r m o d i fi c a t i o n .Activate/Deactivate a function.
Page 188 of 231
121212
I
B
C
D
E
F
A
CD
B
EF

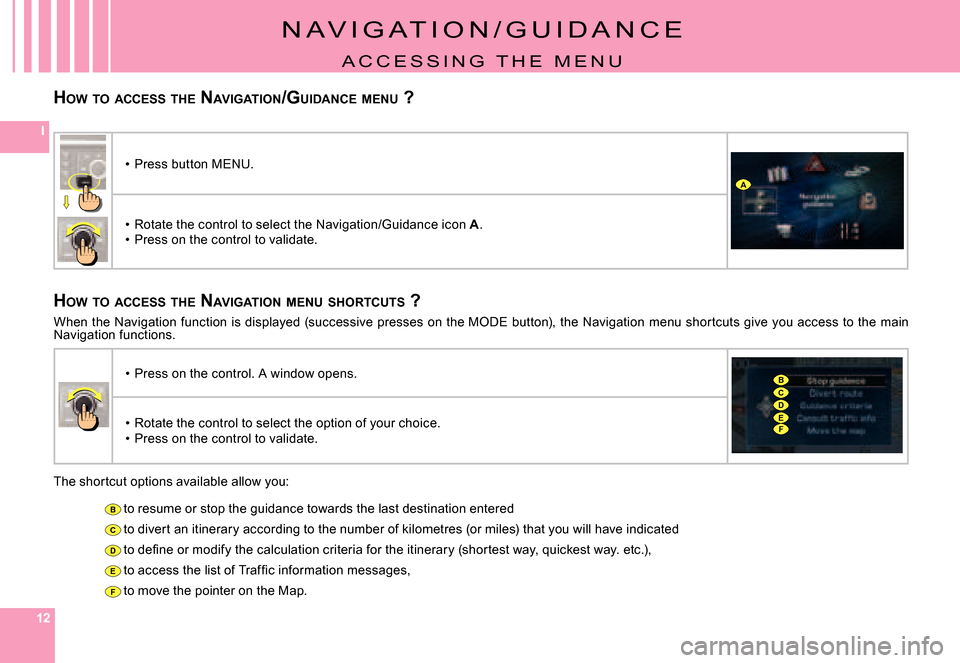

HOW TO ACCESS THE NAVIGATION /GUIDANCE MENU ?
N A V I G A T I O N / G U I D A N C E
A C C E S S I N G T H E M E N U
HOW TO ACCESS THE NAVIGATION MENU SHORTCUTS ?
The shortcut options available allow you:
to resume or stop the guidance towards the last desti nation entered
to divert an itinerary according to the number of kilometres (or miles) that you will have indicated
t o d e fi n e o r m o d i f y t h e c a l c u l a t i o n c r i t e r i a f o r t h e i t i n e r a r y ( s h o r t e s t w a y , q u i c k e s t w a y . e t c . ) ,
t o a c c e s s t h e l i s t o f T r a f fi c i n f o r m a t i o n m e s s a g e s ,
to move the pointer on the Map.
Press button MENU.
