88
II
“ H Y D R A C T I V E I I I + ” S U S P E N S I O N
Position changes may only be made when the engine is run-ning.
Adjustable ground clearance responds to all types of situation. A p a r t f r o m a f e w s p e c i fi c s i t u a -tions, driving in the normal road position is imperative.
To change the position
Press once on one of the adjust-ment controls. The change in posi-tion is indicated by a message on the instrument panel screen:
Maximum height
Changing a wheel (Not possible if speed > 10 km/h).
Intermediate position
For an increased ground clearance (Not possible if speed > 40 km/h).
F o r u s e o n d i f fi c u l t r o a d s w h e n t r a v e l l i n g at reduced speed, as well as on carpark ramps.
Normal road position
Note: If the speed authorised for a par-ticular position is exceeded, the vehicle reverts automatically to the normal road position.
Minimum height
To facilitate loading or unloading the vehicle.
For workshop inspections.
Not to be used in normal driving (Not possible if speed > 10 km/h).
For your safety if you are operating underneath the vehicle, it is obligatory to support the vehicle with axle stands.

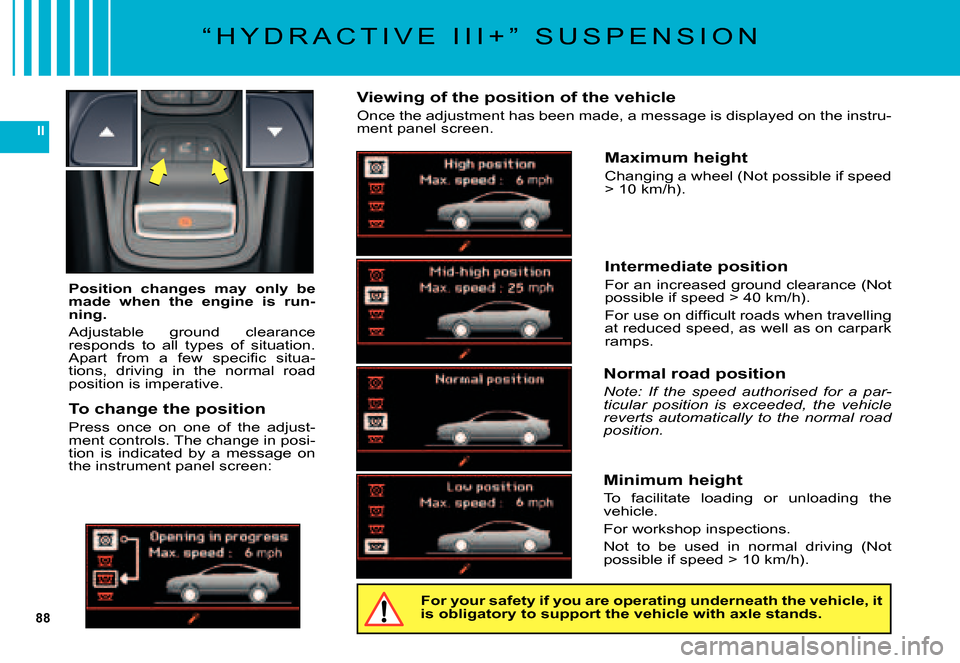

Viewing of the position of the vehicle
Once the adjustment has been made, a message is displayed on t he instru-ment panel screen.
Page 85 of 231
89
II
A
L A N E D E P A R T U R E W A R N I N G S Y S T E M
This driving assistance device warns you when you unwittingly cross a lane marking (either a continuous or a dotted line on the road surface). It is designed for use on motorways and dual carriageways, operatin g only above speeds of approx. 80.
Activation/Deactivation
A press on button A activates the function, the warning lamp on the button lights up.
A second press on button A deactivates the function, the warning lamp on the button goes out.
When you start the engine, the mode (activated/deactivated) selected when you stopped the engine is retained.
Operation
Above a speed of around 80 km/h, if you cross a lane marking, you are alerted to this by a vibration within the cush-ion of your seat:On the right hand side if you cross a lane marking to the right.On the left hand side if you cross a lane marking to the left.
The system does not alert you if one of your direction indicato rs is operating and for approx. 20 seconds after the direction indicator has stopped.
Remarks:
T h i s s y s t e m i s d e s i g n e d t o i d e n t i f y t r a f fi c l a n e m a r k i n g s .
In certain cases it may trigger an alert that is unnecessary, for e xample if the vehicle passes over a directional arrow or some unusual road marking.
The system may be affected temporarily by conditions external to th e vehicle: D e t e c t i o n o f l a n e m a r k i n g s m a d e d i f fi c u l t b y :
Markings being worn. I n s u f fi c i e n t c o n t r a s t w i t h t h e g e n e r a l r o a d s u r f a c e .Sensors being negated by:
Driving in snow or heavy rain.Driving on roads that are covered with mud or water puddles.
If there is prolonged interference, contact a CITROËN dealer.
Page 93 of 231
97
III
A U T O M A T I C A I R C O N D I T I O N I N G
G E N E R A L
You are advised to use the automatic air conditioning regulation. This automatically regulates the following f u n c t i o n s f o r m a x i m u m c o m f o r t : a i r fl o w , p a s s e n g e r compartment temperature, and air distribution, using different sensors (external temperature, sunlight). This avoids the need to alter any of the settings, with the exception of the temperature displayed.
Take care not to obstruct the sunlight sensor A.
Provided you retain automatic mode (by pressing button “AUTO”) and all the air vents are open, you will main-tain an optimum comfort level, also removing humidity and misting, whatever the ambient climatic conditions.
The temperature inside the cabin cannot be lower than the temperature outside if the air conditioning is not operating.
To be effective, the air conditioning should only be used with the windows closed. If after a lengthy stop in bright sunlight the interior temperature is excessive, air the passenger compartment by opening the windows for a few moments, then close them again.
To ensure the correct operation of the air conditioning system, it is essential to operate the air conditioning at least once a month.
The air conditioning operates by using power from the engine. This results in a slight increase in fuel con-sumption.
In certain extreme operating conditions (e.g. carrying a full load up a steep gradient in high temperatures), the switching off of the air conditioning allows more power to be transferred to the engine, thereby increasing the towing capacity.
Air inlet
Check that the exterior grille for the air inlet, at the bot-tom of the windscreen, is clean and free of dead leaves, snow, etc.
If washing the vehicle with a high pressure jet, avoid targeting the air inlet zone.
Air circulation
For your comfort we advise you to maintain a proper distribution of air within the cabin, both at the front and at the rear.
To obtain an even distribution of air, ensure that you do obstruct the external air inlet grille located at the base of the windscreen, the air vents, the air outlets on the fl o o r u n d e r n e a t h t h e f r o n t s e a t s , a n d t h e a i r e x t r a c t o r l o c a t e d b e h i n d t h e fl a p s i n t h e b o o t .
T h e f r o n t a n d r e a r a i r v e n t s a r e fi t t e d w i t h c o n t r o l k n o b s w h i c h a l l o w y o u t o c o n t r o l a n d d i r e c t t h e a i r fl o w . I t i s recommended to keep all the air vents open.
D u s t / p o l l e n fi l t e r
T h e r e i s a fi l t e r f o r e x c l u d i n g p o l l e n a n d d u s t .
T h i s fi l t e r h a s t o b e c h a n g e d a c c o r d i n g t o t h e v e h i c l e maintenance schedule. See “Maintenance Guide”.
Page 97 of 231
101
III
A U T O M A T I C A I R C O N D I T I O N I N G
M O N O Z O N E

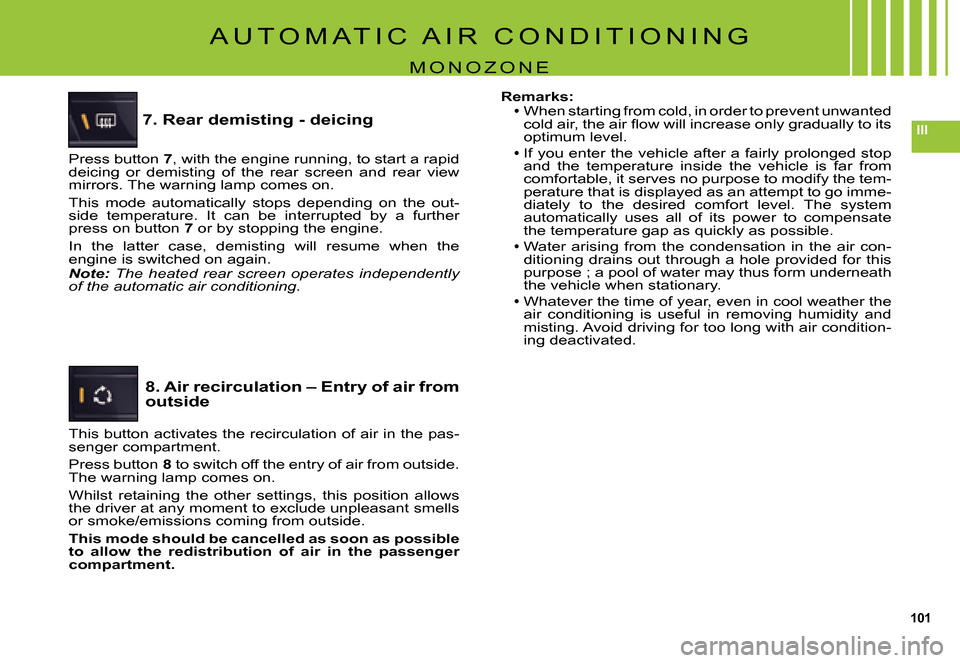

7. Rear demisting - deicing
Press button 7, with the engine running, to start a rapid deicing or demisting of the rear screen and rear view mirrors. The warning lamp comes on.
This mode automatically stops depending on the out-side temperature. It can be interrupted by a further press on button 7 or by stopping the engine.
In the latter case, demisting will resume when the engine is switched on again.Note: The heated rear screen operates independently of the automatic air conditioning.
This button activates the recirculation of air in the pas-senger compartment.
Press button 8 to switch off the entry of air from outside. The warning lamp comes on.
Whilst retaining the other settings, this position allows the driver at any moment to exclude unpleasant smells or smoke/emissions coming from outside.
This mode should be cancelled as soon as possible to allow the redistribution of air in the passenger compartment.
8. Air recirculation – Entry of air from outside
Remarks:When starting from cold, in order to prevent unwanted c o l d a i r , t h e a i r fl o w w i l l i n c r e a s e o n l y g r a d u a l l y t o i t s optimum level.
If you enter the vehicle after a fairly prolonged stop and the temperature inside the vehicle is far from comfortable, it serves no purpose to modify the tem-perature that is displayed as an attempt to go imme-diately to the desired comfort level. The system automatically uses all of its power to compensate the temperature gap as quickly as possible.Water arising from the condensation in the air con-ditioning drains out through a hole provided for this purpose ; a pool of water may thus form underneath the vehicle when stationary.
Whatever the time of year, even in cool weather the air conditioning is useful in removing humidity and misting. Avoid driving for too long with air condition-ing deactivated.
Page 100 of 231
104
III
A U T O M A T I C A I R C O N D I T I O N I N G
D U A L - Z O N E

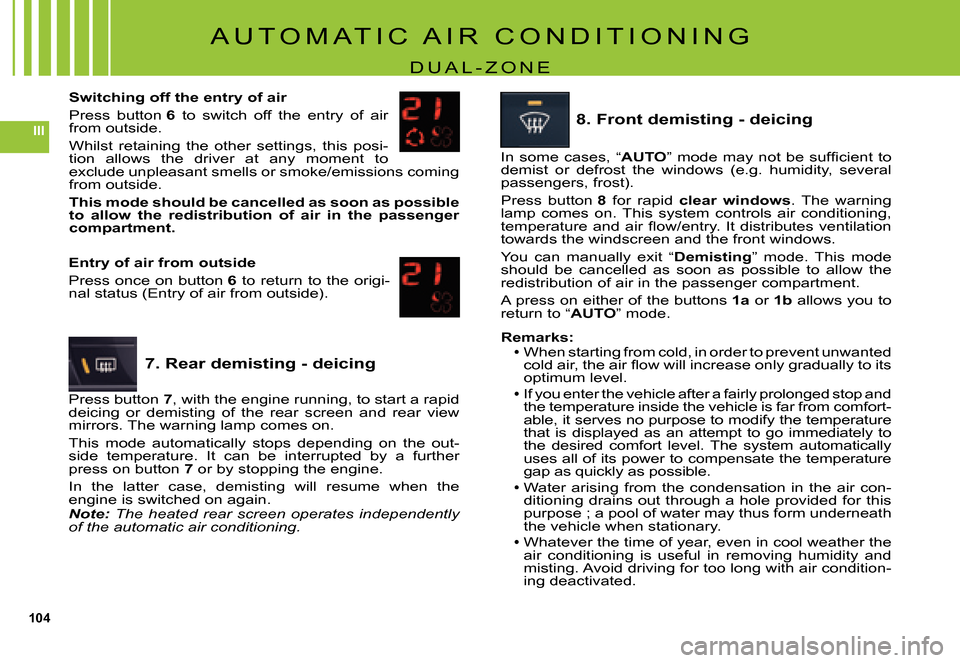

Switching off the entry of air
Press button 6 to switch off the entry of air from outside.
Whilst retaining the other settings, this posi-tion allows the driver at any moment to exclude unpleasant smells or smoke/emissions coming from outside.
This mode should be cancelled as soon as possible to allow the redistribution of air in the passenger compartment.
Entry of air from outside
Press once on button 6 to return to the origi-nal status (Entry of air from outside).
7. Rear demisting - deicing
Press button 7, with the engine running, to start a rapid deicing or demisting of the rear screen and rear view mirrors. The warning lamp comes on.
This mode automatically stops depending on the out-side temperature. It can be interrupted by a further press on button 7 or by stopping the engine.
In the latter case, demisting will resume when the engine is switched on again.Note: The heated rear screen operates independently of the automatic air conditioning.
8. Front demisting - deicing
In some cases, “AUTO ” m o d e m a y n o t b e s u f fi c i e n t t o demist or defrost the windows (e.g. humidity, several passengers, frost).
Press button 8 for rapid clear windows. The warning lamp comes on. This system controls air conditioning, t e m p e r a t u r e a n d a i r fl o w / e n t r y . I t d i s t r i b u t e s v e n t i l a t i o n towards the windscreen and the front windows.
You can manually exit “Demisting” mode. This mode should be cancelled as soon as possible to allow the redistribution of air in the passenger compartment.
A press on either of the buttons 1a or 1b allows you to return to “AUTO” mode.
Remarks:When starting from cold, in order to prevent unwanted c o l d a i r , t h e a i r fl o w w i l l i n c r e a s e o n l y g r a d u a l l y t o i t s optimum level.If you enter the vehicle after a fairly prolonged stop and the temperature inside the vehicle is far from comf ort-able, it serves no purpose to modify the temperatur e that is displayed as an attempt to go immediately t o the desired comfort level. The system automatically uses all of its power to compensate the temperature gap as quickly as possible.
Water arising from the condensation in the air con-ditioning drains out through a hole provided for this purpose ; a pool of water may thus form underneath the vehicle when stationary.
Whatever the time of year, even in cool weather the air conditioning is useful in removing humidity and misting. Avoid driving for too long with air condition-ing deactivated.
Page 109 of 231
113
III
B
A
I N T E R I O R L I G H T I N G

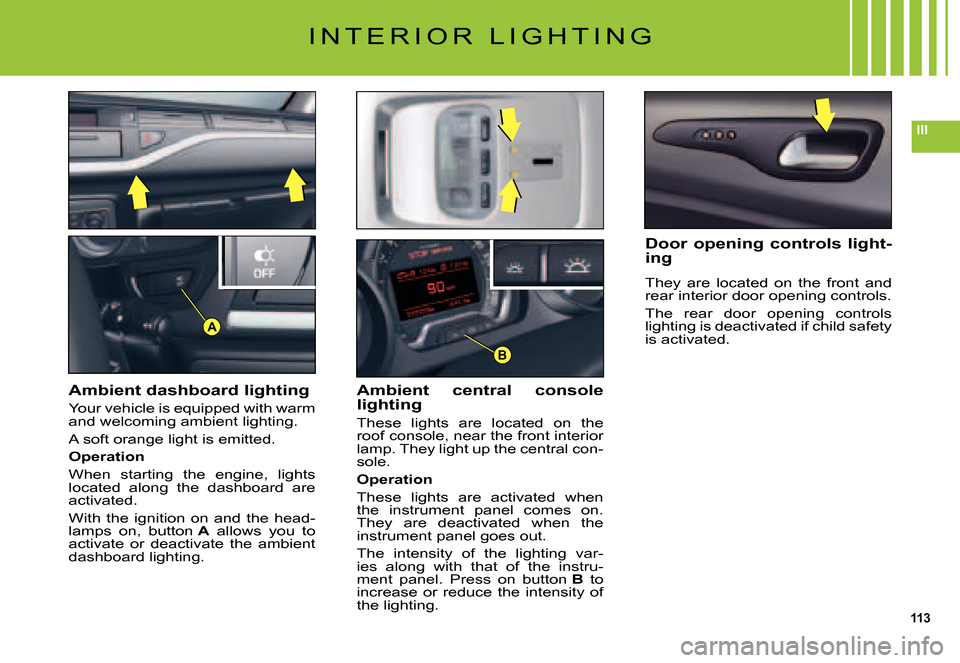

Ambient dashboard lighting
Your vehicle is equipped with warm and welcoming ambient lighting.
A soft orange light is emitted.
Operation
When starting the engine, lights located along the dashboard are activated.
With the ignition on and the head-lamps on, button A allows you to activate or deactivate the ambient dashboard lighting.
Ambient central console lighting
These lights are located on the roof console, near the front interior lamp. They light up the central con-sole.
Operation
These lights are activated when the instrument panel comes on. They are deactivated when the instrument panel goes out.
The intensity of the lighting var-ies along with that of the instru-ment panel. Press on button B to increase or reduce the intensity of the lighting.
Door opening controls light-ing
They are located on the front and rear interior door opening controls.
The rear door opening controls lighting is deactivated if child safety is activated.
Page 114 of 231
118
III
2
1
43
B O O T
1 Battery for vehicles with V6 HDi engine.2 Pull strap (spare wheel stowage).3 Boot lamp.4 6 CD changer.

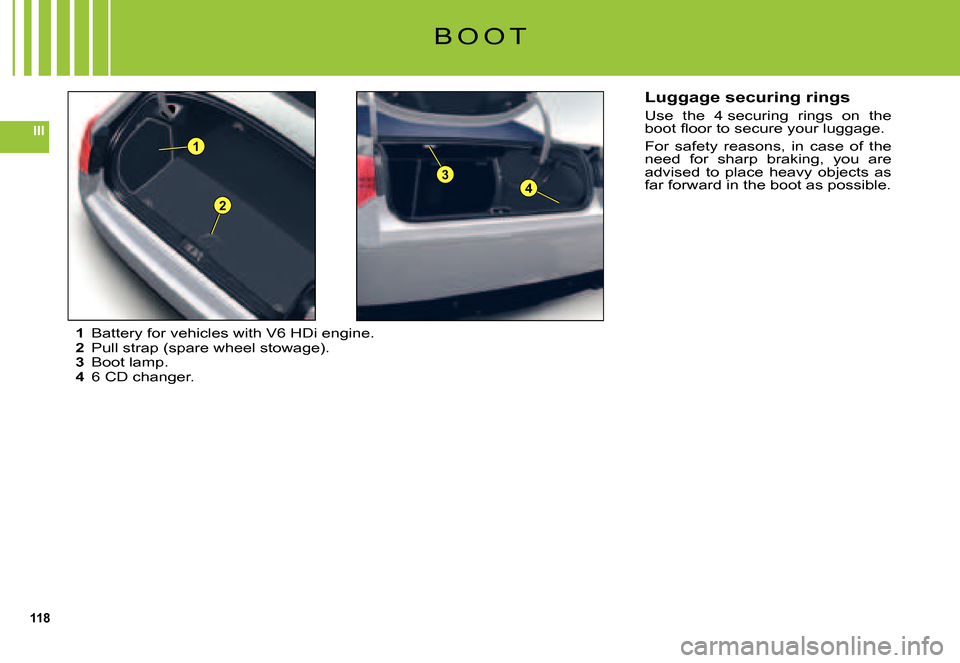

Luggage securing rings
Use the 4 securing rings on the b o o t fl o o r t o s e c u r e y o u r l u g g a g e .
For safety reasons, in case of the need for sharp braking, you are advised to place heavy objects as far forward in the boot as possible.
Page 133 of 231
137
IV
F R E Q U E N T L Y - A S K E D Q U E S T I O N S

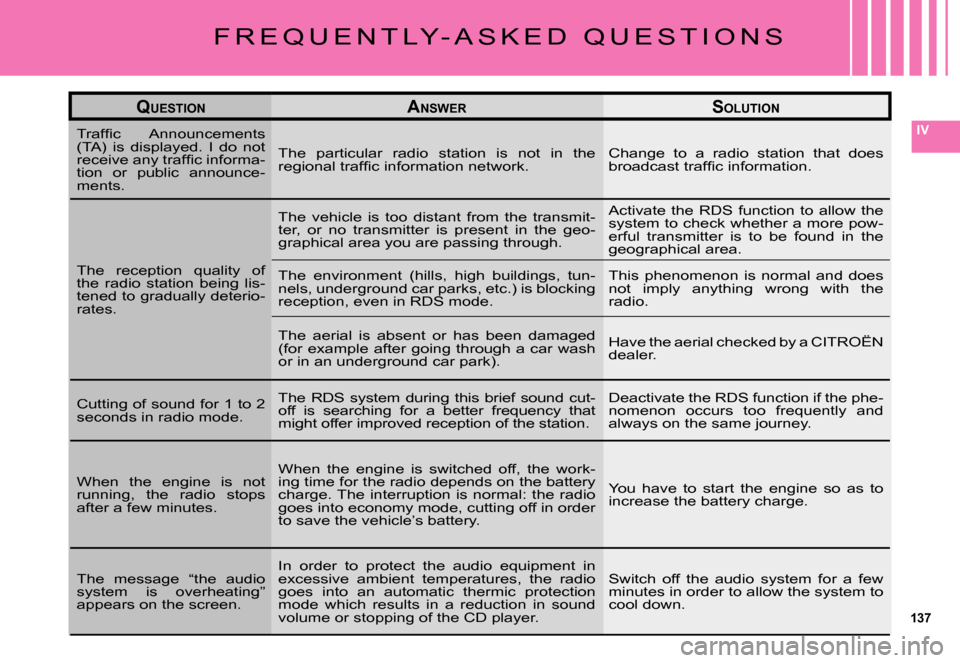

QUESTIONANSWERSOLUTION
T r a f fi c A n n o u n c e m e n t s (TA) is displayed. I do not r e c e i v e a n y t r a f fi c i n f o r m a -tion or public announce-ments.
The particular radio station is not in the r e g i o n a l t r a f fi c i n f o r m a t i o n n e t w o r k .Change to a radio station that does b r o a d c a s t t r a f fi c i n f o r m a t i o n .
The reception quality of the radio station being lis-tened to gradually deterio-rates.
The vehicle is too distant from the transmit-ter, or no transmitter is present in the geo-graphical area you are passing through.
Activate the RDS function to allow the system to check whether a more pow-erful transmitter is to be found in the geographical area.
The environment (hills, high buildings, tun-nels, underground car parks, etc.) is blocking reception, even in RDS mode.
This phenomenon is normal and does not imply anything wrong with the radio.
The aerial is absent or has been damaged (for example after going through a car wash or in an underground car park).
Have the aerial checked by a CITROËN dealer.
Cutting of sound for 1 to 2 seconds in radio mode.
The RDS system during this brief sound cut-off is searching for a better frequency that might offer improved reception of the station.
Deactivate the RDS function if the phe-nomenon occurs too frequently and always on the same journey.
When the engine is not running, the radio stops after a few minutes.
When the engine is switched off, the work-ing time for the radio depends on the battery charge. The interruption is normal: the radio goes into economy mode, cutting off in order to save the vehicle’s battery.
You have to start the engine so as to increase the battery charge.
The message “the audio system is overheating” appears on the screen.
In order to protect the audio equipment in excessive ambient temperatures, the radio goes into an automatic thermic protection mode which results in a reduction in sound volume or stopping of the CD player.
Switch off the audio system for a few minutes in order to allow the system to cool down.
Page 134 of 231
138
V
A
B
B O N N E T R E L E A S E

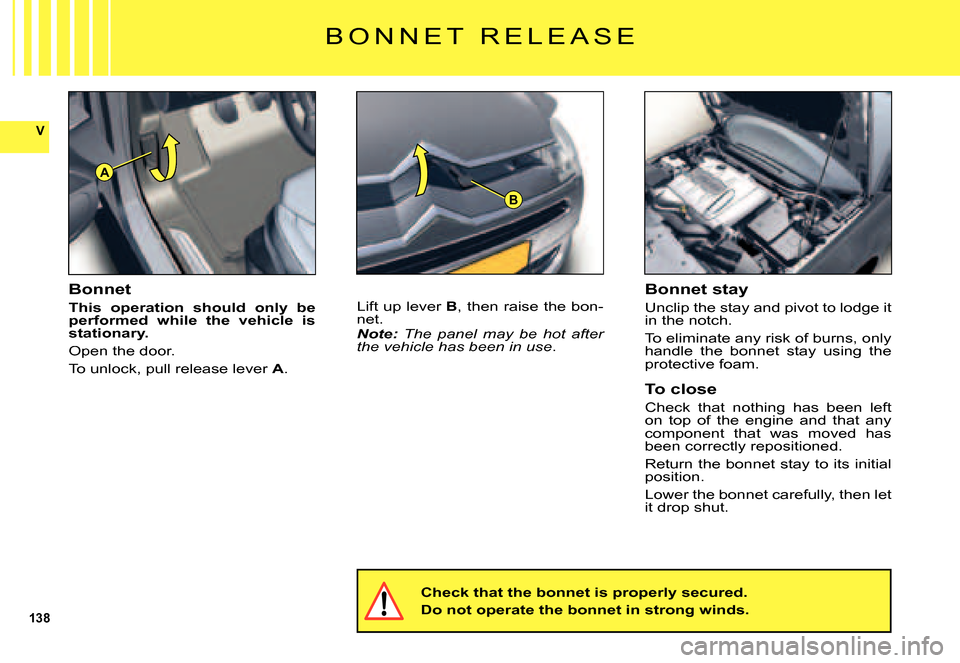

Bonnet
This operation should only be performed while the vehicle is stationary.
Open the door.
To unlock, pull release lever A.
Lift up lever B, then raise the bon-net.Note: The panel may be hot after the vehicle has been in use.
Check that the bonnet is properly secured.
Do not operate the bonnet in strong winds.
Bonnet stay
Unclip the stay and pivot to lodge it in the notch.
To eliminate any risk of burns, only handle the bonnet stay using the protective foam.
To close
Check that nothing has been left on top of the engine and that any component that was moved has been correctly repositioned.
Return the bonnet stay to its initial position.
Lower the bonnet carefully, then let it drop shut.
Page 136 of 231
140
V
A

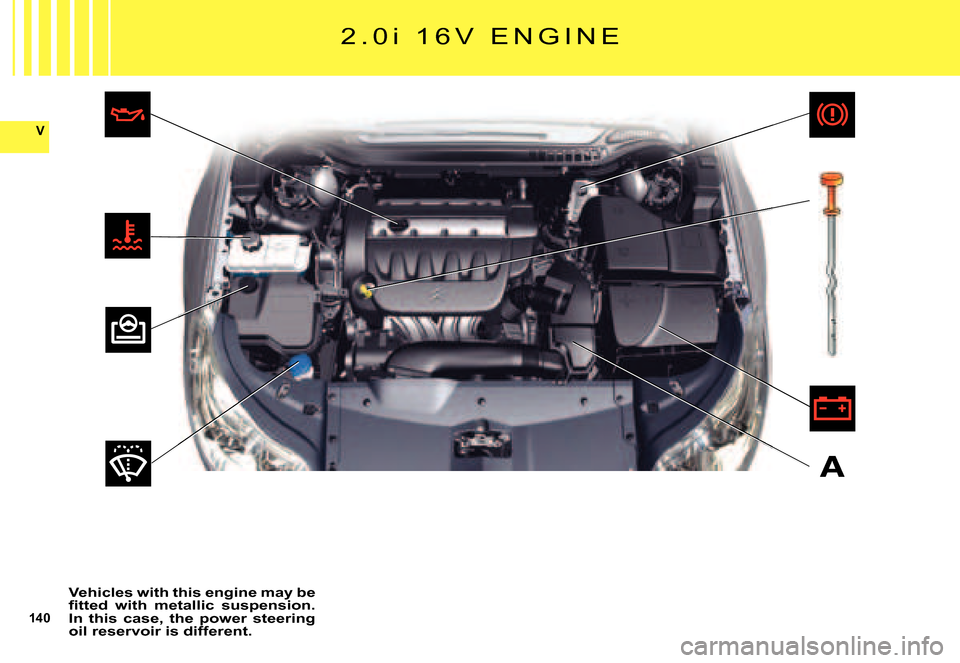

2 . 0i 1 6 V E N G I N E
