Page 148 of 231
152
V
+ 1
- 4- 3
+ 2
A
B
C

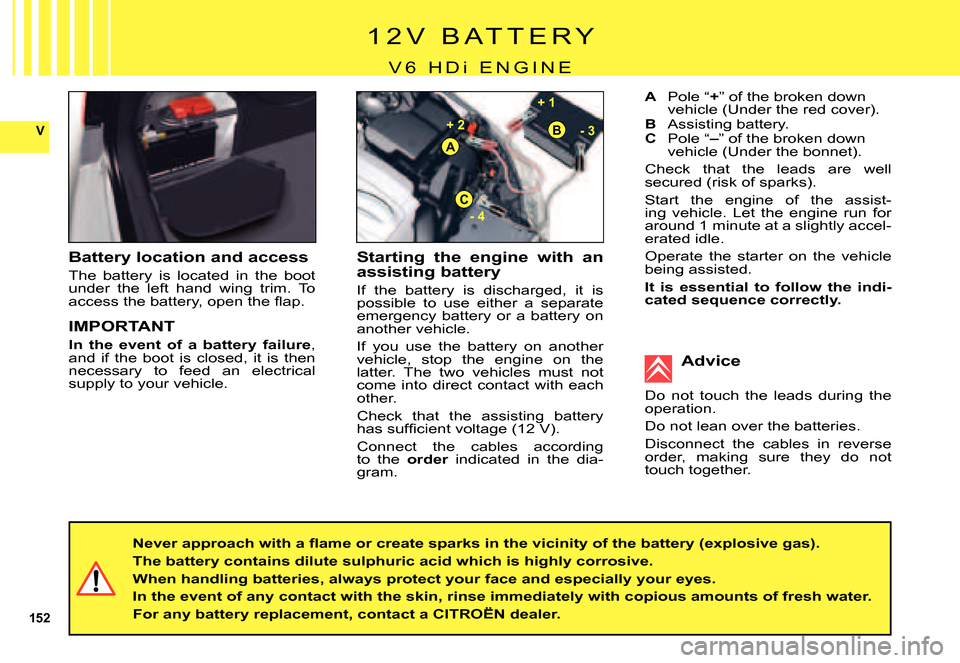

1 2 V B A T T E R Y
V 6 H Di E N G I N E
Starting the engine with an assisting battery
If the battery is discharged, it is possible to use either a separate emergency battery or a battery on another vehicle.
If you use the battery on another vehicle, stop the engine on the latter. The two vehicles must not come into direct contact with each other.
Check that the assisting battery h a s s u f fi c i e n t v o l t a g e ( 1 2 V ) .
Connect the cables according to the order indicated in the dia-ordergram.
A Pole “+” of the broken down vehicle (Under the red cover).B Assisting battery.C Pole “–” of the broken down vehicle (Under the bonnet).
Check that the leads are well secured (risk of sparks).
Start the engine of the assist-ing vehicle. Let the engine run for around 1 minute at a slightly accel-erated idle.
Operate the starter on the vehicle being assisted.
It is essential to follow the indi-cated sequence correctly.
N e v e r a p p r o a c h w i t h a fl a m e o r c r e a t e s p a r k s i n t h e v i
c i n i t y o f t h e b a t t e r y ( e x p l o s i v e g a s ) .
The battery contains dilute sulphuric acid which is hig hly corrosive.
When handling batteries, always protect your face and es pecially your eyes.
In the event of any contact with the skin, rinse immediatel y with copious amounts of fresh water.
For any battery replacement, contact a CITROËN dealer.
Do not touch the leads during the operation.
Do not lean over the batteries.
Disconnect the cables in reverse order, making sure they do not touch together.
Advice
Battery location and access
The battery is located in the boot under the left hand wing trim. To a c c e s s t h e b a t t e r y , o p e n t h e fl a p .
IMPORTANT
In the event of a battery failure, and if the boot is closed, it is then necessary to feed an electrical supply to your vehicle.
Page 151 of 231
155
V

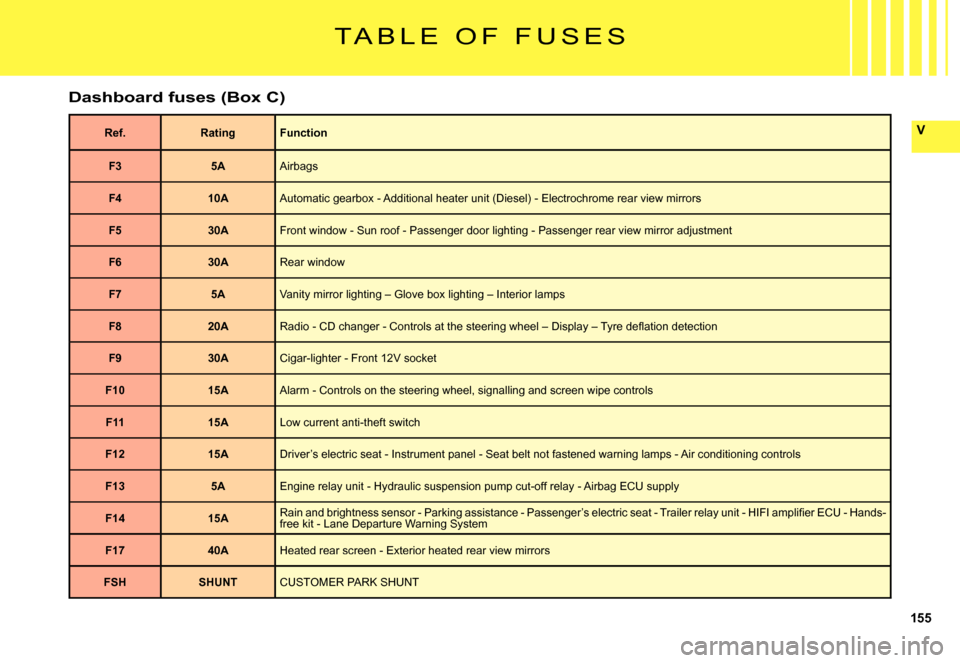

T A B L E O F F U S E S
Dashboard fuses (Box C)
Ref.RatingFunction
F35AAirbags
F410AAutomatic gearbox - Additional heater unit (Diesel) - Electrochrome rear view mirrors
F530AFront window - Sun roof - Passenger door lighting - Passenger rear view mirror adjustment
F630ARear window
F75AVanity mirror lighting – Glove box lighting – Interior lamps
F820A R a d i o - C D c h a n g e r - C o n t r o l s a t t h e s t e e r i n g w h e e l – D i s p l a y – T y r e d e fl a t i o n d e t e c t i o n
F930ACigar-lighter - Front 12V socket
F1015AAlarm - Controls on the steering wheel, signalling and screen w ipe controls
F1115ALow current anti-theft switch
F1215ADriver’s electric seat - Instrument panel - Seat belt not fastened warning lamps - Air conditioning controls
F135AEngine relay unit - Hydraulic suspension pump cut-off relay - Airbag ECU supply
F1415A R a i n a n d b r i g h t n e s s s e n s o r - P a r k i n g a s s i s t a n c e - P a s s e n g e r ’ s e l e c t r i c s e a t - T r a i l e r r e l a y u n i t - H I F I a m p l i fi e r E C U - H a n d s -free kit - Lane Departure Warning System
F1740AHeated rear screen - Exterior heated rear view mirrors
FSHSHUNTCUSTOMER PARK SHUNT
Page 152 of 231
156
V

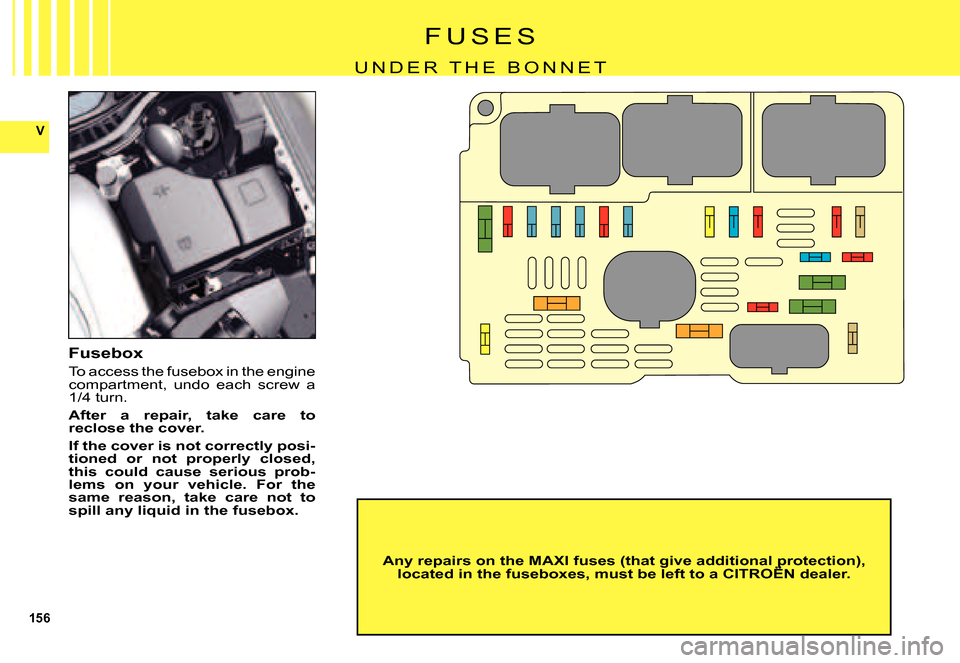

F U S E S
U N D E R T H E B O N N E T
Fusebox
To access the fusebox in the engine compartment, undo each screw a 1/4 turn.
After a repair, take care to reclose the cover.
If the cover is not correctly posi-tioned or not properly closed, this could cause serious prob-lems on your vehicle. For the same reason, take care not to spill any liquid in the fusebox.
Any repairs on the MAXI fuses (that give additional protection), located in the fuseboxes, must be left to a CITROËN dealer.Any repairs on the MAXI fuses (that give additional protection), Any repairs on the MAXI fuses (that give additional protection),
Page 153 of 231
157
V
T A B L E O F F U S E S
Fuses under the bonnet
Ref.RatingFunction
F120AEngine control unit
F215AHorn
F310AScreen wash pump
F410AHeadlamp wash pump
F515AStarter
F610A A i r fl o w m e t e r - D i r e c t i o n a l h e a d l a m p s - D i a g n o s t i c s o c k e t
F710AAutomatic gearbox lever lock - Power steering
F825AStarter
F910AClutch switch - STOP switch
F1030AStarter
F1140AAir conditioning blower
F1230AWipers
F1340ABSI supply (ignition on)
F1430A-
F1510ARight-hand main beam
F1610ALeft-hand main beam
F1715ARight-hand dipped beam
F1815ALeft-hand dipped beam
F1915AStarter
F2010AStarter
F215AStarter
Page 155 of 231
159
VI
A

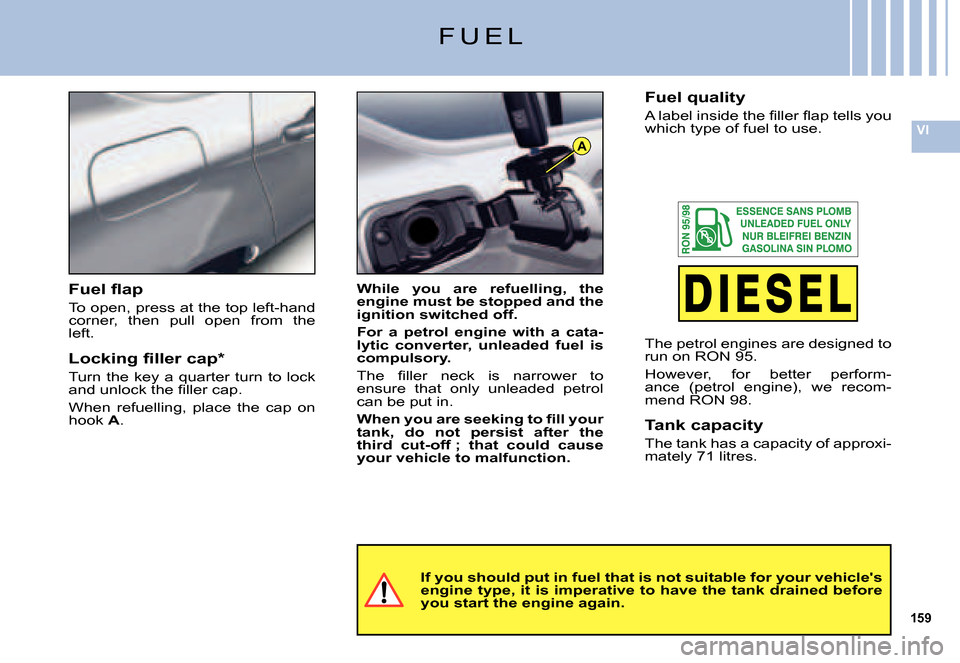

F U E L
If you should put in fuel that is not suitable for your vehicle's engine type, it is imperative to have the tank drained be fore you start the engine again.
While you are refuelling, the engine must be stopped and the ignition switched off.
For a petrol engine with a cata-lytic converter, unleaded fuel is compulsory.
T h e fi l l e r n e c k i s n a r r o w e r t o ensure that only unleaded petrol can be put in.
W h e n y o u a r e s e e k i n g t o fi l l y o u r tank, do not persist after the third cut-off ; that could cause your vehicle to malfunction.
F u e l fl a p
To open, press at the top left-hand corner, then pull open from the left.
L o c k i n g fi l l e r c a p *
Turn the key a quarter turn to lock a n d u n l o c k t h e fi l l e r c a p .
When refuelling, place the cap on hook A.
Fuel quality
A l a b e l i n s i d e t h e fi l l e r fl a p t e l l s y o u which type of fuel to use.
The petrol engines are designed to run on RON 95.
However, for better perform-ance (petrol engine), we recom-mend RON 98.
Tank capacity
The tank has a capacity of approxi-mately 71 litres.
Page 165 of 231
169
VI
S A F E T Y R E C O M M E N D A T I O N S
It is essential to install a CITROËN approved e l e c t r o n i c u n i t w h e n h a v i n g a t o w b a r fi t t e d , in order to prevent any risk of malfunction o r d a m a g e ( r i s k o f fi r e ) .
If you are towing another vehicle, the latter must be free-wheeling (gearbox in neutral).
Do not exceed the maximum permitted load.
For the maximum distributed load on the roof bars: see the chapter “General”.
Towing (Boat, caravan, etc.)
If you are climbing a steep gradient and the engine gets excessively hot, certain functions become unavailable (e.g. sequential control of the automatic gearbox, the air conditioning).
If you are towing with a device not approved by the CITROËN network, you must deactivate parking assistance usi ng the button on the dashboard. See “Parking assistance”.
It is recommended that you remove the towing ball, so that it does not interfere with the functioning of the prox-imity sensors, when you are not using a trailer.
Roof bars
For your safety and to avoid damage to the roof, you should use roof bars that are tested and approved by AUTOMOBILES CITROËN for the design of your par-should use roof bars that are tested and approved by bars that are
ticular vehicle.
Recommendations:Spread the load evenly, avoiding overloading on one side.
Position the heaviest weight as low down as pos-sible.Tie the load down securely and add warning signs if it is protruding.
Drive conservatively, as the vehicle will be more vul-nerable to side winds.
The stability of your vehicle may be altered.Remove the roof rack or roof bars when you are not using them.
Page 166 of 231
170
VI
A1

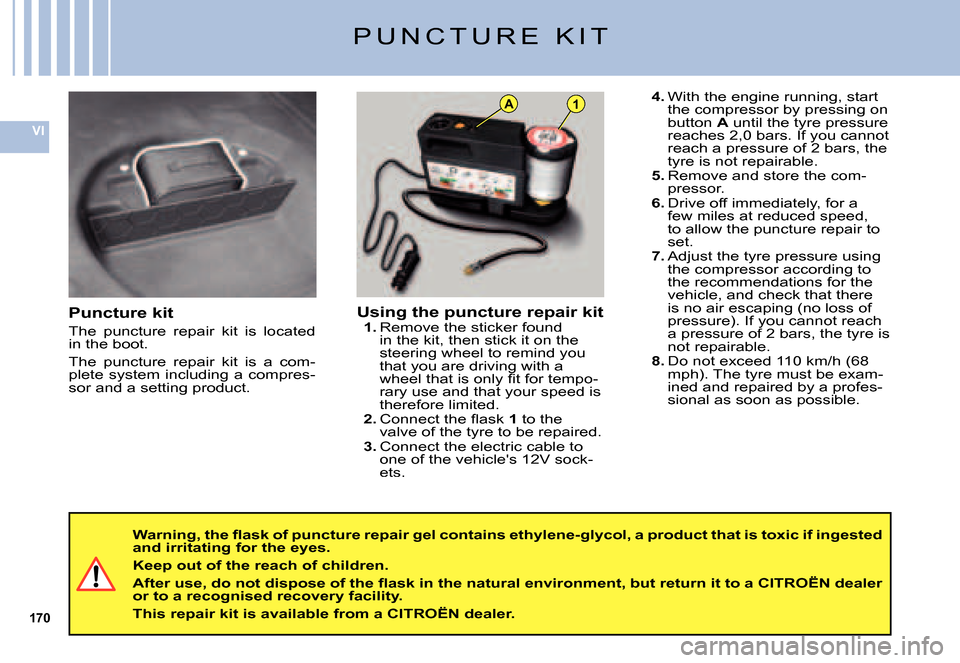

P U N C T U R E K I T
Puncture kit
The puncture repair kit is located in the boot.
The puncture repair kit is a com-plete system including a compres-sor and a setting product.
Using the puncture repair kit1. Remove the sticker found in the kit, then stick it on the steering wheel to remind you that you are driving with a w h e e l t h a t i s o n l y fi t f o r t e m p o -rary use and that your speed is therefore limited.2. C o n n e c t t h e fl a s k 1 to the valve of the tyre to be repaired.3. Connect the electric cable to one of the vehicle's 12V sock-ets.
4. With the engine running, start the compressor by pressing on button A until the tyre pressure reaches 2,0 bars. If you cannot reach a pressure of 2 bars, the tyre is not repairable.5. Remove and store the com-pressor.6. Drive off immediately, for a few miles at reduced speed, to allow the puncture repair to set.7. Adjust the tyre pressure using the compressor according to the recommendations for the vehicle, and check that there is no air escaping (no loss of pressure). If you cannot reach a pressure of 2 bars, the tyre is not repairable.8. Do not exceed 110 km/h (68 mph). The tyre must be exam-ined and repaired by a profes-sional as soon as possible.
W a r n i n g , t h e fl a s k o f p u n c t u r e r e p a i r g e l c o n t a i n s e t h y l e n e - g l y c o l , a p r o d u c t t h a t i s t o x i c i f i n g e s t e d and irritating for the eyes.
Keep out of the reach of children.
A f t e r u s e , d o n o t d i s p o s e o f t h e fl a s k i n t h e n a t u r a l e n v i r o n m e n t , b u t r e t u r n i t t o a C I T R O Ë N d e a l e r or to a recognised recovery facility.
This repair kit is available from a CITROËN dealer.
Page 168 of 231
172
VI
3
Before positioning the jack, always adjust the vehicle's ground clearance to the “maximum height” position and retain this adjustment for as long as the jack is under the veh icle (do not use the hydraulic adjustments).
Never get underneath the vehicle if it is supported only by the jack.
T h e j a c k a n d a l l t h e t o o l s a r e d e s i g n e d s p e c i fi c a l l y f o r u s e on your particular vehicle.Do not use them for any other applications.
Have the original wheel repaired and refitted as soon as possible.
REMOVAL1. P a r k t h e v e h i c l e o n s t a b l e , fi r m g r o u n d t h a t i s n o t s l i p p e r y . A p p l y t h e parking brake.2. If your vehicle is equipped with “Hydractive III+” suspension, wit h the engine running at idle, adjust the ground clearance to its maximum height. See chapter “Hydractive III+ Suspension”.3. S w i t c h o f f t h e i g n i t i o n a n d e n g a g e fi r s t g e a r o r r e v e r s e g e a r d e p e n d i n g on any slope (for a vehicle with automatic gearbox, select posit ion P).4. Position the chock in front of the front wheel diametrically opposite to the one to be replaced.5. Position the jack at one of the four jacking-points provided o n the sub-frame close to the wheels, then use the handle to unwind the jack until it reaches the ground.6. Remove the protector from each bolt using tool 3. See illustration.7. Slacken the wheel bolts.8. Continue to extend the jack until the wheel is a few centimetres off the ground.9. Undo the bolts, remove the wheel.
C H A N G I N G A W H E E L
Page 171 of 231
175
VII

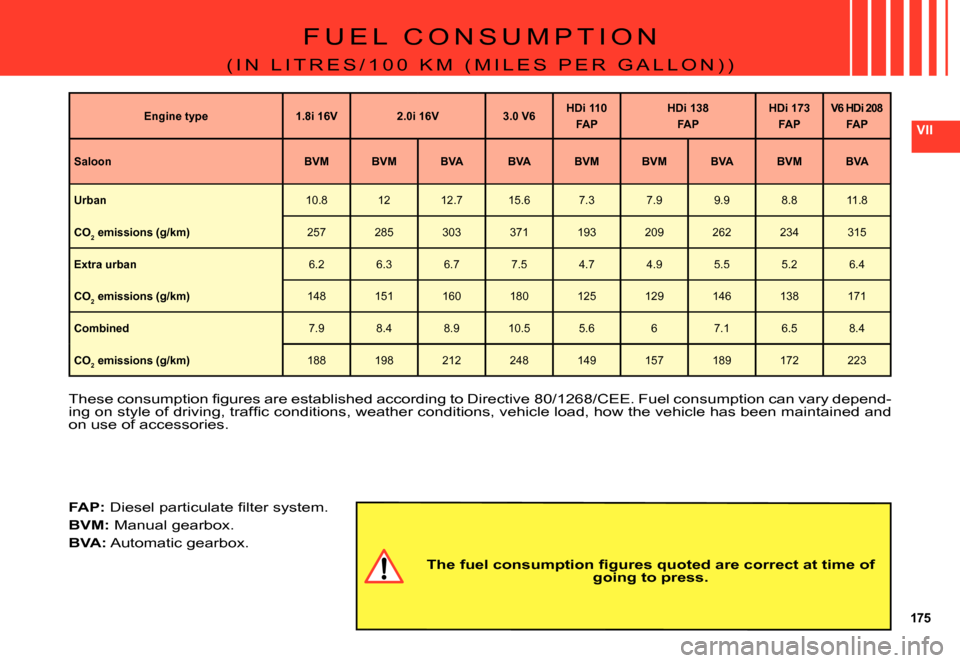

F U E L C O N S U M P T I O N
( I N L I T R E S / 1 0 0 K M ( M I L E S P E R G A L L O N ) )
T h e s e c o n s u m p t i o n fi g u r e s a r e e s t a b l i s h e d a c c o r d i n g t o D i r e c t i v e 8 0 / 1 2 6 8 / C E E . F u e l c o n s u m p t i o n c a n v a r y d e p e n d - i n g o n s t y l e o f d r i v i n g , t r a f fi c c o n d i t i o n s , w e a t h e r c o n d i t i o n s , v e h i c l e l o a d , h o w t h e v e h i c l e h a s b e e n m a i n t a i n e d a n d on use of accessories.
T h e f u e l c o n s u m p t i o n fi g u r e s q u o t e d a r e c o r r e c t a t t i m e o f going to press.
FAP: D i e s e l p a r t i c u l a t e fi l t e r s y s t e m .
BVM: Manual gearbox.
BVA: Automatic gearbox.
Engine type1.8i 16V2.0i 16V3.0 V6HDi 110FAPHDi 138FAPHDi 173FAPV6 HDi 208FAP
SaloonBVMBVMBVABVABVMBVMBVABVMBVA
Urban10.81212.715.67.37.99.98.811.8
CO2 emissions (g/km)257285303371193209262234315
Extra urban6.26.36.77.54.74.95.55.26.4
CO2 emissions (g/km)148151160180125129146138171
Combined7.98.48.910.55.667.16.58.4
CO2 emissions (g/km)188198212248149157189172223
Page 172 of 231
176
VII

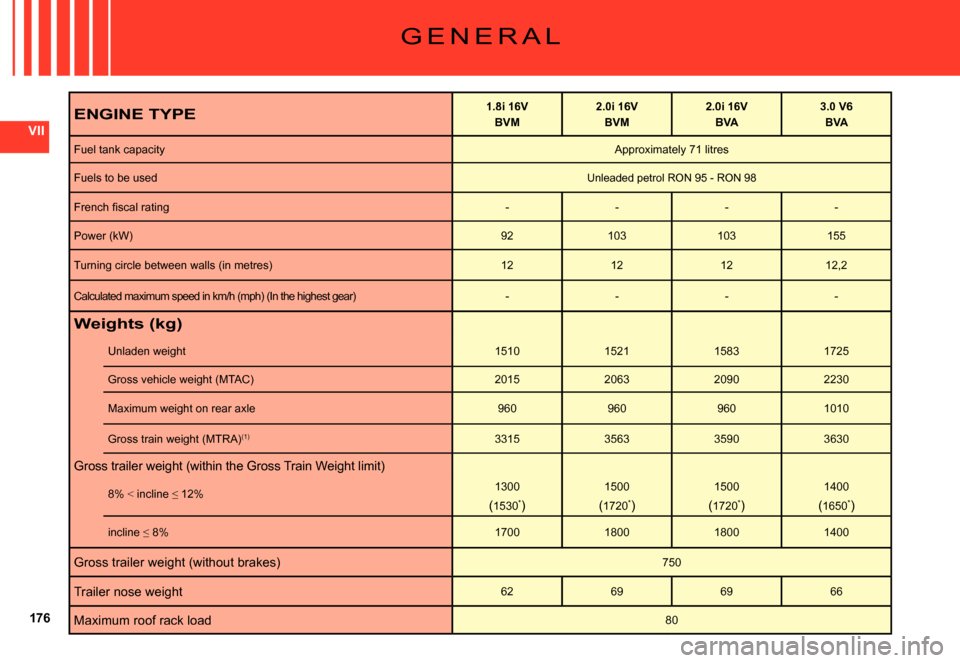

G E N E R A L
ENGINE TYPE1.8i 16VBVM2.0i 16VBVM2.0i 16VBVA3.0 V6BVA
Fuel tank capacityApproximately 71 litres
Fuels to be usedUnleaded petrol RON 95 - RON 98
F r e n c h fi s c a l r a t i n g----
Power (kW)92103103155
Turning circle between walls (in metres)12121212,2
Calculated maximum speed in km/h (mph) (In the highest gear)----
Weights (kg)
Unladen weight1510152115831725
Gross vehicle weight (MTAC)2015206320902230
Maximum weight on rear axle9609609601010
Gross train weight (MTRA)(1)3315356335903630
Gross trailer weight (within the Gross Train Weight limit)
8% < incline ≤ 12% 1300
(1530*)
1500
(1720*)
1500
(1720*)
1400
(1650*)
incline ≤ 8%1700180018001400
Gross trailer weight (without brakes)750
Trailer nose weight62696966
Maximum roof rack load80
