Page 41 of 306
59
3
C O M F O R T
Storing driving positions
System which takes into account the
settings of the driver's seat, exterior
mirrors and air conditioning. It ena-
bles you to store up to two positions
using the buttons on the side of the
driver's seat. Storing a position
Using buttons M/1/2
Switch on the ignition.
Adjust your seat and your exte-
rior mirrors.
Press button M , then press but-
ton 1 or 2 within four seconds.
An audible signal is heard indi- cating that the storing has been
taken into account.
Storing a new position cancels the
previous position.
Recalling a stored position
Ignition on or engine running
B r i e fl y p r e s s b u t t o n 1 or 2 to re-
call the corresponding position.
An audible signal is heard indicating
the end of the adjustment.
When the ignition is on, after a few
consecutive position recalls, the
function will be deactivated until the
engine is started, to prevent dis-
charging of the battery. For your safety, avoid storing a
driving position while driving.
REAR HEAD RESTRAINTS
The rear head restraints can be re-
moved and have two positions;
- high, position for use,
- low, storage position.
To raise a head restraint, pull it up-
wards.
To lower it, press the lug then the
head restraint.
To remove it, place it in the high po-
sition, push the lug and pull it up-
wards.
T o r e fi t i t , e n g a g e t h e h e a d r e s t r a i n t
rods in the holes taking care to re-
main in the centreline of the seat
back.
Never drive with the head restraints
removed, they must be in place
and correctly adjusted.
Page 42 of 306
59
3
C O M F O R T
Storing driving positions
System which takes into account the
settings of the driver's seat, exterior
mirrors and air conditioning. It ena-
bles you to store up to two positions
using the buttons on the side of the
driver's seat. Storing a position
Using buttons M/1/2
Switch on the ignition.
Adjust your seat and your exte-
rior mirrors.
Press button M , then press but-
ton 1 or 2 within four seconds.
An audible signal is heard indi- cating that the storing has been
taken into account.
Storing a new position cancels the
previous position.
Recalling a stored position
Ignition on or engine running
B r i e fl y p r e s s b u t t o n 1 or 2 to re-
call the corresponding position.
An audible signal is heard indicating
the end of the adjustment.
When the ignition is on, after a few
consecutive position recalls, the
function will be deactivated until the
engine is started, to prevent dis-
charging of the battery. For your safety, avoid storing a
driving position while driving.
REAR HEAD RESTRAINTS
The rear head restraints can be re-
moved and have two positions;
- high, position for use,
- low, storage position.
To raise a head restraint, pull it up-
wards.
To lower it, press the lug then the
head restraint.
To remove it, place it in the high po-
sition, push the lug and pull it up-
wards.
T o r e fi t i t , e n g a g e t h e h e a d r e s t r a i n t
rods in the holes taking care to re-
main in the centreline of the seat
back.
Never drive with the head restraints
removed, they must be in place
and correctly adjusted.
Page 70 of 306
84
V I S I B I L I T Y
5
C. fog lamps selection ring.
The fog lamps operate with the side
lights and the dipped and main beam
headlamps.
- 1 st turn forwards: lighting of rear foglamps.
- 1 st turn rearwards: extinction of rear foglamps. - 1 st turn forwards: lighting of front
foglamps.
- 2 nd turn forwards: lighting of rear foglamps.
- 1 st turn rearwards: extinction of rear foglamps.
- 2 nd turn rearwards: extinction of front foglamps.
Model with rear foglamps
only
Model with front and rear
foglamps In good or rainy weather, both day
and night, the front fog lamps and
the rear fog lamps are prohibited.
In these situations, the power of
their beams may dazzle other driv-
ers. They should only be used in
fog or snow.
In these weather conditions, it is
your responsibility to switch on the
fog lamps and dipped headlamps
manually as the brightness sensor
m a y d e t e c t s u f fi c i e n t l i g h t .
Do not forget to switch off the front
fog lamps and the rear fog lamps
when they are no longer neces-
sary.
Lights on buzzer
The triggering of an audible signal
when a front door is opened warns
the driver that he has forgotten to
switch off his vehicle's lights, with
the ignition off and in manual lights
mode.
In this case, switching off the lights
stops the audible signal.
With the ignition off, if the dipped
headlamps remain on, they will
switch off automatically after thirty
minutes to prevent discharging of
the battery.
Page 117 of 306
121
8
S A F E T Y

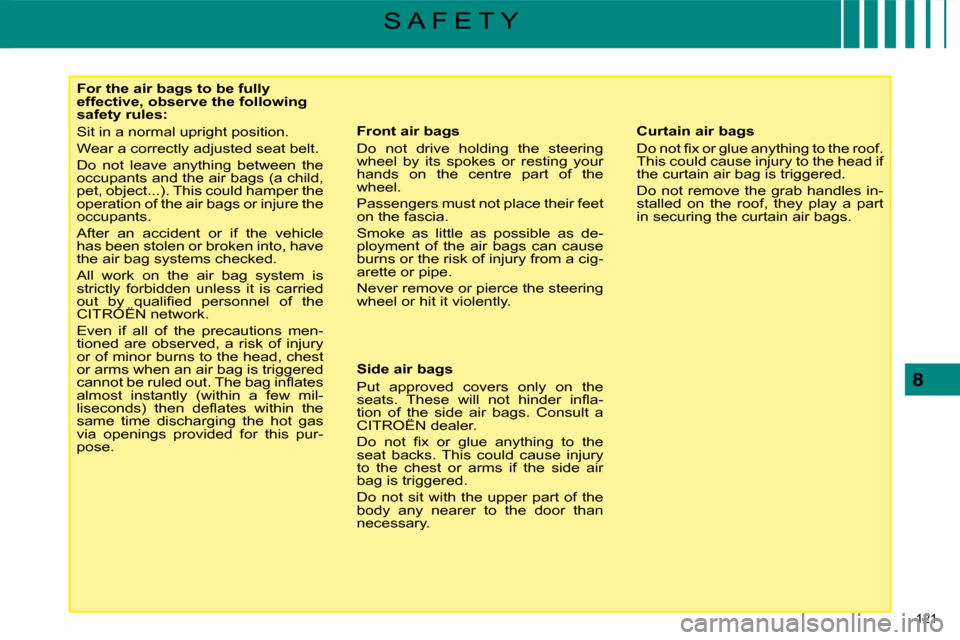

For the air bags to be fully
effective, observe the following
safety rules:
S i t i n a n o r m a l u p r i g h t p o s i t i o n .
Wear a correctly adjusted seat belt.
Do not leave anything between the
o c c u p a n t s a n d t h e a i r b a g s ( a c h i l d ,
p e t , o b j e c t . . . ) . T h i s c o u l d h a m p e r t h e
o p e r a t i o n o f t h e a i r b a g s o r i n j u r e t h e
o c c u p a n t s .
After an accident or if the vehicle
has been stolen or broken into, have
the air bag systems checked.
All work on the air bag system is
strictly forbidden unless it is carried
o u t b y q u a l i fi e d p e r s o n n e l o f t h e
CITROËN network.
E v e n i f a l l o f t h e p r e c a u t i o n s m e n -
tioned are observed, a risk of injury
or of minor burns to the head, chest
or arms when an air bag is triggered
c a n n o t b e r u l e d o u t . T h e b a g i n fl a t e s
almost instantly (within a few mil-
l i s e c o n d s ) t h e n d e fl a t e s w i t h i n t h e
same time discharging the hot gas
v i a o p e n i n g s p r o v i d e d f o r t h i s p u r -
p o s e . Front air bags
Do not drive holding the steering
w h e e l b y i t s s p o k e s o r r e s t i n g y o u r
h a n d s o n t h e c e n t r e p a r t o f t h e
wheel.
P a s s e n g e r s m u s t n o t p l a c e t h e i r f e e t
on the fascia.
S m o k e a s l i t t l e a s p o s s i b l e a s d e -
p l o y m e n t o f t h e a i r b a g s c a n c a u s e
burns or the risk of injury from a cig-
a r e t t e o r p i p e .
N e v e r r e m o v e o r p i e r c e t h e s t e e r i n g
wheel or hit it violently.
Side air bags
P u t a p p r o v e d c o v e r s o n l y o n t h e
s e a t s . T h e s e w i l l n o t h i n d e r i n fl a -
tion of the side air bags. Consult a
CITROËN dealer.
D o n o t fi x o r g l u e a n y t h i n g t o t h e
seat backs. This could cause injury
to the chest or arms if the side air
bag is triggered.
D o n o t s i t w i t h t h e u p p e r p a r t o f t h e
body any nearer to the door than
necessary. Curtain air bags
D o n o t fi x o r g l u e a n y t h i n g t o t h e r o o f .
This could cause injury to the head if
the curtain air bag is triggered.
Do not remove the grab handles in-
s t a l l e d o n t h e r o o f , t h e y p l a y a p a r t
in securing the curtain air bags.
Page 119 of 306
121
8
S A F E T Y
For the air bags to be fully
effective, observe the following
safety rules:
S i t i n a n o r m a l u p r i g h t p o s i t i o n .
Wear a correctly adjusted seat belt.
Do not leave anything between the
o c c u p a n t s a n d t h e a i r b a g s ( a c h i l d ,
p e t , o b j e c t . . . ) . T h i s c o u l d h a m p e r t h e
o p e r a t i o n o f t h e a i r b a g s o r i n j u r e t h e
o c c u p a n t s .
After an accident or if the vehicle
has been stolen or broken into, have
the air bag systems checked.
All work on the air bag system is
strictly forbidden unless it is carried
o u t b y q u a l i fi e d p e r s o n n e l o f t h e
CITROËN network.
E v e n i f a l l o f t h e p r e c a u t i o n s m e n -
tioned are observed, a risk of injury
or of minor burns to the head, chest
or arms when an air bag is triggered
c a n n o t b e r u l e d o u t . T h e b a g i n fl a t e s
almost instantly (within a few mil-
l i s e c o n d s ) t h e n d e fl a t e s w i t h i n t h e
same time discharging the hot gas
v i a o p e n i n g s p r o v i d e d f o r t h i s p u r -
p o s e . Front air bags
Do not drive holding the steering
w h e e l b y i t s s p o k e s o r r e s t i n g y o u r
h a n d s o n t h e c e n t r e p a r t o f t h e
wheel.
P a s s e n g e r s m u s t n o t p l a c e t h e i r f e e t
on the fascia.
S m o k e a s l i t t l e a s p o s s i b l e a s d e -
p l o y m e n t o f t h e a i r b a g s c a n c a u s e
burns or the risk of injury from a cig-
a r e t t e o r p i p e .
N e v e r r e m o v e o r p i e r c e t h e s t e e r i n g
wheel or hit it violently.
Side air bags
P u t a p p r o v e d c o v e r s o n l y o n t h e
s e a t s . T h e s e w i l l n o t h i n d e r i n fl a -
tion of the side air bags. Consult a
CITROËN dealer.
D o n o t fi x o r g l u e a n y t h i n g t o t h e
seat backs. This could cause injury
to the chest or arms if the side air
bag is triggered.
D o n o t s i t w i t h t h e u p p e r p a r t o f t h e
body any nearer to the door than
necessary. Curtain air bags
D o n o t fi x o r g l u e a n y t h i n g t o t h e r o o f .
This could cause injury to the head if
the curtain air bag is triggered.
Do not remove the grab handles in-
s t a l l e d o n t h e r o o f , t h e y p l a y a p a r t
in securing the curtain air bags.
Page 187 of 306
1 8 4
P R A C T I C A L I N F O R M A T I O N
Charging the battery using a
battery charger
D i s c o n n e c t t h e b a t t e r y f r o m t h e
v e h i c l e .
Follow the instructions for use
p r o v i d e d b y t h e m a n u f a c t u r e r o f
t h e c h a r g e r .
R e c o n n e c t s t a r t i n g w i t h t h e n e g -
a t i v e t e r m i n a l ( - ) .
C h e c k t h a t t h e t e r m i n a l s a n d
c o n n e c t o r s a r e c l e a n . I f t h e y a r e
c o v e r e d w i t h s u l p h a t e ( w h i t i s h o r
g r e e n i s h d e p o s i t ) , r e m o v e t h e m
a n d c l e a n t h e m .
T h e b a t t e r i e s c o n t a i n h a r m -
f u l s u b s t a n c e s s u c h a s s u l -
p h u r i c a c i d a n d l e a d . T h e y
m u s t b e d i s p o s e d o f i n a c c o r d a n c e
w i t h r e g u l a t i o n s a n d m u s t n o t , i n
a n y c i r c u m s t a n c e s , b e d i s c a r d e d
w i t h h o u s e h o l d w a s t e .
T a k e u s e d r e m o t e c o n t r o l b a t t e r i e s
and vehicle batteries to a special
c o l l e c t i o n p o i n t .
It is advisable to disconnect the
b a t t e r y i f t h e v e h i c l e i s t o b e l e f t u n -
u s e d f o r m o r e t h a n o n e m o n t h . D o n o t d i s c o n n e c t t h e t e r -
m i n a l s w h i l e t h e e n g i n e i s
r u n n i n g .
Do not charge the batteries without
d i s c o n n e c t i n g t h e t e r m i n a l s fi r s t .
Do not touch the clips during the
o p e r a t i o n .
D o n o t l e a n o v e r t h e b a t t e r i e s .
D i s c o n n e c t t h e c a b l e s i n t h e r e -
v e r s e o r d e r t o c o n n e c t i o n , e n s u r -
i n g t h a t t h e y d o n o t t o u c h .
Before disconnecting the battery
W a i t 2 m i n u t e s a f t e r s w i t c h i n g o f f
the ignition before disconnecting
t h e b a t t e r y .
Close the windows and the doors
b e f o r e d i s c o n n e c t i n g t h e b a t t e r y . Following reconnection of
the battery
F o l l o w i n g r e c o n n e c t i o n o f t h e b a t -
t e r y , s w i t c h o n t h e i g n i t i o n a n d w a i t
1 m i n u t e b e f o r e s t a r t i n g t o p e r m i t i n -
i t i a l i s a t i o n o f t h e e l e c t r o n i c s y s t e m s .
H o w e v e r , i f s l i g h t d i f fi c u l t i e s a r e e n -
c o u n t e r e d f o l l o w i n g t h i s o p e r a t i o n ,
c o n t a c t a C I T R O Ë N d e a l e r .
R e f e r r i n g t o t h e c o r r e s p o n d i n g s e c -
t i o n , y o u m u s t y o u r s e l f r e i n i t i a l i s e :
- t h e r e m o t e c o n t r o l k e y ,
- t h e g l a s s p a n o r a m i c r o o f s h u t t e r ,
- t h e G P S s a t e l l i t e n a v i g a t i o n
s y s t e m .
Page 258 of 306
36
SOLUTION RESPONSE
The stored stations do not function (no sound, 87.5 Mhz is displayed...)
An incorrect waveband is selected.
The vehicle is too far from the transmitter used by the station listened to or there is no transmitter in the geographical area th rough which the vehicle is travelling.
The environment (hills, buildings, tunnels, baseme nt car parks...) block reception, including in RDS mode.
Press RADIO, select RADIO MENU then AM/FM WAVEBAND to return to the waveband on which the stations are stored.
Activate the RDS function by means of the short-cut menu to enable the system to check whether there is a more powerful transmitter in the geographical area.
This phenomenon is normal and does not indicate a failure of the audio equipment.
Sound cut-outs of 1 to 2 seconds in radio mode.
During this brief sound cut-out, the RDS searches for any frequency permitting better reception of the station. Deactivate the RDS function by means of the short-cut menu if the phenomenon is too frequent and always on the same route.
With the engine off, the system switches off after a few minutes of use.
When the engine is switched off, the system's oper ating time depends on the battery charge. The switch-off is normal: the system switches to economy mode and switches off to prevent discharging of the vehicle's battery.
Start the vehicle's engine to increase the battery charge.
The aerial is absent or has been damaged (for exam ple when going through a car wash or into an underground car park). Have the aerial checked by a CITROËN dealer.
The quality of reception of the radio station listened to gradually deteriorates or the stored stations do not function (no sound, 87.5 Mhz is displayed...).
