Page 201 of 306
XII
195
T E C H N I C A L D A T A
* The weight of the braked trailer can be increased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced
by the same amount; warning, towing with a lightly loaded towing vehicle may have an adverse effect on its road holding.
WEIGHTS AND TOWED LOADS (SALOON) in kg
Petrol engines
1.8 litre VTi
16V 127 hp
2 litre 16V
143 hp
B i o fl e x 2 l i t r e
16V 143 hp
1.6 litre 156 hp
3 litre V6 24V
215 hp
G e a r b o x e s Manual Auto. Auto. Manual Auto.
Model codes:
RD...
6FYC RFJF RFJC/FF 5FV-5FN XFVJ
- Unladen weight 1 510 1 583 1 521 1 471 1 725
- Kerb weight 1 585 1 658 1 596 1 546 1 800
- Gross vehicle weight (GVW) 2 015 2 090 2 063 2 065 2 230
- Gross train weight (GTW) 3 315 3 590 3 563 3 565 3 630
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 1 300 1 500 1 50 0 1 500 1 400
- Braked trailer * (with load transfer within GTW limit) 1 530 1 720 1 720 1 730 1 650
- Unbraked trailer 750 750 750 750 75 0
- Recommended nose weight 62 69 69 70 66
The GTW and towed load values indicated apply up to a maximum altitude of 1,000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1,000 metres of a ltitude.
The speed of a towing vehicle must not exceed 100 km/h (appro x. 60 mph) (comply with the legislation in force in your
country).
High ambient temperatures may result in a reduction in the pe rformance of the vehicle in order to protect the engine; when
the ambient temperature is higher than 37 °C, limit the we ight towed.
Page 202 of 306
XII
198
T E C H N I C A L D A T A
WEIGHTS AND TOWED LOADS (SALOON) in kg
Diesel engines
1.6 litre HDi
110 hp
2 litre HDi
140 hp
2 litre HDi 163 hp
3 litre V6 HDi
240 hp
G e a r b o x e s Manual Manual Manual Auto. Auto.
Model codes:
RD...
9HZC
9HZC/1
RHF8 RHH-RHE X8ZA
- Unladen weight 1 485 1 608 1 563 1 609 1 766
- Kerb weight 1 560 1 683 1 638 1 684 1 841
- Gross vehicle weight (GVW) 2 045 2 155 2 156 2 190 2 276
- Gross train weight (GTW) 3 145 3 755 3 656 3 290 3 676
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 1 100 1 600 1 50 0 1 100 1 400
- Braked trailer * (with load transfer within GTW limit) 1 370 1 820 1 740 1 390 1 650
- Unbraked trailer 750 750 750 750
- Recommended nose weight 55 73 70 57 67
The GTW and towed load values indicated apply up to a maximum altitude of 1,000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1,000 metres of a ltitude.
The speed of a towing vehicle must not exceed 100 km/h (appro x. 60 mph) (comply with the legislation in force in your
country).
High ambient temperatures may result in a reduction in the pe rformance of the vehicle in order to protect the engine; when
the ambient temperature is higher than 37 °C, limit the we ight towed.
* The weight of the braked trailer can be incr
eased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced
by the same amount; warning, towing with a lightly loaded towing vehicle may have an adverse effect on its road holding.
Page 203 of 306
XII
196
T E C H N I C A L D A T A
WEIGHTS AND TOWED LOADS (TOURER) in kg
Petrol engines
1.8 litre VTi
16V 127 hp
2 litre 16V
143 hp
B i o fl e x 2 l i t r e
16V 143 hp
1.6 litre 156 hp
3 litre V6 24V
215 hp
G e a r b o x e s Manual Auto. Manual Manual Auto.
Model codes:
RW...
6FYC RFJF RFJC/FF 5FV-5FN XFVJ
- Unladen weight 1 549 1 619 1 578 1 503 1 761
- Kerb weight 1 624 1 694 1 653 1 578 1 836
- Gross vehicle weight (GVW) 2 154 2 224 2 183 2 167 2 366
- Gross train weight (GTW) 3 454 3 724 3 683 3 667 3 666
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 1 300 1 500 1 50 0 1 500 1 300
- Braked trailer * (with load transfer within GTW limit) 1 600 1 800 1 790 1 790 1 600
- Unbraked trailer 750 750 750 750 75 0
- Recommended nose weight 64 72 72 73 68
The GTW and towed load values indicated apply up to a maximum altitude of 1,000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1,000 metres of a ltitude.
The speed of a towing vehicle must not exceed 100 km/h (appro x. 60 mph) (comply with the legislation in force in your
country).
High ambient temperatures may result in a reduction in the pe rformance of the vehicle in order to protect the engine; when
the ambient temperature is higher than 37 °C, limit the we ight towed.
* The weight of the braked trailer can be increa
sed, within the GTW limit, on condition that the GV W of the towing vehicle is reduced
by the same amount; warning, towing with a lightly loaded towing vehicle may have an adverse effect on its road holding.
Page 204 of 306
XII
199
T E C H N I C A L D A T A
The GTW and towed load values indicated apply up to a maximum altitude of 1,000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1,000 metres of a ltitude.
The speed of a towing vehicle must not exceed 100 km/h (appro x. 60 mph) (comply with the legislation in force in your
country).
High ambient temperatures may result in a reduction in the pe rformance of the vehicle in order to protect the engine; when
the ambient temperature is higher than 37 °C, limit the we ight towed.
WEIGHTS AND TOWED LOADS (TOURER) in kg
Diesel engines
1.6 litre HDi
110 hp
2 litre HDi
140 hp
2 litre HDi 163 hp
3 litre V6 HDi
240 hp
G e a r b o x e s Manual Manual Manual Auto. Auto.
Model codes:
RW...
9HZC
9HZC/1
RHF8 RHH-RHE X8ZA
- Unladen weight 1 573 1 655 1 595 1 642 1 802
- Kerb weight 1 612 1 730 1 670 1 717 1 877
- Gross vehicle weight (GVW) 2 178 2 276 2 238 2 286 2 373
- Gross train weight (GTW) 3 178 3 776 3 638 3 286 3 676
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 1 000 1 500 1 40 0 1 000 1 300
- Braked trailer * (with load transfer within GTW limit) 1 300 1 800 1 670 1 290 1 600
- Unbraked trailer 750 750 750 750
- Recommended nose weight 52 72 67 53 64
* The weight of the braked trailer can be increa sed, within the GTW limit, on condition that the GV W of the towing vehicle is reduced
by the same amount; warning, towing with a lightly loaded towing vehicle may have an adverse effect on its road holding.
Page 205 of 306
XII
200
T E C H N I C A L D A T A
* Without roof bars.
DIMENSIONS (IN MM)
E x t e r i o r ( S a l o o n )
A 2 815
B 1 054
C 910
D 4 779
E 1 586
F 2 096
G 1 557
H 1 860
I * 1 451
Page 206 of 306
XII
201
T E C H N I C A L D A T A

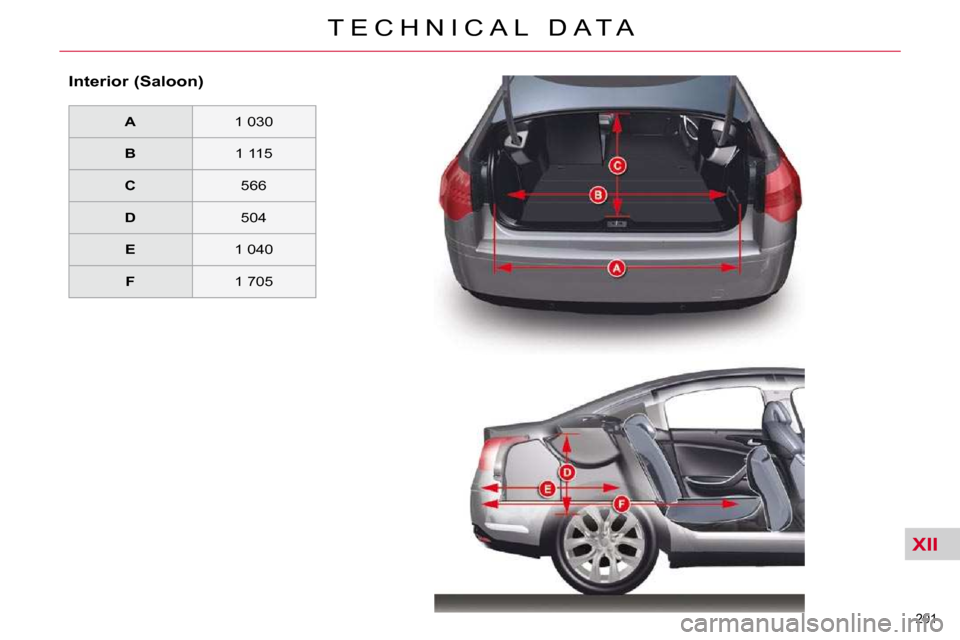

Interior (Saloon)
A 1 030
B 1 115
C 566
D 504
E 1 040
F 1 705
Page 207 of 306
XII
202
T E C H N I C A L D A T A

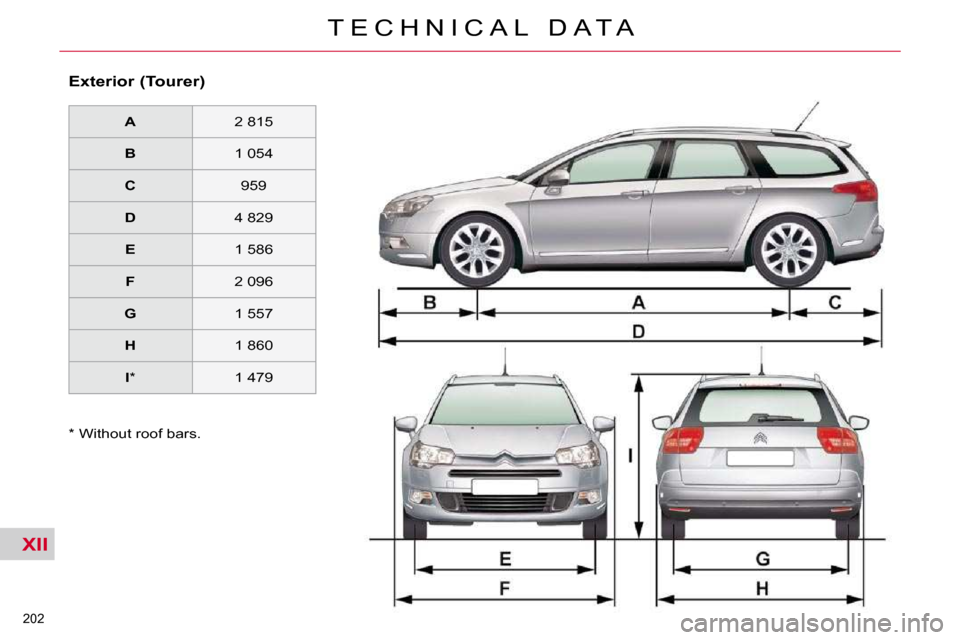

E x t e r i o r ( T o u r e r )
A 2 815
B 1 054
C 959
D 4 829
E 1 586
F 2 096
G 1 557
H 1 860
I * 1 479
* Without roof bars.
Page 208 of 306
XII
203
T E C H N I C A L D A T A

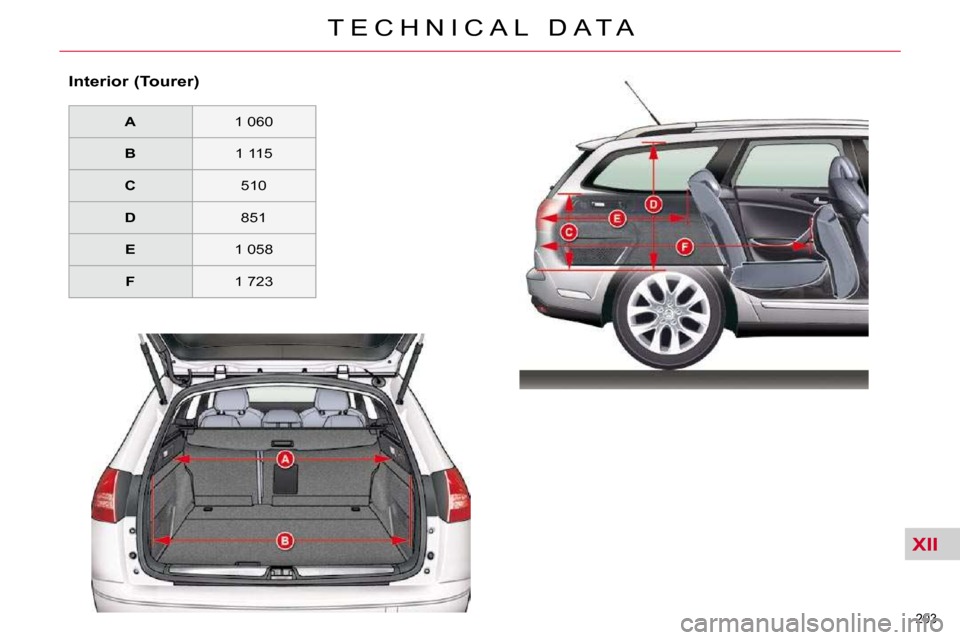

Interior (Tourer)
A 1 060
B 1 115
C 510
D 851
E 1 058
F 1 723
Page 209 of 306
XII
204
T E C H N I C A L D A T A
IDENTIFICATION MARKINGS
V a r i o u s v i s i b l e m a r k i n g s f o r i d e n t i fi -
cation of the vehicle.
T h e v e h i c l e i d e n t i fi c a t i o n n u m b e r
(VIN) is also indicated on the regis-
tration document.
All genuine CITROËN replacement
parts are available exclusively within
the dealer network.
For your safety and in order to remain
within the terms of the warranty, you
are advised to use only CITROËN
replacement parts.
A. VIN plate
On the left hand centre door pillar.
1. EU type approval number.
2. V e h i c l e I d e n t i fi c a t i o n N u m b e r
(VIN).
3. Gross vehicle weight.
4. Gross train weight.
5. Maximum weight on front axle.
6. Maximum weight on rear axle.
B. VIN stamped on body
D. Paint colour code and tyre ref-
erence
Tyre pressures
On the left hand door centre pillar.
Observe the tyre pressures indi-
cated by CITROËN.
Check the tyre pressures regularly,
when cold.
N e v e r d e fl a t e a w a r m t y r e .
When changing tyres, it is essen-
tial to use the sizes recommended
for your vehicle.
C. VIN on dashboard
Page 210 of 306
206
EMERGENCY OR ASSISTANCE CALL
EMERGENCY CALL ASSISTANCE CALL
OPERATION OF THE SYSTEM
In an emergency, press this button for more than 2 seconds. Flashing of the green diode and a voice m e s s a g e c o n fi r m t h a t t h e c a l l h a s b e e n m a d e t o t h e CITROËN Emergency team * . m e s s a g e c o n fi r m t h a t t h e c a l l h a s b e e n m a d e t o t h e m e s s a g e c o n fi r m t h a t t h e c a l l h a s b e e n m a d e t o t h e
Pressing this button again immediately cancels the request. The green diode switches off.
T h e g r e e n d i o d e r e m a i n s o n ( w i t h o u t fl a s h i n g ) w h e n c o m m u n i c a t i o n i s established. It switches off at the end of communication.
This call is dealt with by the CITROËN Emergency team which receives locating information from the vehicle and can send a detailed alert to the appropriate emergency services. In countries in whi ch the team is not operational, or when the locating service has been expressly refused, t h e c a l l i s d e a l t w i t h d i r e c t l y b y t h e e m e r g e n c y s e r v i c e s ( 1 1 2 ) w i t h o u t t h e vehicle location.
If an impact is detected by the airbag ECU, and independently of any triggering of the airbags, an emergency call is mad e automatically.
* This service is subject to conditions and availability. Consult a CITROËN dealer. * This service is subject to cond
Press this button for more than 2 seconds to requ est assistance if the vehicle breaks down. A v o i c e m e s s a g e c o n fi r m s t h a t t h e c a l l h a s b e e n m a d e * .
Pressing this button again immediately cancels the request. T h e c a n c e l l a t i o n i s c o n fi r m e d b y a v o i c e m e s s a g e .
When the ignition is switched on, the green indicator lamp comes on for 3 seconds indicating that the system is operating correctly.
I f t h e o r a n g e i n d i c a t o r l a m p fl a s h e s : t h e r e i s a system malfunction. I f t h e o r a n g e i n d i c a t o r l a m p i s l i t c o n t i n u o u s l y : the backup battery must be replaced. In both cases, consult a CITROËN dealer. the backup battery must be replaced.
