XII
208
T E C H N I C A L D A T A
WEIGHTS AND TOWED LOADS (SALOON) in kg
Diesel engines HDi 110 e-HDi 110 HDi 140 HDi 160 HDi 240
Gearboxes Manual
Electronic
gearbox system
Manual Manual Auto. Auto.
Model codes:
RD...
9HZC
9HZC/1
9HL/8 9HR RHF8 RHH-RHE X8ZA
- Unladen weight 1 485 1 506 1 525 1 608 1 563 1 609 1 766
- Kerb weight 1 560 1 581 1 600 1 683 1 638 1 684 1 841
- Gross vehicle weight (GVW) 2 045 2 041 2 062 2 155 2 156 2 190 2 276
- Gross train weight (GTW) 3 145 3 141 3 162 3 755 3 656 3 290 3 676
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 1 100 1 100 1 10 0 1 600 1 500 1 100 1 400
- Braked trailer * (with load transfer within GTW limit) 1 370 1 340 1 340 1 820 1 740 1 39
0 1 650
- Unbraked trailer 750 750 750 750 75 0 750
- Recommended nose weight 55 55 55 73 70 57 67
The GTW and towed load values indicated apply up to a maximum altitude of 1,000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1,000 metres of a ltitude.
The speed of a towing vehicle must not exceed 100 km/h (appro x. ) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the pe rformance of the vehicle in order to protect the engine; when
the ambient temperature is higher than 37 °C, limit the we ight towed.
* The weight of the braked trailer can be incr
eased within the GTW limit, on condition that the G VW of the towing vehicle is reduced
by the same amount; warning, towing with a lightly loaded towing vehicle may have an adverse effect on its road holding.
Page 232 of 336
XII
206
T E C H N I C A L D A T A
WEIGHTS AND TOWED LOADS (TOURER) in kg
Petrol engines 1.8 litre 16V 2 litre 16V 1.6 litre THP 155
Gearboxes Manual Auto. Auto. Manual
Model codes:
RW...
6FYC RFJF 5FV-5FN
- Unladen weight 1 549 1 619 1 534 1 503
- Kerb weight 1 624 1 694 1 609 1 578
- Gross vehicle weight (GVW) 2 154 2 224 2 200 2 167
- Gross train weight (GTW) 3 454 3 724 3 700 3 667
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 1 300 1 500 1 50 0 1 500
- Braked trailer * (with load transfer within GTW limit) 1 600 1 800 1 790 1 790
- Unbraked trailer 750 750 750 750
- Recommended nose weight 64 72 74 73
The GTW and towed load values indicated apply up to a maximum altitude of 1,000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1,000 metres of a ltitude.
The speed of a towing vehicle must not exceed 100 km/h (appro x. 60 mph) (comply with the legislation in force in your
country).
High ambient temperatures may result in a reduction in the pe rformance of the vehicle in order to protect the engine; when
the ambient temperature is higher than 37 °C, limit the we ight towed.
* The weight of the braked trailer can be incr
eased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced
by the same amount; warning, towing with a lightly loaded towing vehicle may have an adverse effect on its road holding.
Page 233 of 336
XII
209
T E C H N I C A L D A T A
The GTW and towed load values indicated apply up to a maximum altitude of 1,000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1,000 metres of a ltitude.
The speed of a towing vehicle must not exceed 100 km/h (appro x. 60 mph) (comply with the legislation in force in your
country).
High ambient temperatures may result in a reduction in the pe rformance of the vehicle in order to protect the engine; when
the ambient temperature is higher than 37 °C, limit the we ight towed.
WEIGHTS AND TOWED LOADS (TOURER) in kg
Diesel engines HDi 110 HDi 140 HDi 160 HDi 240
Gearboxes Manual
Electronic
gearbox system
Manual Manual Auto. Auto.
Model codes:
RW...
9HZC
9HZC/1
9HL 9HR RHF8 RHH-RHE X8ZA
- Unladen weight 1 573 1 538 1 540 1 655 1 595 1 642 1 802
- Kerb weight 1 612 1 613 1 615 1 730 1 670 1 717 1 877
- Gross vehicle weight (GVW) 2 178 2 153 2 174 2 276 2 238 2 286 2 373
- Gross train weight (GTW) 3 178 - 3 174 3 776 3 638 3 286 3 676
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 1 000 1 000 1 00 0 1 500 1 400 1 000 1 300
- Braked trailer * (with load transfer within GTW limit) 1 300 1 300 1 300 1 800 1 670 1 29
0 1 600
- Unbraked trailer 750 750 750 750 75 0 750
- Recommended nose weight 52 53 54 72 67 53 64
* The weight of the braked trailer can be incr eased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced
by the same amount; warning, towing with a lightly loaded towing vehicle may have an adverse effect on its road holding.
Page 234 of 336
XII
210
T E C H N I C A L D A T A
The GTW and towed load values indicated apply up to a maximum altitude of 1,000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1,000 metres of a ltitude.
High ambient temperatures may result in a reduction in the pe rformance of the vehicle in order to protect the engine; when
the ambient temperature is higher than 37 °C, limit the we ight towed.
* The kerb weight is equal to the unladen weight +
the driver (75 kg).
** Exceeding the maximum weight on the rear axle when to wing involves restricting the maximum speed to 80 km/h
( a p p r o x i m a t e l y 5 0 m p h ) a s d e fi n e d b y p o i n t 2 . 7 o f t h e E U D i r e c t i v e .
*** Exceeding the gross vehicle weight when towing invo lves restricting the maximum speed to 80 km/h (approximately
5 0 m p h ) a s d e fi n e d b y p o i n t 2 . 7 o f t h e E U D i r e c t i v e .
**** Maximum braked trailer weight within the GTW limit ; warning, towing with a lightly loaded towing vehicle may have
an adverse effect on its road holding.
WEIGHTS AND TOWED LOADS - COMMERCIAL VERSIONS (TOURER) in kg
Diesel engines
HDi 110 HDi 140
Gearboxes
Manual Manual
Model codes:
RW...
9HZC/U RHF8/U
- Unladen weight 1 533 1 626
- Kerb weight * 1 608 1 701
- Gross vehicle weight (GVW) ** 2 153 2 247
- Gross train weight (GTW) *** 3 153 3 747
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient **** 1 000 1 500
- Braked trailer (with load transfer within GTW limit) X X
- Unbraked trailer 750 750
- Recommended nose weight 52 72
Page 235 of 336
XII
211
T E C H N I C A L D A T A
* Without roof bars.
DIMENSIONS (IN MM)
Exterior (Saloon)
A 2 815
B 1 054
C 910
D 4 779
E 1 586
F 2 096
G 1 557
H 1 860
I * 1 451
Page 236 of 336
XII
212
T E C H N I C A L D A T A
Interior (Saloon)
A 1 030
B 1 115
C 566
D 504
E 1 040
F 1 705
Page 237 of 336
XII
213
T E C H N I C A L D A T A

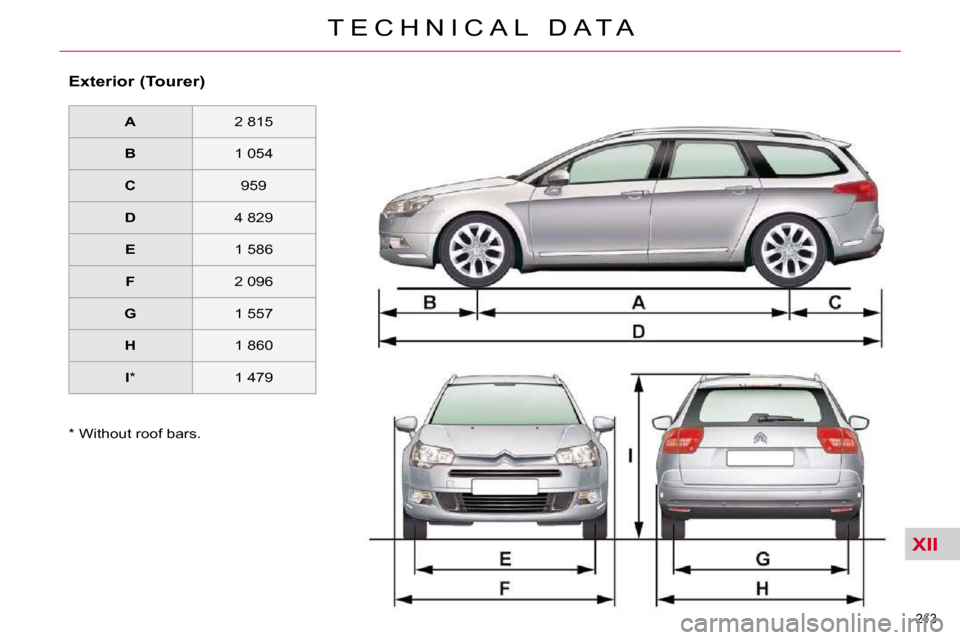

Exterior (Tourer)
A 2 815
B 1 054
C 959
D 4 829
E 1 586
F 2 096
G 1 557
H 1 860
I * 1 479
* Without roof bars.
Page 238 of 336
XII
214
T E C H N I C A L D A T A
Interior (Tourer)
A 1 060
B 1 115
C 510
D 851
E 1 058
F 1 723
Page 239 of 336
XII
215
T E C H N I C A L D A T A
IDENTIFICATION MARKINGS
V a r i o u s v i s i b l e m a r k i n g s f o r i d e n t i fi -
cation of the vehicle.
T h e v e h i c l e i d e n t i fi c a t i o n n u m b e r
(VIN) is also indicated on the regis-
tration document.
All genuine CITROËN replacement
parts are available exclusively within
the dealer network.
For your safety and in order to
remain within the terms of the
warranty, you are advised to use
only CITROËN replacement parts.
A. VIN plate
On the left hand centre door pillar.
1. EU type approval number.
2. V e h i c l e I d e n t i fi c a t i o n N u m b e r
(VIN).
3. Gross vehicle weight.
4. Gross train weight.
5. Maximum weight on front
axle.
6. Maximum weight on rear axle.
B. VIN stamped on body
D. Paint colour code and tyre ref-
erence
Tyre pressures
On the driver's side centre pillar.
Observe the tyre pressures indi-
cated by CITROËN.
Check the tyre pressures regularly,
when cold.
N e v e r d e fl a t e a w a r m t y r e .
When changing tyres, it is essen-
tial to use the sizes recommended
for your vehicle.
C. VIN on dashboard
Page 240 of 336
218
EMERGENCY OR ASSISTANCE CALL
EMERGENCY CALL
In an emergency, press this button for more than2 seconds. Flashing of the green indicator lamp and a v o i c e m e s s a g e c o n fi r m t h a t t h e c a l l h a s b e e n m a d e t o t h e CITROËN Emergency team * . v o i c e m e s s a g e c o n fi r m t h a t t h e c a l l h a s b e e n m a d e t o t h e v o i c e m e s s a g e c o n fi r m t h a t t h e c a l l h a s b e e n m a d e t o t h e
Pressing this button again immediately cancels the request. The green indicator lamp goes off.
ASSISTANCE CALL
If you purchased your vehicle outside the CITROËN dealer network, w e i n v i t e y o u t o h a v e a d e a l e r c h e c k t h e c o n fi g u r a t i o n o f t h e s e s e r v i c e s a n d , i f d e s i r e d , m o d i fi e d t o s u i t y o u r w i s h e s . I n a m u l t i - l i n g u a l c o u n t r y , c o n fi g u r a t i o n i s p o s s i b l e i n t h e o f fi c i a l n a t i o n a l l a n g u a g e o f y o u r c h o i c e .
When the ignition is switched on, the green indicator lamp comes on for 3 seconds indicating that the system is operating correctly.
Pressing this button again immediately cancels the request.
T h e c a n c e l l a t i o n i s c o n fi r m e d b y a v o i c e m e s s a g e .
Press this button for more than 2 seconds to request assistance if the vehicle breaks down.
A v o i c e m e s s a g e c o n fi r m s t h a t t h e c a l l h a s b e e n m a d e * .
OPERATION OF THE SYSTEM T h e g r e e n i n d i c a t o r l a m p r e m a i n s o n ( w i t h o u t fl a s h i n g ) w h e n communication is established. It goes off at the end of commun ication.
This call is dealt with by the CITROËN Emergency team which re ceives locating information from the vehicle and can send a detailed alert to the appropriate emergency services. In countries in which the team is no t operational, or when the locating service has been expressly refused, t h e c a l l i s d e a l t w i t h d i r e c t l y b y t h e e m e r g e n c y s e r v i c e s ( 1 1 2 ) w i t h o u t t h e vehicle location.
If an impact is detected by the airbag ECU, and independently of any triggering of the airbags, an emergency call is made automatically.
* This service is subject to conditions and availability.
Consult a CITROËN dealer.
I f t h e o r a n g e i n d i c a t o r l a m p fl a s h e s : t h e r e i s a system malfunction.
If the orange indicator lamp is on c o n t i n u o u s l y : t h e b a c k u p b a t t e r y m u s t b e replaced.
In both cases, consult a CITROËN dealer.
