III
63
C O M F O R T
Storing driving positions
System which takes into account the
settings of the driver's seat and air
conditioning. It enables you to store
up to two positions using the buttons
on the side of the driver's seat. Storing a position
Using buttons M/1/2
Switch on the ignition.
Adjust your seat.
Press button M , then press but-
ton 1 or 2 within four seconds.
An audible signal is heard indicating
that the settings have been stored.
Storing a new position cancels the
previous position.
Recalling a stored position
Ignition on or engine running
B r i e fl y p r e s s b u t t o n 1 or 2 to re-
call the corresponding position.
An audible signal is heard indicating
the end of the adjustment.
When the ignition is on, after a few
consecutive position recalls, the
function will be deactivated until the
engine is started, to prevent dis-
charging of the battery. For your safety, avoid storing a
driving position while driving.
REAR HEAD RESTRAINTS
The rear head restraints can be re-
moved and have two positions:
- high, position for use,
- low, storage position.
To raise a head restraint, pull it up-
wards.
To lower it, press the lug then the
head restraint.
To remove it, place it in the high posi-
tion, push the lug and pull it upwards.
T o r e fi t i t , e n g a g e t h e h e a d r e s t r a i n t
rods in the holes taking care to re-
main in line with the seat back.
Never drive with the head restraints
removed, they must be in place
and correctly adjusted.
Page 65 of 336
III
63
C O M F O R T
Storing driving positions
System which takes into account the
settings of the driver's seat and air
conditioning. It enables you to store
up to two positions using the buttons
on the side of the driver's seat. Storing a position
Using buttons M/1/2
Switch on the ignition.
Adjust your seat.
Press button M , then press but-
ton 1 or 2 within four seconds.
An audible signal is heard indicating
that the settings have been stored.
Storing a new position cancels the
previous position.
Recalling a stored position
Ignition on or engine running
B r i e fl y p r e s s b u t t o n 1 or 2 to re-
call the corresponding position.
An audible signal is heard indicating
the end of the adjustment.
When the ignition is on, after a few
consecutive position recalls, the
function will be deactivated until the
engine is started, to prevent dis-
charging of the battery. For your safety, avoid storing a
driving position while driving.
REAR HEAD RESTRAINTS
The rear head restraints can be re-
moved and have two positions:
- high, position for use,
- low, storage position.
To raise a head restraint, pull it up-
wards.
To lower it, press the lug then the
head restraint.
To remove it, place it in the high posi-
tion, push the lug and pull it upwards.
T o r e fi t i t , e n g a g e t h e h e a d r e s t r a i n t
rods in the holes taking care to re-
main in line with the seat back.
Never drive with the head restraints
removed, they must be in place
and correctly adjusted.
Page 66 of 336
III
64
C O M F O R T
REAR SEATS
Bench seat, the left-hand (2/3) or
right-hand (1/3) section of which
can be folded to adapt the boot load
space.
Removing the seat cushion
Move the corresponding front
seat forwards if necessary.
Raise the front of the seat cushion 1 .
Tilt the seat cushion 1 fully
against the front seat.
Remove the seat cushion 1 from
i t s fi x i n g s b y p u l l i n g u p w a r d s . Refitting the seat cushion
Position the seat cushion 1 verti-
c a l l y i n i t s fi x i n g s .
Fold down the seat cushion 1 .
Press on the seat cushion to se-
cure it.
Folding the seat
In order to fold a rear seat without
any risk of damage, always start
with the seat cushion, never with
the seat back:
move the corresponding front
seat forwards if necessary,
raise the front of the seat cushion 1 ,
tilt the seat cushion 1 fully against
the front seat,
check that the seat belt is posi-
tioned correctly on the side of
the seat back,
lower or remove the head re-
straints if necessary,
pull the control 3 forwards to re-
lease the seat back 2 ,
tilt the seat back 2 .
The seat cushion 1 can be removed
to increase the loading volume. Returning the seat back to its
original position
When returning the rear seat to its
original position:
put the seat back 2 in the upright
position and secure it,
fold the seat cushion 1 ,
r e fi t t h e h e a d r e s t r a i n t s o r p u t
them back in place.
When returning the rear seat to its
original position, take care not to trap
the seat belts and ensure that their
buckles are positioned correctly.
The red indicator on the control 3
should no longer be visible; if it is,
push the seat fully back.
Page 118 of 336
VI
1 0 1
F I T T I N G S
BOOT FITTINGS (SALOON)
1. B a t t e r y l o c a t i o n f o r v e h i c l e s w i t h
V 6 H D i e n g i n e .
2. B o o t fl o o r ( s p a r e w h e e l s t o r a g e ) .
3. B o o t l a m p .
4. L o c a t i o n f o r 6 C D c h a n g e r . Luggage securing rings
U s e t h e 4 s e c u r i n g r i n g s o n
t h e b o o t fl o o r t o s e c u r e y o u r
l u g g a g e .
F o r s a f e t y r e a s o n s i n t h e e v e n t o f
s h a r p b r a k i n g , y o u a r e a d v i s e d t o
p l a c e h e a v y o b j e c t s a s f a r f o r w a r d
i n t h e b o o t a s p o s s i b l e .
Page 119 of 336
VI
1 0 2
F I T T I N G S
BOOT FITTINGS (TOURER)
1. Hook
F o r s h o p p i n g b a g s .
2. Torch
T o r e c h a r g e , r e t u r n i t t o i t s s t o r - a g e p o s i t i o n .
3. Storage net o r Battery com-
partment (for vehicles with
3 litre V6 HDi engine).
T h i s p r o v i d e s a c c e s s t o t h e b a t t e r y .
1. Luggage-cover blind
( s e e d e t a i l s o n f o l l o w i n g p a g e )
2. Luggage securing rings
U s e t h e 4 s t o w i n g r i n g s p r o v i d e d o n t h e b o o t fl o o r t o s e c u r e y o u r
l o a d s .
F o r s a f e t y r e a s o n s i n t h e e v e n t o f s h a r p b r a k i n g , y o u a r e a d -
v i s e d t o p l a c e h e a v y o b j e c t s a s
f a r f o r w a r d s a s p o s s i b l e .
3. Hooks
T h e s e a l l o w a c a r g o n e t t o b e fi t t e d ( s e e d e t a i l s o n f o l l o w i n g
p a g e ) .
1. Boot lamp
2. 12 V accessories socket (100 W
maximum)
C i g a r l i g h t e r t y p e 1 2 v o l t s o c k e t . I t i s l o c a t e d o n t h e r e a r r i g h t -
h a n d t r i m .
3. Loading height control
Y o u c a n c h a n g e t h e h e i g h t o f t h e v e h i c l e t o m a k e l o a d i n g o r u n -
l o a d i n g e a s i e r .
4. Hook
F o r s h o p p i n g b a g s .
5. Storage net o r closed housing
L o c a t i o n f o r t h e 6 C D c h a n g e r .
Page 125 of 336
VII
107
C H I L D S A F E T Y
POSITIONS FOR CHILD SEATS SECURED USING THE SEAT BELT
I n c o n f o r m i t y w i t h E u r o p e a n l a w , t h i s t a b l e s h o w s y o u t h e p o s s i b i l i t i e s f o r t h e i n s t a l l a t i o n o f u n i v e r s a l l y a p p r o v e d c h i l d
s e a t s ( a ) u s i n g a s e a t b e l t , d e p e n d i n g o n t h e w e i g h t o f t h e c h i l d a n d t h e s e a t i n g p o s i t i o n i n t h e v e h i c l e .
( a ) U n i v e r s a l c h i l d s e a t : c h i l d s e a t w h i c h c a n b e i n s t a l l e d i n a l l v e h i c l e s u s i n g t h e s e a t b e l t .
( b ) C o n s u l t t h e c u r r e n t l e g i s l a t i o n f o r y o u r c o u n t r y b e f o r e d r i v i n g w i t h y o u r c h i l d i n t h i s s e a t .
( c ) G r o u p 0 : f r o m b i r t h t o 1 0 k g . S h e l l s a n d " c a r c o t s " c a n n o t b e i n s t a l l e d o n t h e f r o n t p a s s e n g e r s e a t .
U: s e a t p o s i t i o n s u i t a b l e f o r i n s t a l l a t i o n o f u n i v e r s a l l y a p p r o v e d r e a r w a r d s - f a c i n g a n d / o r f o r w a r d s - f a c i n g c h i l d s e a t .
U (R): As U , w i t h t h e v e h i c l e s e a t , w h i c h m u s t b e a d j u s t e d t o t h e h i g h e s t p o s i t i o n .
Seat position(s)
Weight of child
G r o u p s 0 ( c ) and 0+
< 13 kg G r o u p 1
9 to 18 kg G r o u p 2
15 to 25 kg G r o u p 3
22 to 36 kg
R o w 1 F r o n t p a s s e n g e r ( b ) w i t h
h e i g h t a d j u s t m e n t
U (R )
U (R) U (R) U (R)
F r o n t p a s s e n g e r
( b ) w i t h o u t h e i g h t a d j u s t m e n t
U U U U
R o w 2 O u t e r r e a r
U U U U
C e n t r e r e a r
U U U U
Page 150 of 336
IX
!
!
129
D R I V I N G
Dynamic emergency braking
In the event of a failure of the vehi-
cle’s main braking system or in an
e x c e p t i o n a l s i t u a t i o n ( e . g . d r i v e r t a k -
en ill, under instruction, etc) pull and
hold control A to stop the vehicle.
The electronic stability programme
( E S P ) p r o v i d e s s t a b i l i t y d u r i n g d y -
namic emergency braking.
If the dynamic emergency braking
malfunctions, one of the following
messages will be displayed on the
instrument panel display:
- "Parking brake faulty".
- "Parking brake control faulty". I f a f a i l u r e o f t h e E S P s y s -
tem is signalled by the light-
ing of this warning lamp,
then braking stability is not
guaranteed. In this event, stability
must be assured by the driver by
repeating alternate "pull release" ac-
tions on control A .
The dynamic emergency
braking must only be used in
e x c e p t i o n a l c i r c u m s t a n c e s . Emergency parking brake
release
In the event of the electric parking
brake failing to release, an emer-
gency device can be used to release
the parking brake manually, provid-
ed that it is possible to immobilise
the vehicle while the procedure is
carried out.
If you can start the vehicle: with
the engine running, immobilise
the vehicle by applying the foot
brake while the operation is be-
ing carried out.
If you are unable to start the ve-
h i c l e ( fl a t b a t t e r y f o r e x a m p l e ) : d o
not use this device and contact
a CITROËN dealer. However, if
y o u a r e o b l i g e d t o p r o c e e d , fi r s t
immobilise your vehicle securely
and then follow the instructions
below.
If the vehicle cannot be im-
mobilised, do not operate
the emergency release. Your ve-
hicle may run away on any slope.
Consult a CITROËN dealer.
Page 199 of 336
XI
!
1 7 8
P R A C T I C A L I N F O R M A T I O N

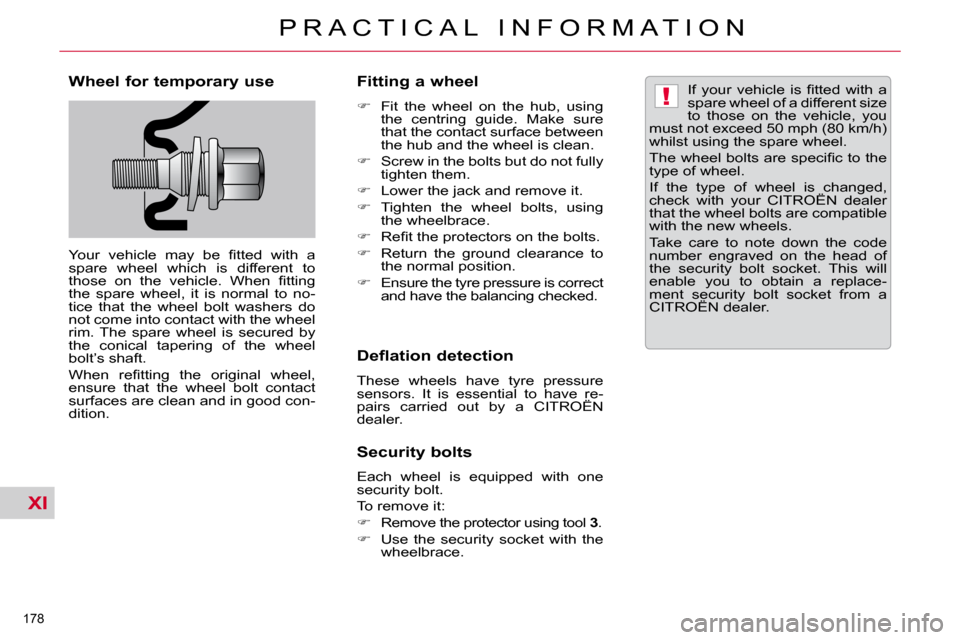

Wheel for temporary use
Y o u r v e h i c l e m a y b e fi t t e d w i t h a
s p a r e w h e e l w h i c h i s d i f f e r e n t t o
t h o s e o n t h e v e h i c l e . W h e n fi t t i n g
t h e s p a r e w h e e l , i t i s n o r m a l t o n o -
tice that the wheel bolt washers do
n o t c o m e i n t o c o n t a c t w i t h t h e w h e e l
r i m . T h e s p a r e w h e e l i s s e c u r e d b y
t h e c o n i c a l t a p e r i n g o f t h e w h e e l
b o l t ’ s s h a f t .
W h e n r e fi t t i n g t h e o r i g i n a l w h e e l ,
ensure that the wheel bolt contact
s u r f a c e s a r e c l e a n a n d i n g o o d c o n -
d i t i o n . Fitting a wheel
F i t t h e w h e e l o n t h e h u b , u s i n g
t h e c e n t r i n g g u i d e . M a k e s u r e
that the contact surface between
t h e h u b a n d t h e w h e e l i s c l e a n .
S c r e w i n t h e b o l t s b u t d o n o t f u l l y
t i g h t e n t h e m .
L o w e r t h e j a c k a n d r e m o v e i t .
T i g h t e n t h e w h e e l b o l t s , u s i n g
t h e w h e e l b r a c e .
R e fi t t h e p r o t e c t o r s o n t h e b o l t s .
Return the ground clearance to
t h e n o r m a l p o s i t i o n .
E n s u r e t h e t y r e p r e s s u r e i s c o r r e c t
a n d h a v e t h e b a l a n c i n g c h e c k e d .
Deflation detection
T h e s e w h e e l s h a v e t y r e p r e s s u r e
s e n s o r s . I t i s e s s e n t i a l t o h a v e r e -
p a i r s c a r r i e d o u t b y a C I T R O Ë N
d e a l e r .
Security bolts
E a c h w h e e l i s e q u i p p e d w i t h o n e
s e c u r i t y b o l t .
T o r e m o v e i t :
R e m o v e t h e p r o t e c t o r u s i n g t o o l 3 .
U s e t h e s e c u r i t y s o c k e t w i t h t h e
w h e e l b r a c e . I f y o u r v e h i c l e i s fi t t e d w i t h a
s p a r e w h e e l o f a d i f f e r e n t s i z e
t o t h o s e o n t h e v e h i c l e , y o u
m u s t n o t e x c e e d 5 0 m p h ( 8 0 k m / h )
w h i l s t u s i n g t h e s p a r e w h e e l .
T h e w h e e l b o l t s a r e s p e c i fi c t o t h e
t y p e o f w h e e l .
I f t h e t y p e o f w h e e l i s c h a n g e d ,
c h e c k w i t h y o u r C I T R O Ë N d e a l e r
t h a t t h e w h e e l b o l t s a r e c o m p a t i b l e
w i t h t h e n e w w h e e l s .
Take care to note down the code
n u m b e r e n g r a v e d o n t h e h e a d o f
t h e s e c u r i t y b o l t s o c k e t . T h i s w i l l
e n a b l e y o u t o o b t a i n a r e p l a c e -
m e n t s e c u r i t y b o l t s o c k e t f r o m a
C I T R O Ë N d e a l e r .
Page 200 of 336
XI
!
1 7 8
P R A C T I C A L I N F O R M A T I O N
Wheel for temporary use
Y o u r v e h i c l e m a y b e fi t t e d w i t h a
s p a r e w h e e l w h i c h i s d i f f e r e n t t o
t h o s e o n t h e v e h i c l e . W h e n fi t t i n g
t h e s p a r e w h e e l , i t i s n o r m a l t o n o -
tice that the wheel bolt washers do
n o t c o m e i n t o c o n t a c t w i t h t h e w h e e l
r i m . T h e s p a r e w h e e l i s s e c u r e d b y
t h e c o n i c a l t a p e r i n g o f t h e w h e e l
b o l t ’ s s h a f t .
W h e n r e fi t t i n g t h e o r i g i n a l w h e e l ,
ensure that the wheel bolt contact
s u r f a c e s a r e c l e a n a n d i n g o o d c o n -
d i t i o n . Fitting a wheel
F i t t h e w h e e l o n t h e h u b , u s i n g
t h e c e n t r i n g g u i d e . M a k e s u r e
that the contact surface between
t h e h u b a n d t h e w h e e l i s c l e a n .
S c r e w i n t h e b o l t s b u t d o n o t f u l l y
t i g h t e n t h e m .
L o w e r t h e j a c k a n d r e m o v e i t .
T i g h t e n t h e w h e e l b o l t s , u s i n g
t h e w h e e l b r a c e .
R e fi t t h e p r o t e c t o r s o n t h e b o l t s .
Return the ground clearance to
t h e n o r m a l p o s i t i o n .
E n s u r e t h e t y r e p r e s s u r e i s c o r r e c t
a n d h a v e t h e b a l a n c i n g c h e c k e d .
Deflation detection
T h e s e w h e e l s h a v e t y r e p r e s s u r e
s e n s o r s . I t i s e s s e n t i a l t o h a v e r e -
p a i r s c a r r i e d o u t b y a C I T R O Ë N
d e a l e r .
Security bolts
E a c h w h e e l i s e q u i p p e d w i t h o n e
s e c u r i t y b o l t .
T o r e m o v e i t :
R e m o v e t h e p r o t e c t o r u s i n g t o o l 3 .
U s e t h e s e c u r i t y s o c k e t w i t h t h e
w h e e l b r a c e . I f y o u r v e h i c l e i s fi t t e d w i t h a
s p a r e w h e e l o f a d i f f e r e n t s i z e
t o t h o s e o n t h e v e h i c l e , y o u
m u s t n o t e x c e e d 5 0 m p h ( 8 0 k m / h )
w h i l s t u s i n g t h e s p a r e w h e e l .
T h e w h e e l b o l t s a r e s p e c i fi c t o t h e
t y p e o f w h e e l .
I f t h e t y p e o f w h e e l i s c h a n g e d ,
c h e c k w i t h y o u r C I T R O Ë N d e a l e r
t h a t t h e w h e e l b o l t s a r e c o m p a t i b l e
w i t h t h e n e w w h e e l s .
Take care to note down the code
n u m b e r e n g r a v e d o n t h e h e a d o f
t h e s e c u r i t y b o l t s o c k e t . T h i s w i l l
e n a b l e y o u t o o b t a i n a r e p l a c e -
m e n t s e c u r i t y b o l t s o c k e t f r o m a
C I T R O Ë N d e a l e r .
Page 215 of 336
XI
191
P R A C T I C A L I N F O R M A T I O N
FUSEBOX C
Fuse N° Rating
Function
F1 15 A R e a r s c r e e n w i p e ( T o u r e r )
F2 30 A L o c k i n g a n d d e a d l o c k i n g r e l a y
F3 5 A Airbags
F4 10 A A u t o m a t i c g e a r b o x - a d d i t i o n a l h e a t e r u n i t ( D i e s e l ) - e l e c t r o c h r o m e r e a r v i e w m i r r o r s
F5 30 A F r o n t w i n d o w - s u n r o o f - p a s s e n g e r d o o r l i g h t i n g - p a s s e n g e r d o o r m i r r o r a d j u s t m e n t
F6 30 A Rear window
F7 5 A V a n i t y m i r r o r l i g h t i n g - G l o v e b o x l i g h t i n g - i n t e r i o r l a m p s - t o r c h ( T o u r e r )
F8 20 A R a d i o - C D c h a n g e r - S t e e r i n g m o u n t e d c o n t r o l s - S c r e e n - D e fl a t i
o n d e t e c t i o n - E l e c t r i c b o o t
ECU
F9 30 A C i g a r - l i g h t e r - f r o n t 1 2 V s o c k e t
F10 15 A A l a r m - S t e e r i n g m o u n t e d c o n t r o l s , l i g h t i n g , s i g n a l l i n g a n d w i p e r s t a l k s
F11 15 A L o w c u r r e n t a n t i - t h e f t s w i t c h
F12 15 A D r i v e r ’ s e l e c t r i c s e a t - i n s t r u m e n t p a n e l - s e a t b
e l t n o t f a s t e n e d w a r n i n g l a m p s - a i r c o n d i t i o n i n g
controls
F13 5 A E n g i n e r e l a y u n i t - H y d r a u l i c s u s p e n s i o n p u m p c u t - o f f r e l a y - a i r b a g E C U s u p p l y
F14 15 A R a i n a n d b r i g h t n e s s s e n s o r - p a r k i n g a s s i s t a n c e - p a s s e n g e r ’ s e l e c t r i
c s e a t - t r a i l e r r e l a y
u n i t - H I F I a m p l i fi e r E C U - B l u e t o o t h s y s t e m - L a n e D e p a r t u r e W a r n i n g S y s t e m
F15 30 A L o c k i n g a n d d e a d l o c k i n g r e l a y
F17 40 A H e a t e d r e a r s c r e e n - e x t e r i o r h e a t e d d o o r m i r r o r s
FSH SHUNT P A R K S H U N T
