Citroen C5 RHD 2012 (RD/TD) / 2.G Owner's Manual

V
99
VISIBILITY

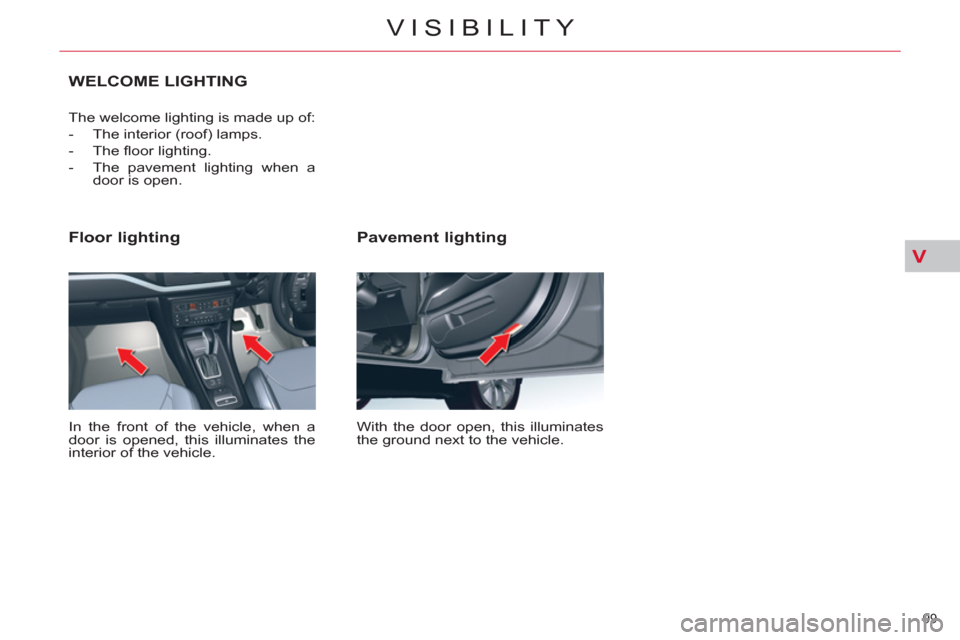

Pavement lighting

With the door open, this illuminates
the ground next to the vehicle.


Floor lighting

In the front of the vehicle, when a
door is opened, this illuminates the
interior of the vehicle.
The welcome lighting is made up of:


- The interior (roof) lamps.

- The fl oor lighting.

- The pavement lighting when a
door is open.


WELCOME LIGHTING

VI
!
100
FITTINGS





SUN VISOR




SKI FLAP

A fl ap in the backrest, located to the
rear of the armrest, facilitates the
carrying of long objects.

)
With the ignition on, lift the fl ap; the
mirror is illuminated automatically.
To prevent dazzle from ahead, fold
the visor downwards.
It can be disengaged from its central
fi xing and pivoted over to the side
windows if required.






Cooled glove box



)
To open the glove box, pull on
the handle and lower the lid.
The glove box has a manually clos-
able air vent B
.
It has 2 or 3 sockets C
to connect
audio/video equipment and a hold-
er for a SIM card (see "Audio and
Telematics").
It has automatic illumination.
It provides access to the dashboard
fusebox.


To open



)
Lower the rear armrest.

)
Pull the fl ap handle down.

)
Lower the fl ap.

)
Load the objects from inside the
boot.


Ensure that the objects are well se-
cured and that they do not impede
the operation of the gear lever.

The glove box should be
kept closed while driving.

VI
101
FITTINGS








MATS


Removing



)
Slide the seat back as far as
possible,

)
unclip the fi xings,

)
remove the fi xings, then the mat.



Refitting



)
Position the mat correctly,

)
clip the fi xings,

)
check that the mat is held is
place correctly.
To avoid any interference with the
pedals:


- only use mats which are suit-
able for the fi xings already
present in the vehicle. The use
of these fi xings is essential,

- never fi t more than 1 mat.
The use of a mat not approved by
CITROËN may obstruct access to
the pedals and hinder the cruise
control/speed limiter function.
Floor mats approved by CITROËN
are fi tted with a 3rd fi xing located in
the pedal area to avoid any risk of
interference with the pedals.














FRONT ARMREST

Comfort and storage system for the
driver and front passenger.

Adjustment

To optimise your driving position:


)
lift the control A
,

)
push the armrest forwards.
The armrest returns to its initial posi-
tion when you push it rearwards.
The front armrest includes a cup
holder and a USB port.
The USB port allows connection of
a portable device, such as a USB
memory stick, sending the audio
fi les to your audio system so that
they can be heard via the vehicle's
speakers.


)
Lift the armrest to access the cup
holder or the USB port.
Equipment available for the driver
and front passenger.

Cup-holder/USB port

VI
102
FITTINGS











REAR ARMREST

Comfort and storage system for the
rear passengers.

Cup-holder

The rear cup-holder A
is located in
the rear central armrest.


)
Lower the rear armrest.

)
Pull forwards to extract the cup-
holder.



Storage



)
Lift up the upper part of the rear
central armrest to access storage
space B
.


12 V ACCESSORIES SOCKET




SIDE BLINDS



)
Pull on the tab A
and position the
blind on the hook B
.

REAR BLIND (SALOON)



)
pull on the tab C
to unreel the
blind,

)
position the blind on the hooks D
.
This is located in the rear ashtray.
Max power: 100 W.


Driver's oddments tray



)
Pull the handle towards you.

VI
103
FITTINGS








BOOT FITTINGS (SALOON)



1.
Battery location for vehicles with
V6 HDi engine.

2.
Boot fl oor (spare wheel storage).
3.
Boot lamp.

4.
Location for 6 CD changer.







Luggage securing rings



)
Use the 4 securing rings on the
boot fl oor to secure your lug-
gage.
For safety reasons in the event of
sharp braking, you are advised to
place heavy objects as far forward
in the boot as possible.

VI
104
FITTINGS








BOOT FITTINGS (TOURER)



1.
Hook


For shopping bags.

2.
Torch


To recharge, return it to its storage
position.

3.
Storage net
or Battery compart-
ment (for vehicles with 3 litre
V6 HDi engine).


This provides access to the battery.



1.
Luggage-cover blind


(see details on following page)

2.
Luggage securing rings


Use the 4 stowing rings provided
on the boot fl oor to secure your
loads.
For safety reasons in the event
of sharp braking, you are ad-
vised to place heavy objects as
far forwards as possible.

3.
Hooks


These allow a cargo net to be
fi tted (see details on following
page).

1.
Boot lamp


2.
12 V accessories socket
(100 W maximum)

Cigarette lighter type 12 volt
socket. It is located on the rear
right-hand trim.

3.
Loading height control


You can change the height of the
vehicle to make loading or un-
loading easier.

4.
Hook


For shopping bags.

5.
Storage net
or closed housing


Location for the 6 CD changer.

VI
105
FITTINGS





LUGGAGE COVER (TOURER)


To roll up



)
Press the handle (PRESS) gently.
The luggage cover rolls up auto-
matically.
The moving part A
can be folded
along the rear bench seat backrest.


To remove



)
Compress the control 1
and lift
the luggage cover on the right
then on the left to remove it.



To install



)
Position the left-hand end of the
luggage cover roller in its loca-
tion B
behind the rear bench
seat.

)
Compress the roller control 1

and put the roller in place in its
location C
on the right.

)
Release the control to secure
the luggage cover.

)
Unroll it to its fastening on the
rear pillar.








High load retaining net
(Tourer)
Hooked onto the special upper and
lower fi xings, this permits use of the
entire loading volume up to the roof:


- behind the rear seats (row 2),

- behind the front seats (row 1)
when the rear seats are folded.
When positioning the net, check that
the strap loops are visible from the
boot; this will make slackening or
tightening easier.

VI
106
FITTINGS

Installation


)
fold down the backs of the rear
seats,

)
position the high load retaining
net roller above the two rails 1

located behind the rear seats
(2/3 bench seat). The two notch-
es 2
must be placed above the
two rails,

)
slide the two rails 1
into the
notches 2
and push the roller
(lengthways) from right to left to
secure it,

)
reposition the rear seat backs.

Row 1
Row 2
To use it in row 1:


)
fold down the
backs of the
rear seats,

)
open the cov-
ers 3
of the
corresponding
upper fi xings,

)
unroll the high load retaining net
and position one of the ends of
the net's metal bar in the cor-
responding fi xing cover. Check
that the hook is secured in the
rail located inside the cover 3
,

)
pull the high load retaining net's
metal bar to position the other
hook in the second fi xing cover.
To use it in row 2:


)
open the cov-
ers 4
of the
corresponding
upper fi xings,

)
from the rear bench seat, unroll
the high load retaining net, push-
ing it to detach it from the retaining
hooks,

)
position one of the ends of the
net's metal bar in the corre-
sponding fi xing cover. Check
that the hook is secured in the
rail located inside the cover,

)
position the other hook in the
second fi xing cover and pull the
metal bar towards you.

VII
107
CHILD SAFETY

*
The rules for carrying children are
specifi c to each country. Refer to the
current legislation in your country.












GENERAL POINTS RELATING
TO CHILD SEATS
Although one of CITROËN’s main
criteria when designing your vehi-
cle, the safety of your children also
depends on you.
For maximum safety, please observe
the following recommendations:


- in accordance with European
regulations, all children under
the age of 12 or less than one
and a half metres tall must
travel in approved child seats
suited to their weight
, on seats
fi tted with a seat belt or ISOFIX
mountings * ,

- statistically, the safest seats in
your vehicle for carrying chil-
dren are the rear seats,


- a child weighing less than 9 kg
must travel in the "rearwards-
facing" position both in the
front and in the rear.



CITROËN recommends
that
children should travel in the rear
seats
of your vehicle:


- "rearwards-facing"
up to the
age of 2,

- "forwards-facing"
over the
age of 2.

CHILD SEAT IN THE FRONT


"Rearwards-facing"
When a "rearwards-facing" child
seat is installed on the front pas-
senger seat
, it is essential that the
passenger airbag is deactivated.
Otherwise, the child would risk
being seriously injured or killed if
the airbag were to infl ate
.
"Forwards-facing"
When a "forwards-facing" child seat
is installed on the front passenger
seat
, adjust the vehicle’s seat to the
intermediate longitudinal position
with the seat back upright and leave
the passenger airbag activated.

Intermediate longitudinal
position

VII
!
108
CHILD SAFETY


Passenger airbag OFF


Refer to the advice given on the label
present on both sides of the passenger's
sun visor.


To assure the safety of your child, you must deactivate the passenger's
front airbag when you install a child seat in the rearwards facing position
on the front passenger's seat.
Otherwise, there is a risk that the child could be seriously injured or killed
if the airbag were deployed.
