boot Citroen C5 RHD 2014.5 (RD/TD) / 2.G User Guide

50
Unlocking
F Press button A again to unlock the vehicle.
The red indicator lamp on the button switches
of f.
Automatic central locking
Locking
When the speed exceeds 6 mph (10 km/h), the
doors and the boot lock automatically.
If one of the doors is open, the automatic
central locking does not take place.
If the boot is open, the automatic central
locking of the doors is active.
Unlocking
F Above 6 mph (10 km/h), press button A to unlock the doors and the boot temporarily.
Activation
F Press button A for more than two seconds.
A confirmation message appears on the
instrument panel screen, accompanied by an
audible signal.
Deactivation
F Press button A again for more than two seconds.
A confirmation message appears on the
instrument panel screen, accompanied by an
audible signal.
If the vehicle is locked or deadlocked
from the outside, the red indicator lamp
flashes and button A is inactive.
F

I

n this case, use the remote control
or the key to unlock the vehicle. System which provides full automatic locking
or unlocking of the doors and the boot while
driving.
You can activate or deactivate this function.
Access

52
boot (Saloon)
F Press upwards on lever 1 and lift up the boot lid. With the vehicle stationary, this is carried out
using:
-

T
he remote control.
-
T
he key in a door lock.
-
T
he interior central locking/ unlocking control.
The boot automatically locks when the vehicle
is moving at a speed of over 6 mph (10 km/h),
even if automatic central locking is deactivated.
It is unlocked when a door is opened or when
the central locking button is pressed (speed
lower than 6 mph (10 km/h)).
Opening Locking/unlocking Emergency boot release
Unlocking
F Fold back the rear seats to gain access to
the lock from inside the boot.
F

I
nsert a small screwdriver into hole A of the
lock to unlock the tailgate.
F

P
ush the white part, located inside the
lock, to the left to unlock the boot.
System for mechanical unlocking of the boot
in the event of a battery or central locking
malfunction.
access

53

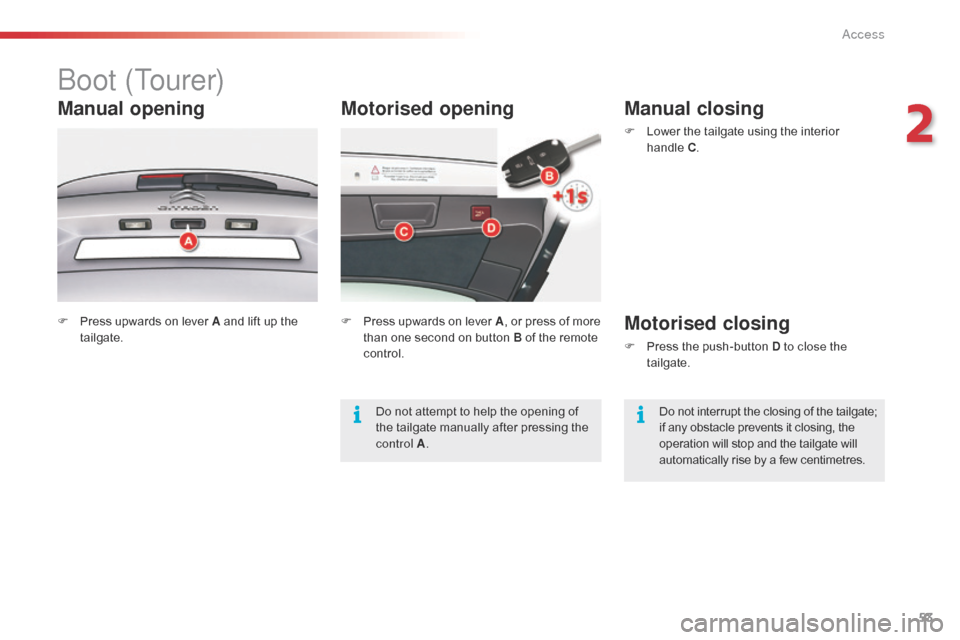

Motorised opening
boot (Tourer)
Manual opening
F Press upwards on lever A and lift up the tailgate. F
P ress upwards on lever A, or press of more
than one second on button B of the remote
control.
Manual closing
F Lower the tailgate using the interior handle C.
Motorised closing
F Press the push-button D to close the
tailgate.
Do not interrupt the closing of the tailgate;
if any obstacle prevents it closing, the
operation will stop and the tailgate will
automatically rise by a few centimetres.
Do not attempt to help the opening of
the tailgate manually after pressing the
control A
.
2
Access

54
Cancelling the
memorisation
With the tailgate in the intermediate position,
you can cancel the stored position:
F
M
ake a long press on push-button D .
The system emits a long audible beep.
F

R
elease the push-button D . The tailgate
will return to the fully open position at the
next use.
Electrical protection of the
motor
If the tailgate is repeatedly opened and closed
in quick succession, the motor can start to
overheat and then cut out, preventing opening
and closing of the tailgate.
Allow the motor to cool down for ten minutes
without opening or closing the tailgate.
Closing in manual back-up mode remains
possible.
To avoid risk of injury, make sure that
no one is in the vicinity of the boot while
opening and closing.
If the tailgate is carrying extra weight
(snow, bicycle carrier, etc.) there is a
risk of it closing under this load. Support
the tailgate or first unload the bicycle
carrier or clear the snow.
When using an automatic car wash,
don’t forget to lock the vehicle so as to
avoid any risk of motorised opening of
the tailgate.
Memorisation of an
intermediate position
You can store an opening angle for the tailgate:
F M anually or automatically move the tailgate
to the required position.
F

M
ake a long press on push-button D .
The system emits a short audible beep.
F

R
elease the push-button D .
Interrupting the opening /
closing of the tailgate
When the tailgate is being opened or closed
electrically, you can interrupt its movement
at any point by pressing push-button D , the
control A or button B .
You can then open or close the tailgate
electrically or manually, if necessary moving it
in the opposite direction to release it.
Locking/unlocking
With the vehicle stationary, this is carried out
using:
-

T
he remote control.
-

T
he key in a door lock.
-

T
he interior central locking/ unlocking control.
The boot automatically locks when the vehicle
is moving at a speed of over 6 mph (10 km/h),
even if automatic central locking is deactivated. It
is unlocked when a door is opened or when the
central locking button is pressed (at a speed of
less than 6 mph (10 km/h)).
Access

65
Rear seats
Bench seat, the left-hand (2/3) or right-hand (1/3) section of which can be folded to adapt the boot load space.
F
M
ove the corresponding front seat for ward
if necessary.
F

R
aise the front of the seat cushion 1 .
F

T
ilt the seat cushion 1 fully against the front
seat.
F

R
emove the seat cushion 1 from its fixings
by pulling upwards.
Refitting the seat cushion
F Position the seat cushion 1 vertically in its fixings.
F

F
old down the seat cushion 1 .
F

P
ress on the seat cushion to secure it.
Removing the seat cushion
3
Ease of use and comfort

68
We recommend use of the automatic regulation
of the air conditioning.
It permits automatic and optimised control
of all of the following functions: air flow,
temperature in the passenger compartment
and air distribution, by means of various
sensors (ambient temperature, sunshine).
This eliminates any need for you to change
your settings other than the temperature value
displayed.
F Take care not to cover the sunshine sensor A .
If you select the automatic mode
(by pressing the "AUTO" control) and leave
all of the vents open, optimum comfort will be
maintained and humidity and condensation will
be removed regardless of the exterior climatic
conditions.
The temperature in the passenger compartment
can only be lower than the ambient temperature
if the air conditioning is on.
In order to be effective, the air conditioning must
be used with the windows closed. If the vehicle
has been parked in the sun for a long period and
the interior temperature is very high, first ventilate
the passenger compartment with the windows
open for a few minutes, then close the windows.
Heating, ventilation and air conditioning recommendations
To keep the air conditioning system in
good working order it is essential that it is
operated at least once a month.
The air conditioning uses engine power
during its operation. As a result, the fuel
consumption of the vehicle increases.
In certain cases of particularly arduous use
(e.g. towing the maximum load on a steep
gradient in high temperatures), switching off
the air conditioning saves engine power and
improves the towing capacity.
Air inlet
Check that the exterior grille for the air inlet,
at the bottom of the windscreen, is clean and
free of dead leaves, snow, etc.
When washing the vehicle using a high
pressure nozzle, avoid spraying at the air
inlet. Maximum comfort is obtained by means of
a good distribution of air in the passenger
compartment, both in the front and in the rear.
To obtain a uniform distribution of air, take
care not to block the exterior air intake grille
located at the base of the windscreen, the
vents, the air outlets under the front seats and
the air extractor located behind the flaps in
the boot.
The front and rear vents are fitted with
thumbwheels to adjust the air flow and
direction. We recommend that you leave all of
the vents open.
Dust filter / Odour filter
(active carbon)
There is a filter for excluding odours and
dust.
This filter must be changed in line with the
vehicle's servicing schedule. (Refer to the
maintenance and warranty guide).
Air conditioning
Air circulation
Ease of use and comfort

90
Side blinds
F Pull on the tab A and position the blind on the hook B .
Rear blind (Saloon)
F Pull on the tab C to unreel the blind,
F
p osition the blind on the hooks D .
Ski flap
A flap in the backrest, located to the rear of the
armrest, facilitates the carrying of long objects.
To o p e n
F Lower the rear armrest.
F
P ull the flap handle down.
F

L
ower the flap.
F

L
oad the objects from inside the boot.
Ensure that the objects are well secured
and that they do not impede the
operation of the gear lever.
Ease of use and comfort

91
Boot fittings (Saloon)
1. Boot floor (spare wheel storage).2. B oot lamp.
3. L ocation for 6 CD changer.
Luggage securing rings
F Use the 4 securing rings on the boot floor to secure your luggage.
For safety reasons in the event of sharp
braking, you are advised to place heavy objects
as far for ward in the boot as possible.
3
Ease of use and comfort

92
Boot fittings (Tourer)
1. Hook
F or shopping bags.
2.
T

o r c h
T

o recharge, return it to its storage
position.
3.
Sto

rage net 1. L
uggage-cover blind
(
see details on following page)
2.
L

uggage securing rings
U

se the 4 stowing rings provided on the
boot floor to secure your loads.
F

or safety reasons in the event of sharp
braking, you are advised to place heavy
objects as far for wards as possible.
3.
Hoo

ks
T

hese allow a cargo net to be fitted (see
details on following page). 1. B
oot lamp
2. 1 2 V accessories socket
(100 W maximum)
C

igarette lighter type 12 volt socket. It is
located on the rear right-hand trim.
3.
L

oading height control
Y

ou can change the height of the vehicle to
make loading or unloading easier.
4.
Hoo

k
F

or shopping bags.
5.
Sto

rage net or closed housing
L

ocation for the 6 CD changer.
Ease of use and comfort

94
High load retaining net
(Tourer)
Hooked onto the special upper and lower
fixings, this permits use of the entire loading
volume up to the roof:
-
b
ehind the rear seats (row 2),
-

b
ehind the front seats (row 1) when the rear
seats are folded.
When positioning the net, check that the strap
loops are visible from the boot; this will make
slackening or tightening easier.
Installation
F fold down the backs of the rear seats,
F p osition the high load retaining net roller
above the two rails 1 located behind
the rear seats (2/3 bench seat). The
two
notches 2 must be placed above the
two rails, F
s lide the two rails 1 into the notches 2 and
push the roller (lengthways) from right to
left to secure it,
F

r
eposition the rear seat backs.
Ease of use and comfort
