light Citroen C5 RHD 2014.5 (RD/TD) / 2.G User Guide

39
Remote control key
System which permits central unlocking or locking of the vehicle using the lock or from a distance. It is also used to open the boot, locate and start
the vehicle, as well as providing protection against theft.
Unfolding / Folding the key
Complete unlocking using the
remote control
Unlocking the vehicle
F Press the open padlock to unlock the vehicle.
Complete unlocking using
the key
F Turn the key in the driver's door lock
towards the front of the vehicle to unlock it.
Selective unlocking using the
remote control
F Press the open padlock once to unlock the driver's door only.
Each unlocking is confirmed by rapid flashing
of the direction indicators for approximately two
seconds and by switching on of the courtesy
lamp.
According to version, the exterior mirrors unfold
at the same time as the first unlocking action.
The complete or selective unlocking parameter
is set via the instrument panel screen
configuration menu (see "Monitoring" section).
Complete unlocking is activated by default. F

P

ress the open padlock again to unlock the
other doors and the boot.
Selective unlocking is not possible
using the key.
Unlocking is confirmed by rapid flashing of
the direction indicators for approximately two
seconds and lighting of the courtesy lamp
(if the function is activated).
According to version, the door mirrors unfold at
the same time.
F

First press this button to unfold / fold the key.
2
Access

41
F Turn the key in the driver's door lock to the rear of the vehicle to lock it and
hold it in this position for more than two
seconds to close the windows and sunroof
automatically in addition to locking.
F

T
urn the key to the rear of the vehicle within
five seconds to deadlock it.
Deadlocking is confirmed by fixed lighting
of the direction indicators for approximately
two
seconds.
According to version, the exterior mirrors fold at
the same time.
Using the key
When stationary with the engine off,
locking is confirmed by flashing of the
indicator lamp on the interior locking
control.
If one of the doors or the boot is open
or has not been closed correctly, the
central locking will not work. Deadlocking renders the exterior and
interior door controls inoperative.
It also deactivates the manual central
control button.
Therefore, never leave anyone inside
the vehicle when it is deadlocked.
Deadlocking
F Press the closed padlock to lock the vehicle or press
the closed padlock for more
than two seconds to close
the windows and sunroof
automatically in addition to
locking.
F

P

ress the closed padlock again within
five

seconds to deadlock the vehicle.
Using the remote control
2
Access

42
Operating problem
Following disconnection of the vehicle battery,
replacement of the remote control battery or in
the event of a remote control fault, you can no
longer unlock, lock or locate your vehicle.
F
F
irst of all, use the key in the lock to unlock
or lock your vehicle.
F

T
hen, reinitialise the remote control.
If the problem persists, contact a CITROËN
dealer or a qualified workshop as soon as
possible.
Reinitialisation
F Switch off the ignition.
F T urn the key to position 2 (Igntion on) .
(

Refer to the "Starting-switching off the
engine" section).
F

P
ress the closed padlock immediately for a
few seconds, until the operation requested
is triggered.
F

S
witch off the ignition and remove the key
from the ignition switch.
The remote control is fully operational again.
Changing the battery
Battery ref.: CR2032 / 3 volts.
F

U
nclip the casing using a small screwdriver
at the notch.
F

R
emove the cover.
F

R
emove flat battery from its housing.
F

P
lace the new battery into its housing
observing the original direction of fitment.
F

C
lip the cover into place.
Locating your vehicle
F Press the closed padlock to locate your locked vehicle in a car park.
This is indicated by switching on of the interior
lighting and flashing of the direction indicators
for a few seconds.
The vehicle remains locked.
If the battery is flat, you are informed
by illumination of this warning lamp,
an audible signal and a message in
the multifunction screen.
Access

62
Steering wheel adjustment
F First, adjust the driver's seat to the most suitable position.
F

W
hen stationary , lower the lever A to
release the steering wheel adjustment.
F

A
djust for height and reach.
F

R
aise the lever to lock the steering wheel
adjustment.
After locking, if you press firmly on the steering
wheel, a slight click may be heard. The steering wheel can be adjusted for height and reach to adapt the driving position to the size of
the driver.
Adjustment
as a safety precaution, these
operations must only be carried out
while the vehicle is stationary.
Ease of use and comfort

64
Automatic day/night model
In order to guarantee optimum visibility
during your manoeuvres, the mirror lightens
automatically when reverse gear is engaged. By means of a sensor, which measures the
light from the rear of the vehicle, this system
automatically and progressively changes
between the day and night uses.
It has an anti-dazzle system which darkens the
mirror glass: this reduces any driver discomfort
caused by the light beam of following vehicles,
the sun...In vehicles fitted with electrochromatic door
mirrors, the system has an on/off button and an
associated warning lamp.
On
F With the ignition on, press on button 1
.
The warning lamp 2 comes on and the mirror
glass is in automatic mode.
Off
F Press on button 1 .
The warning lamp 2 goes off and the mirror
glass remains in its lightest definition.
Rear view mirror
Manual day/night model
Adjustment
F Adjust the mirror so that the glass is directed correctly in the "day" position.
Day / night position
F Pull the lever to change to the "night" anti-dazzle position.
F

P
ush the lever to change to the normal
"day" position. As a safety measure, the mirrors should
be adjusted to reduce the "blind spot".
Adjustable mirror providing a central rear ward view.
Equipped with an anti-dazzle system, which darkens the mirror glass and reduces the nuisance to
the driver caused by the sun, headlamps from other vehicles...
Ease of use and comfort

75
5. Air flow adjustment
Reducing the flow to minimum switches the
air conditioning OFF.
To prevent condensation and deterioration
of the quality of the air in the passenger
compartment, ensure that an adequate flow of
air is maintained.
6. Air conditioning
The air conditioning will only
operate when the engine is running.
The air blower control (air flow
adjustment) must be active in order
to obtain air conditioning.
7. Air recirculation - intake of exterior air
Automatic air intake modeIt is activated by default in
automatic comfort regulation.
Automatic mode is activated with
reverse gear or operation of the
screenwash. Closing the air intake
F
P ress control 7 to close the
exterior air intake.
It must be cancelled as soon as possible to
permit renewal of the air in the passenger
compartment and demisting.
Intake of exterior air
F

P
ress control 7 once to open
the exterior air intake.
While retaining the other settings, this position
allows the driver to isolate the passenger
compartment at any time from unpleasant
exterior odours and fumes.
F
P
ress the control:
-
t
o increase the air flow,
-
t

o reduce the air flow.
The air flow level is indicated by the
progressive lighting of the fan blade
indicator lamps.
This function permits recirculation of the air
and isolation the passenger compartment from
exterior fumes and odours. It is inactive when
the ambient temperature is below +5 °C to
avoid the risk of misting inside the vehicle.
You can store the air conditioning
settings. Refer to the "Storing driving
positions" section.
F

P

ress control 6 . The indicator lamp
comes

on.
In order to be effective, the air conditioning
must be used with the windows closed.
3
Ease of use and comfort

83
Map reading lamps
F With the ignition on, press the corresponding switch.
Panoramic sunroof rear
reading lamps (Tourer)
With the key in position or with the ignition on:
F P ress the corresponding switch 1 .
The reading lamp concerned comes on for
ten
m

inutes.
The rear reading lamps come on:
-

w
hen the key is removed from the ignition,
-

w
hen the vehicle is unlocked.
They switch off gradually:
-

w
hen the vehicle is locked,
-

w
hen the ignition is switched on.
Courtesy lamps
1. Front courtesy lamp
2. M ap reading lamp s
Front courtesy lamp
Rear courtesy lamp
1. Rear courtesy lamp
2. M
ap reading lamps In this position, the courtesy lamp
comes on gradually:
Lighting off.
Lighting on.
-
w
hen the vehicle is unlocked,
-
w
hen a door is opened,
-
w
hen the key is removed from the ignition,
-
w
hen the remote control locking button is
activated, in order to locate your vehicle.
It switches off gradually:
-
w
hen the vehicle is locked,
-
w
hen the ignition is switched on,
-
3
0 seconds after the last door is closed.
In lighting on mode, different lighting
times are available:
-
w
ith the ignition off, approximately
ten minutes,
- i n energy economy mode,
approximately thirty seconds,
-

w
ith the engine running, unlimited.
3
Ease of use and comfort

84
Interior mood lightingYour vehicle is equipped with interior mood lighting for the centre console and the door handles.
Central consoleLighting for door opening
controls
Operation
These lamps are activated with the automatic
illumination of headlamps, when the ambient
light is poor. They are deactivated when the
instrument panel is off.
The intensity of the lighting varies along with
that of the instrument panel.
F

P
ress buttons A to increase or reduce the
intensity of the lighting. This is located on the front and rear interior
door opening controls.
The rear door opening controls lighting is
deactivated if the child lock is on.
The lamps are located on the roof console,
near the front interior lamp. They illuminate the
central console.
Ease of use and comfort

85

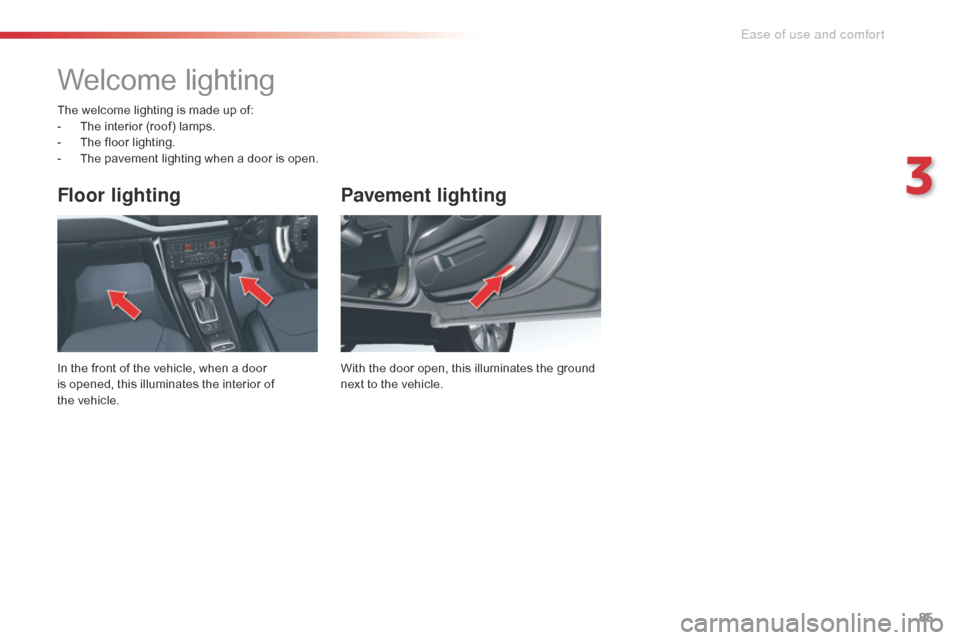

Pavement lighting
With the door open, this illuminates the ground
next to the vehicle.
Floor lighting
In the front of the vehicle, when a door
is opened, this illuminates the interior of
the vehicle.
The welcome lighting is made up of:
-

T
he interior (roof) lamps.
-
T
he floor lighting.
-
T
he pavement lighting when a door is open.
Welcome lighting
3
Ease of use and comfort

92
Boot fittings (Tourer)
1. Hook
F or shopping bags.
2.
T

o r c h
T

o recharge, return it to its storage
position.
3.
Sto

rage net 1. L
uggage-cover blind
(
see details on following page)
2.
L

uggage securing rings
U

se the 4 stowing rings provided on the
boot floor to secure your loads.
F

or safety reasons in the event of sharp
braking, you are advised to place heavy
objects as far for wards as possible.
3.
Hoo

ks
T

hese allow a cargo net to be fitted (see
details on following page). 1. B
oot lamp
2. 1 2 V accessories socket
(100 W maximum)
C

igarette lighter type 12 volt socket. It is
located on the rear right-hand trim.
3.
L

oading height control
Y

ou can change the height of the vehicle to
make loading or unloading easier.
4.
Hoo

k
F

or shopping bags.
5.
Sto

rage net or closed housing
L

ocation for the 6 CD changer.
Ease of use and comfort
