Fusebox B
Fuse N°Rating Function
G29 -Not used
G30 5 AHeated door mirrors
G31 5 ARain and sunshine sensor
G32 5 ASeat belt not fastened warning lamps
G33 5 AElectrochrome rear view mirror
G34 20 ASunroof (saloon)
G35 5 APassenger door lighting - passenger door mirror adjustment
G36 30 AElectric tailgate (Tourer)
G37 20 AHeated front seats
G38 30 ADriver’s electric seat
G39 30 APassenger’s electric seat - Hi-Fi amplifier
G40 3 ATrailer relay unit supply
Fuse N° Rating Function
G36 15 A
6 speed automatic gearbox
5 A 4 speed automatic gearbox
G37 10 ADaytime running lamps - Diagnostic socket
G38 3 ADSC/ASR
G39 10 AHydraulic suspension
G40 3 AST
o
P
switch
Fusebox A
Practical information

213
Fusebox C
Fuse N°Rating Function
F1 15 ARear screen wipe (Tourer)
F2 30 ALocking and deadlocking relay
F3 5 AAirbags
F4 10 AAutomatic gearbox - additional heater unit (Diesel) - electrochrome rear view mirror
F5 30 AFront window - sunroof - passenger door lighting - passenger door mirror adjustment
F6 30 ARear window
F7 5 AVanity mirror lighting - Glove box lighting - interior lamps - torch (tourer)
F8 20 ARadio - CD changer - Steering mounted controls - Screen - Under-inflation detection - Electric boot ECU
F9 30 ACigarette lighter - front 12 V socket
F10 15 AAlarm - Steering mounted controls, signalling and wiper controls
F11 15 ALow current ignition switch
F12 15 ADriver’s electric seat - instrument panel - seat belt not fastened warning lamps - air conditioning controls
F13 5 AEngine relay unit - Hydraulic suspension pump cut-off relay - airbag ECU supply
F14 15 ARain and sunshine sensor - parking sensors - passenger’s electric seat - trailer relay unit - HIFI amplifier ECU -
Bluetooth system - Lane Departure Warning System
F15 30 ALocking and deadlocking relay
F17 40 AHeated rear screen - Heated door mirrors
FSH SHUNTPARK SHUNT
8
Practical information

217
Following reconnection of
the battery
Following reconnection of the battery,
switch on the ignition and wait 1 minute
before starting to permit initialisation
of the electronic systems. However, if
slight malfunctions remain following this
operation, contact a CITROËN dealer
or a qualified workshop.
Referring to the corresponding section,
you must yourself reinitialise:
-
t
he remote control key,
-

t
he glass panoramic roof blind,
-

t
he GPS satellite navigation
system.
Starting using another
battery
F Connect the red cable to the positive terminal (+) of the flat battery A , then to the
positive terminal (+) of the slave battery B.
F

C
onnect one end of the green or black
cable to the negative terminal (-) of the
slave battery B .
F

C
onnect the other end of the green or black
cable to the earth point C on the broken
down vehicle.
F

O
perate the starter, let the engine run.
F

W
ait until the engine returns to idle and
disconnect the cables.
Charging the battery using
a battery charger
F Disconnect the battery from the vehicle.
F F ollow the instructions for use provided by
the manufacturer of the charger.
F

R
econnect starting with the negative
terminal (-).
F

C
heck that the terminals and connectors
are clean. If they are covered with sulphate
(whitish or greenish deposit), remove them
and clean them. With Stop & Start, the battery does not
have to be disconnected for charging.
Before disconnecting the battery
Wait 2 minutes after switching off
the ignition before disconnecting the
battery.
Close the windows and the doors
before disconnecting the battery.
8
Practical information

219
Energy economy mode
System which manages the duration of use of
certain functions to conserve a sufficient level
of charge in the battery.
After the engine has stopped, you can
still use functions such as the audio and
telematics system, windscreen wipers, dipped
headlamps,
courtesy lights, etc. for a maximum
combined duration of thirty minutes.Exiting economy mode
These functions are reactivated automatically
next time the vehicle is driven.
F

I
n order to resume the use of these
functions immediately, start the engine and
let it run for a few minutes.
The time available will then be double the
duration for which the engine was left running.
However, this time will always be between five
and thirty minutes.
Switching to economy mode
Once the thirty minutes are over, a message
appears on the multi-function screen indicating
that the vehicle has switched to economy mode
and the active functions are put on standby.
A flat battery prevents the engine from
starting (refer to the corresponding
section).
This period may be significantly
reduced if the battery charge is low.
If the telephone is being used at this
time:
-

i
t will be maintained for five minutes
with hands-free kit of your Audio
system,
-

i
t will be maintained for ten minutes
with your eMyWay.
8
Practical information

223
Blanking cover
When towing, you must remove the blanking
cover in the front bumper as well as the bonnet
seal if fitted.
Contact a CITROËN dealer or a qualified
workshop for this.
Ty r e s
F Check the tyre pressures of the towing vehicle and of the trailer, observing the
recommended pressures.
Lighting
F Check the electrical lighting and signalling on the trailer.
The rear parking sensors will be
deactivated automatically if a genuine
CITROËN towbar is used.
Braking
Towing a trailer increases the braking distance.
To avoid overheating of the brakes on a long
mountain type of descent, the use of engine
braking is recommended.
8
Practical information

227

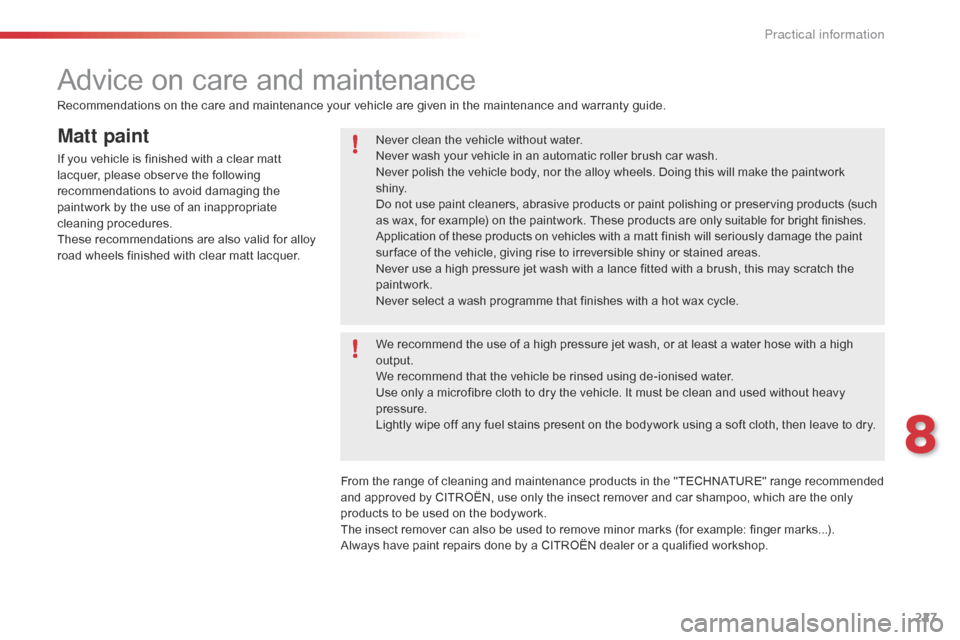

Matt paint
If you vehicle is finished with a clear matt
lacquer, please observe the following
recommendations to avoid damaging the
paintwork by the use of an inappropriate
cleaning procedures.
These recommendations are also valid for alloy
road wheels finished with clear matt lacquer.From the range of cleaning and maintenance products in the "TECHNATURE" range recommended
and approved by CITROËN, use only the insect remover and car shampoo, which are the only
products to be used on the bodywork.
The insect remover can also be used to remove minor marks (for example: finger marks...).
Always have paint repairs done by a CITROËN dealer or a qualified workshop.Never clean the vehicle without water.
Never wash your vehicle in an automatic roller brush car wash.
Never polish the vehicle body, nor the alloy wheels. Doing this will make the paintwork
shiny.
Do not use paint cleaners, abrasive products or paint polishing or preserving products (such
as wax, for example) on the paintwork. These products are only suitable for bright finishes.
Application of these products on vehicles with a matt finish will seriously damage the paint
sur face of the vehicle, giving rise to irreversible shiny or stained areas.
Never use a high pressure jet wash with a lance fitted with a brush, this may scratch the
paintwork.
Never select a wash programme that finishes with a hot wax cycle.
We recommend the use of a high pressure jet wash, or at least a water hose with a high
output.
We recommend that the vehicle be rinsed using de-ionised water.
Use only a microfibre cloth to dry the vehicle. It must be clean and used without heavy
pressure.
Lightly wipe off any fuel stains present on the bodywork using a soft cloth, then leave to dry.
Advice on care and maintenance
Recommendations on the care and maintenance your vehicle are given in the maintenance and warranty guide.
8
Practical information

241

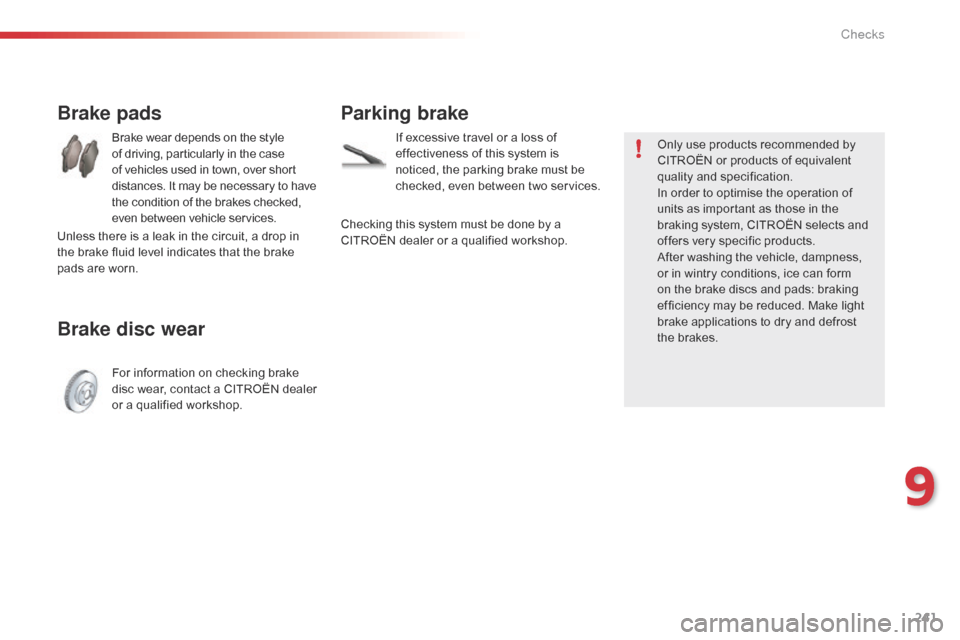

Brake pads
Brake wear depends on the style
of driving, particularly in the case
of vehicles used in town, over short
distances. It may be necessary to have
the condition of the brakes checked,
even between vehicle services.
Brake disc wear
For information on checking brake
disc wear, contact a CITROËN dealer
or a qualified workshop.
Unless there is a leak in the circuit, a drop in
the brake fluid level indicates that the brake
pads are worn.
Parking brake
If excessive travel or a loss of
effectiveness of this system is
noticed, the parking brake must be
checked, even between two services.
Checking this system must be done by a
CITROËN dealer or a qualified workshop. Only use products recommended by
CITROËN or products of equivalent
quality and specification.
In order to optimise the operation of
units as important as those in the
braking system, CITROËN selects and
offers very specific products.
After washing the vehicle, dampness,
or in wintry conditions, ice can form
on the brake discs and pads: braking
efficiency may be reduced. Make light
brake applications to dry and defrost
the brakes.
9
Checks

243
* The weight of the braked trailer can be increased, within the GTW limit, on condition that the GV W of the towing vehicle is reduced by the same amount; warning, towing with a lightly loaded towing vehicle may have an adverse effect on its road holding.
Weights and towed loads (Saloon) in kg
Petrol engine 1.6i VTi 1201.6i THP 155
Gearbox Electronic gearbox systemAutomaticManual
Model code:
RD... 5FS- 8/P
5FV-5FN/A 5FV-5FN/8
Unladen weight 1 4251 5151 471
Kerb weight 1 5001 5901 546
Gross vehicle weight (GV W) 2 0182 026 2 065
Gross train weight (GTW) 3 3183 526 3 565
Braked trailer (within GTW limit)
-

o
n a 10% or 12% slope 1 300
1 5001 500
Braked trailer* (with load transfer within GTW
limit) 1 570
1 7101 730
Unbraked trailer 750750750
Recommended nose weight 6469 70
The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
The speed of a towing vehicle must never exceed 100 km/h (approx. 60 mph) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the per formance of the vehicle in order to protect the engine; when the ambient temperature is
higher than 37 °C, limit the weight towed.
10
Technical data

244
Petrol engine1.6i VTi 1201.6i THP 155
Gearbox Electronic gearbox systemAutomaticManual
Model code:
RW... 5FS- 8/P
5FV-5FN/A 5FV-5FN/8
Unladen weight 1 4981 534 1 503
Kerb weight 1 5731 609 1 578
Gross vehicle weight (GV W) 2 1332 200 2 167
Gross train weight (GTW) 3 4333 7003 667
Braked trailer (within GTW limit)
-

o
n a 10% or 12% slope 1 300
1 5001 500
Braked trailer* (with load transfer within GTW
limit) 1 600
1 7901 790
Unbraked trailer 750750750
Recommended nose weight 657473
The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
The speed of a towing vehicle must never exceed 100 km/h (approx. 60 mph) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the per formance of the vehicle in order to protect the engine; when the ambient temperature is
higher than 37 °C, limit the weight towed. *

T
he weight of the braked trailer can be increased, within the GTW limit, on condition that the GV W of the towing vehicle is reduced by the same
amount; warning, towing with a lightly loaded towing vehicle may have an adverse effect on its road holding.
Weights and towed loads (Tourer) in kg
Technical data

247
The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 100 km/h (approx.) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the per formance of the vehicle in order to protect the engine; when the ambient temperature is
higher than 37 °C, limit the weight towed. *
T
he weight of the braked trailer can be increased within the GTW limit, on condition that the GV W of the towing vehicle is reduced by the same
amount; warning, towing with a lightly loaded towing vehicle may have an adverse effect on its road holding.
Weights and towed loads (Saloon) in kg
Diesel engine HDi 115e-HDi 115 HDi 140
Gearbox ManualElectronic gearbox system Manual
Model code:
RD... 9HL/8
9HR/8RHR-RHF/H-8 RHA-RHD/H-8
Unladen weight 1 5061 5251 5351 563
Kerb weight 1 5811 6001 6831 638
Gross vehicle weight (GV W) 2 0412 0622 1552 156
Gross train weight (GTW) 3 1413 1623 7553 656
Braked trailer (within GTW limit)
-

o
n a 10% or 12% slope 1 100
1 1001 600 1 500
Braked trailer* (with load transfer within GTW
limit) 1 340
1 3401 8401 740
Unbraked trailer 750750750
Recommended nose weight 55557370
10
Technical data
