ECU Citroen C5 RHD 2014.5 (RD/TD) / 2.G Owner's Guide

196

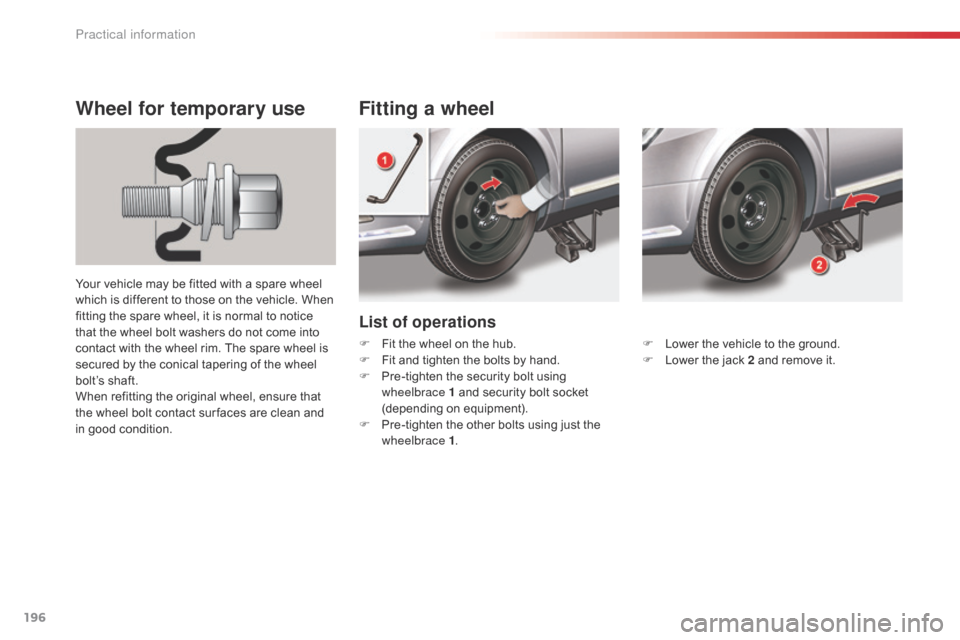

List of operations
Fitting a wheel
Wheel for temporary use
Your vehicle may be fitted with a spare wheel
which is different to those on the vehicle. When
fitting the spare wheel, it is normal to notice
that the wheel bolt washers do not come into
contact with the wheel rim. The spare wheel is
secured by the conical tapering of the wheel
bolt’s shaft.
When refitting the original wheel, ensure that
the wheel bolt contact sur faces are clean and
in good condition. F

L
ower the vehicle to the ground.
F

L
ower the jack 2 and remove it.
F

F
it the wheel on the hub.
F

F
it and tighten the bolts by hand.
F

P
re-tighten the security bolt using
wheelbrace 1 and security bolt socket
(depending on equipment).
F

P
re-tighten the other bolts using just the
wheelbrace 1 .
Practical information

197
If your vehicle is fitted with a spare
wheel of a different size to those on the
vehicle, you must not exceed 50 mph
(80 km/h) whilst using the spare wheel.
The wheel bolts are specific to the type
of wheel.
If the type of wheel is changed,
check with your CITROËN dealer or a
qualified workshop that the wheel bolts
are compatible with the new wheels.
Take care to note down the code
number engraved on the head of the
security bolt socket. This will enable
you to obtain a replacement security
bolt socket from your dealer.
F

T

ighten the security bolt using
wheelbrace


1 and security bolt socket
(depending on equipment).
F

T

ighten the other bolts using just the
wheelbrace 1 .
F

R

efit the protectors on the bolts.
F

S

tow the tools in the carrier box.
F

R

eturn the suspension to the normal
position.
F

E

nsure the tyre pressure is correct and
have the balancing checked.Tyre under-inflation detection
The space-saver type or steel spare
wheel does not have a sensor.
The punctured wheel must be repaired
by a CITROËN dealer or a qualified
workshop.
8
Practical information

203
Rear lamps (Saloon)
Identify the failed bulb.
1. Brake lamps and sidelamps:
P 21 W
/ 5 W
2.
S

idelamps: R 5 W
3.
R

eversing lamps: H 21 W
4.
F

oglamps: H 21 W
5.
D

irection indicators: PY 21 WBoot-mounted lamps
F Unclip the bulb holder H .
F R eplace the bulb.
F

R
efit the bulb holder H .
F

C
heck that the bulb holder H is secured
correctly by the two clips 6 .
F

R
efit the connector G .
F

R
eplace and fix the trim F with its clips.
F
O
pen the boot.
F
U
sing a flat screwdriver, remove the 3

clips
which fix the trim in the lamp area.
F

P

artially remove the trim F .
F
d
i

sconnect the connector G .
8
Practical information

210
Changing a fuse
Replacing a fuse
Before replacing a fuse, it is necessary to:
- d etermine the cause of the fault and have it
remedied,
-

s
witch off all electric consumers,
-

p
ark the vehicle and switch off the ignition,
-

i
dentify the failed fuse using the allocation
tables and diagrams presented on the
following pages. Good
Failed
Tw e e z e r 1
To replace a fuse, it is essential to:
-

u
se the special tweezer 1 , placed on the
cover close to the fuseboxes, to extract
the fuse from its holder and check the
condition of its filament,
-

a
lways replace a failed fuse by a fuse of
equivalent rating (same colour); a different
rating could cause a fault (risk of fire).
If the fault recurs soon after replacing the
fuse, have the electrical system checked by a
CITROËN dealer or a qualified workshop. The replacement of a fuse not
mentioned in the tables below may
cause a serious fault on your vehicle.
Contact a CITROËN dealer or a
qualified workshop.
CITROËN declines all responsibility
for the costs incurred in repairing your
vehicle or faults resulting from the
installation of accessories that are not
supplied or recommended by CITROËN
and not installed in conformity with its
requirements, particularly when the
total consumption of additional devices
exceeds 10 milliamperes.Installation of electrical
accessories
Your vehicle’s electrical system
is designed to operate with either
standard or optional equipment.
Before installing electrical equipment
or accessories on your vehicle, consult
a CITROËN dealer or a qualified
workshop.
The 2 fuseboxes are located below the dashboard and under the bonnet.
Practical information

213
Fusebox C
Fuse N°Rating Function
F1 15 ARear screen wipe (Tourer)
F2 30 ALocking and deadlocking relay
F3 5 AAirbags
F4 10 AAutomatic gearbox - additional heater unit (Diesel) - electrochrome rear view mirror
F5 30 AFront window - sunroof - passenger door lighting - passenger door mirror adjustment
F6 30 ARear window
F7 5 AVanity mirror lighting - Glove box lighting - interior lamps - torch (tourer)
F8 20 ARadio - CD changer - Steering mounted controls - Screen - Under-inflation detection - Electric boot ECU
F9 30 ACigarette lighter - front 12 V socket
F10 15 AAlarm - Steering mounted controls, signalling and wiper controls
F11 15 ALow current ignition switch
F12 15 ADriver’s electric seat - instrument panel - seat belt not fastened warning lamps - air conditioning controls
F13 5 AEngine relay unit - Hydraulic suspension pump cut-off relay - airbag ECU supply
F14 15 ARain and sunshine sensor - parking sensors - passenger’s electric seat - trailer relay unit - HIFI amplifier ECU -
Bluetooth system - Lane Departure Warning System
F15 30 ALocking and deadlocking relay
F17 40 AHeated rear screen - Heated door mirrors
FSH SHUNTPARK SHUNT
8
Practical information

216
battery
Access to the battery
The battery is located under the bonnet.
For access to it:
F
o
pen the bonnet using the interior release
lever, then the exterior safety catch,
F

s
ecure the bonnet stay,
F

r
emove the plastic cover to gain access to
the two terminals,
F

u
nclip the fusebox to remove the battery,
if
necessary.
The presence of this label, in particular
with the Stop & Start system, indicates
the use of a 12 V lead-acid battery with
special technology and specification;
the involvement of a CITROËN dealer
or a qualified workshop is essential
when replacing or disconnecting the
battery.
After refitting the battery, the Stop &
Start system will only be active after a
continuous period of immobilisation of the
vehicle, a period which depends on the
climatic conditions and the state of charge
of the battery (up to about 8 hours).
Procedure for charging your battery when it is flat or for starting the engine using another battery.
Practical information

224
Roof bars
The design of your vehicle requires the use
of roof bars that are tested and approved by
CITROËN, for your safety and to avoid damage
to the roof and tailgate.
Regardless of the type of loading equipment
to be transported on the roof (bicycle carrier,
ski carrier...), it is imperative that you add
transverse roof bars. Any securing or lashing to
components other than the roof bars is strictly
prohibited.
Recommendations
F Distribute your load evenly, avoiding overloading on one side.
F

A
rrange the heaviest part of the load as
close as possible to the roof.
F

A
nchor the load securely and draw
attention to it if any part of it is
overhanging.
F

D
rive gently, as the vehicle will be more
liable to the effects of side winds (vehicle
stability may be altered).
F

R
emove the roof bars as soon as they are
no longer needed. Maximum load that can be distributed
on the roof bars (for a loading height
not exceeding 40 cm; except bicycle
carrier): 80 kg.
If the height exceeds 40 cm, adapt your
speed to the profile of the road to avoid
damaging the roof bars and the fixings
on the roof.
Please refer to national legislation in
order to comply with the regulations
concerning the transportation of objects
which are longer than the vehicle.
Practical information

228
* To avoid any risk of jamming of the pedals:- e nsure that the mat is positioned and
secured correctly,
-

n
ever fit one mat on top of another.
accessories
"Comfort":
front and rear parking sensors, isotherm
module, reading lamp, sun blinds, headrest-
mounted coat hanger...
"Transport solutions":
boot liner, boot carpet, towbars, towbar wiring
harness, transverse roof bars, bicycle carrier,
ski carrier, roof boxes, boot dividers, boot net,
boot organiser, sliding boot tray, platform on
towbar, ...
"Style":
alloy wheels, rear spoiler, chromed mirror
shells, door sill protectors, gear lever knobs...
"Security and safety":
anti-intrusion alarm, warning triangle and
high visibility vest, breathalyzer, first aid kit,
snow chains, non-skid covers, security wheel
bolts, vehicle tracking system, child seats, fire
extinguisher, caravan mirror, pet cage and seat
belt, dog guard...
"Protection":
mats*, seat covers, mud flaps, bumper
protectors, vehicle covers, door and boot sill
protectors...
A wide range of accessories and genuine parts is available from the CITROËN dealer network.
These accessories and parts are all suitable for your vehicle and benefit from CITROËN's recommendation and warranty.
Practical information

335
Parking brake .............................. 100, 101, 241
Parking brake, electric .......................... 2 7, 101
Parking sensors, rear.................................. 137
Parking space sensor

................................13

5
Particle filter
........................................2

38, 240
Passenger compartment filter
.................... 23

9
Player, CD MP3

...............................
.... 295, 319
Port, USB

..................... 8
8, 298, 299, 320, 322
Priming the fuel system

..............................18

7
Programmable heating (Webasto) ................77
Protecting children

.......................16

2, 168 -182
Puncture
................

...................................... 188
S
Safety for children ........................16 2, 168 -182
Screen, colour and mapping...............263, 302
Screen menu map

...................... 3
02, 326, 327
Screen, monochrome C

........3
4, 316, 326, 327
Screen, colour
............................................... 37
S

creenwash fluid level
................................23

8
Screenwash, front
....................................... 1

51
Screen-wash reservoir
............................... 23

8
Seat adjustment

...............................
.......58, 59
Seat belts
..................................... 16

0 -162, 174
Seats, rear
..................................................... 65
S

ecurity bolts
...................................... 19

4, 197
Serial number, vehicle

................................25

6
Service indicator
..................................... 2

1, 22
Servicing
...............................

.................. 13, 22
Setting the clock

.....................................3
6, 38
Short-cut menus

..............................
...........264 Sidelamps
...........................1

42, 199, 203, 205
Side repeater
..............................
................
19 9
Ski flap
..............................
............................
90
Snow chains
................................................ 19
8
S no
W
M
oT
I
o
n
..........................................
15
7
Spare wheel
...............................
.........
192, 197
Speed limiter
...............................
................
128
Speedometer
..............................
..................
15
Starting the engine
.......................................
97
S
teering mounted controls.................. 262, 315
Steering wheel, fixed centred controls
.......
12
6
Stopping the vehicle
.....................................
97
St
op & Start
.............................. 1
9, 72, 76, 121,
183, 216, 231, 239
Storage compartments
................................. 88
S
toring driving positions
...............................
61
S
towing rings .............................. ..................
91
Sunroof ................ ....................................55, 56
Sun visor
....................................................... 86
S

uspension, electronic control
...................14

0
Switching off the engine

...............................97
S

ynchronising the remote control
.................42
S

ynthesiser, voice
.......................................2

76
System, navigation ...................................... 265
Replacing the passenger compartment

filter
........
...................................................
239
Replacing wiper blades............................... 153
Resetting the service indicator
.....................
2
2
Resetting the trip recorder
............................
25
R
ev counter
...................................................
15
R
eversing camera
...............................
........
13 9
Reversing lamp
...................................2
03, 205
Risk areas (update)
.....................................
2
70
Roof bars
..................................................... 2
24
Routine checks
....................................
2
3 9 - 2 41
Running out of fuel (Diesel)
........................
18
7R
Radio ...............
.................................... 291, 317
Reading lamps, rear ...................................... 83
R
ear demisting
........................................ 6
9, 73
Recharging the battery

........................21

7, 218
Regeneration of the particle filter

...............24

0
Reinitialising the electric windows

................48
R

einitialising the remote control
...................42
R

einitialising the sunroof
..............................55
R

emote control
........................................ 3

9-43
Removable screen (snow shield)................ 226
Removing a wheel

..............................
........19 4
Removing the mat

...............................
.......... 87
Repair kit, puncture

..................................... 18

8
Replacing bulbs
..............................

....19 9 -209
Replacing fuses
..............................

.....210 -215
Replacing the air filter

.................................23

9
Replacing the oil filter

.................................23

9
T
Table of weights ...................243, 244, 247-251
Tables of engines ............................... . 242, 245
Tables of fuses

............................................ 2

10
Tank, fuel

...............................
......................18 4
Technical data
...................................... 2

42-256
.
alphabetical index
