headlamp Citroen C5 RHD 2015 (RD/TD) / 2.G User Guide

99
Do not flick the accelerator at the
moment of switching off the ignition.
This could cause serious damage to the
turbocharger(s).
Vehicles equipped with a
turbocharger
Never stop the engine without having allowed it
to run for a few seconds at idle, this being the
time required for the turbocharger to return to a
normal speed.Energy economy mode
After switching off the engine (position 1- Stop),
for a maximum of 30 minutes you can still use
functions such as the audio and telematic
system, the wipers, dipped beam headlamps,
courtesy lamps, ...
Switching off the engine
F Stop the vehicle.
F W ith the engine running at idle, turn the key
to position 1 .
F

R
emove the key from the ignition switch.
F

T
o lock the steering column, turn the
steering until it locks.
When you leave the vehicle, keep the
key with you and lock the vehicle. To facilitate unlocking of the steering
column, it is recommended that the
wheels be returned to the straight ahead
position before switching off the engine.
Never switch off the ignition before the
vehicle is at a complete stop. With the
engine off, the braking and steering
assistance systems are also cut off: risk
of loss of control of the vehicle. For more information, refer to the
"Practical information" section, under
"Energy economy mode".
F

C
heck that the parking brake is correctly
applied, particularly on sloping ground.
Key left in the "Ignition on"
position
On opening the driver's door, an alert
message is displayed, accompanied
by an audible signal, to remind you that
the key is still in the ignition switch at
position 1 (Stop) .
If the key has been left in the ignition
switch at position 2 (Ignition on) ,
the ignition will be switched off
automatically after one hour.
To switch the ignition back on, turn the
key to position 1 (Stop) , then back to
position 2 (Ignition on) .
4
Driving

142
Exterior lighting controls
Main lighting
The various front and rear lamps of the
vehicle are designed to adapt the driver's
visibility progressively in relation to the climatic
conditions:
-
s
idelamps, to be seen,
-

d
ipped beam headlamps to see without
dazzling other drivers,
-

m
ain beam headlamps to see clearly when
the road is clear.
Additional lighting
Other lamps are fitted to fulfil the requirements
of particular driving conditions:
-

a r
ear foglamp to be seen from a distance,
-

f
ront foglamps for even better for ward
vision,
-

d
irectional headlamps for improved
visibility when cornering,
-

d
aytime running lamps to be seen during
the day.
Settings
Various automatic lighting control modes are
also available depending on options:
-

d
aytime running lamps,
-

a
utomatic illumination of headlamps,
-
d

irectional lighting,
-

g
uide-me-home lighting.In some weather conditions (e.g. low
temperature or humidity), the presence
of misting on the internal sur face of the
glass of the headlamps and rear lamps
is normal; it disappears after the lamps
have been on for a few minutes.
Control stalk for the selection and control of the various front and rear lamps providing the vehicle's lighting.
Visibility

143
Manual controls
Lamps off.
Automatic illumination of headlamps.
Sidelamps.Dipped headlamps or main
beam headlamps.
B.
S

talk for switching headlamps: pull
the stalk towards you to switch the
lighting between dipped and main beam
headlamps.
In the lamps off and sidelamps modes, the
driver can switch on the main beam headlamps
temporarily ("headlamp flash") by maintaining a
pull on the stalk.
Displays
The lighting is controlled directly by the driver
by means of the ring A and the stalk B .A.
M

ain lighting mode selection ring: turn it
to position the symbol required facing the
mark.
C.
F
oglamps selection ring.
The foglamps operate with the sidelamps and
the dipped and main beam headlamps. Illumination of the corresponding indicator
lamp in the instrument panel confirms that the
lighting selected is on.
5
Visibility

144

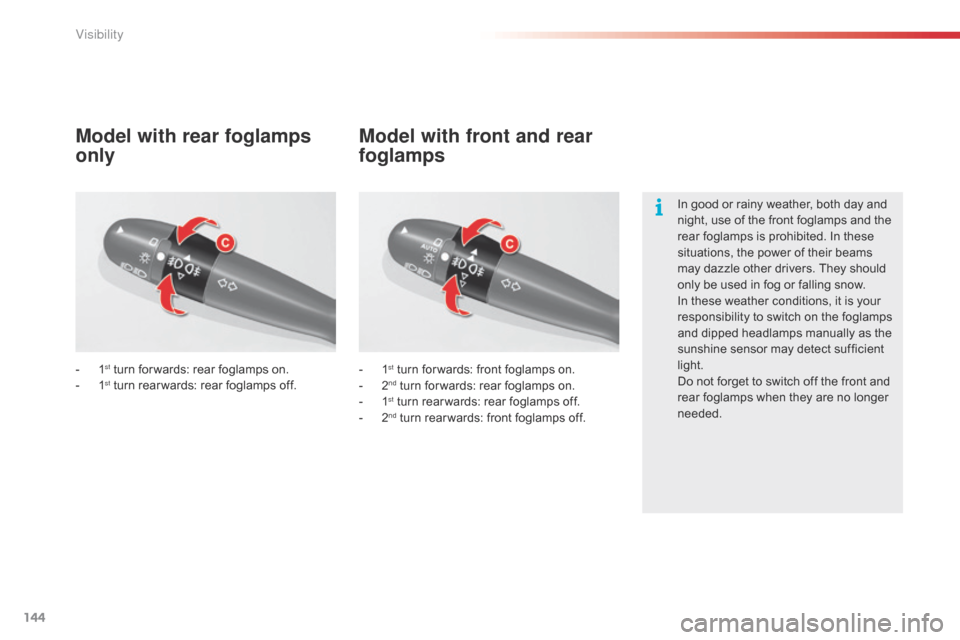

- 1st turn for wards: rear foglamps on.
-
1st turn rear wards: rear foglamps off. - 1st turn for wards: front foglamps on.
-
2nd turn for wards: rear foglamps on.
-
1st turn rear wards: rear foglamps off.
-
2nd turn rear wards: front foglamps off.
Model with rear foglamps
only Model with front and rear
foglamps
In good or rainy weather, both day and
night, use of the front foglamps and the
rear foglamps is prohibited. In these
situations, the power of their beams
may dazzle other drivers. They should
only be used in fog or falling snow.
In these weather conditions, it is your
responsibility to switch on the foglamps
and dipped headlamps manually as the
sunshine sensor may detect sufficient
light.
Do not forget to switch off the front and
rear foglamps when they are no longer
needed.
Visibility

145
Lighting left on
When a front door is opened with the
ignition off and in manual lighting mode,
an audible signal warns the driver if the
vehicle's lighting is still on.
In this case, switching off the lighting
stops the audible signal.
With the ignition off, if the dipped
headlamps remain on, they will switch
off automatically after thirty minutes to
prevent discharging of the battery.* According to country.
Daytime-running lampsManual guide-me-home
lighting
Switching on
F With the ignition off, "flash" the headlamps
using the lighting stalk.
F

A f
urther "headlamp flash" switches the
function off.
Switching off
The manual guide-me-home lighting switches
off automatically after a set time.
System which switches on special lamps at the
front, to make the vehicle more visible by day.
They light up automatically and permanently,
when the engine is running, if:
-

T

he function is activated* in the "Main
Menu" of the instrument panel screen.
-
T

he lighting control is at position

0
or AUTO .
-

A

ll the headlamps are off.
You can deactivate* this function using the
"Main Menu" of the instrument panel screen. The temporary illumination of the dipped beam
headlamps after the vehicle's ignition has been
switched off makes the driver's exit easier
when the light is poor.
5
Visibility

146
Linked with the automatic
"Guide-me-home" lighting
The link with the automatic illumination of
headlamps provides the "guide-me-home"
lighting with the following additional options:
-
s
election of the duration of lighting for 15,
30 or 60 seconds in the vehicle
parameters on the instrument panel screen
configuration menu,
-

a
utomatic activation of "guide-me-home"
lighting when automatic illumination of
headlamps is in operation.
Operating fault
In the event of a fault with the sunshine
sensor, the lighting comes on and a
message appears in the instrument panel
screen, accompanied by an audible signal.
Contact a CITROËN dealer or a qualified
workshop.
Automatic illumination of headlamps
Activation
F Turn ring A to the "AUTO" position. The automatic
illumination of headlamps is accompanied by a
message in the instrument panel screen.
Deactivation
F Turn ring A to a position other than "AUTO" .
Deactivation is accompanied by a message
in the instrument panel screen.
The sidelamps and dipped beam headlamps are
switched on automatically, without any action on
the part of the driver, when a low level of external
light is detected or in certain cases of activation of
the windscreen wipers.
As soon as the brightness returns to a sufficient
level or after the windscreen wipers are switched
off, the lamps are switched off automatically.
In fog or snow, the sunshine sensor
may detect sufficient light. Therefore,
the lighting will not come on
automatically.
do n
ot cover the sunshine sensor,
linked with the rain sensor and located
in the centre of the windscreen behind
the rear view mirror; the associated
functions would no longer operate.
Visibility

147
Manual headlamp
adjustment
To avoid dazzling other road users, the height
of the halogen bulb headlamps must be
adjusted according to the load in the vehicle.
0.

1 o
r 2 people in the front seats.
-.

3 p
eople.
1.

5 p
eople.
-.

I
ntermediate setting.
2.

5 p
eople + maximum authorised loads.
-.

I
ntermediate setting.
3.

D
river + maximum authorised loads.
Automatic adjustment of directional
headlamps
The system then places your headlamps in the
lowest position. If a fault occurs, this warning lamp
comes on in the instrument panel,
accompanied by an audible signal
and a message in the instrument
panel screen.
Initial setting is position "0" .To avoid causing a nuisance to other road
users, this system corrects the height of the
xenon headlamp beams automatically and
when stationary, depending on the load in
the

vehicle. Do not touch the xenon bulbs. Contact
a CITROËN dealer or a qualified
workshop.
Travelling abroad
If planning to use your vehicle in a
country that drives on the other side
of the road, we recommend that
you contact a CITROËN dealer or a
qualified workshop to check whether
the headlamps need to be adjusted to
avoid dazzling on-coming drivers.
5
Visibility

148
Directional lighting
without cornering lightingwith cornering lighting
"Cornering lighting" function
Activation
This function is activated:
- w hen the direction indicator is activated,
-

f
rom a certain angle of rotation of the
steering wheel.
Deactivation
This function is deactivated:
- b elow a certain angle of rotation of the
steering wheel,
-

w
hen stationary or at very low speed,
-

w
hen reverse gear is engaged,
-

w
hen the directional headlamps are
switched off.
With dipped or main beams, this function
provides additional lighting for the inside of a
bend, when the vehicle speed is below 25 mph
(approx 40 km/h).
This lighting is most useful when travelling at
low and medium speed (urban driving, winding
road, intersections, parking manoeuvres...).
Visibility

149
Programming
The function is activated or deactivated via the
instrument panel screen "Main Menu".
To do this, select " Vehicle parameters \
Lighting \ Directional headlamps".
Operating fault
If a fault occurs, this warning lamp
flashes in the instrument panel,
accompanied by a message in the
multifunction screen.
Directional headlamps
function
When the dipped or main beam headlamps are
on, this function, associated with the "cornering
lighting" function, enables the light beam to
follow the direction of the road.
The use of this function, linked with the xenon
headlamps only, considerably improves the
quality of your lighting when cornering.
with directional lighting
without directional lighting
When stationary or moving at very low
speed or when reverse gear is engaged,
the function is inactive.
The status of the function remains in the
memory when the ignition is switched off.
Contact a CITROËN dealer or a qualified
workshop.
5
Visibility

151
Rear wiper (Tourer)
B. rear wiper selection ring:
park,
intermittent wipe,
wash-wipe (set duration).
If a significant accumulation of snow or
ice is present, or when using a tailgate
bicycle carrier, deactivate the automatic
rear wiper via the instrument panel
screen configuration menu.
Reverse gear
When reverse gear is engaged, the rear
wiper operates if the windscreen wipers are
operating.
Programming
The function is activated or deactivated via the
instrument panel screen configuration menu.
This function is activated by default.
Windscreen and headlamp
wash
F Pull the windscreen wiper stalk towards you. The windscreen wash then the
windscreen wipers operate for a fixed
period.
The headlamp washers only operate when
the
dipped beam headlamps are on .
5
Visibility
