CD changer Citroen C5 RHD 2015 (RD/TD) / 2.G Owner's Manual

34
Monochrome screen C
Displays in the screenControls
Displays according to context:
-
t ime
-
d

ate,
-

a
mbient temperature with air conditioning
(the value displayed flashes if there is a
risk of ice),
-

p
arking sensor information,
-

a
udio functions
-

a
lert messages. A.


a
c
cess to the "Main Menu"
B.
C

ancel the operation or return to the
previous display
C.
S

croll through the screen menus
C

onfirmation at the steering wheel
D.
C

onfirmation at the audio system control
panel
Selection of the type of
information displayed (Mode)
Successive presses on the end of the wiper
stalk or on the MODE button on the audio
equipment permit selection of the type of
information presented in the multifunction
screen (date or radio, CD, MP3 CD,
CD
changer).For safety reasons, it is recommended
that the driver does not operate the
controls while the vehicle is in motion.
Monitoring

91
Boot fittings (Saloon)
1. Boot floor (spare wheel storage).2. B oot lamp.
3. L ocation for 6 CD changer.
Luggage securing rings
F Use the 4 securing rings on the boot floor to secure your luggage.
For safety reasons in the event of sharp
braking, you are advised to place heavy objects
as far for ward in the boot as possible.
3
Ease of use and comfort

92
Boot fittings (Tourer)
1. Hook
F or shopping bags.
2.
T

o r c h
T

o recharge, return it to its storage
position.
3.
Sto

rage net 1. L
uggage-cover blind
(
see details on following page)
2.
L

uggage securing rings
U

se the 4 stowing rings provided on the
boot floor to secure your loads.
F

or safety reasons in the event of sharp
braking, you are advised to place heavy
objects as far for wards as possible.
3.
Hoo

ks
T

hese allow a cargo net to be fitted (see
details on following page). 1. B
oot lamp
2. 1 2 V accessories socket
(100 W maximum)
C

igarette lighter type 12 volt socket. It is
located on the rear right-hand trim.
3.
L

oading height control
Y

ou can change the height of the vehicle to
make loading or unloading easier.
4.
Hoo

k
F

or shopping bags.
5.
Sto

rage net or closed housing
L

ocation for the 6 CD changer.
Ease of use and comfort

127

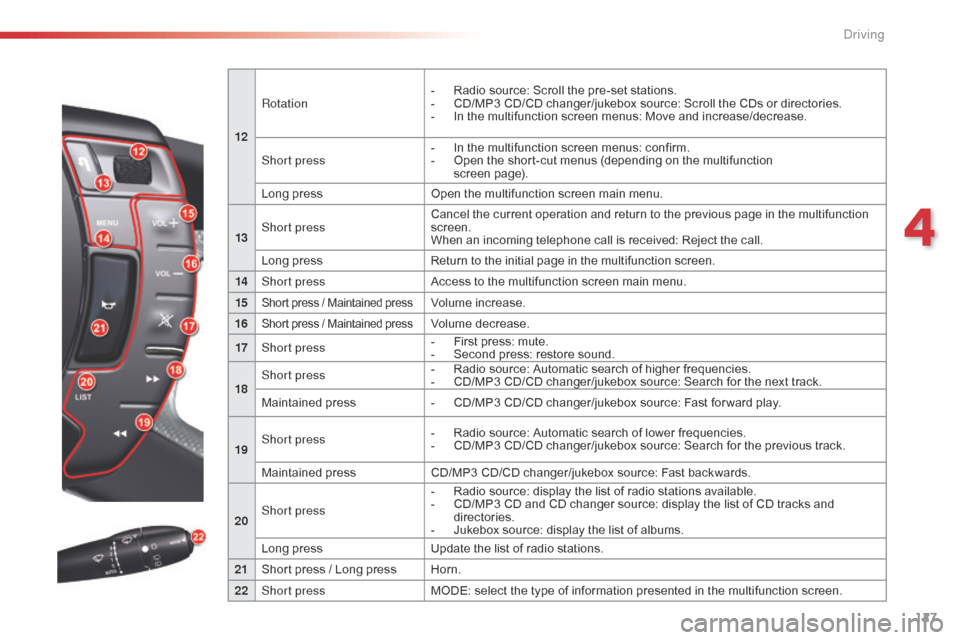

12Rotation
-
R
adio source: Scroll the pre-set stations.
-
C
D/MP3 CD/CD changer/jukebox source: Scroll the CDs or directories.
-
I
n the multifunction screen menus: Move and increase/decrease.
Short press -
I n the multifunction screen menus: confirm.
-

O
pen the short-cut menus (depending on the multifunction
screen page).
Long press Open the multifunction screen main menu.
13 Short press Cancel the current operation and return to the previous page in the multifunction
screen.
When an incoming telephone call is received: Reject the call.
Long press Return to the initial page in the multifunction screen.
14 Short press Access to the multifunction screen main menu.
15
Short press / Maintained pressVolume increase.
16
Short press / Maintained pressVolume decrease.
17 Short press -

F
irst press: mute.
-

S
econd press: restore sound.
18 Short press
-

R
adio source: Automatic search of higher frequencies.
-

C
D/MP3 CD/CD changer/jukebox source: Search for the next track.
Maintained press -

C
D/MP3 CD/CD changer/jukebox source: Fast for ward play.
19 Short press
-

R
adio source: Automatic search of lower frequencies.
-

C
D/MP3 CD/CD changer/jukebox source: Search for the previous track.
Maintained press CD/MP3 CD/CD changer/jukebox source: Fast backwards.
20 Short press -

R
adio source: display the list of radio stations available.
-

C
D/MP3 CD and CD changer source: display the list of CD tracks and
directories.
-

J
ukebox source: display the list of albums.
Long press Update the list of radio stations.
21 Short press / Long press Horn.
22 Short press MODE: select the type of information presented in the multifunction screen.
4
Driving

213
Fusebox C
Fuse N°Rating Function
F1 15 ARear screen wipe (Tourer)
F2 30 ALocking and deadlocking relay
F3 5 AAirbags
F4 10 AAutomatic gearbox - additional heater unit (Diesel) - electrochrome rear view mirror
F5 30 AFront window - sunroof - passenger door lighting - passenger door mirror adjustment
F6 30 ARear window
F7 5 AVanity mirror lighting - Glove box lighting - interior lamps - torch (tourer)
F8 20 ARadio - CD changer - Steering mounted controls - Screen - Under-inflation detection - Electric boot ECU
F9 30 ACigarette lighter - front 12 V socket
F10 15 AAlarm - Steering mounted controls, signalling and wiper controls
F11 15 ALow current ignition switch
F12 15 ADriver’s electric seat - instrument panel - seat belt not fastened warning lamps - air conditioning controls
F13 5 AEngine relay unit - Hydraulic suspension pump cut-off relay - airbag ECU supply
F14 15 ARain and sunshine sensor - parking sensors - passenger’s electric seat - trailer relay unit - HIFI amplifier ECU -
Bluetooth system - Lane Departure Warning System
F15 30 ALocking and deadlocking relay
F17 40 AHeated rear screen - Heated door mirrors
FSH SHUNTPARK SHUNT
8
Practical information
