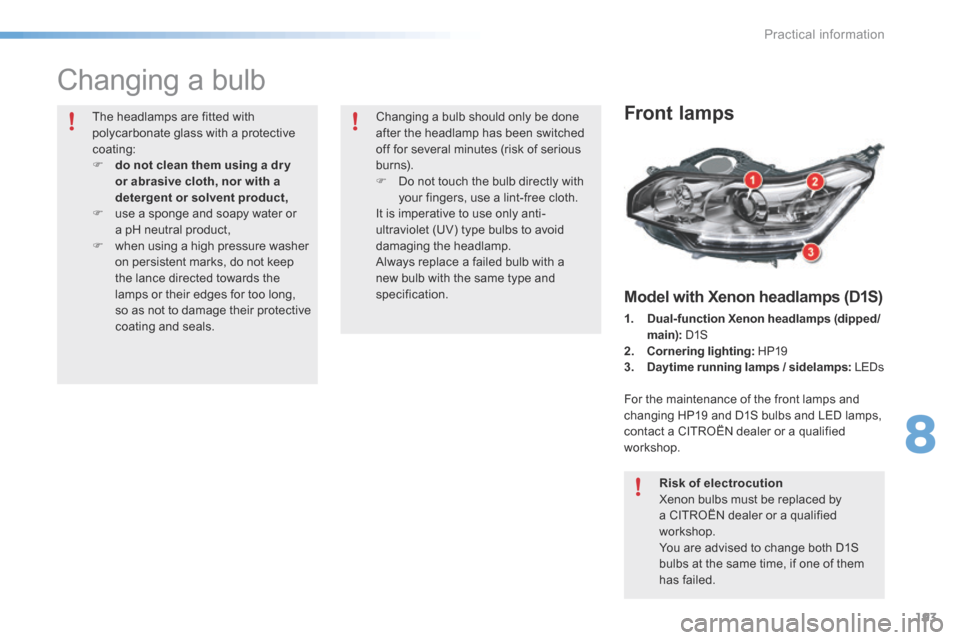

Changing a bulb
Front lamps
Model with Xenon headlamps (D1S)
1. Dual-function Xenon headlamps (dipped/
main): D1S
2. Cornering lighting: HP19
3. Daytime running lamps / sidelamps: LEd s
For the maintenance of the front lamps and
changing HP19 and D1S bulbs and LED lamps,
contact a CITROËN dealer or a qualified
workshop.
Risk of electrocution
Xenon bulbs must be replaced by
a CITROËN dealer or a qualified
workshop.
You are advised to change both D1S
bulbs at the same time, if one of them
has failed.
The headlamps are fitted with
polycarbonate glass with a protective
coating:
F
do not clean them using a dr y
or abrasive cloth, nor with a
detergent or solvent product,
F use a sponge and soapy water or
a pH neutral product,
F when using a high pressure washer
on persistent marks, do not keep
the lance directed towards the
lamps or their edges for too long,
so as not to damage their protective
coating and seals. Changing a bulb should only be done
after the headlamp has been switched
off for several minutes (risk of serious
burns).
F
Do not touch the bulb directly with
your fingers, use a lint-free cloth.
It is imperative to use only anti-
ultraviolet (UV) type bulbs to avoid
damaging the headlamp.
Always replace a failed bulb with a
new bulb with the same type and
specification.
8
Practical information

194
Dipped beam headlamps
F Remove the protective cap B .
F Disconnect the connector by pressing it
between the thumb and index finger.
F Free the bulb from its two metal clamps.
F Take out the bulb.
F Replace the bulb, exerting a slight axial
force.
F Refit the connector, until it is all the way in.
F Refit the protective cap B .
Main beam headlamps
F Remove the protective cap A .
F Disengage the retaining spring.
F Remove the bulb and replace it, paying
attention to the direction of fitting.
F Refit the retaining spring.
F Refit the protective cap A .
Model with halogen headlamps
1. Main beams: H1
2. Dipped beams: H7
3. Directional lighting: H7
4. Daytime running lamps / sidelamps: LEd s
For the maintenance of the front lamps and
changing LED lamps, contact a CITROËN
dealer or a qualified workshop.
Practical information

195
Directional lamp
F Remove the protective cap C .
F Disconnect the connector by pressing it
between the thumb and index finger.
F Free the bulb from its two metal clamps.
F Take out the bulb.
F Replace the bulb, exerting a slight axial
force.
F Refit the connector, until it is all the way in.
F Refit the protective cap C .
Direction indicators
Bulbs: HP24
F Remove the fixing screw of cover A using a
torx tool, tip the cover over and remove.
F Remove the fixing screw of lamp B using
a torx tool, then pull the lamp to remove it
from the bumper.
F d etach the bulb C by pressing on bars 1
and 2 .
F Disconnect the connector (pull whilst
pressing on the grey tongue using a flat
screwdriver).
F Replace the bulb. F
Refit the connector (push the grey tongue
in well).
F Refit the headlamp unit in the bumper.
F Refit the lamp screws.
F Position the cover using its guides and refit
the screws.
8
Practical information

196
Side repeaters
The side repeater is sealed.
If the bulb is faulty, replace the side repeater.
Contact a CITROËN dealer or a qualified
workshop.
Front foglamps
Bulbs: H8
F Remove the fixing screw of cover A using a
torx tool, tip the cover over and remove.
F Remove the fixing screw of lamp B using a
torx tool, then pull on the lamp to remove it
from the bumper. F d
isconnect the connector D .
F Remove the bulb by per forming a quarter
of a turn.
F Replace the bulb.
F Refit the connector D .
F Refit the headlamp unit in the bumper.
F Refit the lamp screws.
F Position the cover using its guides and refit
the screws. When refitting, take care not to trap
the electrical
wiring.
Practical information

208
Fuses under the bonnet
Access to the fuses
F Undo each screw by a quarter of a turn.
F Remove the cover.
F Replace the fuse. Fuse N°
Rating Function
F1 20 AEngine control unit
F2 15 AHorn
F3 10 AScreen wash pump
F4 10 AHeadlamp wash pump
F5 15 AStarter
F6 10 AAir flow sensor - Directional headlamps - Diagnostic socket
F7 10 AAutomatic gearbox selector lever lock - Power steering
F8 25 AStarter motor
F9 10 AClutch switch - Stop switch
F10 30 AActuator motors
F11 40 AAir conditioning blower
F12 30 AWipers
F13 40 ABSI supply (ignition on)
F14 30 A-
F15 10 ARight-hand main beam
F16 10 ALeft-hand main beam
F17 15 ARight-hand dipped beam
F18 15 ALeft-hand dipped beam
F19 15 AActuator motors
F20 10 AActuator motors
F21 5 AActuator motors
On completion, carefully refit the
cover to ensure correct sealing of
the fusebox.
Any work on the maxi-fuses (that
give additional protection), located
in the fuseboxes, must be left to
a CITROËN dealer or a qualified
workshop.
Table of fuses
Practical information

213
Energy economy mode
System which manages the duration of use of
certain functions to conserve a sufficient level
of charge in the battery.
After the engine has stopped, you can
still use functions such as the audio and
telematics system, windscreen wipers, dipped
beam headlamps, courtesy lamps, etc. for
a maximum combined duration of about
forty minutes.Switching to economy mode
A message then appears in the instrument
panel screen indicating that the vehicle has
switched to economy mode and the active
functions are put on standby.
If a telephone call is being made at this
time, it will be maintained for around
10 minutes with the Bluetooth hands-
free system of your audio system.
Exiting economy mode
These functions are reactivated automatically
next time the vehicle is driven.
In order to restore the use of these functions
immediately, start the engine and let it run:
- for less than ten minutes, to use the
equipment for approximately five minutes,
- for more than ten minutes, to use the
equipment for up to approximately
thirty minutes.
Let the engine run for the duration specified to
ensure that the battery charge is sufficient.
Do not repeatedly and continuously restart the
engine in order to charge the battery.
A flat battery prevents the engine from
starting (refer to the "Battery" section).
8
Practical information

225
The various caps and covers allow access for
checking fluid levels and for replacing certain
components.THP
Petrol engines
1. Screenwash and headlamp wash fluid
reservoir.
2. Power steering fluid reservoir
or
or power steering and Hydractive III +
suspension fluid reservoir.
3. Engine coolant header tank.
4. Engine oil dipstick.
5. Engine oil filler cap.
6. Brake fluid reservoir.
7. Battery.
8. Air filter.
9
Checks

226
Diesel engines
HDi 160
BlueHDi 150 / BlueHDi 180
The various caps and covers allow access
for checking fluid levels, for replacing certain
components and for priming the fuel system.
1.
Screenwash and headlamp wash fluid
reservoir.
2. Power steering fluid reservoir
or
power steering and Hydractive III +
suspension fluid reservoir.
3. Engine coolant header tank.
4. Engine oil dipstick.
5. Engine oil filler cap.
6. Air filter.
7. Brake fluid reservoir.
8. Battery.
The Diesel fuel system operates under
high pressure:
- Never carry out any work on this
system yourself.
- HDi engines make use of advanced
technology.
All maintenance and repairs require
specially trained staff, which only a
CITROËN dealer can provide.
Checks

230
Diesel additive level
(Diesel engine with
particle filter)
To p p i n g u p
This additive must be topped up by a CITROËN
dealer or a qualified workshop without delay.
Used products
A low additive level is indicated by
illumination of this warning lamp,
accompanied by an audible warning
and a message in the instrument
panel screen.
Screenwash and headlamp
wash fluid
In the case of vehicles fitted with
headlamp washers, the low fluid level
is indicated by an audible signal and
a message in the screen.
Fluid specification
For optimum cleaning and to avoid freezing,
this fluid must not be topped up with or
replaced with plain water.
Reservoir capacity (depending on version).
- screenwash fluid: approximately 3.5 litres,
- screenwash and headlamp wash fluid:
approximately 6.15 litres.
Top up the reservoir when you next stop
the vehicle.
Avoid prolonged contact of used oil or
fluids with the skin.
Most of these fluids are harmful to
health or indeed very corrosive.
Do not discard used oil or fluids into
sewers or onto the ground.
Take used oil to a CITROËN dealer or
a qualified workshop (France) or to an
authorised waste disposal site.
Checks

333
ABS and EBFD systems ...............................150
a ccessories .................................................. 221
AdBlue
® ......................................................... 234
Additive, AdBlue .............................. 32, 234, 238
Adjusting headlamps .................................... 141
Adjusting head restraints ........................................... 64, 66, 71
Adjusting seat ........................................... 64, 65
Adjusting the air distribution .............................................. 76, 80
Adjusting the air flow .................................77, 81
Adjusting the date ..................................... 39, 44
Adjusting the height and reach of the steering wheel .................................... 68
Adjusting the seat belt height .......................................................... 15 4
Adjusting the temperature ........................75, 80
Adjusting the time ..................................... 39, 44
Advice on driving ............................................ 96
Airbags .................................................... 35, 157
Airbags, curtain ...................................... 160 -161
Airbags, front ......................................... 158, 161
Airbags, lateral ...................................... 160, 161
Air conditioning ......................................... 12, 74
Air conditioning, digital ............................................................ 79
Air conditioning, mono-zone .................................................... 75
Air intake ................................................... 78, 81
a ir vents .................................................... 73, 74
Alarm ............................................................... 50
Anti-lock braking system (ABS) .............................................. 150
Anti-pinch ............................................ 53, 61, 63 Cable, audio
............................ 88, 282, 320, 321
Capacity, fuel tank ........................................ 17 7
Cap, fuel filler ................................................ 17 7
Cd ................................................................. 321
CD, MP3 ........................................................ 322
Central locking .......................................... 46, 55
Changing a bulb ..................................... 193 -203
Changing a fuse .................................... 204-209
Changing a wheel .................................. 18 5 -191
Changing a wiper blade ................................147
Changing the remote control battery ............................................... 48
CHEC k ............................................................ 20
Checking the engine oil level .................................................. 24, 227
Checking the levels .......................227, 229, 230
Checks ................................................... 2 2 5 - 2 41
Checks, routine ...................................... 231-233
Child lock ....................................................... 176
Children .......................................... 156, 162-176
Child seats ............................................ 16 2-175
Child seats, conventional ......................168, 169
Child seats, ISOFIX .......................172, 174, 175
CITR oËn Connect Box ............................... 2 51
A
B
C
battery ............................................ 210 -212, 231
Battery, charging ........................................... 212
Battery, remote control .............................48, 49
Blanking screen (snow shield) ............................................... 220
Blind, panoramic
sunroof .......................................................... 62
Blinds, side ...................................................... 90
b lue H di ................................................ 114, 234
Bluetooth (hands-free) ..........................300, 324
Bluetooth (telephone) ............................ 300, 324
b olts, wheel security ..................................... 188
b onnet ........................................................... 224
boot ........................................................... 58, 59
Boot (fittings) ............................................. 91, 92
Brake discs .................................................... 233
Brake lamps .......................................... 197, 19 9
Brakes ........................................................... 233
Anti-theft
......................................................... 97
Armrest, front .................................................. 88
Armrest, rear ................................................... 89
a ssistance call ...................................... 149, 251
Audible warning .................................... 121, 149
Audio streaming (Bluetooth) .......................................... 284, 323
Audio system ................................................. 315
Auxiliary .................................. 88, 282, 320, 321 Braking assistance
system ......................................................... 150
Bulbs (changing) .................................... 193 -203
.
alphabetical index
