Wing-mounted lamps
F Remove the lateral boot trim flap A . To do
so, pull it towards the inside of the boot,
then pull it upwards.
F d isconnect connector B .
F Unscrew the 2 fixings C .
F Remove the lamp from its housing. F
Detach the bulb holder D .
F Replace the failed bulb.
F Refit the bulb holder D .
F Place the lamp in its housing.
F Screw in the 2 fixings C .
F Refit connector B .
F Refit the side boot trim A .
For vehicles fitted with a Hi-Fi amplifier, on the
right hand side slacken the screw by a quarter
turn, then pull the boot side trim A up. You can use the wheelbrace to screw or
unscrew the fixings C
.
Practical information

199
Tailgate-mounted lamps
Rear lamps (Tourer)
Identify the failed bulb.
1. Brake lamps and sidelamps: P21W/5 W
2. Sidelamps: R5W
3. Reversing lamps: H21W
4. Foglamps: H21W
5. Direction indicators: PY21W F
Refit the bulb holder H ensuring that it is
correctly clipped in place.
F Position the lamp in its housing.
F Tighten the fixing nut G .
F Refit the connector F .
F Position and clip in place the plastic
cover E .
F
Open the boot.
F Using a flat screwdriver, remove the plastic
cover E .
F d isconnect the connector F .
F Unscrew the fixing nut G .
F Disengage the lamp from its housing.
F Unclip the bulb holder H .
F Replace the failed bulb.
You can use the wheelbrace to screw or
unscrew the fixing nut G.
8
Practical information

200
Wing-mounted lamps
F Pull away the flap in the boot side trim A .
To do this, pull it towards the middle of the
boot, then pull it up.
F d isconnect the connector B .
F Unscrew the fixing nut C .
F Remove the lamp from its housing. F
Detach the bulb holder D .
F Replace the faulty bulb.
F Refit the bulb holder D .
F Place the lamp in its housing.
F Screw in the fixing nut C .
F Refit the connector B .
F Refit the side boot trim A .
For vehicles fitted with a Hi-Fi amplifier, on the
right hand side slacken the screw by a quarter
turn, then pull the boot side trim A up. You can use the wheelbrace to screw or
unscrew the fixing nut C
.
Practical information

201

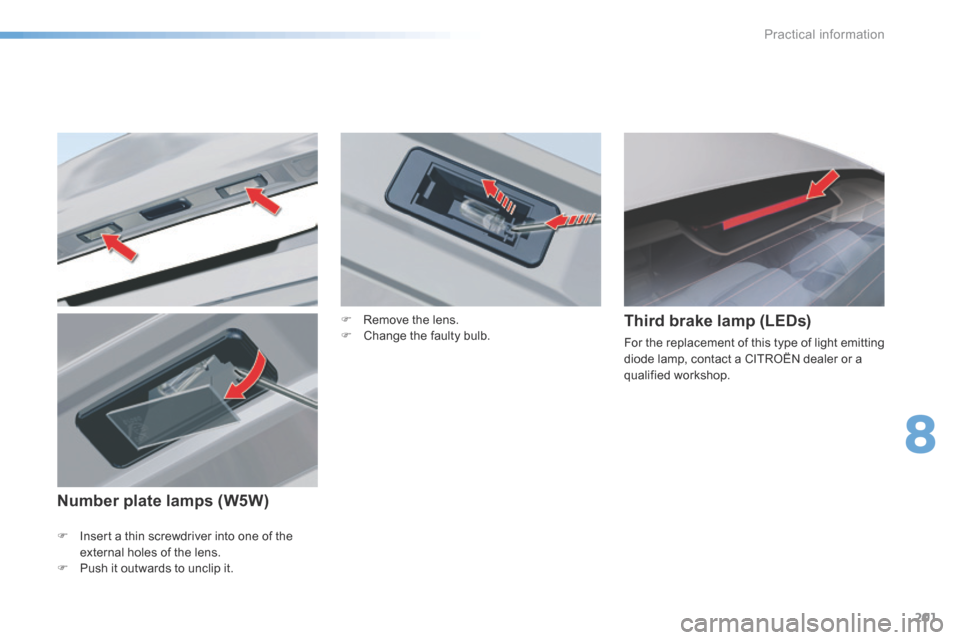

F Insert a thin screwdriver into one of the
external holes of the lens.
F Push it outwards to unclip it.
Third brake lamp (LEDs)
For the replacement of this type of light emitting
diode lamp, contact a CITROËN dealer or a
qualified workshop.
F
Remove the lens.
F Change the faulty bulb.
Number plate lamps (W5W)
8
Practical information

202
Interior lamps
Courtesy lamps
Bulb: W5W
F Unclip the transparent cover of the roof
lamp to reach the bulb.
Rear reading lamps (Tourer)
Bulb: W5W
F Detach the cover of the reading lamp to
access the bulb.
Map reading lamps
Bulb: W5W
F Detach the cover.
F If necessary, detach the partition of the
affected map reading lamp.
Boot lamp
Bulb: W5W
F Detach the lamp cover for access to the
bulb.
Practical information

203
Door aperture lamps
Bulb: W5W
F Detach the lamp cover for access to the
bulb.
Footwell lighting
Bulb: W5W
F Detach the lamp cover for access to the
bulb.
Glove box
Bulb: W5W
F Detach the lamp cover for access to the
bulb.
8
Practical information

222
"Multimedia":
Wi-Fi on board, 230V socket, audio systems,
speakers, semi-integral navigation systems,
portable navigation systems, hands-free kit,
DVD player, USB Box, mapping update CD,
driving aid, Hi-Fi module...The fitting of electrical equipment or
accessories which are not recommended
by CITROËN may result in a failure of
your vehicle's electronic system and
excessive electrical consumption.
Contact a CITROËN dealer
for information on the range of
recommended equipment and
accessories.
Installation of radio
communication transmitters
Before installing any after-market radio
communication transmitter, you can
contact a CITROËN dealer for the
specification of transmitters which can
be fitted (frequency, maximum power,
aerial position, specific installation
requirements), in line with the Vehicle
Electromagnetic Compatibility
Directive (2004/104/EC). Depending on the legislation in force in
the country, certain safety equipment
may be compulsory: high visibility
safety vests, warning triangles,
breathalyzers, spare bulbs, spare fuses,
fire extinguisher, first aid kit, mud flaps
at the rear of the vehicle.
